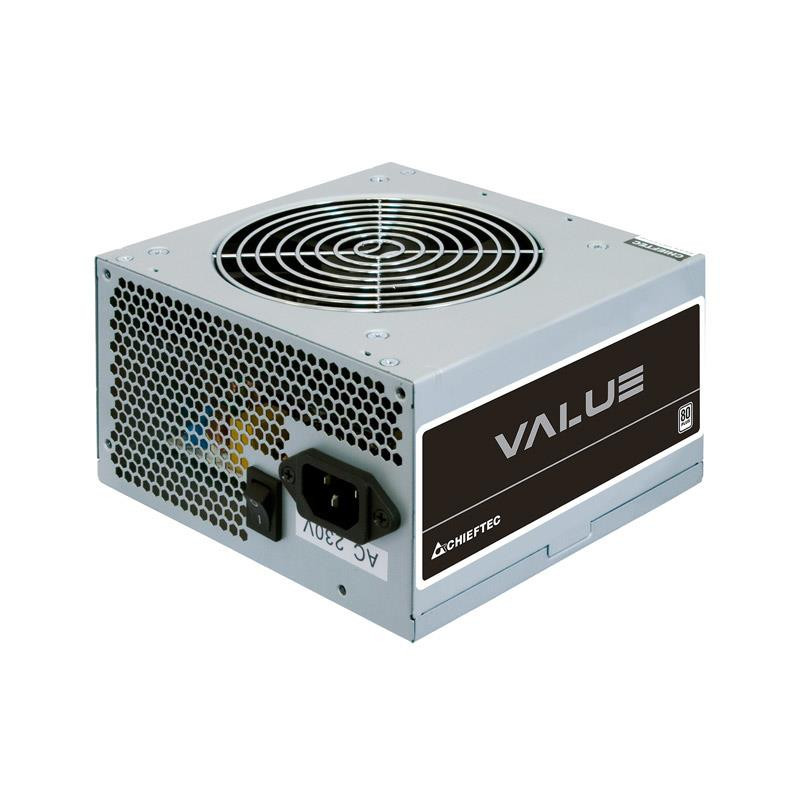

Power Supply, CHIEFTEC, 400 Watts, PFC Active, APB-400B8
Product reference: 2-4710713230552
  • −1%
Power Supply, CHIEFTEC, 400 Watts, PFC Active, APB-400B8

Power Supply, CHIEFTEC, 400 Watts, PFC Active, APB-400B8

Product reference: 2-4710713230552
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
3138 €
31,70 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

The APB-400B8 of the VALUE SERIES offers both quality and 80 PLUS® 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it's the VALUE choice!

  • 80PLUS 230V EU

Summary Chieftec Value APB-400B8. Total power: 400 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 150,350 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS. Product colour: Silver, Fan diameter: 12 cm, Number of fans: 1 fan(s). Certification: 80PLUS 230V EU
Vendor Homepage https://www.chieftec.eu/products-detail/181/VALUE_SERIES/249/APB-400B8
Unit Box Height 0.16
Unit Box Length 0.18
Unit Box Width 0.09
AC input frequency 47 - 63 Hz
AC input voltage 200 - 240 V
Combined power (+12V) 360 W
Combined power (+3.3V) 100 W
Combined power (+5V) 100 W
Combined power (+5Vsb) 12.5 W
Combined power (-12V) 3.6 W
Input current 3 A
Max output current (+12V) 30 A
Max output current (+3.3V) 17 A
Max output current (+5V) 16 A
Max output current (+5Vsb) 2.5 A
Max output current (-12V) 0.3 A
Power factor 0.9
Power Factor Correction (PFC) type Active
Power protection features Over voltage/Overload/Short circuit/Under voltage
Total power 400 W
Cabling type Non-Modular
CPU power cable length 350 mm
CPU power connector (4+4 pin) Yes
EPS power connector (4+4 pin) Yes
Floppy disk drive connector Yes
Floppy drive power connector 1
Motherboard power cable length 350 mm
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 3
PCI Express power cable length 350 mm
PCI Express power connectors (6+2 pin) 1
Peripheral (Molex) power cable length 150/350 mm
Peripheral (Molex) power connectors (4-pin) 2
SATA power cable length 150/350 mm
80 PLUS certification 80 PLUS
ATX version 2.3
Power supply unit (PSU) form factor PS/2
Purpose PC/Server
Fan diameter 120 mm
Number of fans 1 fan(s)
Product colour Silver
Certification 80PLUS 230V EU
Depth 150 mm
Height 87 mm
Width 140 mm
Harmonized System (HS) code 84733020
Units per Shipping Box 10
Unit Calculated Volume 0.004825 cubm
Unit Calculated Weight 1.28 kg
