Exceptional efficiency for Gamers

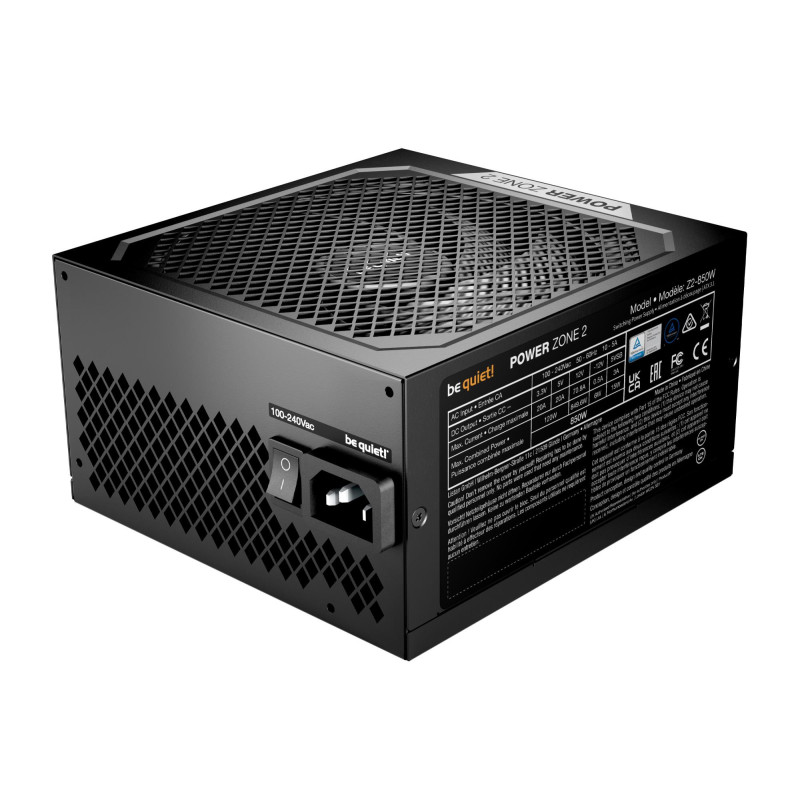

Power Zone 2 850W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.
PLATINUM CERTIFIED
Highly efficient operation
Power Zone 2 850W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.1%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.
SEMI-PASSIVE ZERO-RPM COOLING
Enjoy the silence

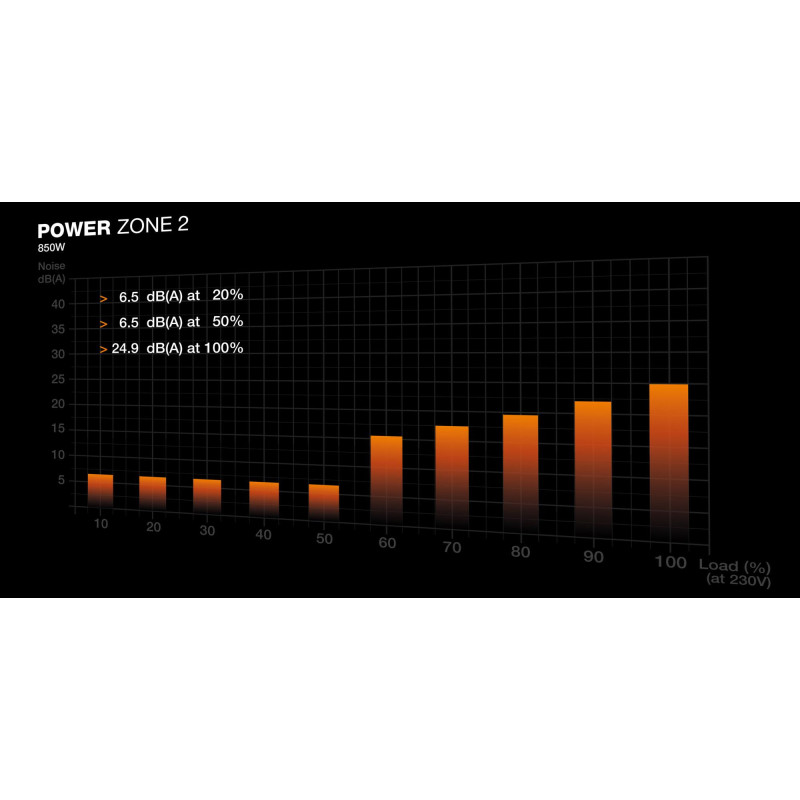

A large Pure Wings 3 140mm fan is keeping Power Zone 2 850W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.
PURE WINGS 3 FAN
Specially designed for Power Zone 2
No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 850W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.
FUTURE-PROOF YOUR SYSTEM

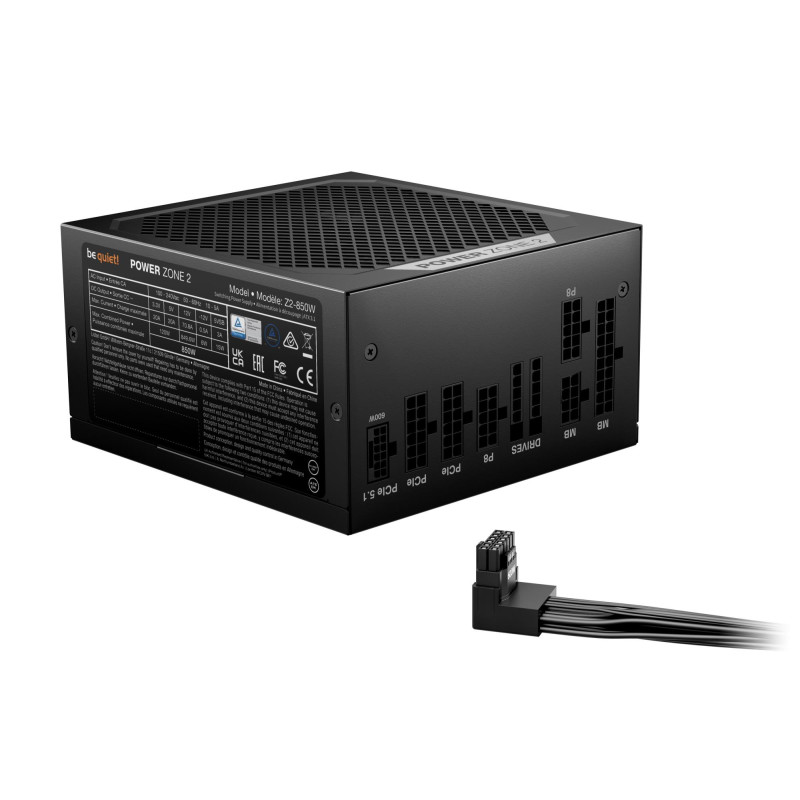

With 90° angled 12V-2x6 connector in scope of delivery
Power Zone 2 850W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 850W extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Power Zone 2 offers 850W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 850W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
HIGH-CLASS TECHNOLOGIES
All packed in a stunning design

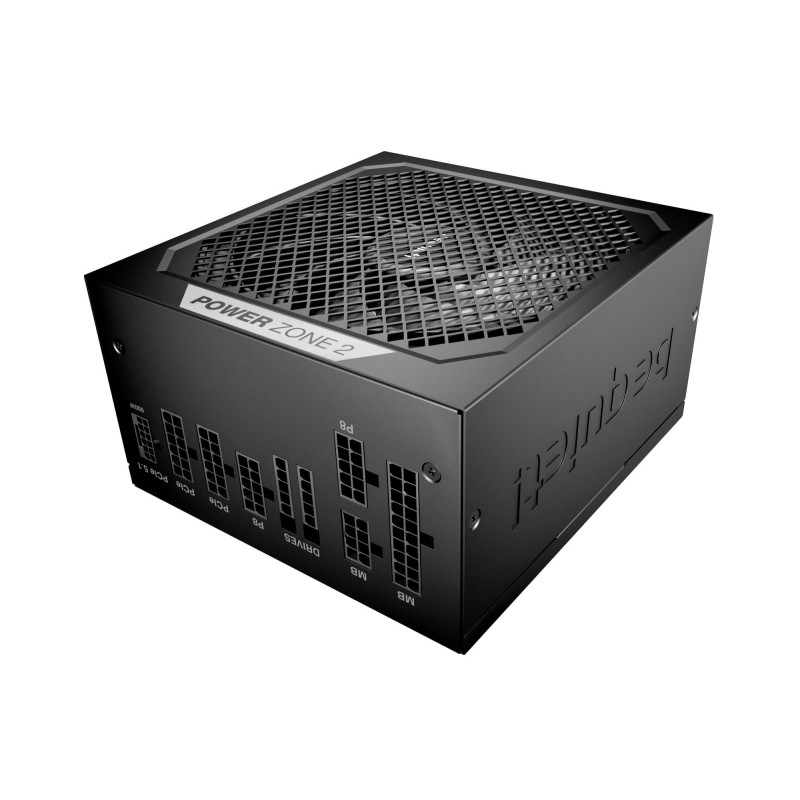

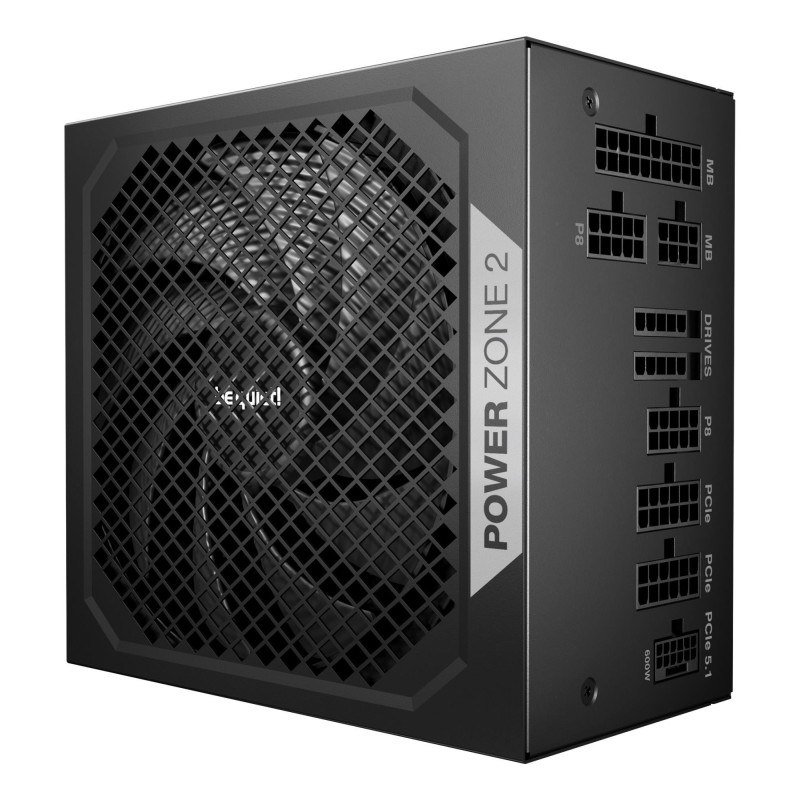

With its LLC topology, the Power Zone 2 850W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 850W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU's case for a long-lasting impression and an unparalleled look and feel.
| 12 V bėgelių skaičius | 1 |
| AC įėjimo dažnis | 50/60 Hz |
| AC įėjimo įtampa | 100 - 240 V |
| Atitikties sertifikatai | BSMI/CB/CCC/CE/Federalinė ryšių komisija (FCC)/RCM/RoHS/TÜV mark/UKCA/WEEE |
| Atitiktis direktyvai (EEĮ) dėl elektrinės ir elektroninės įrangos atliekų | Taip |
| ATX versija | 3.1 |
| Aukštis | 86 mm |
| Aušinimo padengimo tipas | Įsriegiama |
| Aušinimo tipas | Aktyvus |
| Bendroji galia | 850 W |
| Bruto svoris | 3.55 kg |
| CPU maitinimo jungtis (4 + 4 kaisčiai) | Taip |
| CPU maitinimo laido ilgis | 700 mm |
| CPU P4 jungtis (4 kontaktai) | 1 |
| Darbo santykinės drėgmės diapazonas | 0 - 85 % |
| Darbo temperatūros diapazonas (TT) | 0 - 40 °C |
| Didžiausia išėjimo įtampa (+12 V) | 70.8 A |
| Didžiausia išėjimo įtampa (+12 VSB) | 3 A |
| Didžiausia išėjimo įtampa (+3,3 V) | 20 A |
| Didžiausia išėjimo įtampa (+5 V) | 20 A |
| Didžiausia išėjimo įtampa (-12 V) | 0.5 A |
| Didžiausia įėjimo srovė (esant 110 V) | 10 A |
| Didžiausia įėjimo srovė (esant 220 V) | 5 A |
| Didžiausioji galia | 920 W |
| Efektyvumas | 92.3 % |
| EPS maitinimo jungtis (8-kaisčiai) | Taip |
| EPS versija | 2.92 |
| Gabenimo (vidinės) dėžės bendrasis svoris | 19260 g |
| Galios koeficientas | 0.98 |
| Gaminių skaičius gabenimo (vidinėje) dėžėje | 6 vnt |
| Garso lygis | 24.9 dB |
| Ilgis | 160 mm |
| Instrukcija | Taip |
| Kompleksinė galia (+12 V) | 849.6 W |
| Kompleksinė galia (+3,3 V) | 120 W |
| Kompleksinė galia (+5 VSB) | 15 W |
| Kompleksinė galia (+5V) | 120 W |
| Kompleksinė galia (-12 V) | 6 W |
| Laikymo laikas | 21.1 ms |
| Maitinimo apsaugos ypatybės | Apsauga nuo per didelės įtampos/Apsauga nuo perkaitimo/Minimaliosios įtampos apsauga/Surge & inrush/Trumpasis jungimas/Viršijus galią/Viršijus nuolatinę srovę |
| Maitinimo bloko (PSU) formos koeficientas | ATX |
| Model | BP007EU |
| Model name | POWER ZONE 2 |
| Motininės plokštės maitinimo jungtis | 20+4 pin ATX |

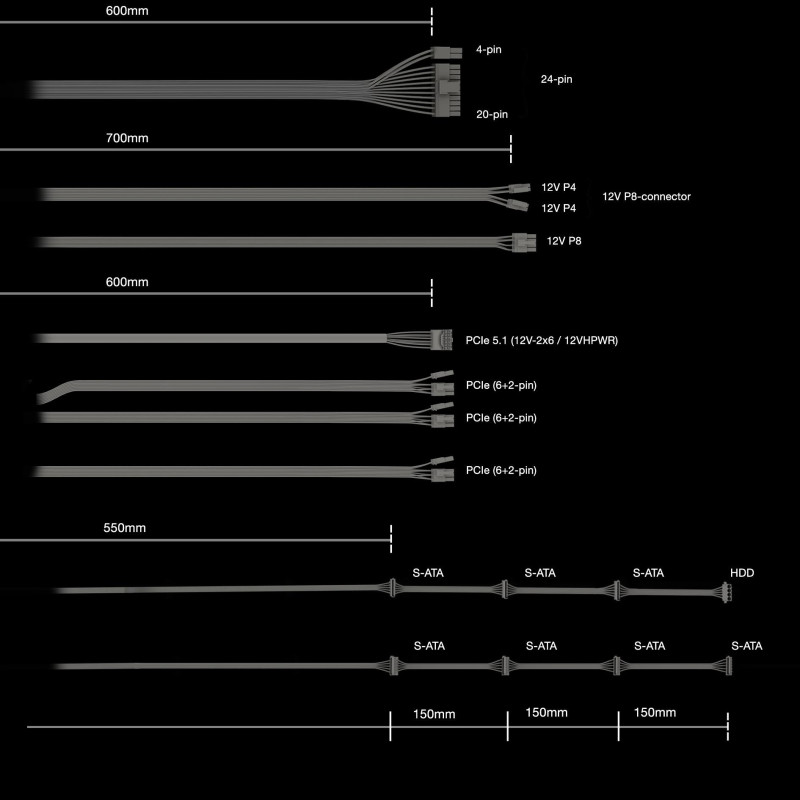

| Motininės plokštės maitinimo kabelio ilgis | 600 mm |
| Naudojimo innstrukcijos kalbos | Anglų kalba/Ispanų kalba/Lenkų kalba/Prancūzų kalba/Rusų kalba/Ukrainiečių/Vokiečių kalba |
| Neto svoris | 2 kg |
| On/off mygtukas | Taip |
| Paketo svoris | 3210 g |
| Pakuotės aukštis | 102 mm |
| Pakuotės gylis | 328 mm |
| Pakuotės plotis | 248 mm |
| Pakuotės tipas | "Box" |
| Paskirtis | PC |
| PCI "Express" galia kabelio ilgis | 600 mm |
| PCI "Express" maitinimo jungtys (6 + 2 kontaktai) | 3 |

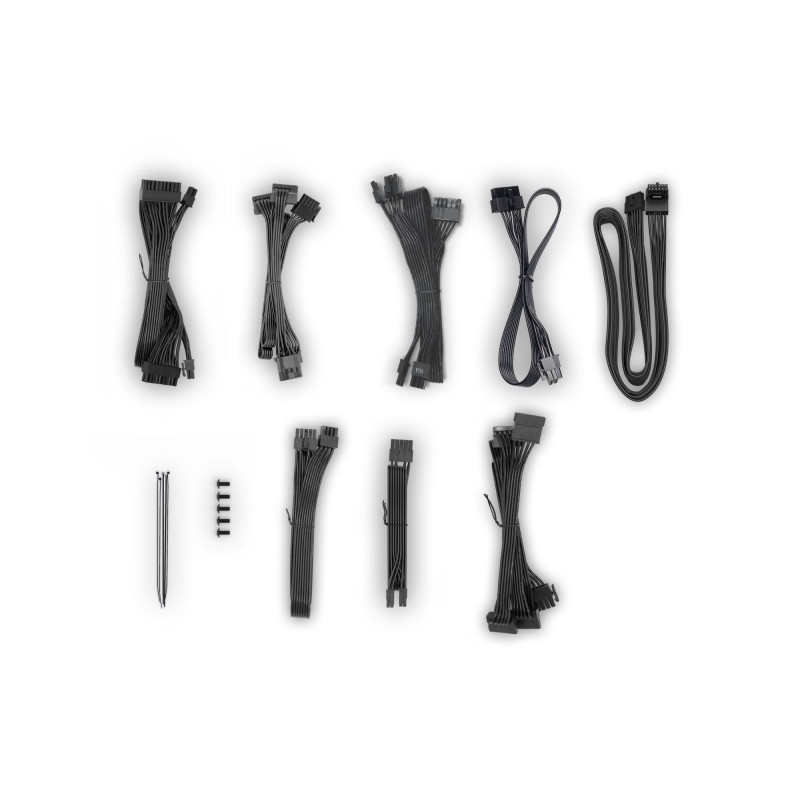

| Perdavimo laidu tipas | Visiškai modulinis |
| Periferinio ("Molex") maitinimo kabelio ilgis | 1000 mm |
| Periferinė (Molex) galios jungtis (4-pin) | 1 |
| Plotis | 150 mm |
| Pridedami kabelių tvirtinimo dirželiai | Taip |
| Pridėti sraigtai | Taip |
| Produkto spalva | Juoda |
| Sandėliavimo santykinis drėgmės diapazonas | 0 - 95 % |
| Sandėliavimo temperatūros norma (T-T) | -40 - 70 °C |
| SATA elektros jungčių skaičius | 7 |
| SATA maitinimo kabelio ilgis | 1000/550/700/850 mm |
| Sertifikatas 80 PLUS | 80 PLUS Platinum |
| Shipping Box Depth | 65 cm |
| Shipping Box Height | 35.5 cm |
| Shipping Box Weight | 21.3 kg |
| Shipping Box Width | 29 cm |
| Summary | be quiet! POWER ZONE 2 850W. Total power: 850 W, AC input voltage: 100 - 240 V, Peak power: 920 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE |
| Transportavimo kartono dėžės aukštis | 346 mm |
| Transportavimo kartono dėžės ilgis | 651 mm |
| Transportavimo kartono dėžės plotis | 282 mm |
| Tvarumo sertifikatai | ENERGY STAR/ErP/Triman |
| Unit Box Height | 0.25 |
| Unit Box Length | 0.1 |
| Unit Box Width | 0.33 |
| Unit Brutto Volume | 0.01115 cubm |
| Vendor Homepage | https://www.bequiet.com/en/powersupply/5584 |
| Ventiliatoriaus skersmuo | 140 mm |
| Ventiliatorių skaičius | 1 ventiliatorius(iai / ių) |
| Vidutinis laikas tarp trikčių (MTBF) | 100000 h |
| Vieneto aukštis | 25 cm |
| Vieneto gylis | 10 cm |
| Vieneto plotis | 33 cm |
| Vienetų skaičius vienoje siuntimo dėžėje | 6 |
| "PCI Express" maitinimo jungtys (16 kontaktų) | 1 |
