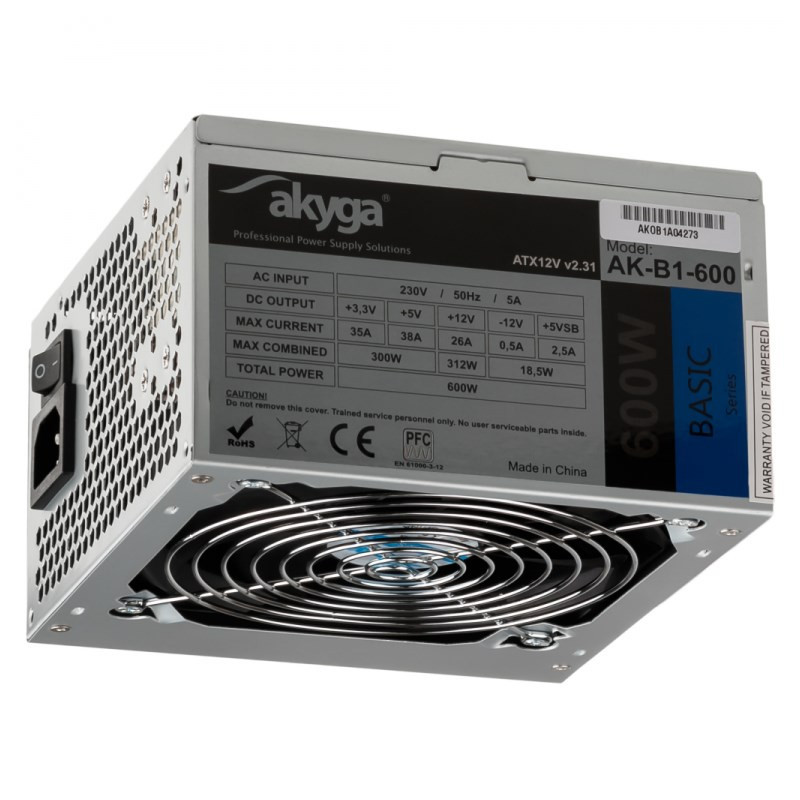

Power Supply - Akyga AK-B1 600 W 20+4 Pin ATX Gray
Product reference:
14-5901720130358
The Akyga AK-B1-600 power supply unit (PSU) with 600 W power provides 70% efficiency and various protection functions, including overvoltage, undervoltage, and short circuit protection.
Power Supply - Akyga AK-B1 600 W 20+4 Pin ATX Gray
Product reference:
14-5901720130358
The Akyga AK-B1-600 power supply unit (PSU) with 600 W power provides 70% efficiency and various protection functions, including overvoltage, undervoltage, and short circuit protection.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Power supply - Akyga AK-B1-600
Akyga AK-B1-600 is a compact 600 W power supply for computers, with a 20+4 pin ATX motherboard connector.
Main features
- Efficiency rating: 70%
- Power protection functions: overvoltage, undervoltage, overcurrent, short circuit protection, overpower
- Total power: 600 W
- Operating temperature range: 5-50 °C

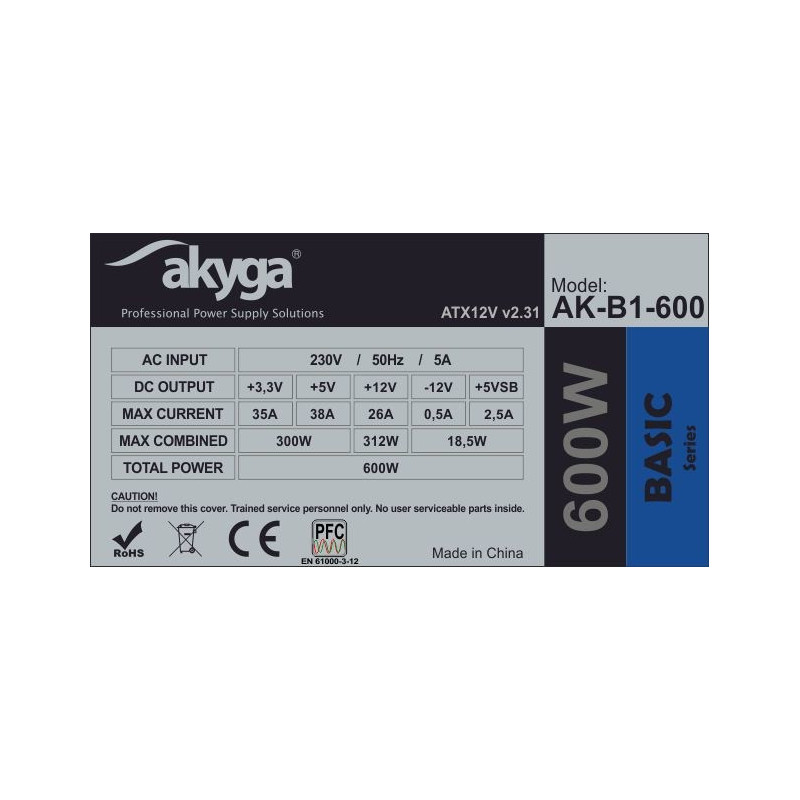

Technical data | |
|---|---|
| Sustainability certificates | RoHS |
Design | |
| Product color | Gray |
| Number of fans | 1 |
| Fan diameter | 12 cm |
Power | |
| Efficiency | 70% |
| Power protection functions | Over-power, short circuit protection, over-voltage, under-voltage, over-current |
| Total power | 600W |
| AC input voltage | 230V |
| Input current | 5 A |
| AC input frequency | 50Hz |
| Maximum output current (+3.3V) | 35 A |
| Connected power (+12V) | 312 W |
| Connected power (-12V) | 18.5W |
| Maximum output current (-12V) | 0.5A |
| Connected power (+5V) | 300W |
| Connected power (+5Vsb) | 18.5W |
| Maximum output current (+5V) | 38 A |
| Maximum output current (+12V) | 36 A |
| Connected power (+3.3V) | 300W |
| Maximum output current (+5Vsb) | 2.5A |
| Power factor correction (PFC) type | Passive |
Operating conditions | |
| Working temperature | 5 - 50 °C |
Weight and dimensions | |
| Depth | 140mm |
| Width | 150mm |
| Weight | 1.12 kg |
| Height | 87 mm |
Operation | |
| Mean Time Between Failures (MTBF) | 100000 hours |
| Power supply form | ATX |
| Purpose | PC |
| ATX version | 2.31 |
Packaging details | |
| Package width | 160mm |
| Package depth | 220mm |
| Package weight | 1.19 kg |
| Packaging type | Box |
| Package height | 95 mm |

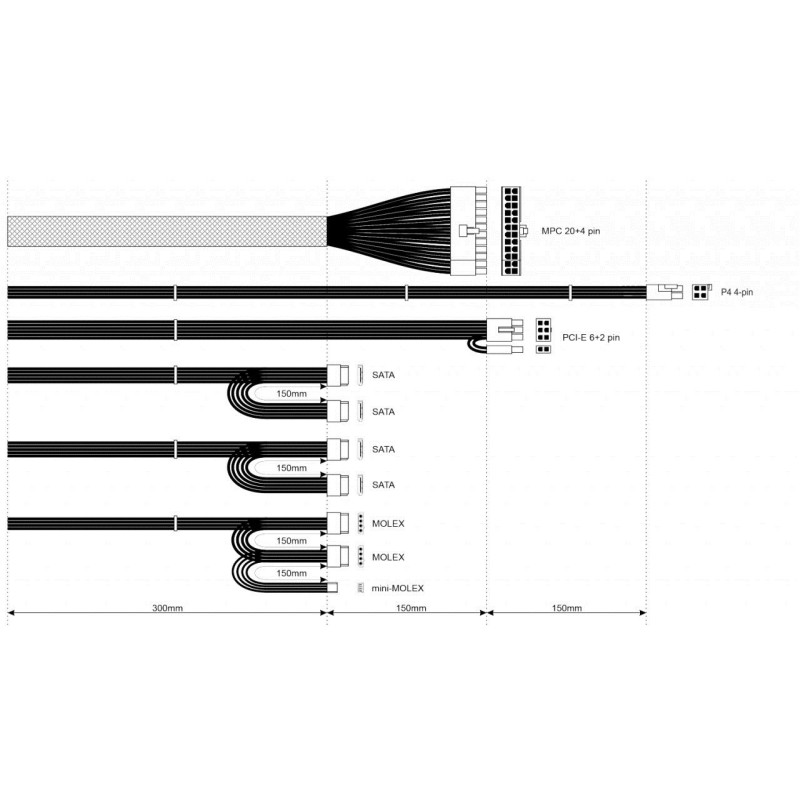

Ports and interfaces | |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | No |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Height | 160mm |
| Length | 220mm |
| Weight | 1323 grams |
| Width | 110 mm |
