Power Supply - Akyga AK-B1-500E 500 W 20+4 Pin, Gray

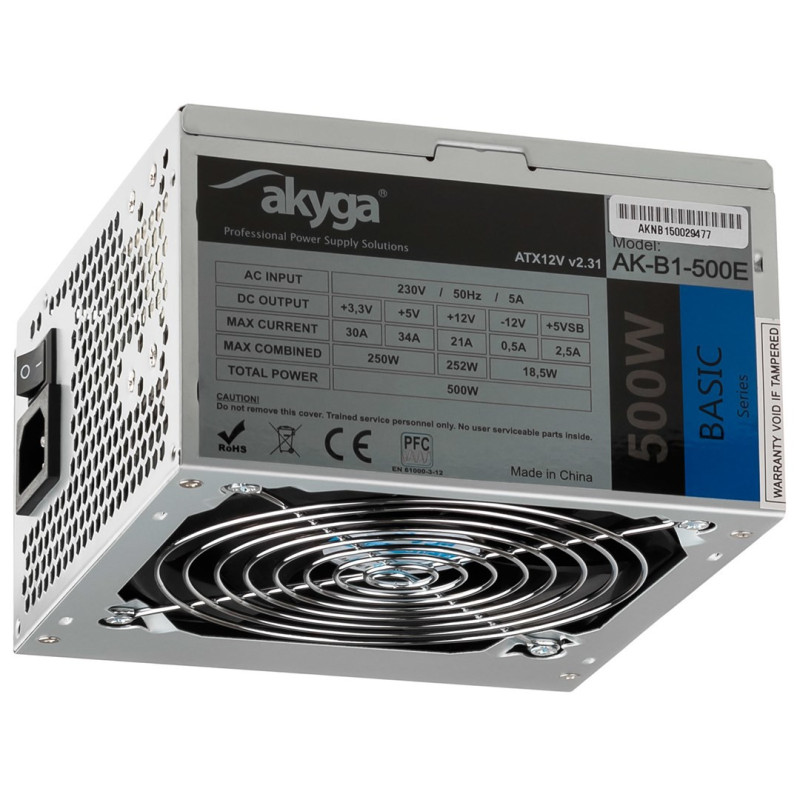

Akyga AK-B1-500E - powerful 500 W power supply unit for PC systems, supporting various motherboard formats.
Main features
- Total power: 500 W
- Voltage: 220 V AC
- Operating temperature: 5 - 50 °C
- MTBF: 100000 hours
Technical data | |
|---|---|
| Sustainability certificates | RoHS |
Design | |
| On/off switch | Yes |
| Product color | Gray |
| Fan diameter | 12 cm |
| Number of fans | 1 |
Power | |

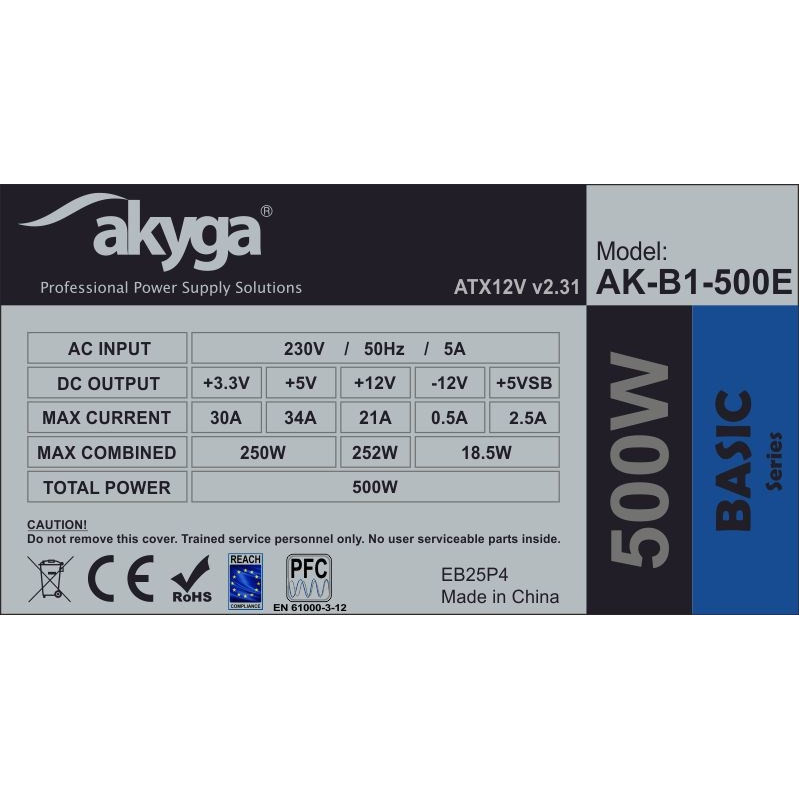

| Connected power (+5V) | 250W |
| Connected power (+3.3V) | 250W |
| Maximum output current (+3.3V) | 30 A |
| Total power | 500W |
| PFC type | Passive |
| Connected power (+12V) | 252 W |
| Maximum output current (+12V) | 21 A |
| Maximum output current (+5V) | 34 A |
| Input current | 5 A |
| AC input voltage | 220V |
Operating conditions | |
| Working temperature | 5 - 50 °C |
Weight and dimensions | |
| Width | 150mm |
| Weight | 1.01 kg |
| Height | 85 mm |
| Depth | 140mm |
Operation | |
| Form factor | ATX |
| ATX version | 2.31 |
| Purpose | PC |
| Supported formats | ATX |
| MTBF | 100,000 hours |
Packaging details | |
| Package width | 160mm |
| Instructions for use | Yes |
| Package depth | 220mm |
| Package weight | 1.09 kg |
| Packaging type | Box |
| Package height | 95 mm |
Package contents | |

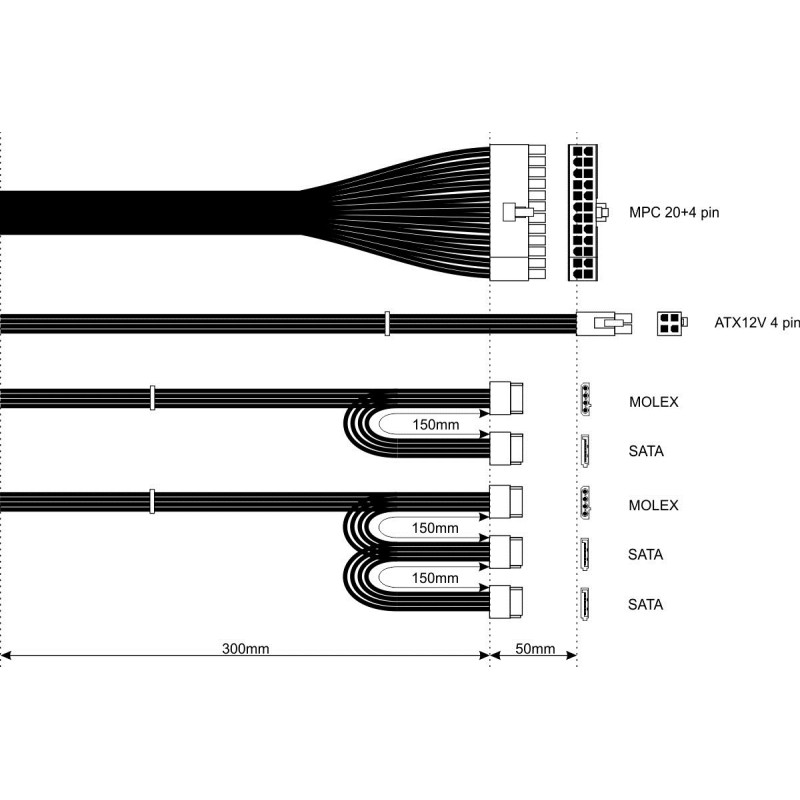

| Cables included | Peripheral (Molex) to SATA 3.3, SATA |
Ports and interfaces | |
| Peripheral (Molex) power switches (4-pin) | 2 |
| PCI Express power switches (6-pin) | 1 |
| EPS power switch (8-pin) | No |
| Motherboard power switch | 20+4 pin ATX |
| PCI Express power connectors (6+2 pin) | 1 |
| Number of SATA power switches | 3 |
| SATA power cable length | 300mm |
| Peripheral (Molex) power cable length | 300mm |
Other features | |
| Number of cables | 4 |
| Voltage tolerance | 70% |
| Fan control | Yes |
| Warranty card | Yes |
| Height | 95 mm |
| Length | 220mm |
| Weight | 1090g |
| Width | 160mm |
