Power Supply - Akyga AK-B1-500 500 W 20+4 Pin ATX Gray
Product reference:
14-5901720130334
500W power supply with 20+4-pin ATX connector and 70% efficiency rating, suitable for ATX systems. Active cooling with 12cm fan with 100,000 hours MTBF (mean time between failure).
Power Supply - Akyga AK-B1-500 500 W 20+4 Pin ATX Gray
Product reference:
14-5901720130334
500W power supply with 20+4-pin ATX connector and 70% efficiency rating, suitable for ATX systems. Active cooling with 12cm fan with 100,000 hours MTBF (mean time between failure).
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

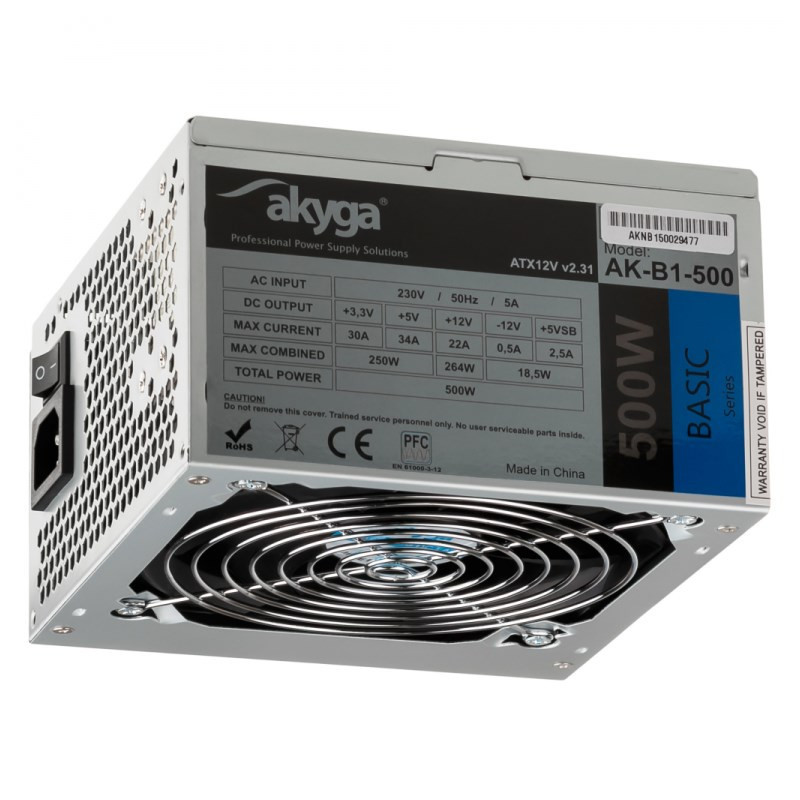

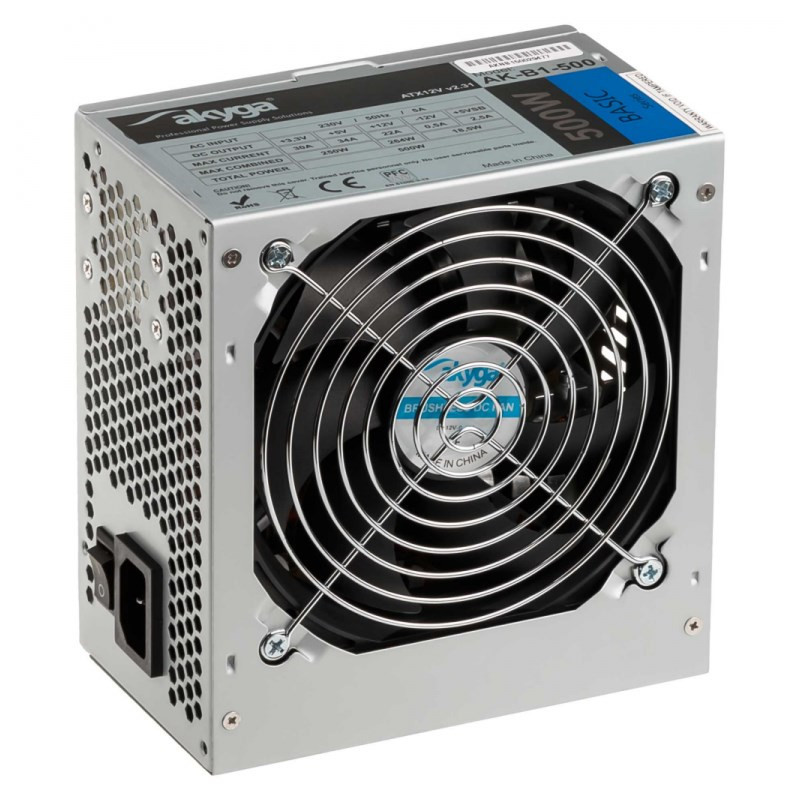

Akyga AK-B1-500 500W ATX power supply unit Gray
Akyga AK-B1-500 is a powerful 500W power supply with a 20+4-pin ATX connector. It is equipped with an active fan for efficient cooling and a 70% efficiency rating.
Main features:
- Power supply: 500 W
- Voltage range: 230 V
- Efficiency rating: 70%
Technical data | |
|---|---|
| Sustainability certificates | RoHS |
Design | |
| Product color | Gray |
| On/off switch | Yes |
| Fan diameter | 12 cm |
| Cooling type | Active |
| Fan location | Above |
| Number of fans | 1 |

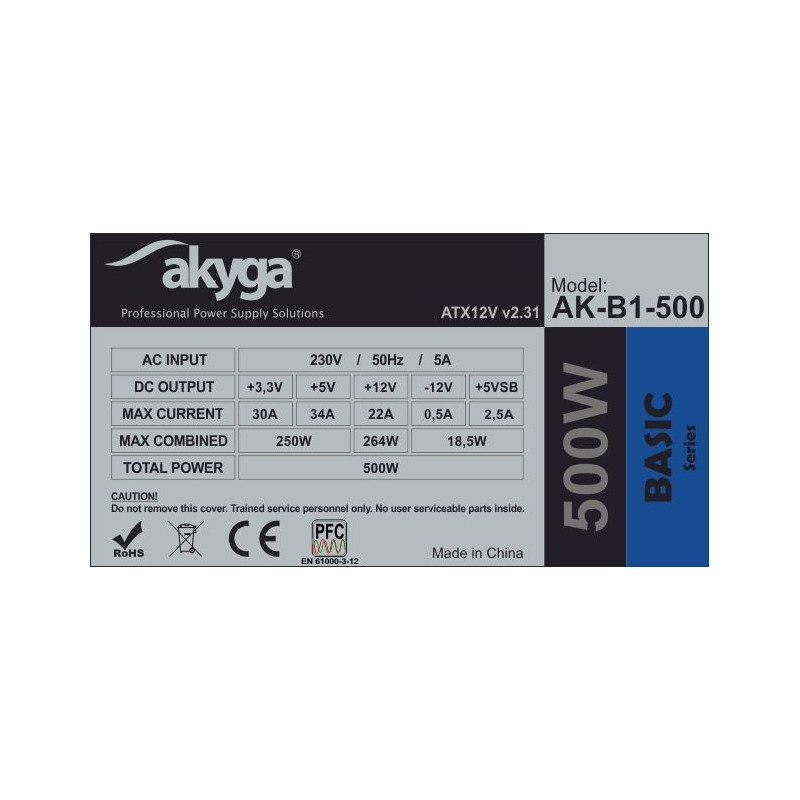

Power supply | |
| Shared catering (-12V) | 18.5W |
| Maximum output current (+3.3V) | 30 A |
| Input current | 5 A |
| Power protection functions | Overheating, Short circuit, Over voltage, Over power, Over current |
| Shared catering (+5V) | 250W |
| Shared catering (+3.3V) | 250W |
| Maximum output current (+12V) | 22 A |
| Shared catering (+12V) | 264W |
| Efficiency | 70% |
| Maximum output current (-12V) | 0.5A |
| Total power | 500W |
| Shared catering (+5Vsb) | 18.5W |
| Maximum power | 500W |
| Maximum output current (+5Vsb) | 2.5A |
| AC input voltage | 230V |
| Maximum output current (+5V) | 34 A |
Operating conditions | |
| Operating temperature (OT) | 5 - 50 °C |
Weight and dimensions | |
| Weight | 1.03 kg |
| Width | 150mm |
| Depth | 140mm |
| Height | 85 mm |
Operation | |
| Power supply unit (PSU) form factor | ATX |
| Mean Time Between Failures (MTBF) | 100000 hours |
| ATX version | 2.31 |
| Purpose | PC |
Packaging details | |
| Package weight | 1.1 kg |
| Package width | 160mm |
| Instructions for use | Yes |
| Package depth | 220mm |
| Packaging type | Box |
| Package height | 95 mm |

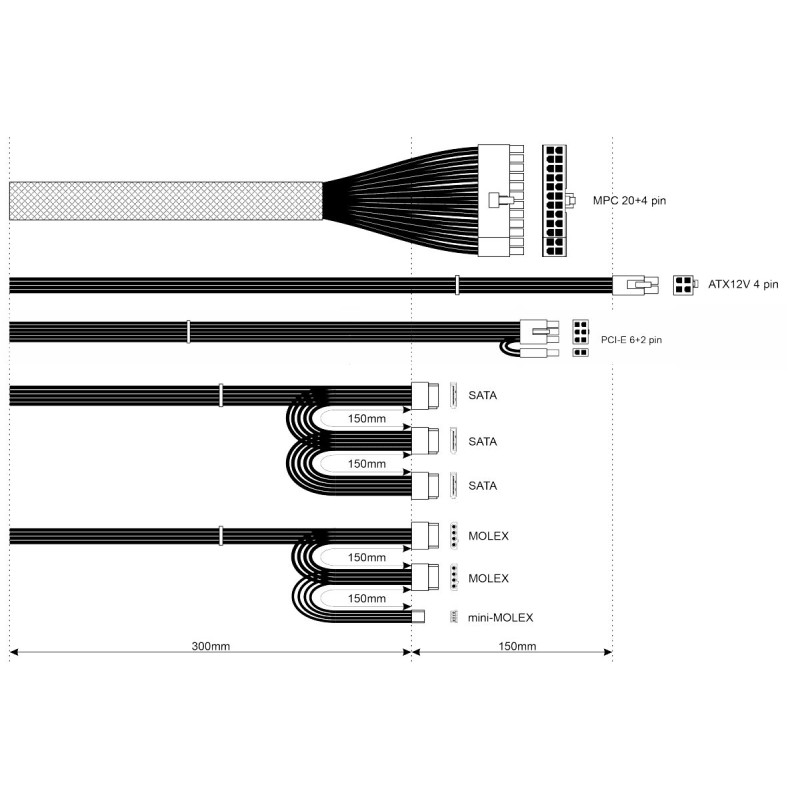

Ports and interfaces | |
| ATX power connector (20+4 contacts) | Yes |
| Peripheral (Molex) power connectors (4 pins) | 2 |
| Wire type | Non-modular |
| Processor power cable length | 45 cm |
| PCI Express power connectors (6+2 pins) | 1 |
| Number of SATA power connectors | 3 |
| Motherboard power connector | 20+4 contacts ATX |
| Processor P4 connector (4 pins) | 1 |
| SATA power cable length | 300mm |
| Peripheral (Molex) power cable length | 300mm |
Other features | |
| Warranty card | Yes |
| Height | 160mm |
| Length | 220mm |
| Weight | 1240 grams |
| Width | 101 mm |
