Power Supply - Aerocool Lux 550W 20+4 Pin, Black
Product reference:
14-4718009156234
The Aerocool LUX 550W power supply delivers 42A of current on the +12V line and 88% efficiency, with 80 PLUS Bronze certification and active PFC. Its 12 cm fan guarantees efficient cooling.
Power Supply - Aerocool Lux 550W 20+4 Pin, Black
Product reference:
14-4718009156234
The Aerocool LUX 550W power supply delivers 42A of current on the +12V line and 88% efficiency, with 80 PLUS Bronze certification and active PFC. Its 12 cm fan guarantees efficient cooling.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Aerocool Lux 550W 20+4 Pin Power Supply - Black
The Aerocool Lux is a high-end ATX power supply designed for demanding PC systems. With an elegant black finish and active cooling, it ensures efficient performance.
Main features:
- 550W total power and 88% efficiency
- 20+4 pin ATX, CPU power connector (4+4 pin) and 4x SATA power connectors
- Active cooling with 12 cm fan
- 80 PLUS Bronze certification
Design | |
|---|---|
| Cooling type | Active |
| Product color | Black |
| Number of fans | 1 fan |
| Fan diameter | 12 cm |

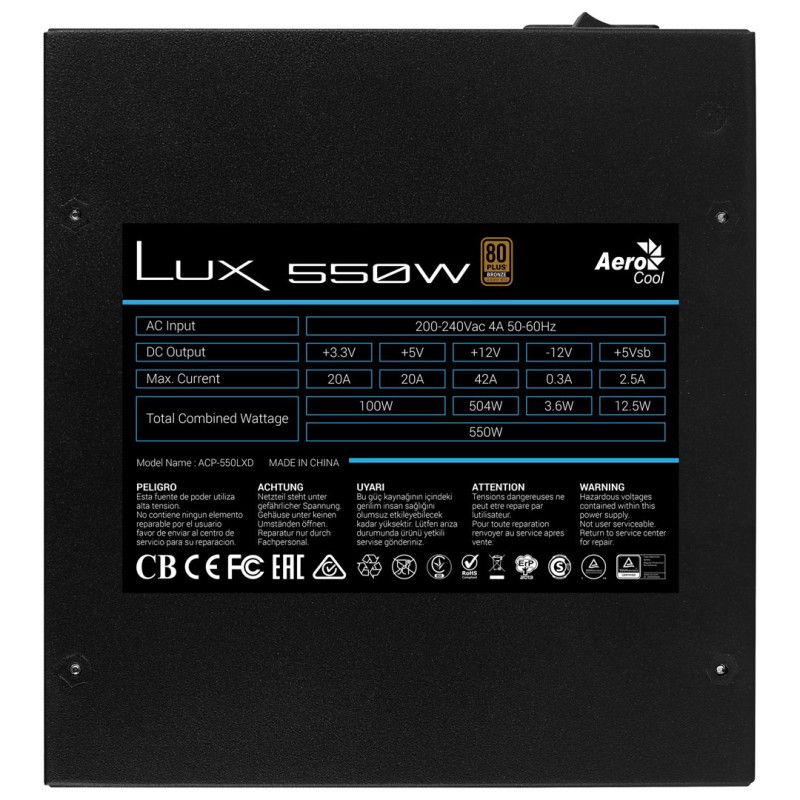

Power | |
| AC input frequency | 50 - 60 Hz |
| Input current | 4 A |
| AC input voltage | 220 - 240V |
| Max. output current (-12V) | 0.3A |
| Max. output current (+5V) | 20 A |
| Max. output current (+5Vsb) | 2.5A |
| Max. output current (+3.3V) | 20 A |
| Max. output current (+12V) | 42 A |
| Connected power (+5Vsb) | 12.5W |
| Connected power (+12V) | 504 W |
| Connected power (-12V) | 3.6W |
| Efficiency | 88% |
| Power factor | 0.9 |
| Connected power (+5V) | 100W |
| Total power | 550W |
| Connected power (+3.3V) | 100W |
| Power Factor Correction (PFC) Type | Active |
Operation | |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certificate | 80 PLUS Bronze |
| Purpose | PC |
| ATX version | 2.4 |
Packaging details | |
| Packaging type | Box |
| Packing depth | 195 mm |
| Cables included | AC |
| Packing width | 230mm |
| Packing height | 95 mm |
Ports and interfaces | |
| CPU power cable length | 55 cm |
| Motherboard power cable length | 50cm |
| Number of PATA power connectors | 2 |
| SATA power cable length | 550mm |
| PCI Express power cable length | 45 cm |
| PCI Express connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| PCI Express power connectors (6+2 pin) | 1 |
Other features | |
| Instructions for use | Yes |
Logistics data | |
| Length of the main (outer) housing | 495 mm |
| Height of the main (outer) housing | 215 mm |
| Width of the main (outer) housing | 250mm |
| Height | 150mm |
| Length | 90 mm |
| Weight | 1620 grams |
| Width | 200mm |
