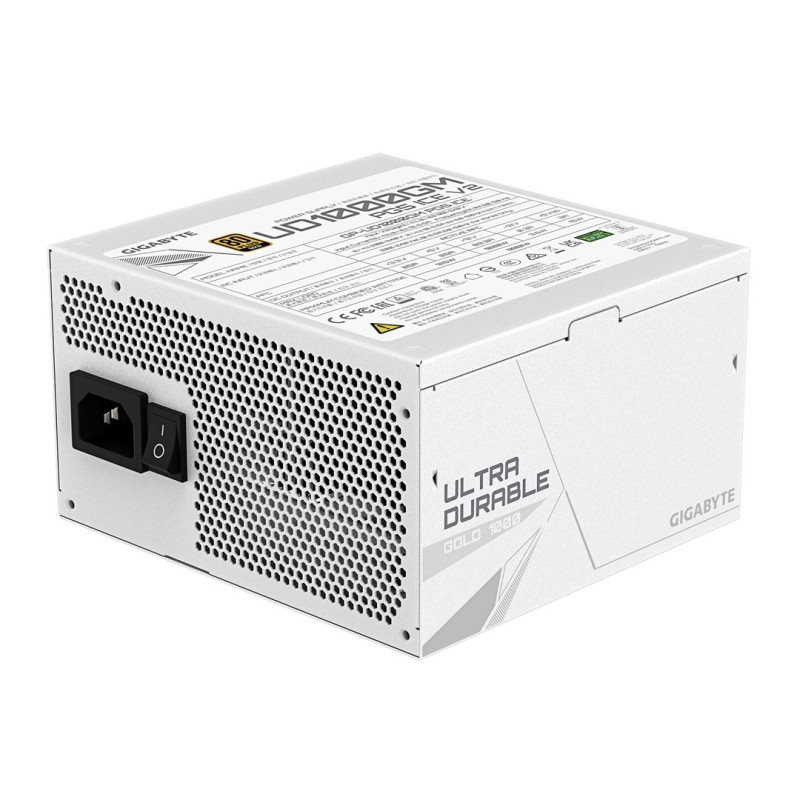

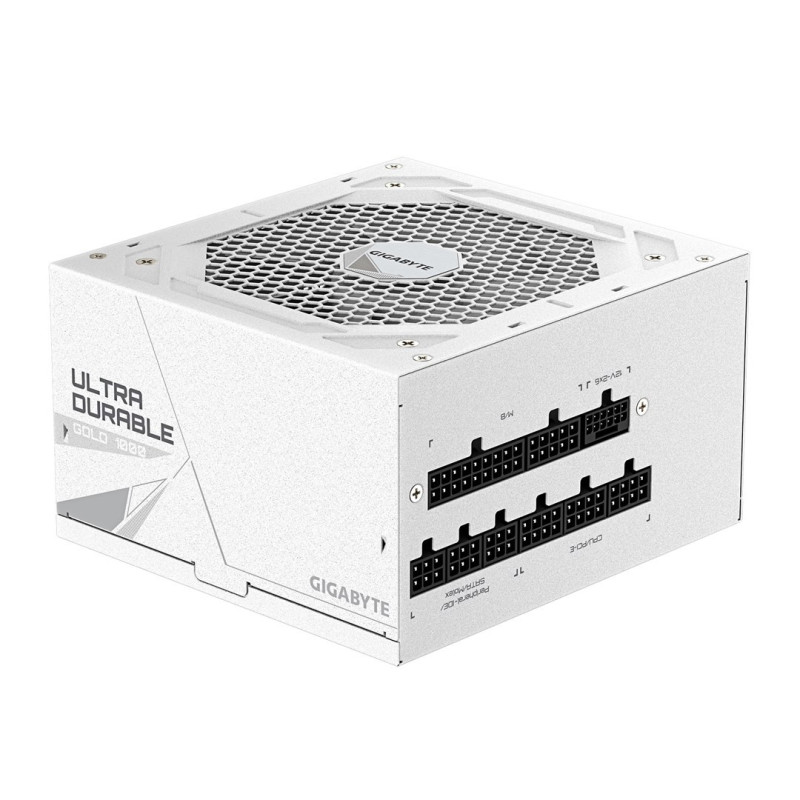

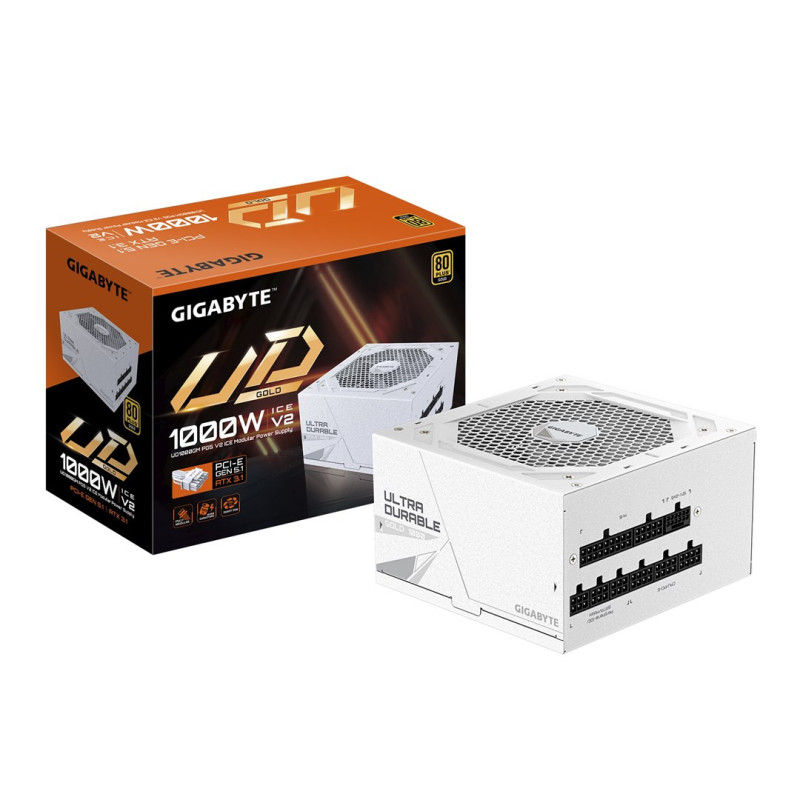

Gigabyte UD1000GM 1000W PG5 ICE Power Supply (GP-UD1000GM PG5 ICE)
Product reference: 6-GP-UD1000GM PG5 ICE

Gigabyte UD1000GM 1000W PG5 ICE Power Supply (GP-UD1000GM PG5 ICE)

Gigabyte UD1000GM 1000W PG5 ICE Power Supply (GP-UD1000GM PG5 ICE)

Product reference: 6-GP-UD1000GM PG5 ICE

Gigabyte UD1000GM 1000W PG5 ICE Power Supply (GP-UD1000GM PG5 ICE)

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
142,58 €
Product in warehouse

Guarantee
36 month

Delivery from Europe in
6 - 10
business days

Your message has been successfully sent!
Fill in the required fields*

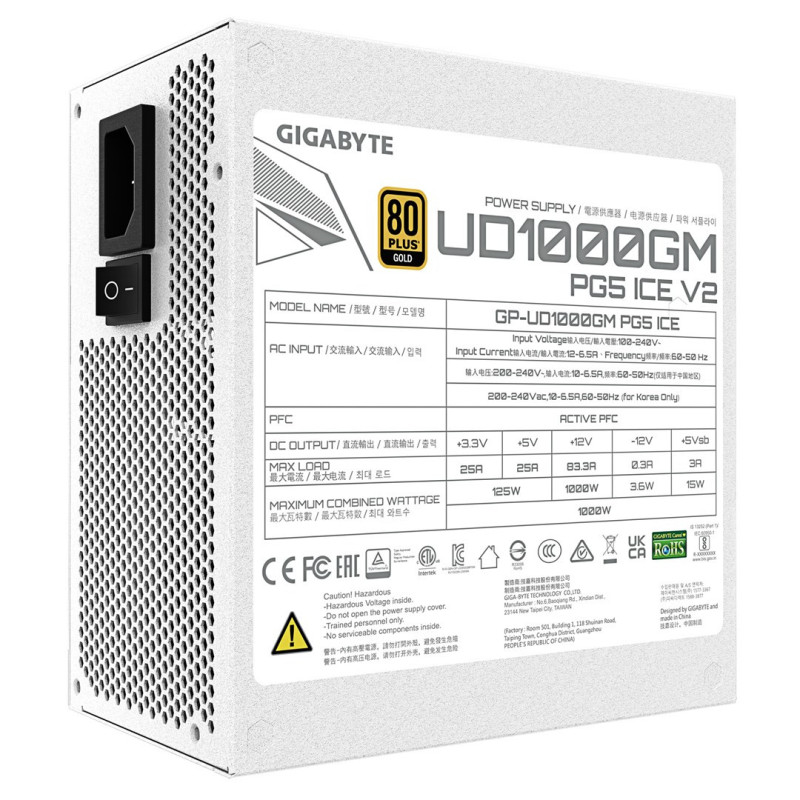

80 PLUS certification 80 PLUS Gold
AC input frequency 50/60 Hz
AC input voltage 100 - 240 V
ATX version 3.1
Cabling type Fully-Modular
Combined power (+12V) 1000 W
Combined power (+3.3V) 125 W
Combined power (+5V) 125 W
Combined power (+5Vsb) 15 W
Combined power (-12V) 3.6 W
Cooling type Active
CPU power connector (4+4 pin) Yes
Depth 140 mm
Efficiency 90%

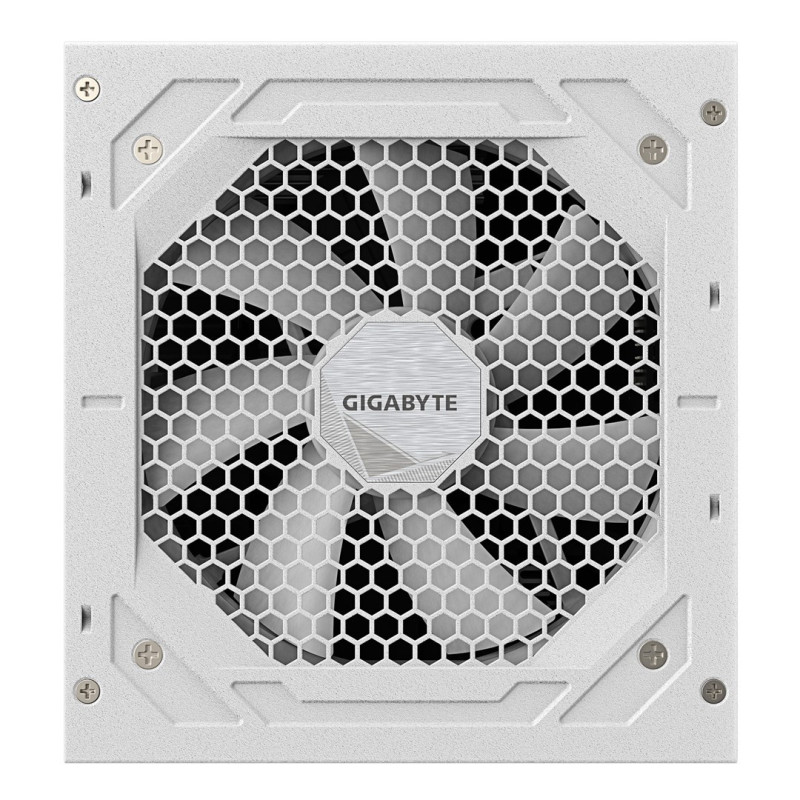

Fan diameter 12 cm
Height 86 mm
Hold time 16 ms
Input current 15 - 6.5 A
Max output current (+12V) 83.3 A
Max output current (+3.3V) 25 A
Max output current (+5V) 25 A
Max output current (+5Vsb) 3 A
Max output current (-12V) 0.3 A
Mean time between failures (MTBF) 100000 h
Motherboard power cable length 61 cm

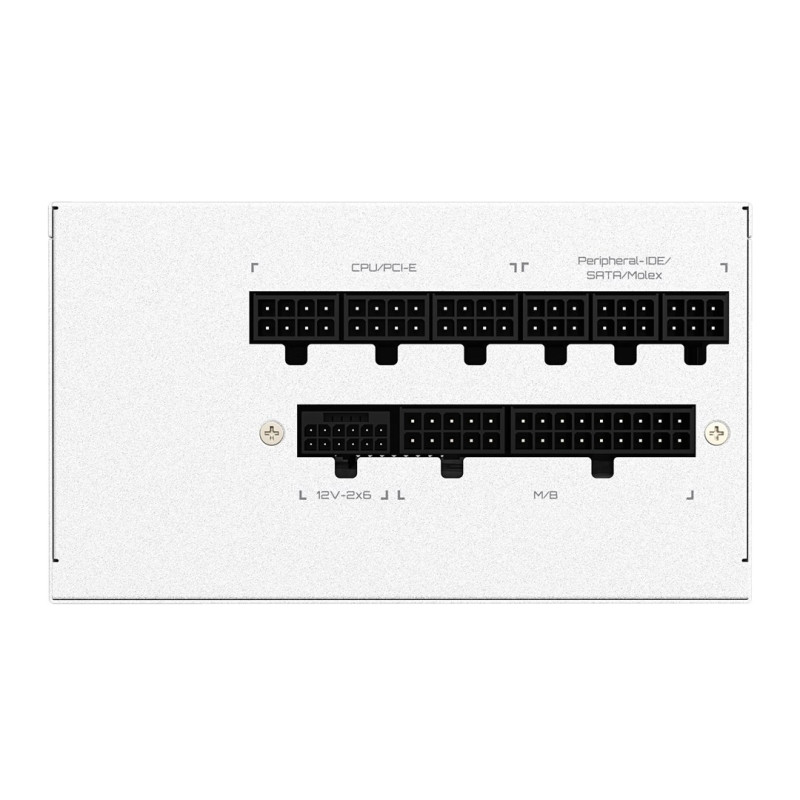

Motherboard power connector 20+4 pin ATX
Number of EPS connectors 2
Number of fans 1 fan(s)
Number of SATA power connectors 8
On/off switch Yes
PCI Express connector Yes
PCI Express power connectors (12+4 pin) 1
PCI Express power connectors (12+4 pin) cable length 700 mm
PCI Express power connectors (6+2 pin) 4
Power factor 0.9
Power Factor Correction (PFC) type Active
Power protection features OCP,
OPP,
OTP,
OVP,
SCP,
UVP
Power supply unit (PSU) form factor ATX
Product colour White
Purpose PC
Total power 1000 W
Width 150 mm
