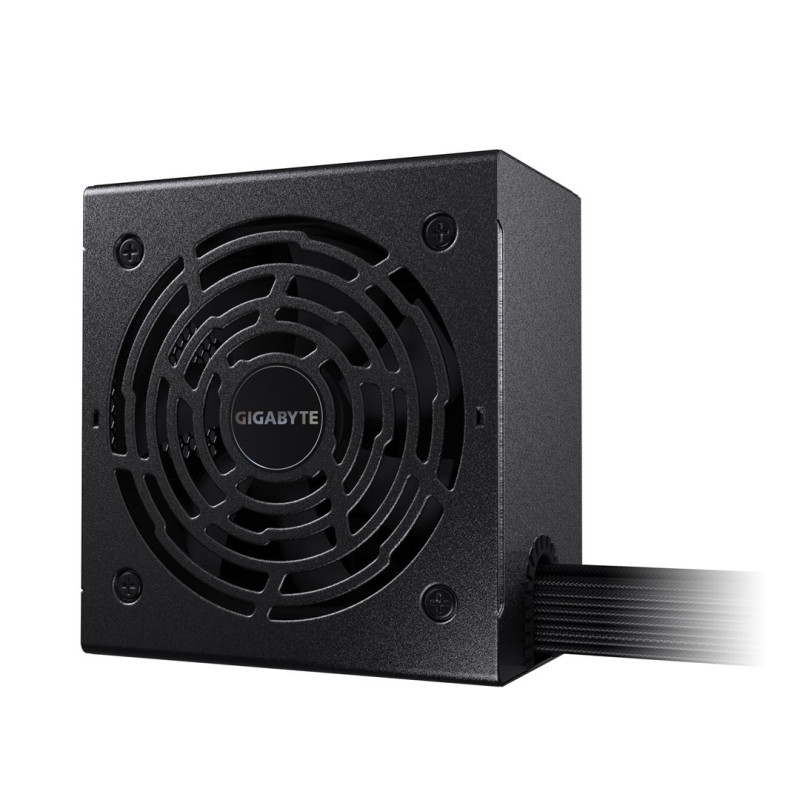

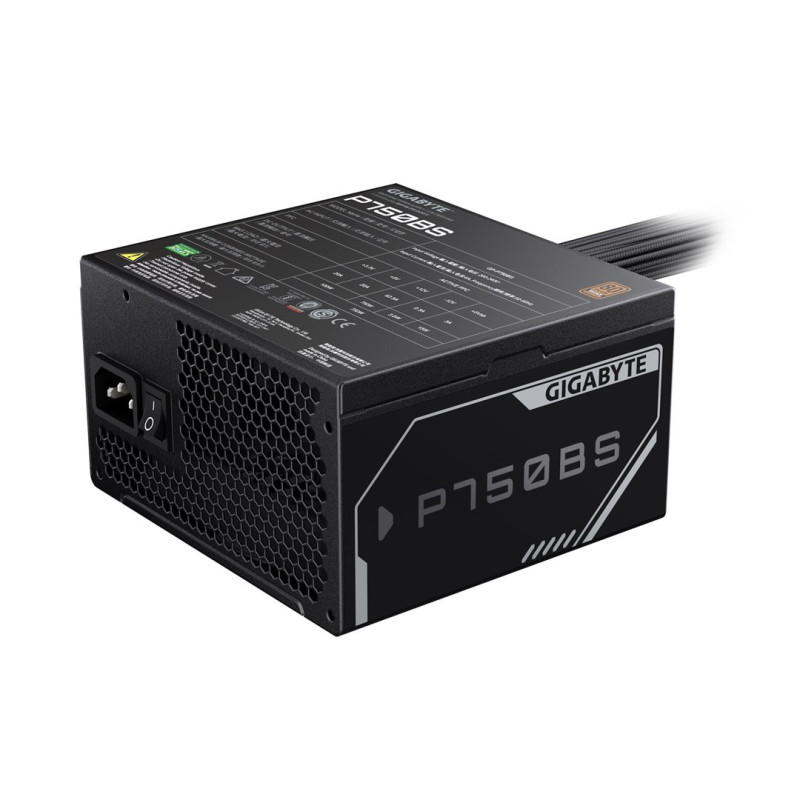

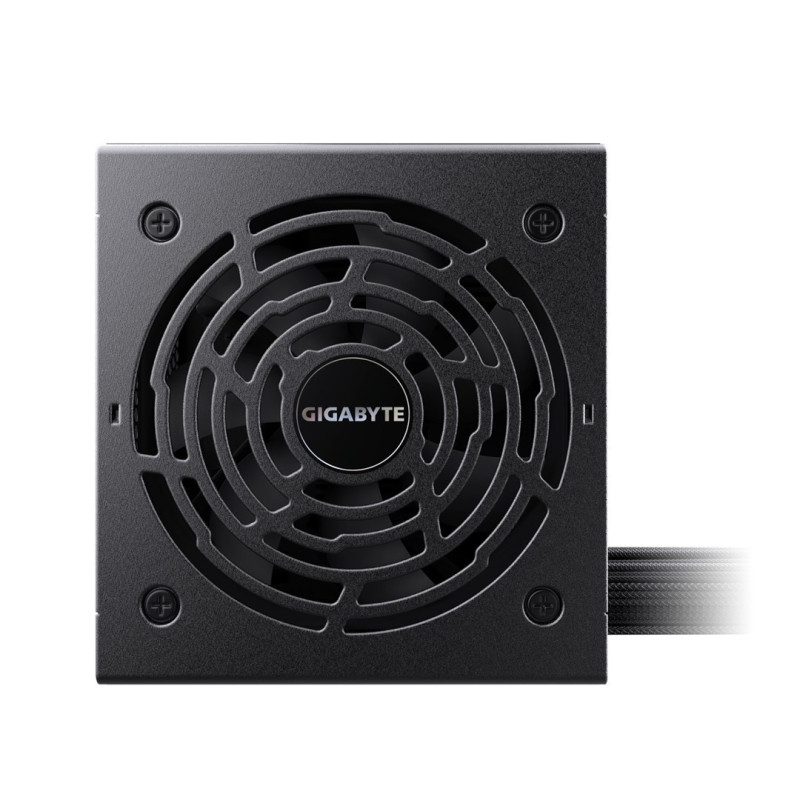

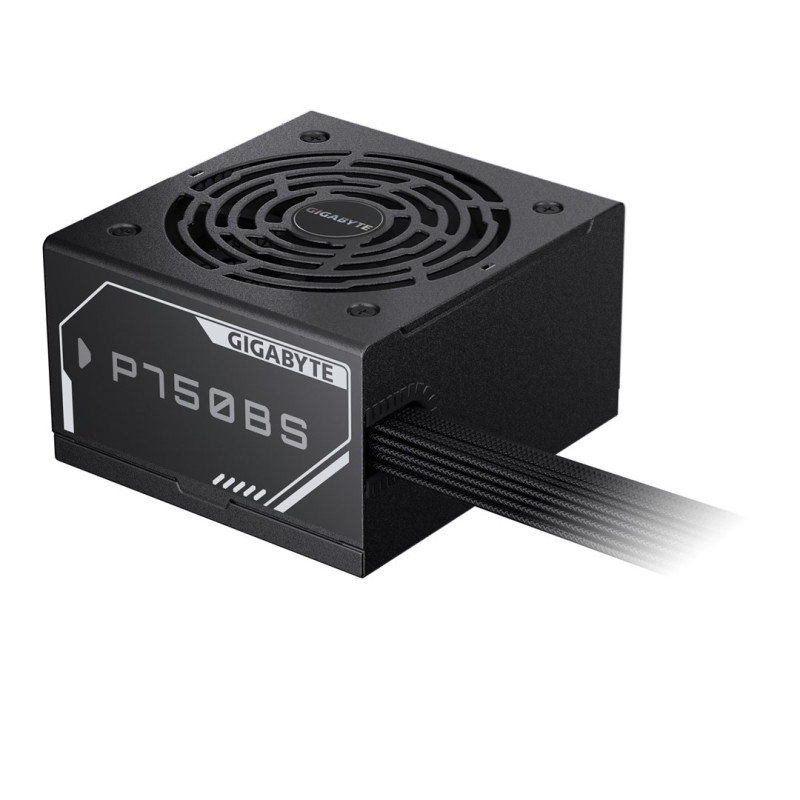

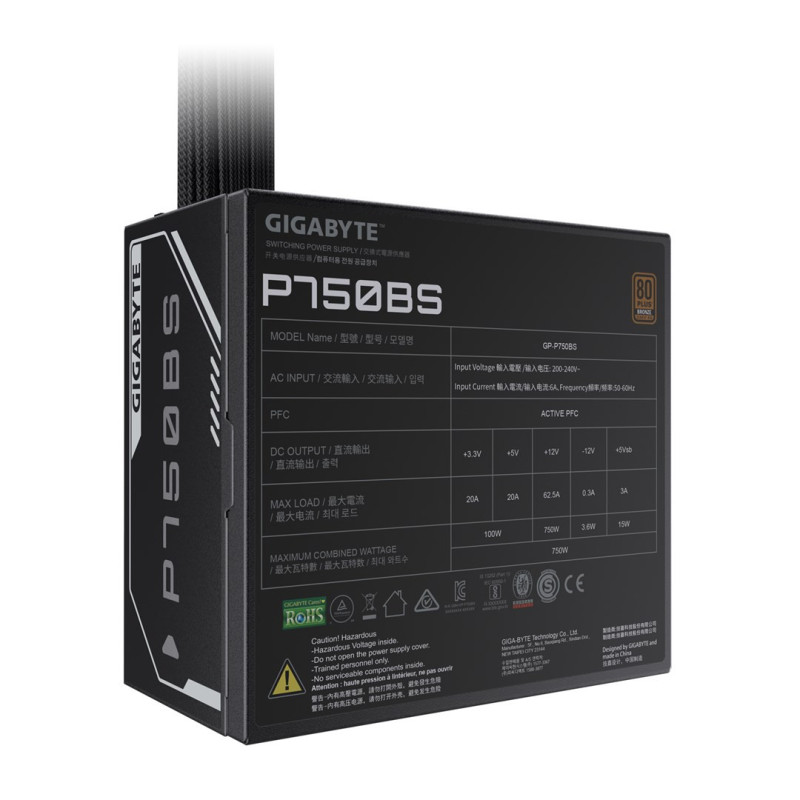

GIGABYTE P750BS Power Supply - PCI-E 6+2 Pin x 4, 80 PLUS Bronze, 120mm Fan, ATX compatible, EU Plug
Product reference:
6-GP-P750BS
GIGABYTE P750BS Power Supply - PCI-E 6+2 Pin x 4, 80 PLUS Bronze, 120mm Fan, ATX compatible, EU Plug
GIGABYTE P750BS Power Supply - PCI-E 6+2 Pin x 4, 80 PLUS Bronze, 120mm Fan, ATX compatible, EU Plug
Product reference:
6-GP-P750BS
GIGABYTE P750BS Power Supply - PCI-E 6+2 Pin x 4, 80 PLUS Bronze, 120mm Fan, ATX compatible, EU Plug
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| 80 PLUS certification | 80 PLUS Bronze |
| AC input frequency | 50/60 Hz |
| AC input voltage | 200 - 240 V |
| ATX power connector (20+4 pin) | Yes |
| Bearing technology | FDB |
| Cabling type | Non-Modular |
| Combined power (+12V) | 750 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Cooling type | Active |
| CPU power connector (4+4 pin) | Yes |
| Depth | 140 mm |
| Efficiency | 88% |
| Fan diameter | 12 cm |
| Fan location | Top |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 2 |
| Height | 86 mm |
| Hold time | 16 ms |
| Input current | 6 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Mean time between failures (MTBF) | 100000 h |
| Motherboard power cable length | 60 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of fans | 1 fan(s) |
| Number of SATA power connectors | 7 |
| On/off switch | Yes |
| PCI Express connector | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 150, 600 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power Good signal delay range | 100 - 150 ms |
| Power protection features | Over current, Overheating, Over power, Over voltage, Short circuit, Under voltage |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Purpose | PC |
| SATA power cable length | 150, 500 |
| Total power | 750 W |
| Warranty period | 3 year(s) |
| Weight | 2.22 kg |
| Width | 150 mm |
