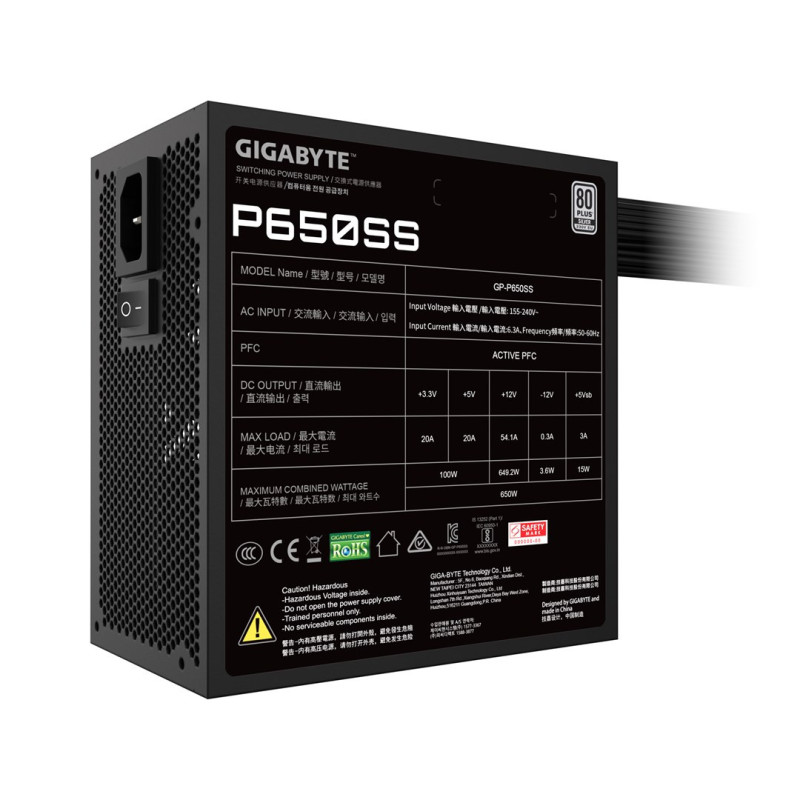

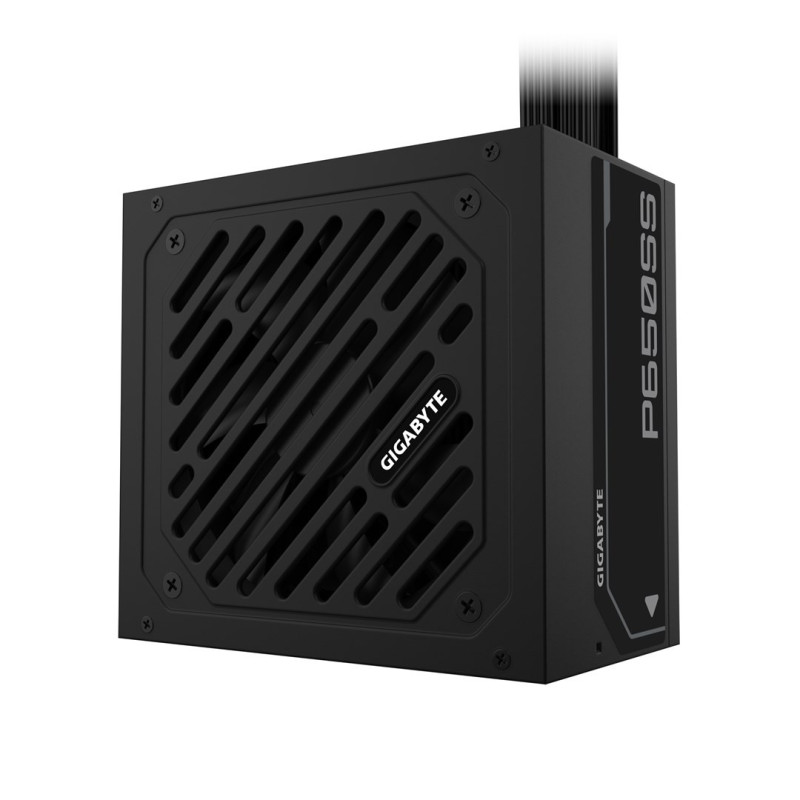

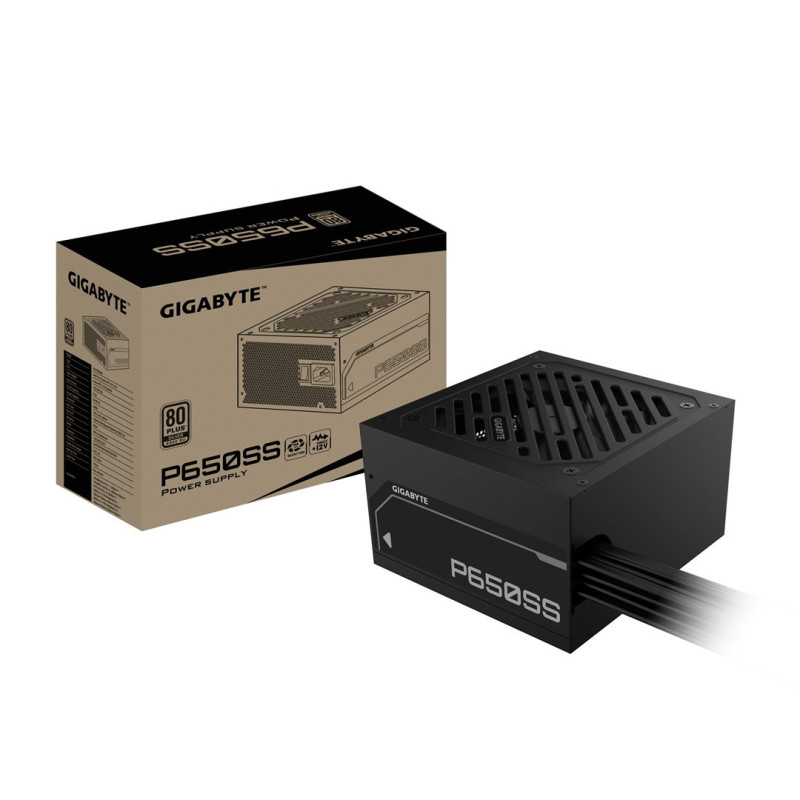

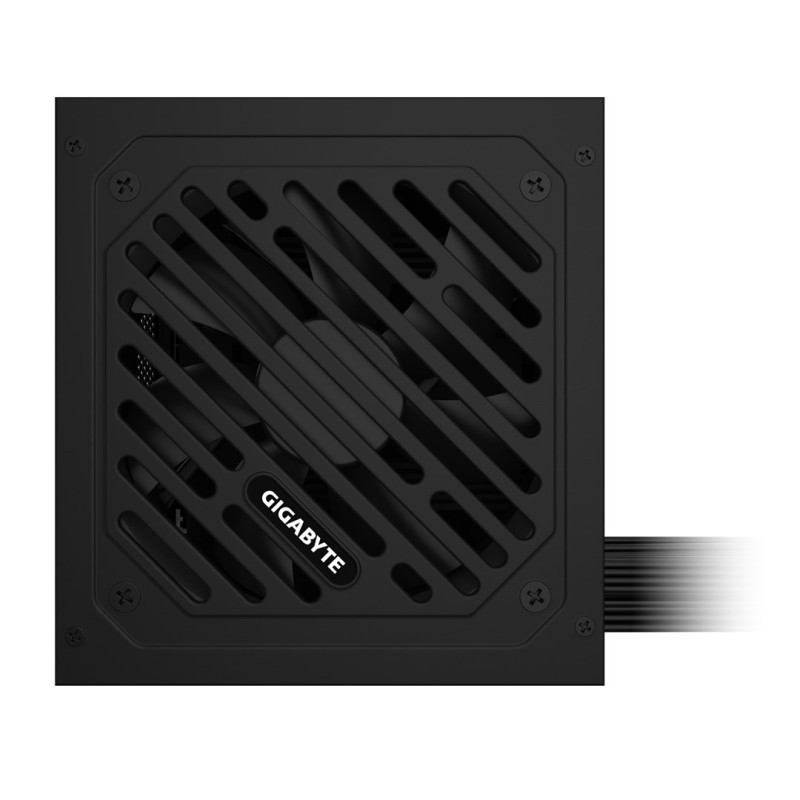

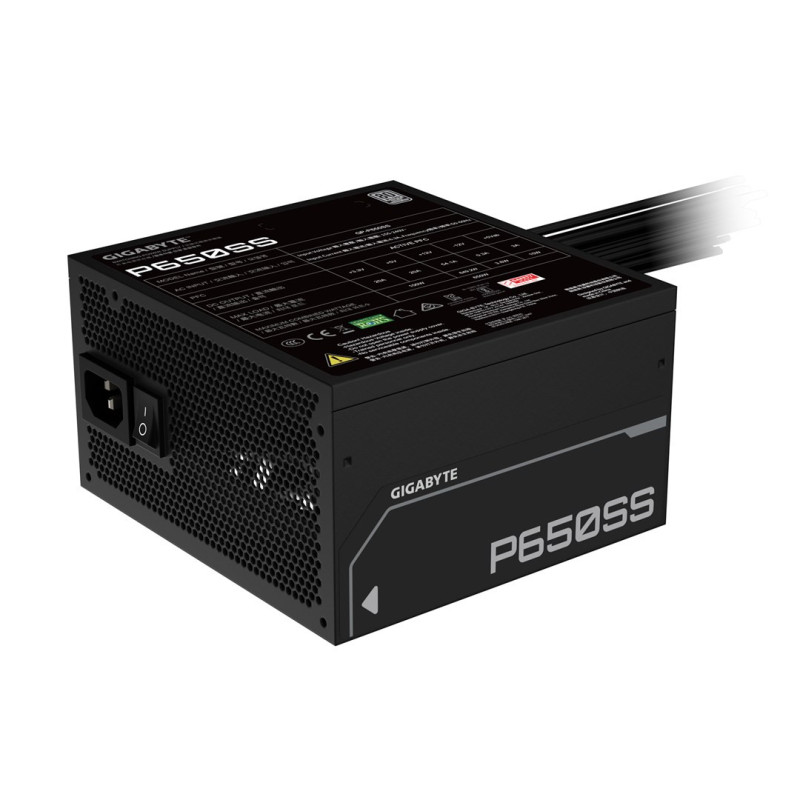

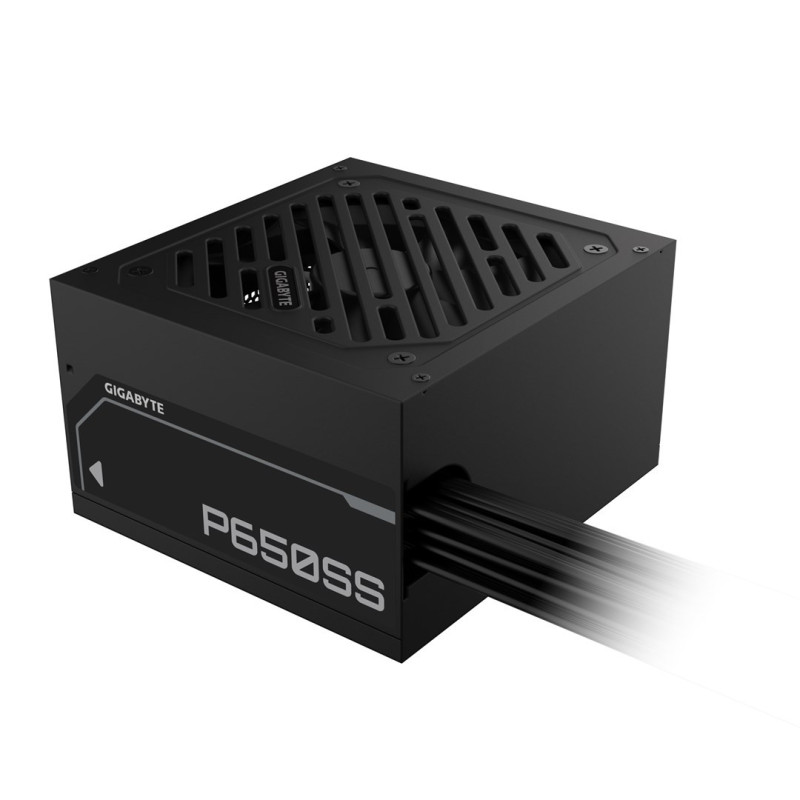

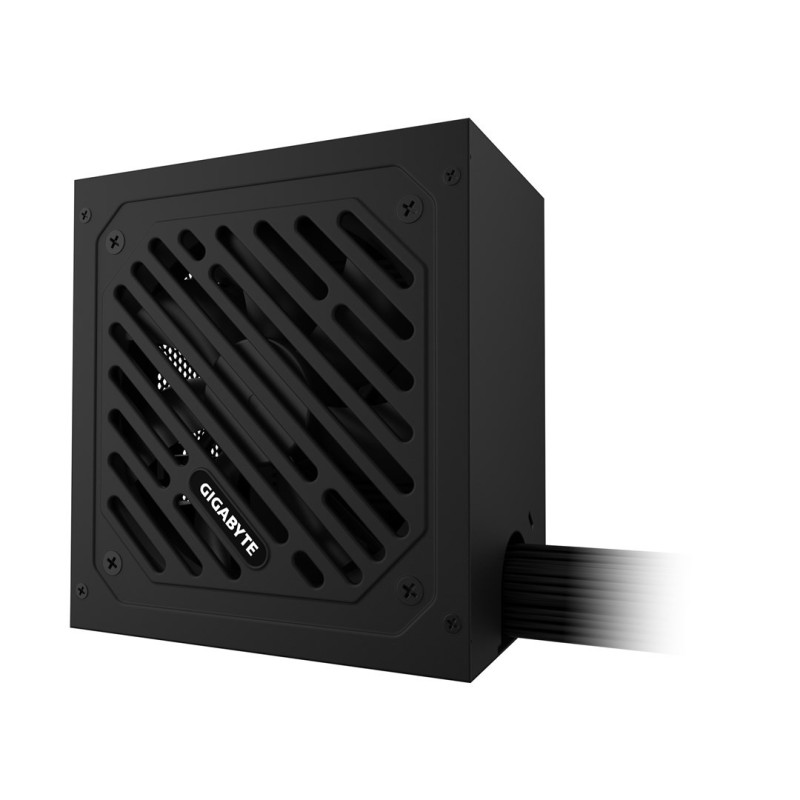

GIGABYTE P650SS power supply unit 650 W 20+4 pin ATX ATX Black

Product reference: 6-GP-P650SS

You have 3 products in compare list, please remove someone and try again

Add to compare

5114 €

Product in warehouse

Guarantee
36 month

Delivery from Europe in
6 - 11
business days

Number of fans	1 fan(s)
Fan diameter	12 cm
Product colour	Black
On/off switch	Yes
Cooling type	Active
Fan location	Top
AC input voltage	155-240 V
Input current	6.3 A
Total power	650 W
Power protection features	Under voltage, Over power, Overcharge, Short circuit
Power factor	0.9
Combined power (-12V)	3.6 W
Power Factor Correction (PFC) type	Active
Max output current (+5V)	20 A
Combined power (+12V)	649.2 W
Combined power (+3.3V)	100 W
Max output current (+5Vsb)	3 A
Max output current (+12V)	54.1 A
Combined power (+5Vsb)	15 W
Combined power (+5V)	100 W
Max output current (+3.3V)	20 A
Max output current (-12V)	0.3 A
Width	150 mm
Height	86 mm
Depth	140 mm
80 PLUS certification	80 PLUS Bronze
Mean time between failures (MTBF)	100000 h
Purpose	PC
Bearing technology	HDB
Power supply unit (PSU) form factor	ATX
ATX version	3.0
Floppy disk drive connector	Yes
Cabling type	Non-Modular
Peripheral (Molex) power connectors (4-pin)	2
CPU P4 connector (4-pin)	1
CPU power cable length	60 cm
PCI Express power connectors (6+2 pin)	4
Motherboard power cable length	60 cm
SATA power cable length	120, 500 mm
Peripheral (Molex) power cable length	500 mm, 120 mm
Motherboard power connector	20+4 pin ATX
ATX power connector (20+4 pin)	Yes
CPU power connector (4+4 pin)	Yes
PCI Express power cable length	65 cm
Number of SATA power connectors	5
Power management	Yes
Noise level (full-load mode, 100%)	39 dB
Noise level (silent mode, <30%)	20 dB
Noise level (quiet mode, 50%)	29 dB
Harmonized System (HS) code	84733020
