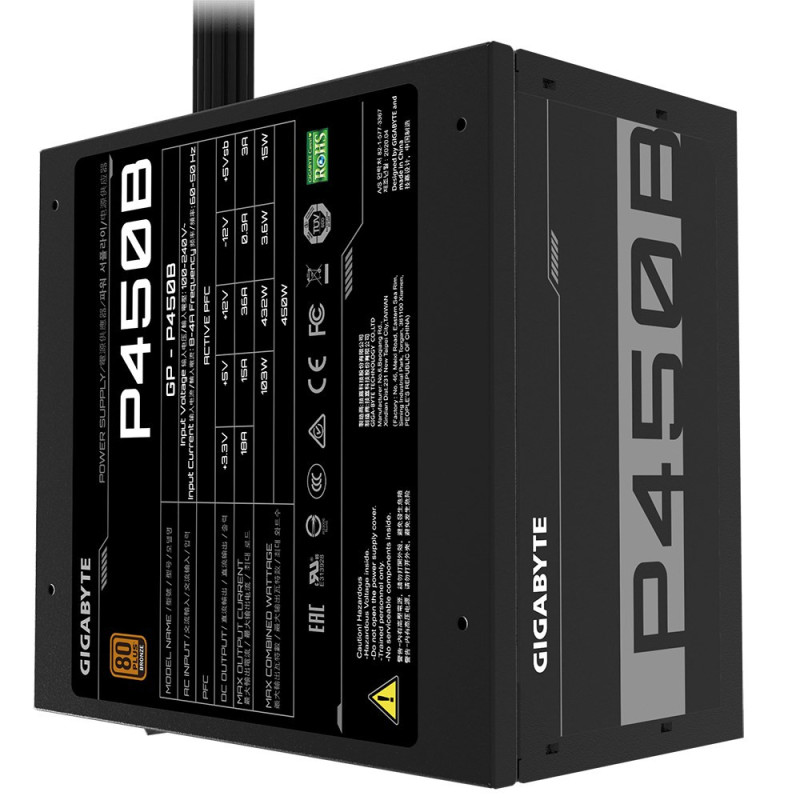

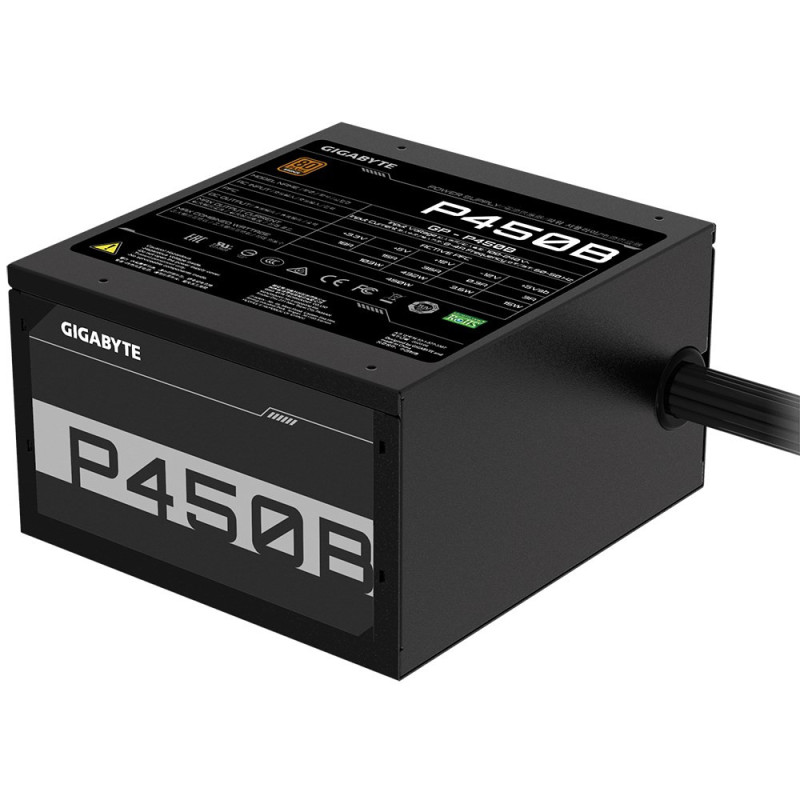

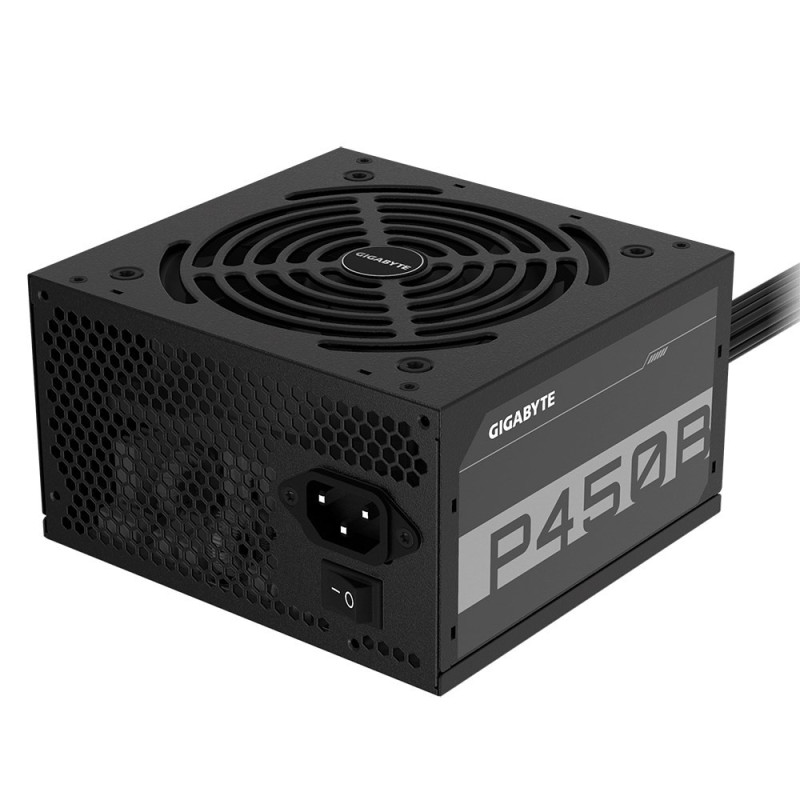

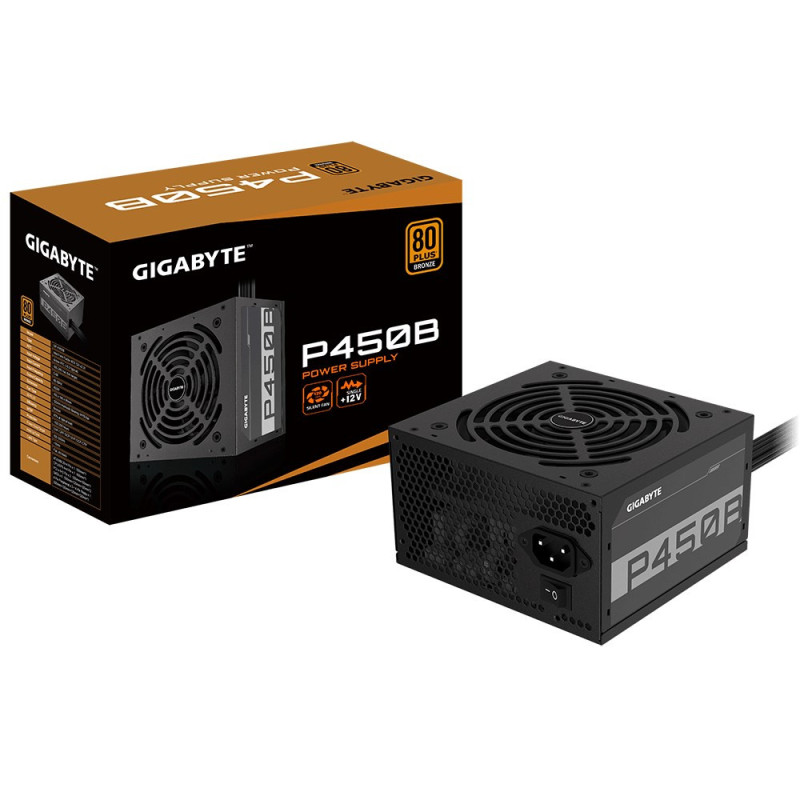

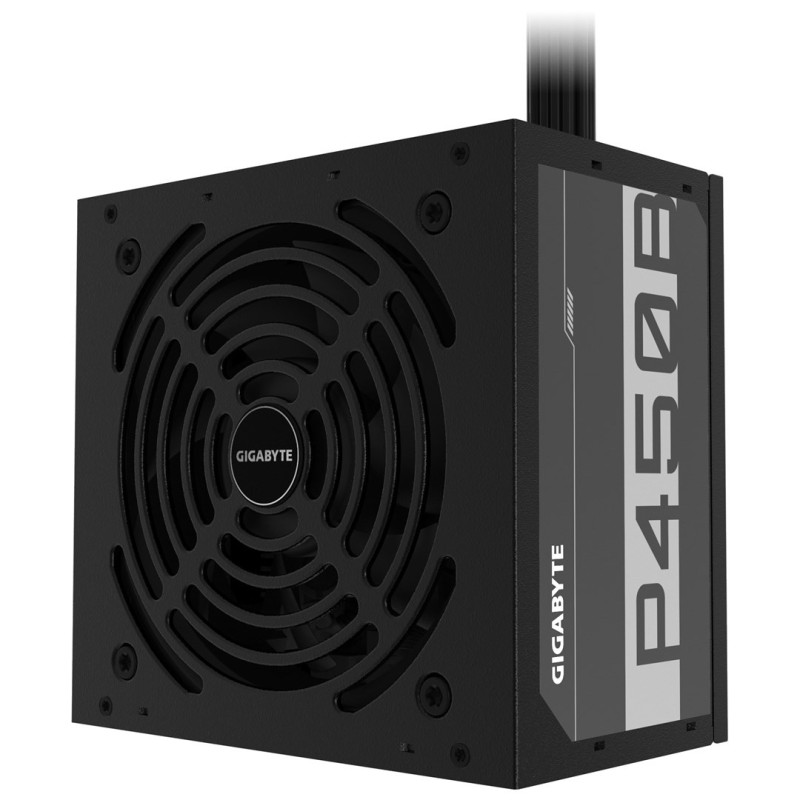

Gigabyte P450B power supply unit 450 W 20+4 pin ATX ATX Black
Product reference:
6-GP-P450B
Gigabyte P450B power supply unit 450 W 20+4 pin ATX ATX Black
Gigabyte P450B power supply unit 450 W 20+4 pin ATX ATX Black
Product reference:
6-GP-P450B
Gigabyte P450B power supply unit 450 W 20+4 pin ATX ATX Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
4 - 8
business days
| Fan location | Top |
| Product colour | Black |
| On/off switch | Yes |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Combined power (+5V) | 103 W |
| Combined power (+12V) | 432 W |
| Efficiency | 85% |
| Power factor | 0.9 |
| Total power | 450 W |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 - 4 A |
| AC input voltage | 100 - 240 V |
| Max output current (+5V) | 15 A |
| Power protection features | Short circuit, Over voltage, Under voltage, Over current, Overheating, Over power |
| Max output current (+12V) | 36 A |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Hold time | 16 ms |
| Max output current (+3.3V) | 18 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Combined power (+3.3V) | 103 W |
| Power Factor Correction (PFC) type | Active |
| Depth | 140 mm |
| Width | 150 mm |
| Height | 86 mm |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| Bearing technology | HDB |
| ATX version | 2.31 |
| Floppy disk drive connector | Yes |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Non-Modular |
| Floppy drive power connector | 1 |
| SATA power cable length | 500 |
| Motherboard power cable length | 55 cm |
| Peripheral (Molex) power cable length | 500 mm |
| ATX power connector (20+4 pin) | Yes |
| CPU power cable length | 60 cm |
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express connector | Yes |
| PCI Express power cable length | 55 cm |
| Number of SATA power connectors | 6 |
| Harmonized System (HS) code | 84733020 |
