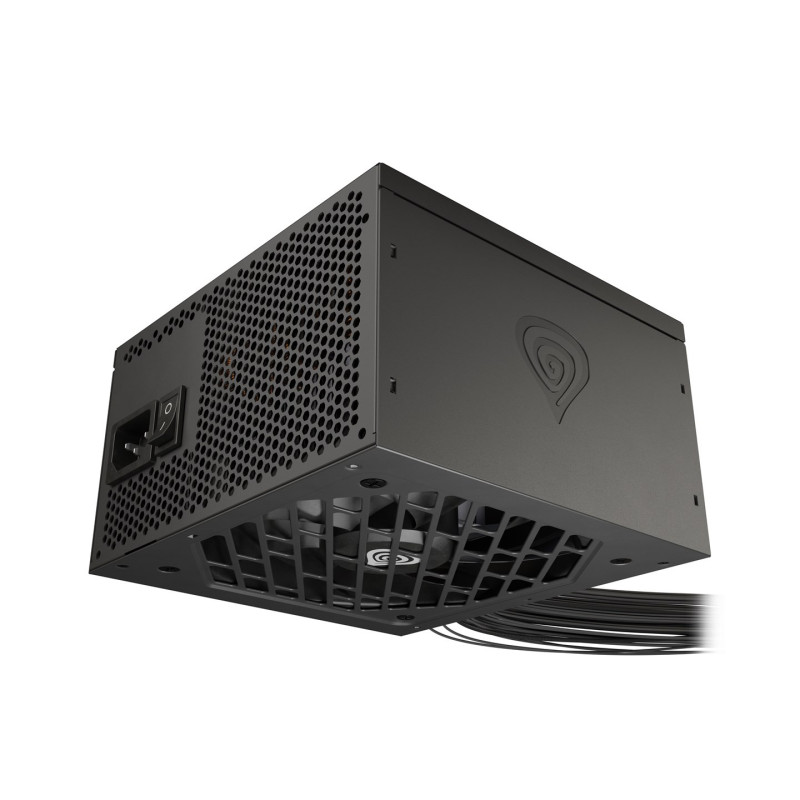

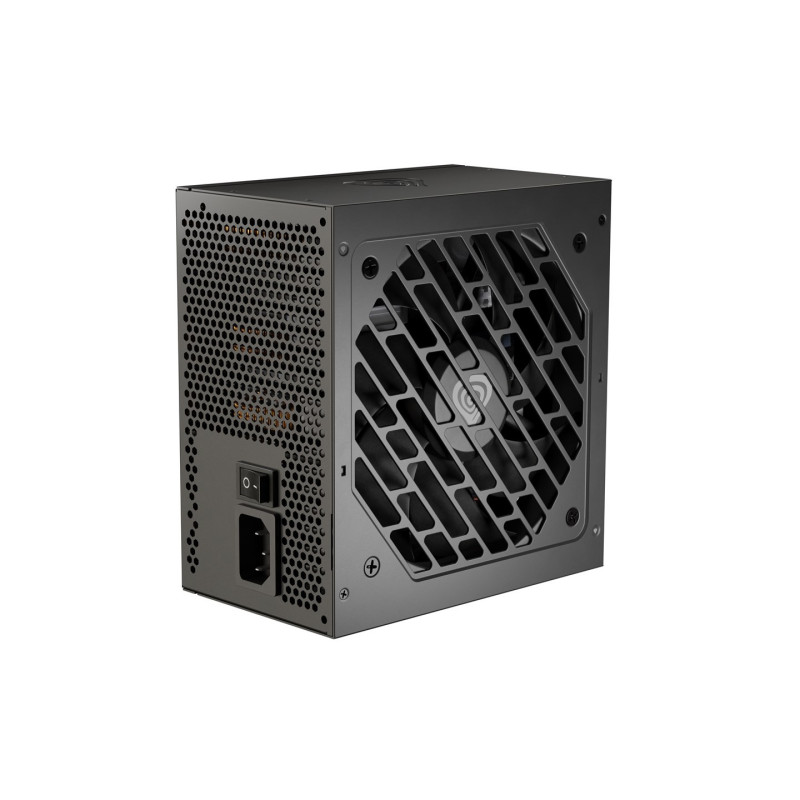

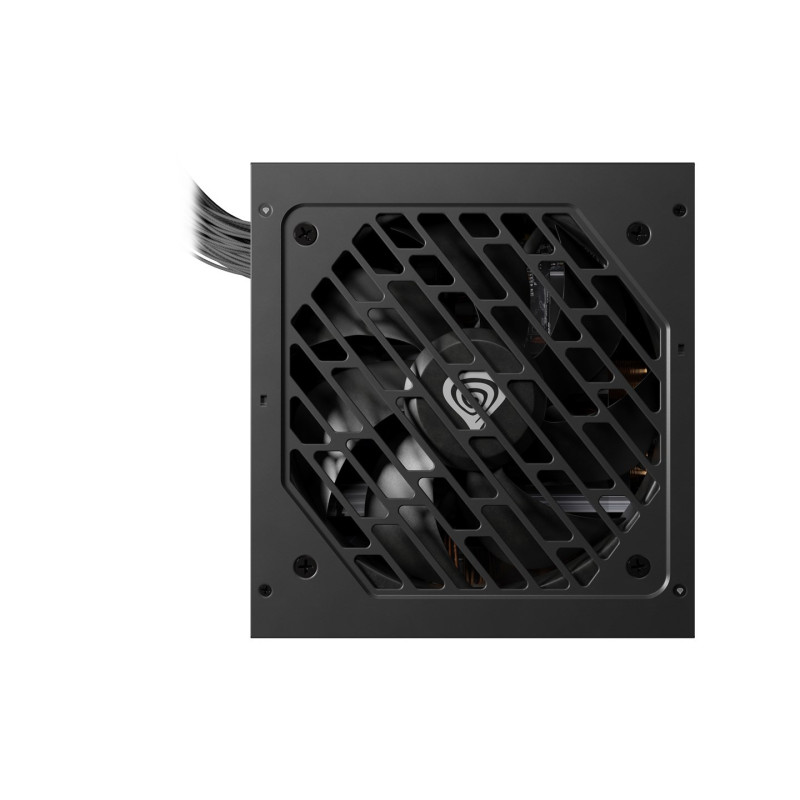

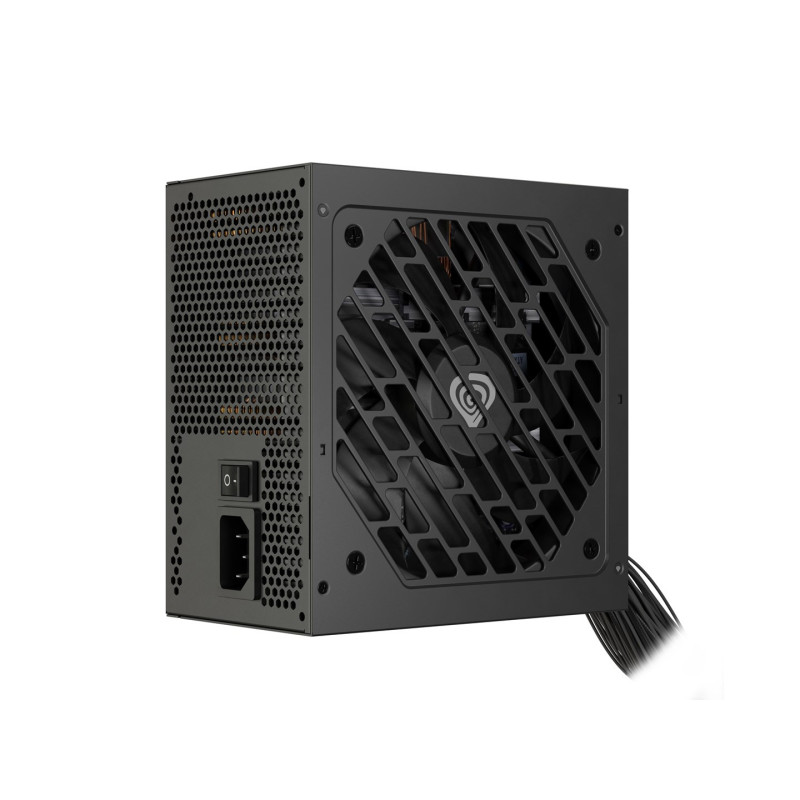

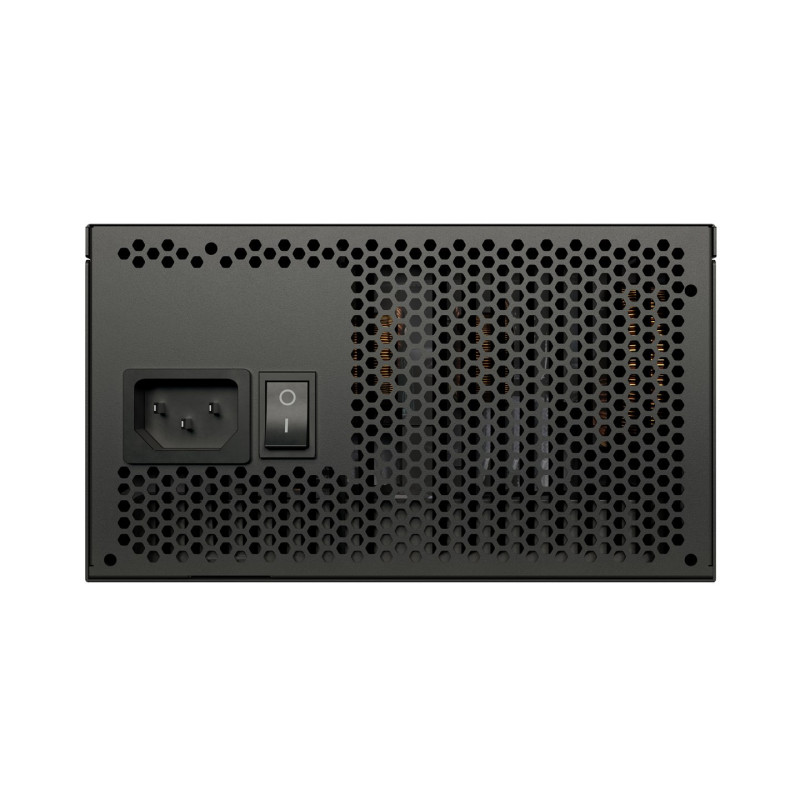

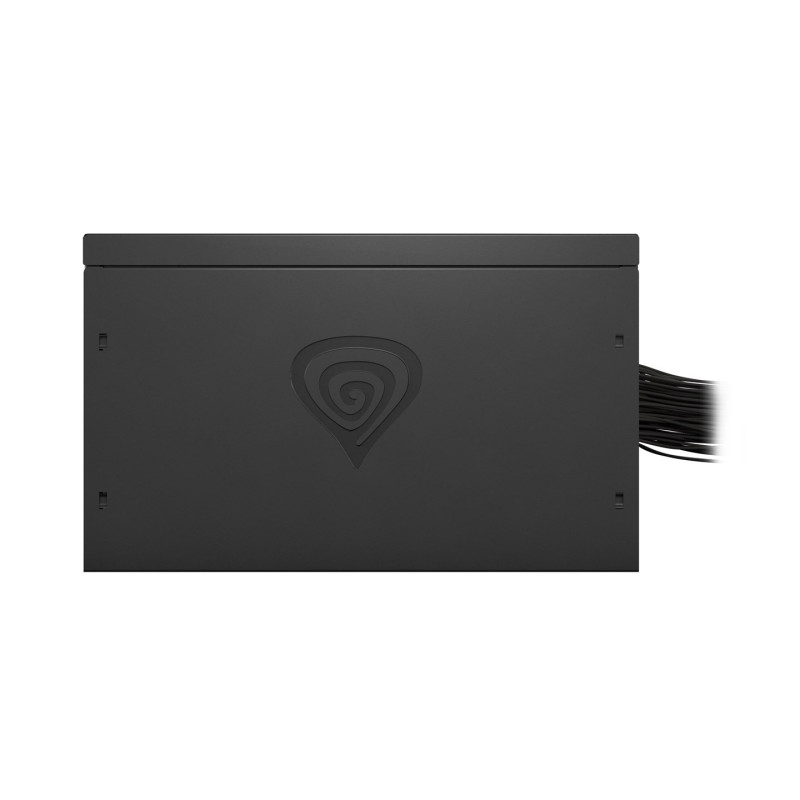

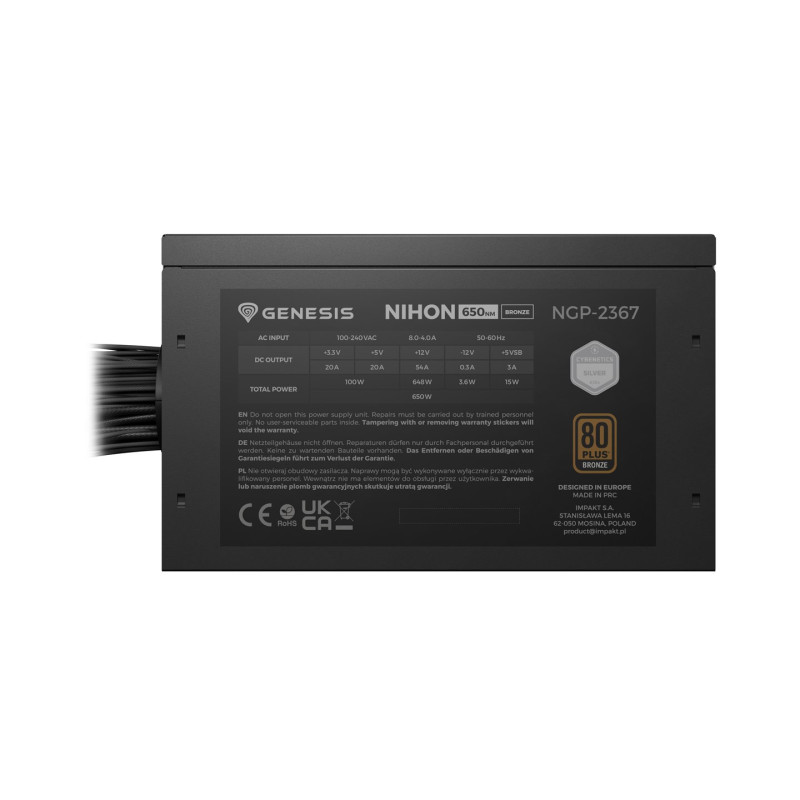

GENESIS Nihon 650NM power supply unit 650 W 20+4 pin ATX ATX Black
Product reference:
6-NGP-2367
GENESIS Nihon 650NM power supply unit 650 W 20+4 pin ATX ATX Black
GENESIS Nihon 650NM power supply unit 650 W 20+4 pin ATX ATX Black
Product reference:
6-NGP-2367
GENESIS Nihon 650NM power supply unit 650 W 20+4 pin ATX ATX Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
60 month
Delivery from Europe in
4 - 8
business days
| 80 PLUS certification | 80 PLUS Bronze |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| ATX version | 3.1 |
| Bearing technology | FDB |
| Cables included | AC |
| Cabling type | Non-Modular |
| Combined power (+12V) | 648 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 3.6 W |
| Compliance certificates | CE, RoHS, UKCA |
| Cooling type | Active |
| CPU power cable length | 85 cm |
| CPU power connector (4+4 pin) | Yes |
| Cybenetics certification | Silver |
| Cybenetics noise rating | Standard++ |
| Depth | 140 mm |
| Efficiency | 88% |
| Fan diameter | 12 cm |
| Height | 86 mm |
| Illumination | No |
| Input current | 8 - 4 A |
| Max output current (+12V) | 54 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Mean time between failures (MTBF) | 80000 h |
| Motherboard power cable length | 55 cm |
| Motherboard power connector | 20+4 pin ATX |
| Noise level | 24.7 dB |
| Number of EPS connectors | 2 |
| Number of fans | 1 fan(s) |
| Number of SATA power cables | 2 |
| Number of SATA power connectors | 6 |
| On/off switch | Yes |
| Operating temperature (T-T) | 0 - 40 °C |

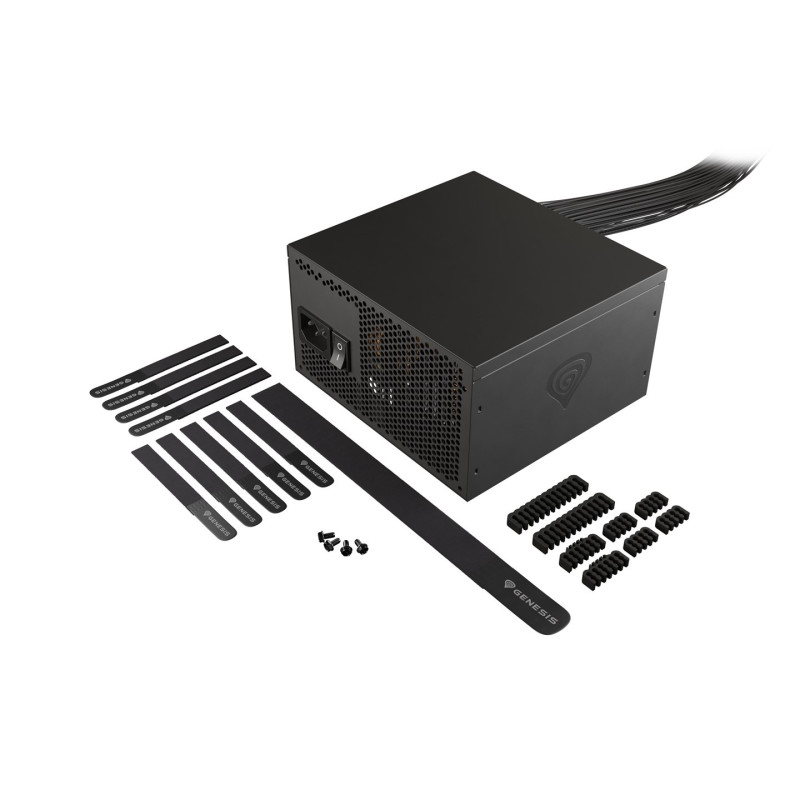

| Packaging content | User guide, Set of assembly elements, Velcro bands, Cable combs |
| PCI Express connector | Yes |
| PCI Express power cable length | 67 cm |
| PCI Express power connectors (6+2 pin) | 3 |
| Peripheral (Molex) power cable length | 750 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | No load operation, Over current, Overheating, Over power, Short circuit, Surge & inrush, Surge & inrush protection (SIP), Surge and inrush, Under voltage |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Purpose | PC |
| SATA power cable length | 450, 550, 650 |
| Total power | 650 W |
| Weight | 1.96 kg |
| Width | 150 mm |
