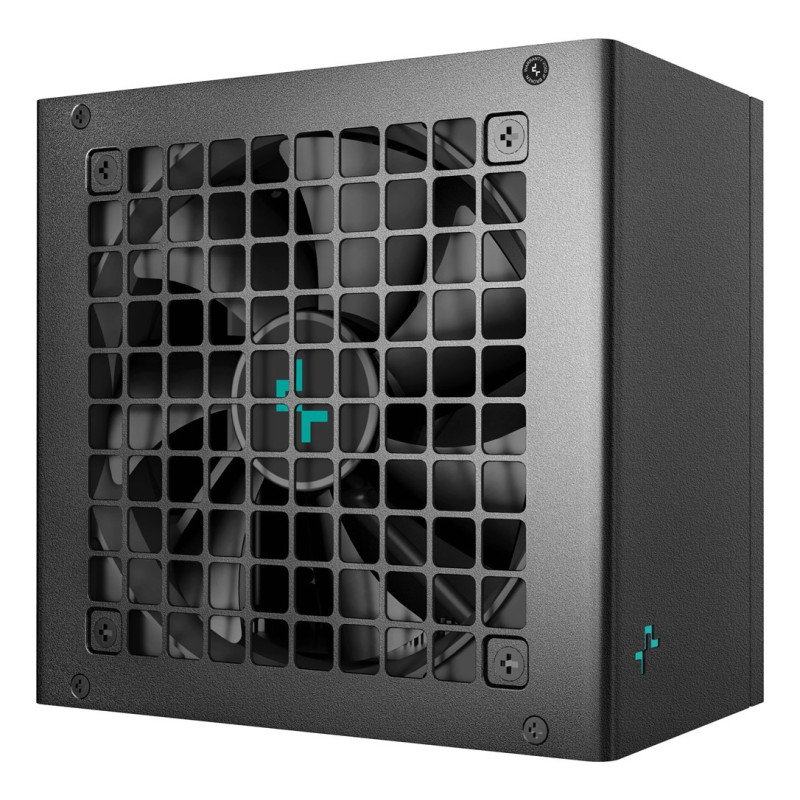

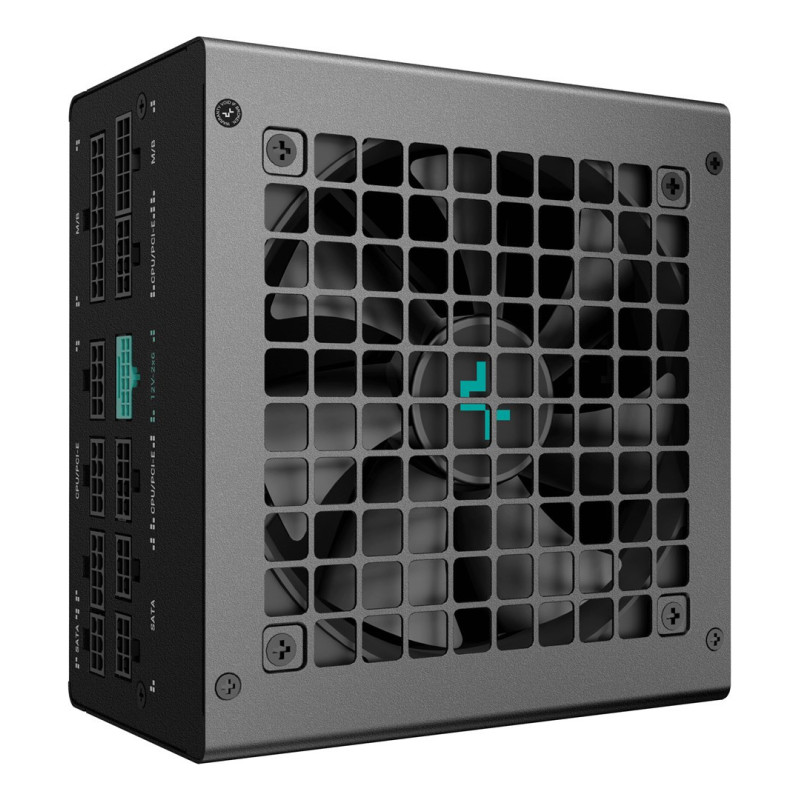

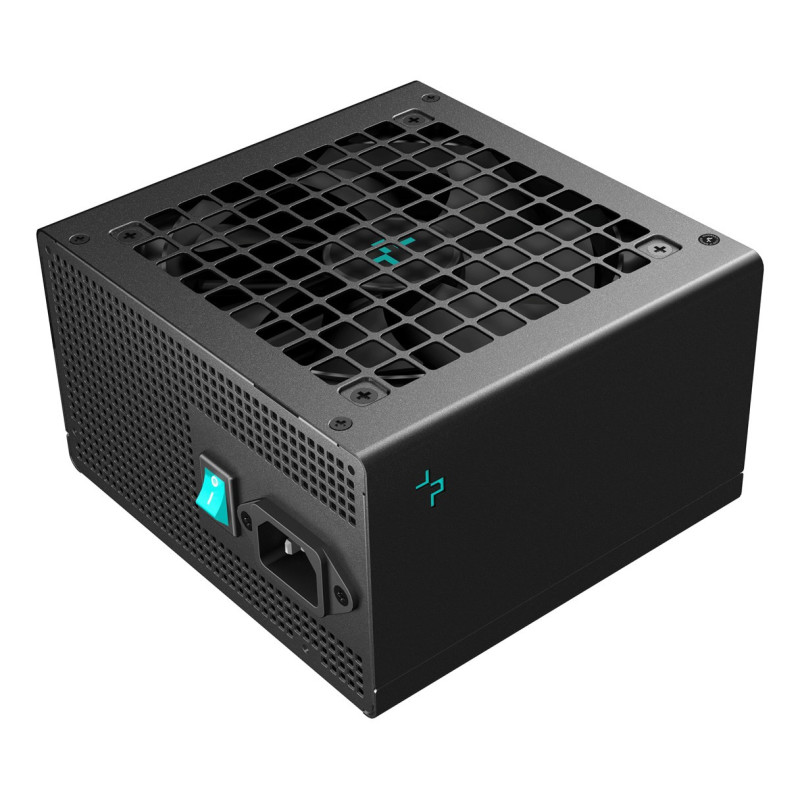

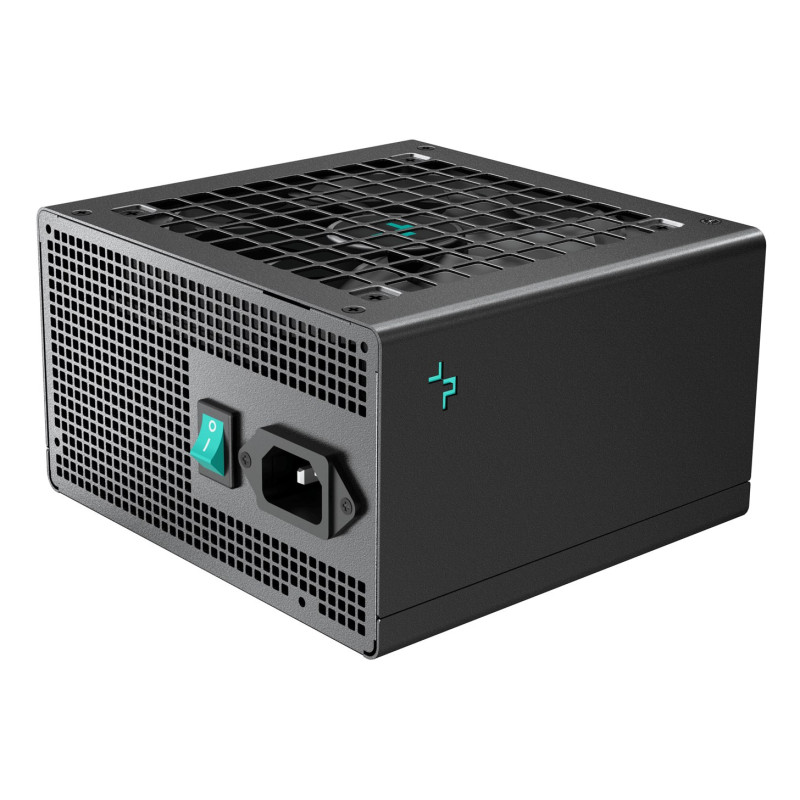

Gamer Storm PN850M power supply unit 850 W 20+4 pin ATX ATX Black
Product reference:
6-R-PN850M-FC0B-JGEU
Gamer Storm PN850M power supply unit 850 W 20+4 pin ATX ATX Black
Gamer Storm PN850M power supply unit 850 W 20+4 pin ATX ATX Black
Product reference:
6-R-PN850M-FC0B-JGEU
Gamer Storm PN850M power supply unit 850 W 20+4 pin ATX ATX Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
120 month
Delivery from Europe in
4 - 8
business days
| Sustainability compliance | Yes |
| Sustainability certificates | Triman, ErP |

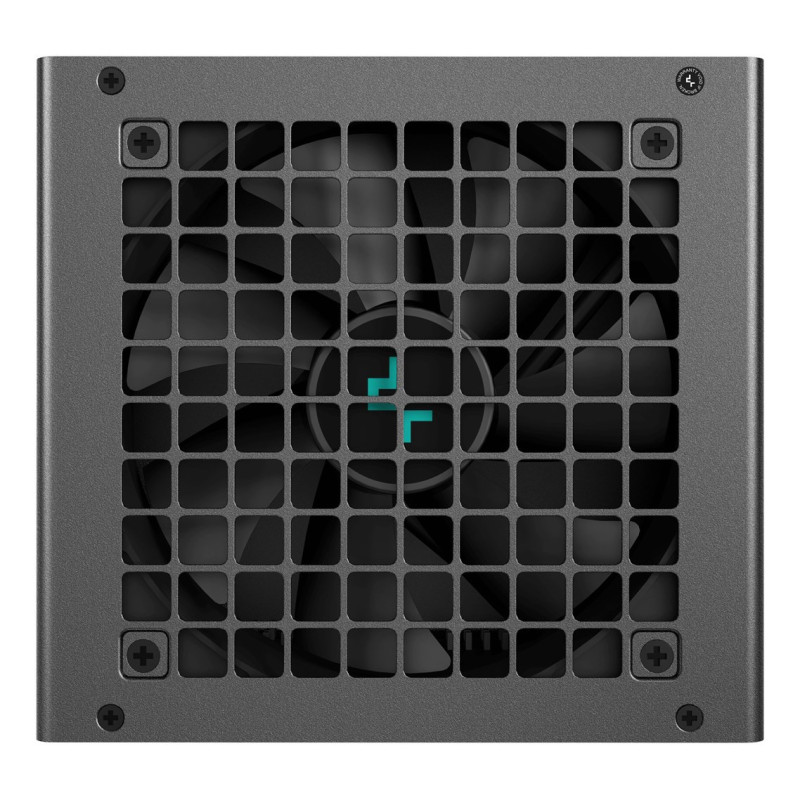

| Fan location | Top |
| Cooling type | Active |
| Product colour | Black |
| On/off switch | Yes |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Combined power (+3.3V) | 110 W |
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Max output current (+12V) | 70.5 A |
| Power protection features | No load operation, Over power, Surge & inrush protection (SIP), Short circuit, Over voltage, Under voltage, Overheating, Surge protection |
| Input current | 10 - 5 A |
| Combined power (+12V) | 846 W |
| Power Factor Correction (PFC) type | Active |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Combined power (-12V) | 3.6 W |
| Efficiency | 90% |
| Max output current (+5V) | 20 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (+5V) | 110 W |
| Power Good signal delay range | 100 - 150 ms |
| Operating temperature (T-T) | 0 - 40 °C |
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 3.1 |

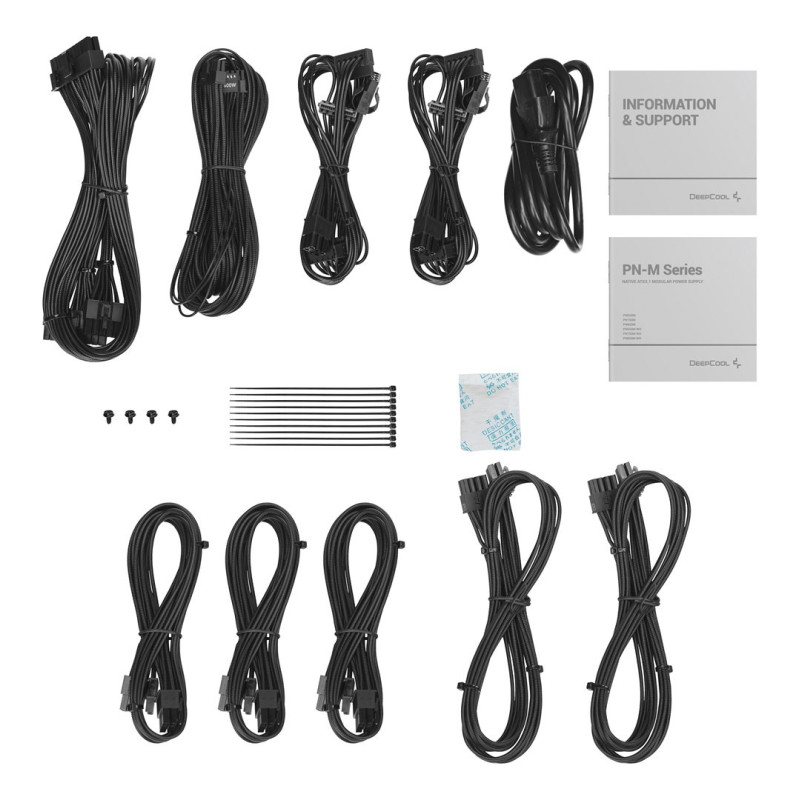

| Cables included | AC |
| Cable tie(s) included | Yes |
| Compliance certificates | WEEE, RCM, RoHS, CE, CCC, Federal Communications Commission (FCC), EAC |

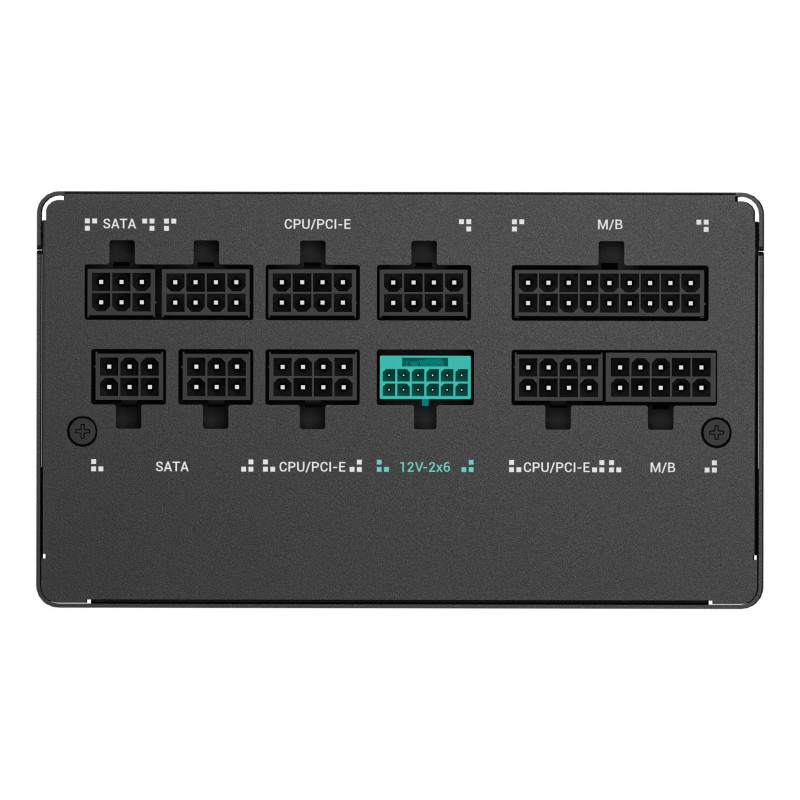

| Peripheral (Molex) power connectors (4-pin) | 2 |
| Cabling type | Fully-Modular |
| Number of SATA power connectors | 8 |
| SATA power cable length | 570, 810 mm, 450, 690 mm |
| CPU power cable length | 70 cm |
| Motherboard power cable length | 55 cm |
| PCI Express power connectors (6+2 pin) | 3 |
| Motherboard power connector | 20+4 pin ATX |
| PCI Express power connectors (16-pin) | 1 |
| Peripheral (Molex) power cable length | 930 mm |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
