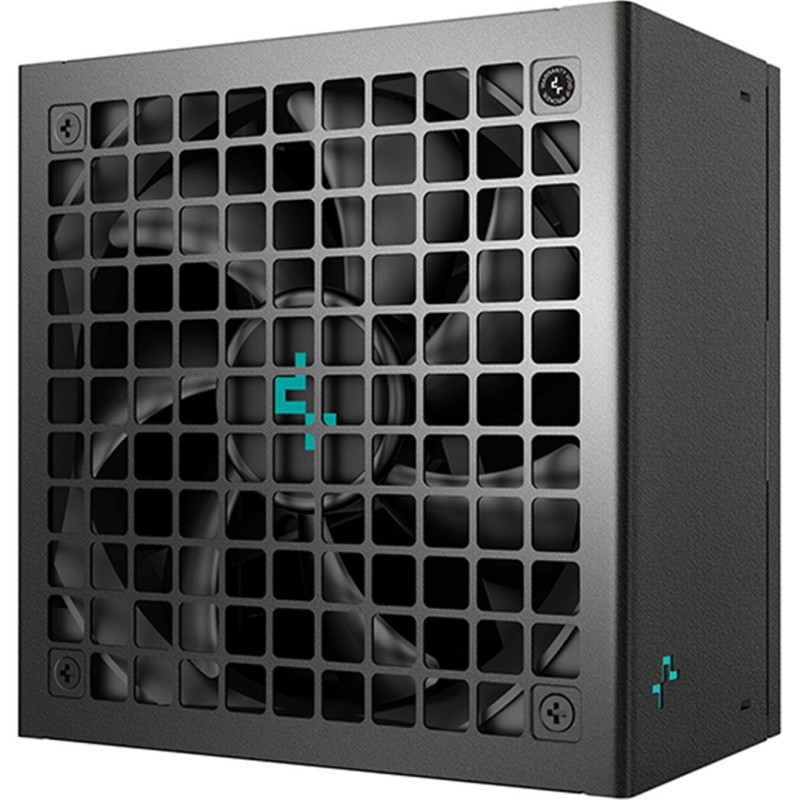

DeepCool PN1000-M power supply unit (R-PNA00M-FC0B-JGEU)

Product reference: 6-R-PNA00M-FC0B-JGEU

You have 3 products in compare list, please remove someone and try again

Add to compare

116,63 €

117,81 €

Last product in warehouse

Guarantee
144 month

Delivery from Europe in
4 - 8
business days

Your message has been successfully sent!

Fill in the required fields*

Product colour	Black
Cooling type	Active

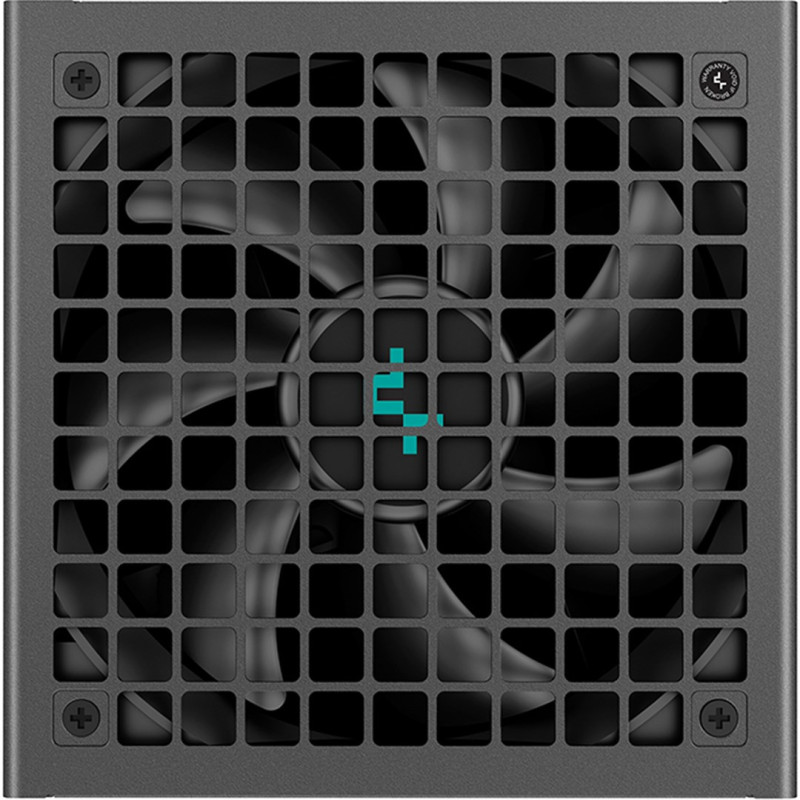

Fan location	Top
Fan diameter	13.5 cm
On/off switch	Yes
Number of fans	1 fan(s)
Power Good signal delay range	100 - 150 ms
Power protection features	Short circuit, Over voltage, Overheating, Over power, Surge protection, Surge & inrush protection (SIP), Under voltage, No load operation
AC input voltage	100 - 240 V
Hold time	16 ms
Combined power (+12V)	999.6 W
Total power	1000 W
Power Factor Correction (PFC) type	Active
AC input frequency	50/60 Hz
Combined power (+3.3V)	120 W
Combined power (+5V)	120 W
Efficiency	90%
Combined power (+5Vsb)	15 W
Operating temperature (T-T)	0 - 40 °C
Depth	150 mm
Width	150 mm
Height	86 mm
80 PLUS certification	80 PLUS Gold
Bearing technology	FDB
ATX version	3.1
Purpose	PC
Power supply unit (PSU) form factor	ATX
Mean time between failures (MTBF)	100000 h

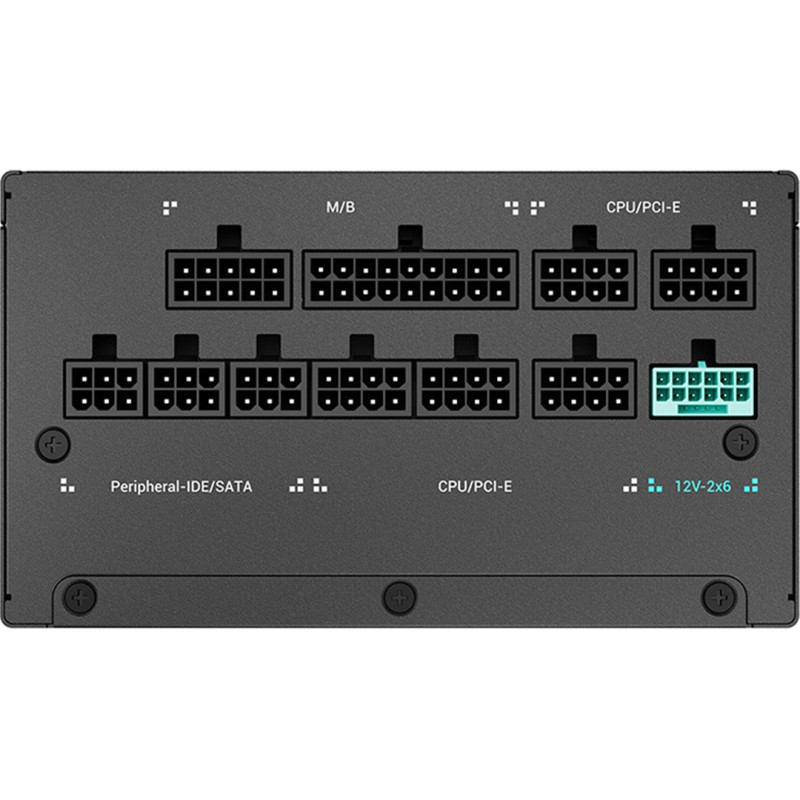

Cable tie(s) included	Yes
Cables included	AC
CPU power connector (4+4 pin)	2
ATX power connector (20+4 pin)	Yes
PCI Express power connectors (16-pin)	1
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	8
CPU power cable length	70 cm
Cabling type	Fully-Modular
PCI Express power connectors (6+2 pin)	3
Peripheral (Molex) power connectors (4-pin)	2
Warnings	Avoid contact of the product with water or other liquids., Do not open the case - risk of electric shock., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
