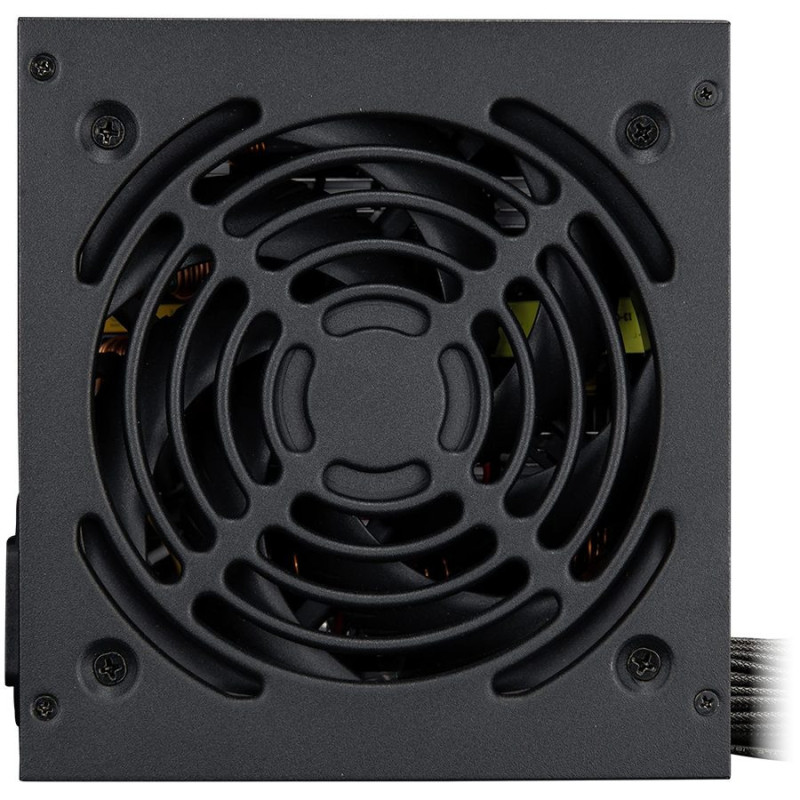

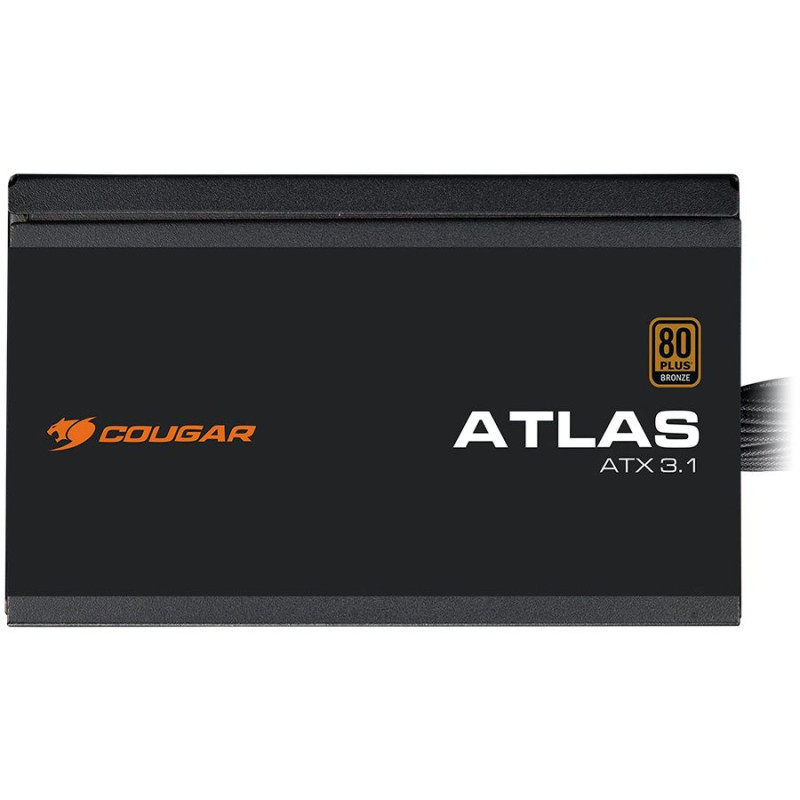

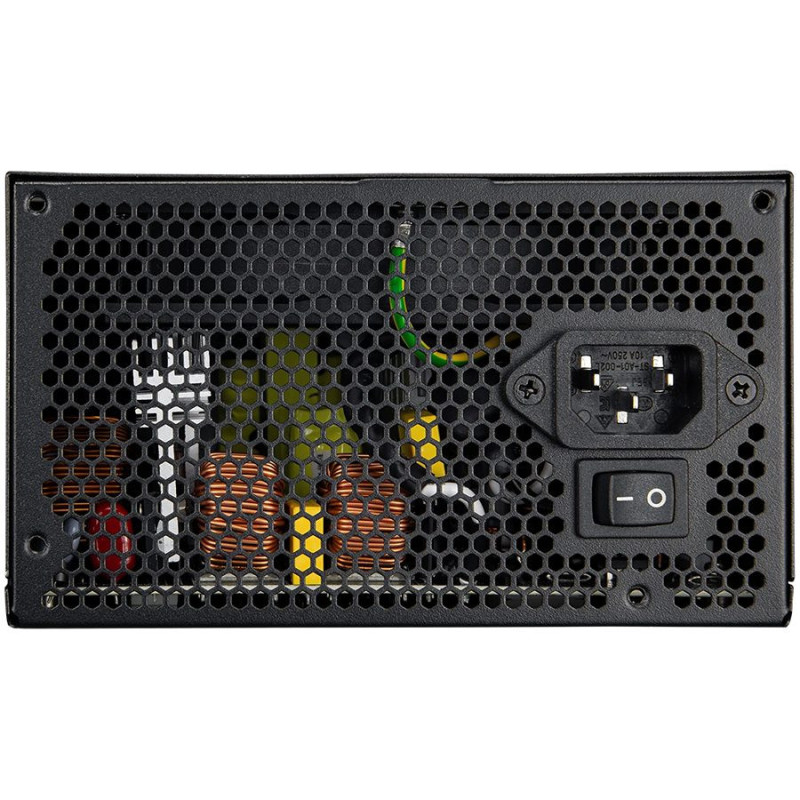

COUGAR ATLAS 750 PSU, 80 plus Bronze, 750W (ATX 3.1)
Product reference:
16-4711649770198
COUGAR ATLAS 750 PSU, 80 plus Bronze, 750W (ATX 3.1)
COUGAR ATLAS 750 PSU, 80 plus Bronze, 750W (ATX 3.1)
Product reference:
16-4711649770198
COUGAR ATLAS 750 PSU, 80 plus Bronze, 750W (ATX 3.1)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
60 month
Delivery from Lithuania in
2 - 4
business days
| +12V | 62.5 A (750 W) |
| +3.3V | 22 A |
| +5V | 22 A |
| +5VSB | 3 A (15 W) |
| -12V | 0.3 A (3.6 W) |
| 16-pin PCI Express 5.0 (12VHPWR) Connector | 1 |
| 24-pin Main Connector | 1 |
| 4-pin Peripheral Power Connector | 2 |
| 4/8-pin +12V Power Connector | 2 |
| 6/8-pin PCI Express Connector | 4 |
| 80 Plus Certification | 80 Plus Bronze |
| Built-in Devices | Power Button |
| Circuit Protection | Over Voltage Undervoltage Over Temperature Over Current Short Circuit Protection Over Power |
| Depth | 140 mm |
| EAN Code | 4711649770198 |
| Efficiency | 87% |
| External Color | Black |
| Height | 86 mm |
| Input Frequency | 50/60 Hz |
| Input Power Connectors Quantity | 1 |
| Input Power Connectors Type | IEC-320 C14 |
| Input Voltage | AC 100-240 V |
| Maximum Output Power | 750 W |
| Modular Power Supply | No |
| Nominal Weight | 1.94 kg |
| Pack Height (mm) | 165 mm |
| Pack Length (mm) | 187 mm |
| Pack Weight Netto (kg) | 1.94 kg |
| Pack Width (mm) | 158 mm |
| Package Type | Retail |
| Pieces in pack | 1 |
| Power Adapter and Power Supply Features | Active PFC |
| Power Device Location | Internal |
| Power Device Type | Power Supply |
| Rated Input Current | 10 A |
| S-ATA Connector | 6 |
| Warranty Term (month) | 60 month(s) |
| Warranty Validation Criteria | Serial Number |
| Weight | 2.23 kg |
| Width | 150 mm |
