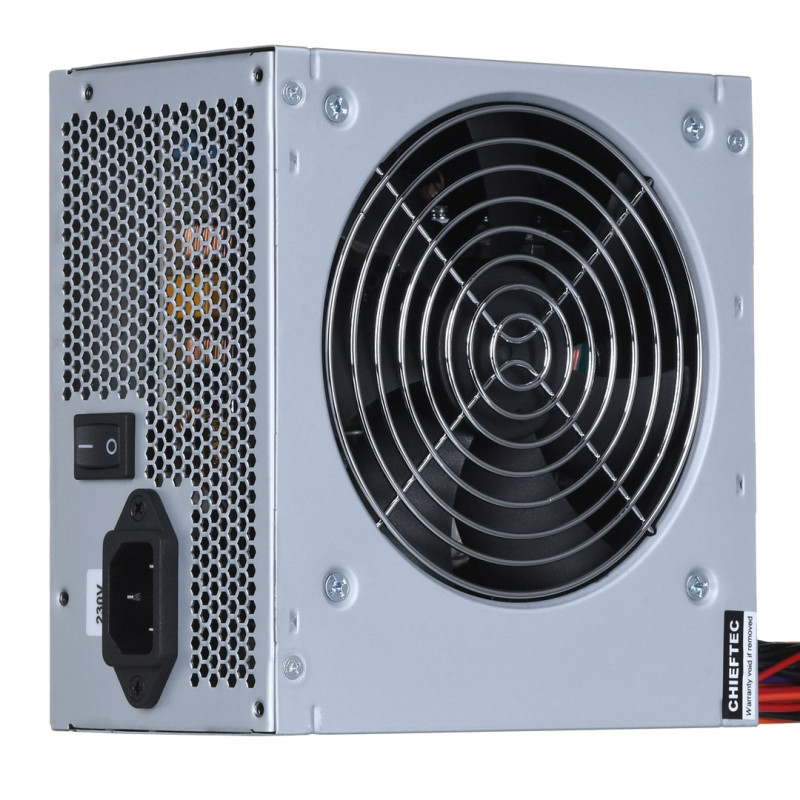

Chieftec Value APB-700B8 power supply unit 700 W 20+4 pin ATX ATX Silver

Product reference: 6-APB-700B8

You have 3 products in compare list, please remove someone and try again

Add to compare

57,20 €

57,78 €

Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 8
business days

Your message has been successfully sent!

Fill in the required fields*

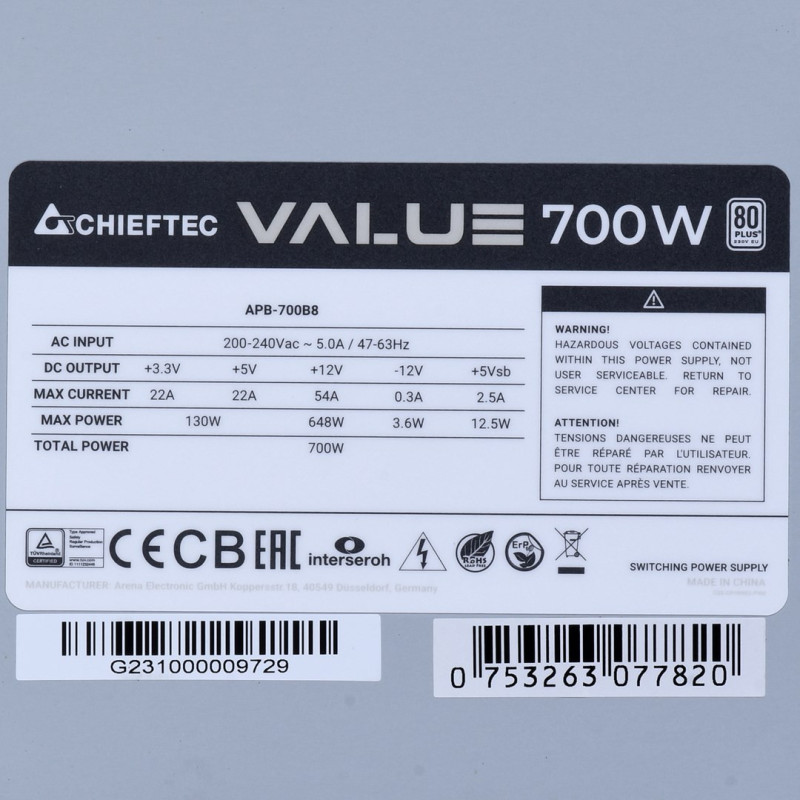

80 PLUS certification	80 PLUS
AC input frequency	47 - 63 Hz
AC input voltage	200 - 240 V
ATX version	2.3
Cabling type	Non-Modular
Certification	CE, CB, EAC, TÜV
Combined power (+12V)	648 W
Combined power (+3.3V)	130 W
Combined power (+5V)	130 W
Cooling type	Active
CPU power cable length	50 cm
CPU power connector (4+4 pin)	Yes
Depth	140 mm
EPS power connector (4+4 pin)	Yes
Fan diameter	12 cm
Floppy disk drive connector	Yes
Floppy drive power connector	1
Harmonized System (HS) code	84733020
Height	87 mm
Input current	5 A
Max output current (+12V1)	54 A
Max output current (+3.3V)	22 A
Max output current (+5V)	22 A
Motherboard power cable length	55 cm
Motherboard power connector	20+4 pin ATX
Number of fans	1 fan(s)
Number of SATA power connectors	4
PCI Express power cable length	50 cm
PCI Express power connectors (6+2 pin)	2
Peripheral (Molex) power cable length	150 mm, 500 mm
Peripheral (Molex) power connectors (4-pin)	2
Power factor	0.9
Power Factor Correction (PFC) type	Active
Power protection features	Overheating, Overload, Over voltage, Short circuit, Under power, Under voltage
Power supply unit (PSU) form factor	ATX
Product colour	Silver
Purpose	PC/Server
SATA power cable length	150, 550
Sustainability certificates	CE
Sustainability compliance	Yes
Total power	700 W
Weight	1.42 kg
Width	150 mm
