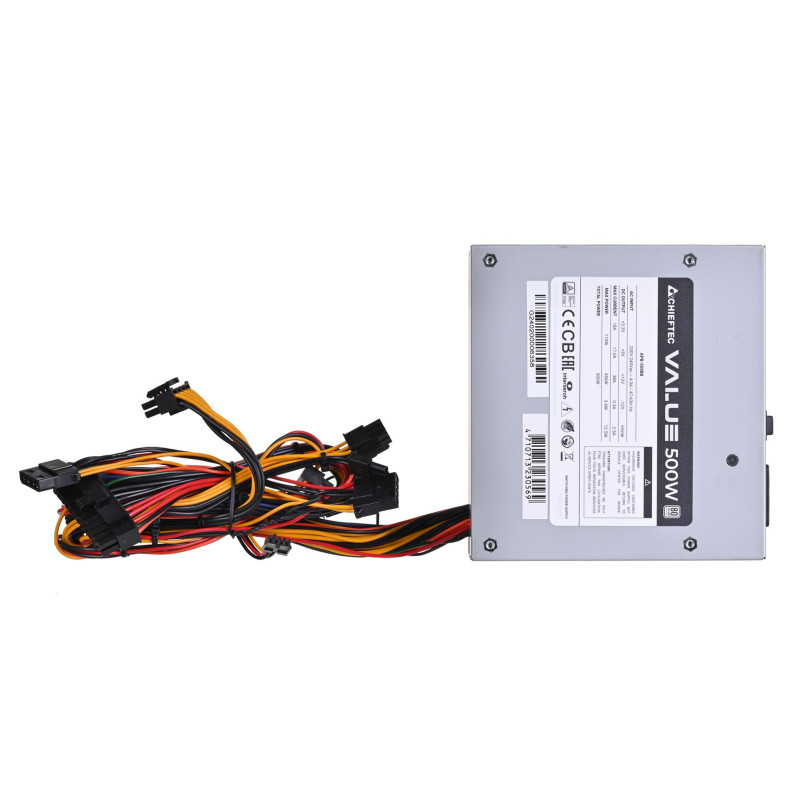

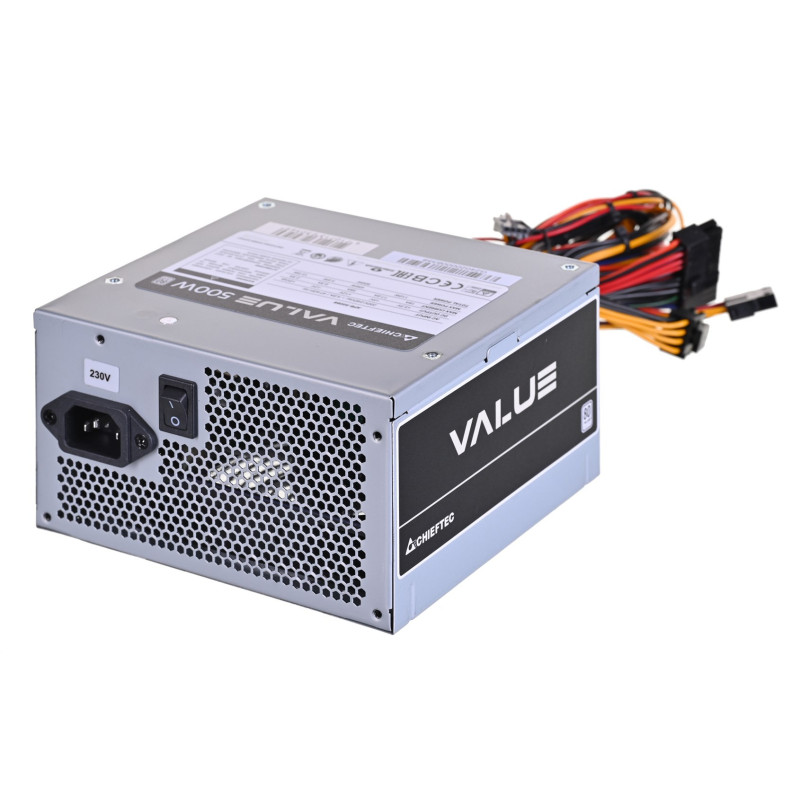

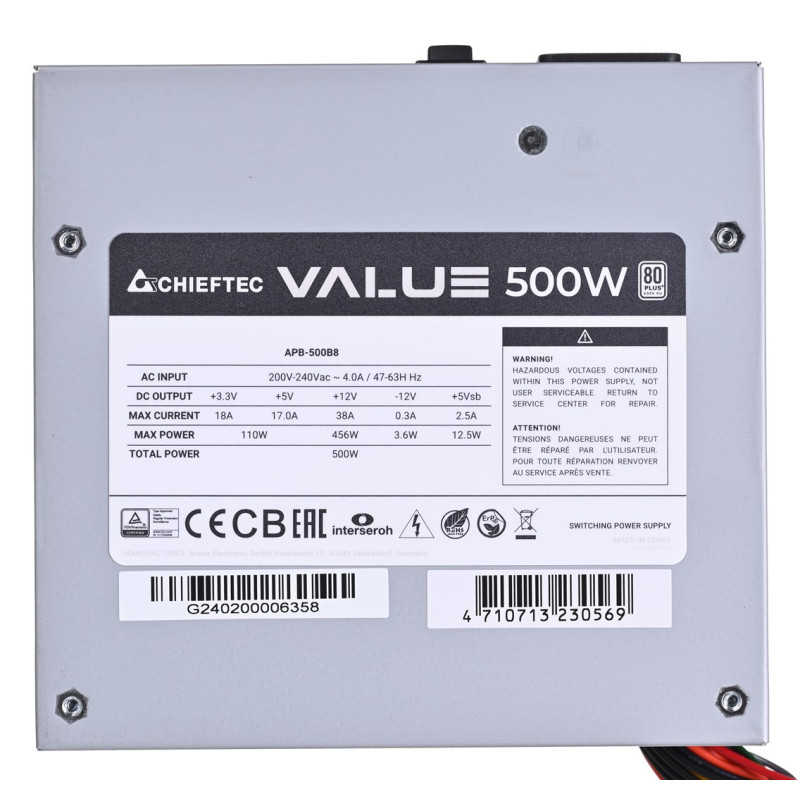

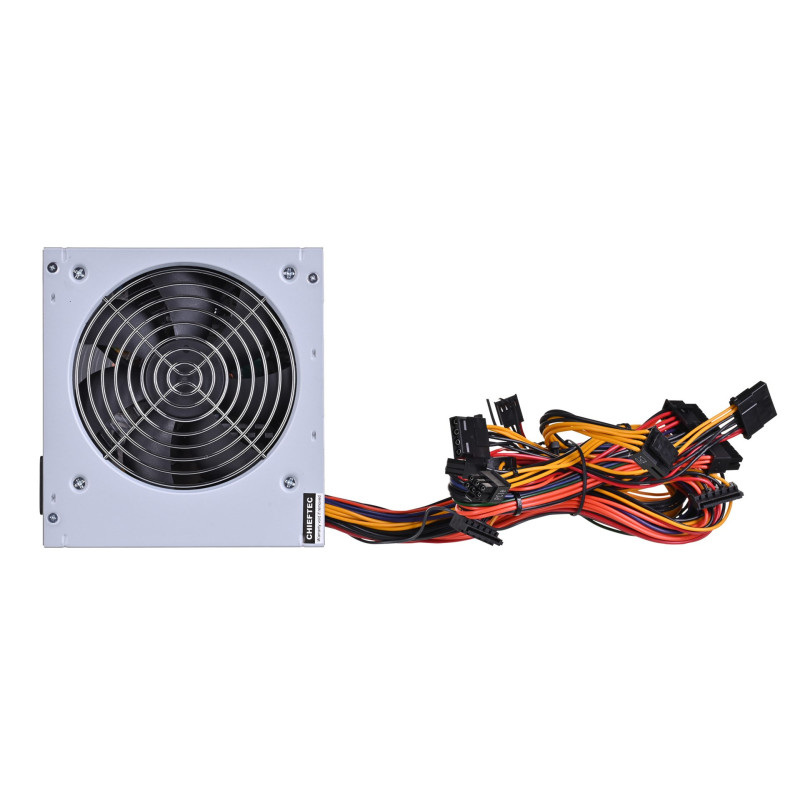

Chieftec Value APB-500B8 power supply unit 500 W 20+4 pin ATX ATX Silver

Product reference: 6-APB-500B8

Chieftec Value APB-500B8 power supply unit 500 W 20+4 pin ATX ATX Silver

Product reference: 6-APB-500B8

Chieftec Value APB-500B8 power supply unit 500 W 20+4 pin ATX ATX Silver

You have 3 products in compare list, please remove someone and try again

Add to compare

4130 €

Last product in warehouse

Guarantee
24 month

Delivery from Europe in
6 - 11
business days

Sustainability certificates	RoHS
Cooling type	Active
Product colour	Silver
On/off switch	Yes
Fan diameter	12 cm
Number of fans	1 fan(s)
Input current	4 A
Max output current (+12V1)	24 A
Power protection features	Overload, Under voltage, Short circuit, Over voltage
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
AC input voltage	230 V
Max output current (+5V)	19 A
Max output current (+12V2)	21 A
Max output current (+3.3V)	22 A
Total power	500 W
Power factor	0.9
Combined power (+5V)	130 W
AC input frequency	50 Hz
Combined power (+3.3V)	130 W
Power Factor Correction (PFC) type	Active
Efficiency	80%
Max output current (+5Vsb)	2.5 A
Max output current (-12V)	0.3 A
Width	150 mm
Depth	140 mm
Height	87 mm
Certification	CE, CB, TÜV, EAC
Power supply unit (PSU) form factor	ATX
80 PLUS certification	80 PLUS
Purpose	PC
ATX version	2.3
Floppy disk drive connector	Yes
EPS power connector (8-pin)	No
Cabling type	Non-Modular
Number of SATA power connectors	3
Peripheral (Molex) power connectors (4-pin)	2
PCI Express power connectors (6+2 pin)	1
Motherboard power connector	20+4 pin ATX
Harmonized System (HS) code	84733020
