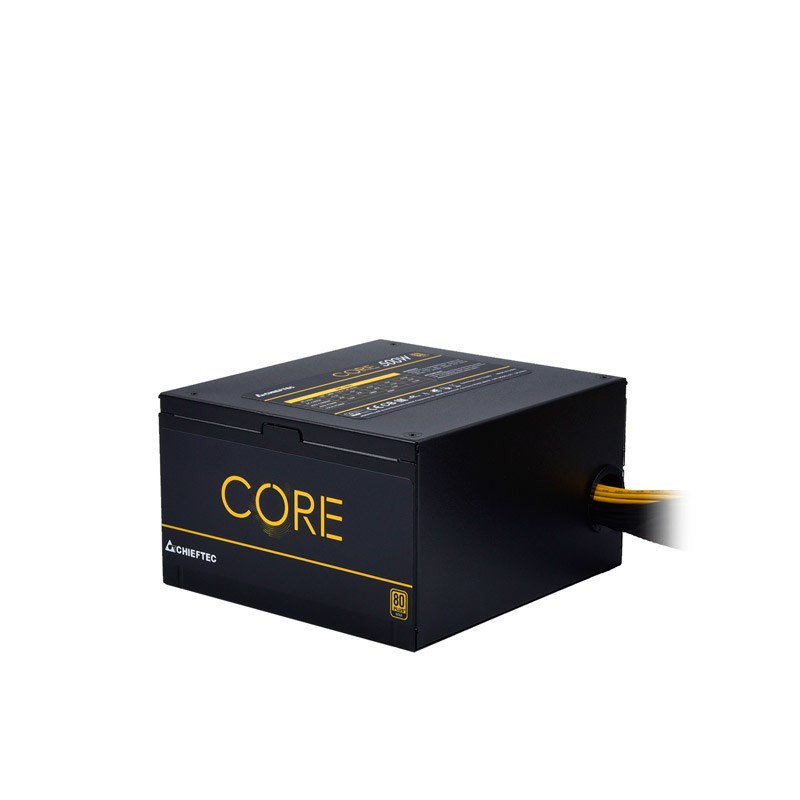

Chieftec Core BBS-500S power supply unit 500 W 24-pin ATX PS / 2 Black
Product reference:
6-BBS-500S
Chieftec Core BBS-500S power supply unit 500 W 24-pin ATX PS/2 Black
Chieftec Core BBS-500S power supply unit 500 W 24-pin ATX PS / 2 Black
Product reference:
6-BBS-500S
Chieftec Core BBS-500S power supply unit 500 W 24-pin ATX PS/2 Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
6 - 10
business days
| 80 PLUS certification | 80 PLUS Gold |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| ATX version | 2.3 |
| Cabling type | Non-Modular |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Cooling type | Active |
| CPU power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| Depth | 150 mm |
| Fan diameter | 12 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Harmonized System (HS) code | 84733020 |
| Height | 86 mm |
| Input current | 8 A |
| Max output current (+12V1) | 41 A |
| Max output current (+3.3V) | 18 A |
| Max output current (+5V) | 18 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Motherboard power connector | 24-pin ATX |
| Number of fans | 1 fan(s) |
| Number of SATA power connectors | 4 |
| PCI Express power cable length | 50 cm |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power cable length | 150, 500 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Overload, Over voltage, Short circuit |
| Power supply unit (PSU) form factor | PS/2 |
| Product colour | Black |
| Purpose | PC |
| SATA power cable length | 150, 500 |
| Total power | 500 W |
| Warnings | Avoid contact of the product with water or other liquids., Do not open the case - risk of electric shock., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations. |
| Weight | 1.65 kg |
| Width | 140 mm |
