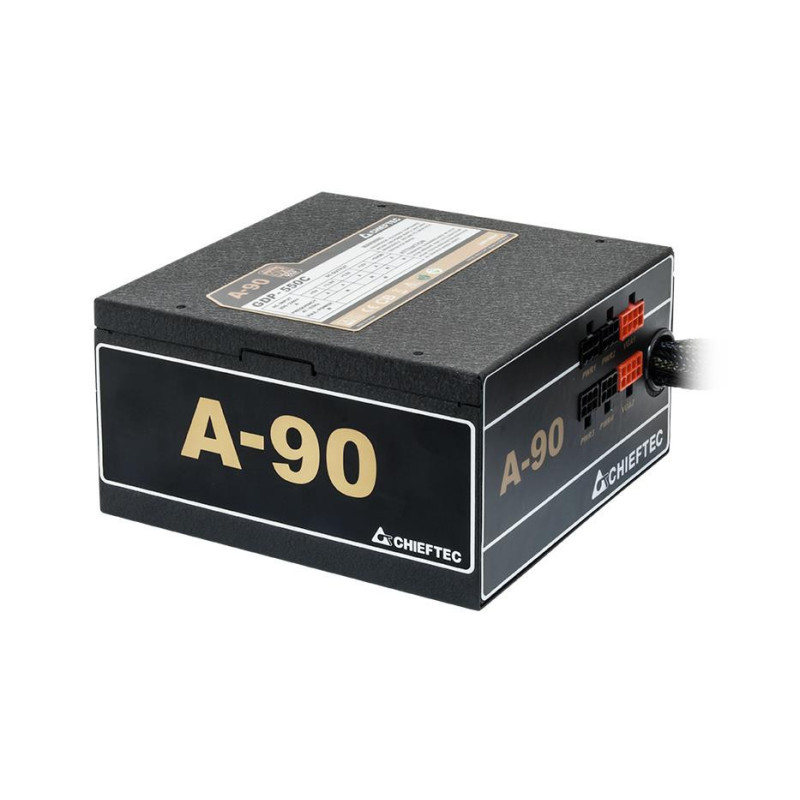

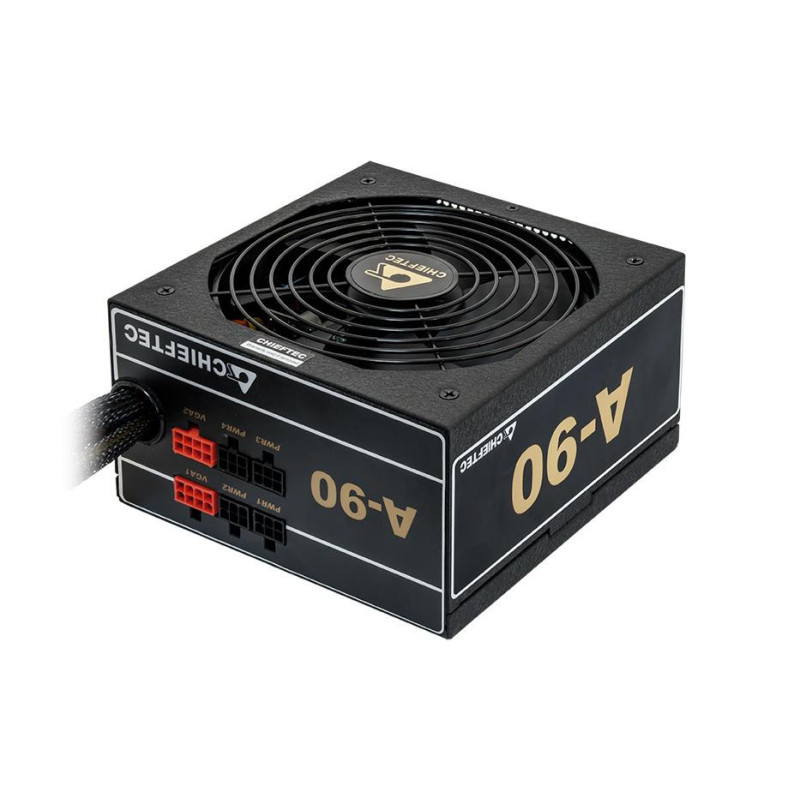

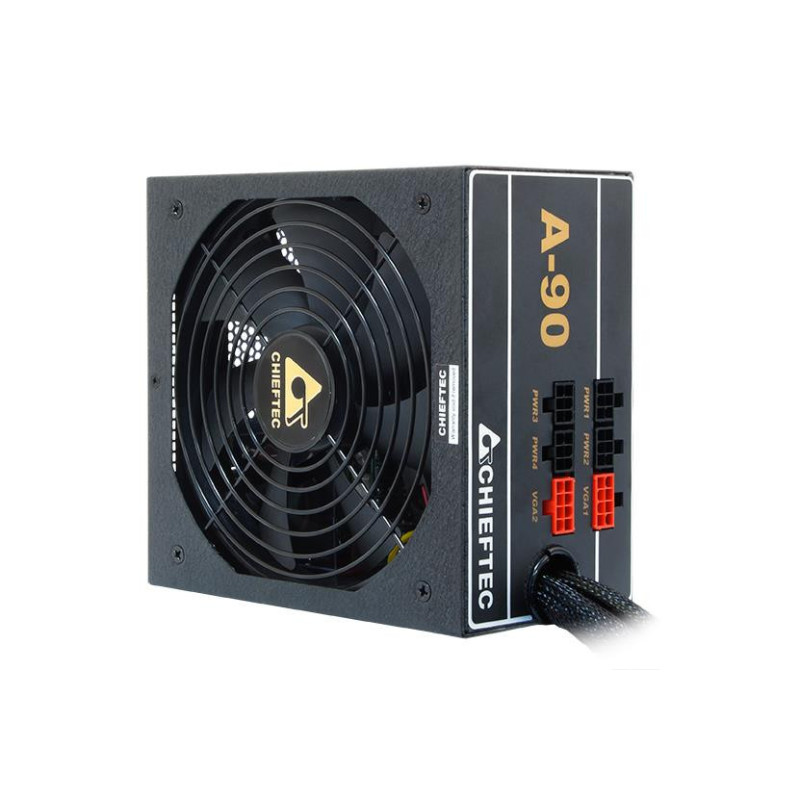

ATX 2.3 power supply Chieftec A-90 750W 80 PLUS GOLD Black (GDP-750C)
Efficiency at low cost, that's the reason, why the new A-90 series from CHIEFTEC has been invented. The three high performance PSU's cover with their nominal power output of 550 watts - 750 watts all kinds of usage possibilities. With a fixed output voltage of 230 V, this power supply series is especially made for cost-aware computer consumers. The PSU's have an efficiency of > 90% and thus meet the 80plus gold requirements.
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 200 - 240V |
| ATX version | 2.3 |
| Height | 87 mm |
| Total power | 750 W |
| Gross weight | 2.6 kg |
| Harmonized System (HS) code | 84733020 |
| Frequency tolerance | 90 % |
| Maximum output voltage (+12 V1) | 62 A |
| Maximum output voltage (+3.3 V) | 22 A |
| Maximum output voltage (+5 V) | 22 A |
| Maximum output voltage (-12 V) | 0.3 A |
| EPS power connector (8-pin) | Yes |
| Floppy drive power connector | 1 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) Type | Active |
| Length | 150 mm |
| Connector(s) | 20+4 PIN ATX 1 8 PIN EPS(4+4) 1 8 PIN PCIe (6+2) 4 8 hours MOLEX/FLOPPY 3/1 |
| Complex power (+12 V) | 744 W |
| Complex power (+3.3 V) | 120 W |
| Complex power (+5 VSB) | 2.5 W |
| Complex power (+5V) | 120 W |
| Power protection features | Overvoltage protection/Overheating protection/Overload protection/Undervoltage protection/Short circuit/Exceeding DC current |
| Power supply unit (PSU) form factor | PS/2 |
| Motherboard power connector | 20+4 pin ATX |
| Net weight | 2 kg |
| Purpose | PC |
| PCI Express power connectors (6 + 2 pins) | 4 |
| Wired transmission type | Semi-modular |
| Peripheral (Molex) power cable length | 150/550 mm |
| Peripheral (Molex) power connector (4-pin) | 3 |
| Width | 160 mm |
| Product color | Black |
| Number of SATA electrical connectors | 8 |
| SATA power cable length | 150/550 mm |
| Shipping Box Depth | 44.5 cm |
| Shipping Box Height | 27 cm |
| Shipping Box Weight | 15.6 kg |
| Shipping Box Width | 32 cm |
| Summary | Chieftec GDP-750C. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Black, Fan diameter: 14 cm, Number of fans: 1 fan(s). Width: 160 mm, Depth: 150 mm, Height: 87 mm |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.25 |
| Unit Box Width | 0.22 |
| Unit Ugly Volume | 0.006408 cubm |
| Vendor Homepage | https://www.chieftec.eu/products-detail/109/A-90-SERIES/112/GDP-750C |
| Fan diameter | 140 mm |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Unit height | 10 cm |
| Unit depth | 25 cm |
| Unit width | 22 cm |
| Number of units per shipping box | 6 |
