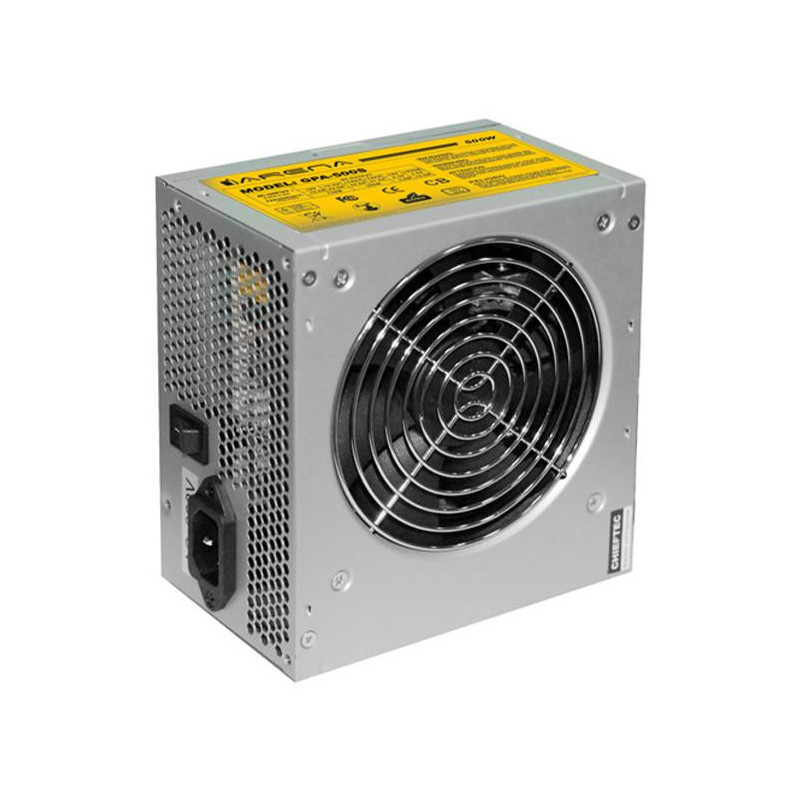

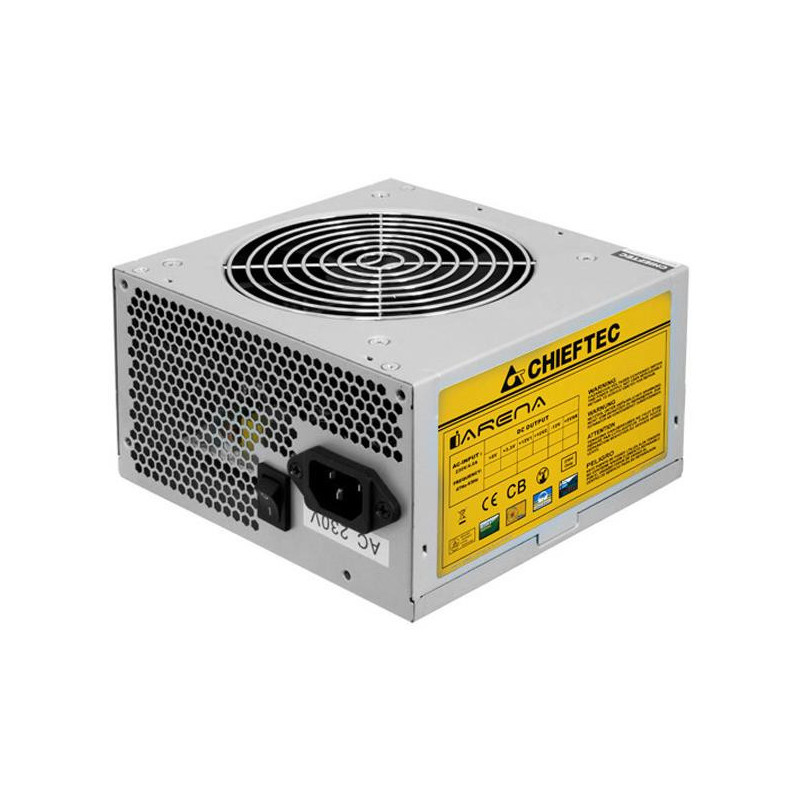

Chieftec iArena GPA-700s
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 200 - 240V |
| Certificates of conformity | CB/CE/EAC |
| ATX power connector (20 + 4 pins) | Yes |
| ATX version | 2.3 |
| Height | 87 mm |
| Cooling type | Active |
| Total power | 700 W |
| Gross weight | 1.61 kg |
| CPU power connector (4 + 4 pins) | Yes |
| CPU power cable length | 550 mm |
| Maximum output voltage (+12 V) | 50 A |
| Maximum output voltage (+12 VSB) | 2.5 A |
| Maximum output voltage (+3.3 V) | 22 A |
| Maximum output voltage (+5 V) | 22 A |
| Maximum output voltage (-12 V) | 0.3 A |
| Efficiency | 80 % |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) Type | Active |
| Length | 150 mm |
| Connector(s) | 20+4 PIN ATX 1 8 PIN EPS(4+4) 1 8 PIN PCIe (6+2) 2 6 HOURS MOLEX/FLOPPY 2/1 |
| Complex power (+12 V) | 648 W |
| Complex power (+3.3 V) | 130 W |
| Complex power (+5 VSB) | 12.5 W |
| Complex power (+5V) | 130 W |
| Complex power (-12 V) | 3.6 W |
| Power protection features | Overvoltage protection/Overload protection/Undervoltage protection/Short circuit |
| Power supply unit (PSU) form factor | PS/2 |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 500 mm |
| Net weight | 0.9 kg |
| Package weight | 1570 g |
| Packaging type | "Box" |
| Purpose | Computer/server |
| PCI Express power connectors (6 + 2 pins) | 2 |
| Wired transmission type | Non-modular |
| Peripheral (Molex) power cable length | 150/500 mm |
| Peripheral (Molex) power connector (4-pin) | 2 |
| Width | 140 mm |
| Product color | Silver |
| Number of SATA electrical connectors | 6 |
| SATA power cable length | 150/500 mm |
| Shipping Box Depth | 50 cm |
| Shipping Box Height | 21 cm |
| Shipping Box Weight | 16.1 kg |
| Shipping Box Width | 45 cm |
| Summary | Chieftec iArena GPA-700s. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Peripheral (Molex) power cable length: 500,650,800 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC |
| Weight | 1440 g |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.155 |
| Unit Ugly Volume | 0.004725 cubm |
| Vendor Homepage | https://www.chieftec.eu/products-detail/140/IARENA_SERIES/146/GPA-700S |
| Fan diameter | 120 mm |
| Fan location | Top |
| Number of fans | 1 fan(s) |
| Unit height | 9 cm |
| Unit depth | 22 cm |
| Unit width | 15.5 cm |
| Number of units per shipping box | 10 |
| Input current | 5 A |
