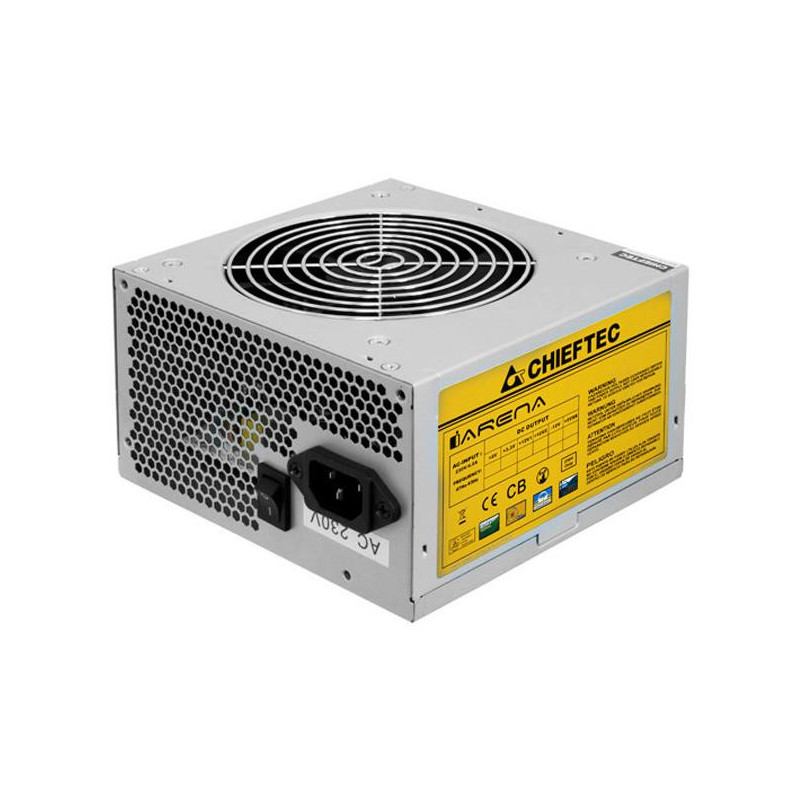

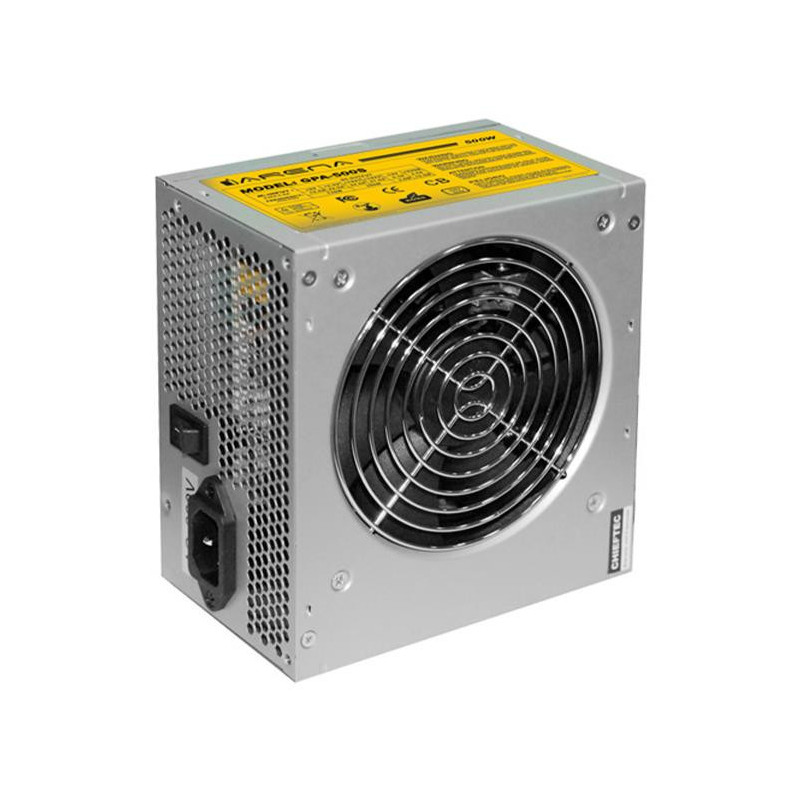

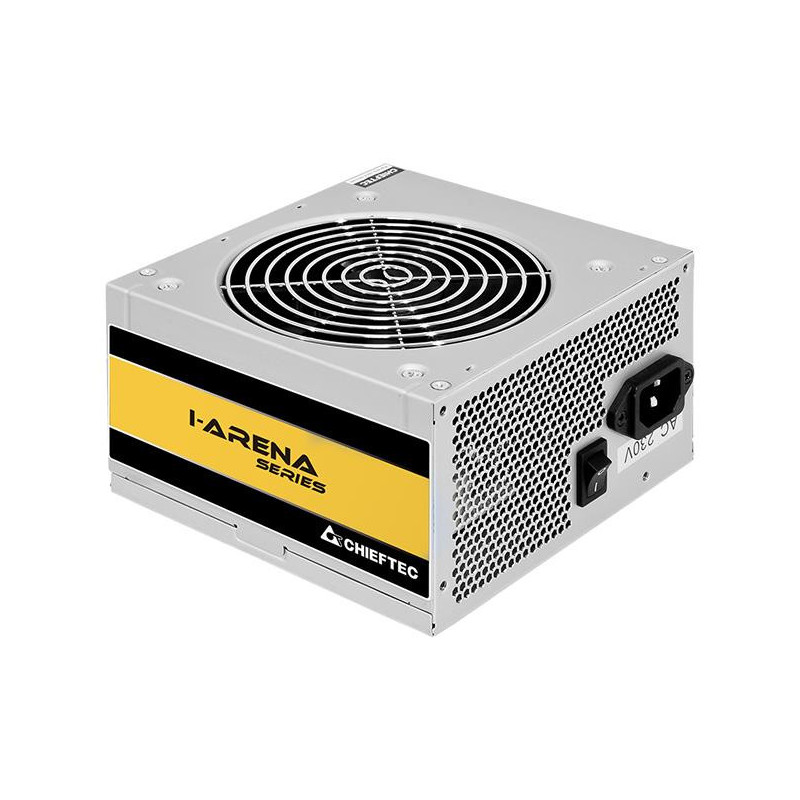

Chieftec iArena GPA-650S
The GPA-650S and like all other models in the iARENA Series have a fixed voltage of 230V and are specifically made for Europe. They are the optimal and cost-effective solution for quality-demanding system builders.
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 200 - 240 V |
| ATX power connector (20+4 pin) | Yes |
| ATX version | 2.3 |
| Cabling type | Non-Modular |
| Combined power (+12V) | 600 W |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Compliance certificates | CB/CE/EAC |
| Cooling type | Active |
| CPU power cable length | 550 mm |
| CPU power connector (4+4 pin) | Yes |
| Depth | 150 mm |
| Efficiency | 80 % |
| Fan diameter | 120 mm |
| Fan location | Top |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Height | 87 mm |
| Input current | 4.5 A |
| Max output current (+12V) | 50 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Model name | GPA-650S |
| Motherboard power cable length | 500 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of fans | 1 fan(s) |
| Number of SATA power connectors | 6 |
| Package type | Box |
| Package weight | 1550 g |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 500/650/800 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage |
| Power supply unit (PSU) form factor | PS/2 |
| Product colour | Silver |
| Product Net Weight | 1.42 kg |
| Purpose | PC/Server |
| Shipping Box Depth | 50 cm |
| Shipping Box Height | 19 cm |
| Shipping Box Weight | 15.5 kg |
| Shipping Box Width | 45 cm |
| Summary | Chieftec iArena GPA-650S. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Peripheral (Molex) power cable length: 500,650,800 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: PS/2. Product colour: Silver, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CB, CE, EAC |
| Total power | 650 W |
| Unit Box Height | 0.09 |
| Unit Box Length | 0.22 |
| Unit Box Width | 0.15 |
| Unit Calculated Volume | 0.004275 cubm |
| Unit Calculated Weight | 1.55 kg |
| Units per Shipping Box | 10 |
| Vendor Homepage | https://www.chieftec.eu/products-detail/140/IARENA_SERIES/145/GPA-650S |
| Weight | 1420 g |
| Width | 140 mm |
