be quiet! POWER ZONE 2 1000W power supply unit 20+4 pin ATX ATX Black
Product reference:
6-BP008EU
be quiet! POWER ZONE 2 1000W power supply unit 20+4 pin ATX ATX Black
be quiet! POWER ZONE 2 1000W power supply unit 20+4 pin ATX ATX Black
Product reference:
6-BP008EU
be quiet! POWER ZONE 2 1000W power supply unit 20+4 pin ATX ATX Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
120 month
Delivery from Europe in
6 - 11
business days
| Sustainability certificates | ENERGY STAR, ErP, Triman |
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Fan diameter | 14 cm |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Combined power (+3.3V) | 120 W |
| Power protection features | Surge & inrush, Overheating, Under voltage, Over current, Short circuit, Over voltage, Over power |
| Power factor | 0.98 |
| Efficiency | 92.6% |
| Total power | 1000 W |
| Number of +12V rail(s) | 1 |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Combined power (+5Vsb) | 15 W |
| Peak power | 1070 W |
| Hold time | 22.7 ms |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Combined power (+12V) | 999.6 W |
| Maximum input current (@110V) | 13 A |
| Combined power (-12V) | 6 W |
| Max output current (+12V) | 83.3 A |
| Maximum input current (@220V) | 6.5 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 85% |
| Weight | 2.82 kg |
| Depth | 160 mm |
| Height | 86 mm |
| Width | 150 mm |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Platinum |
| Bearing technology | Rifle |
| EPS version | 2.92 |
| Noise level | 27.2 dB |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| Compliance certificates | UKCA, RoHS, CE, TÜV mark, Federal Communications Commission (FCC), CB, CCC, WEEE, RCM, BSMI |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| EPS power connector (8-pin) | Yes |
| Cabling type | Fully-Modular |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 3 |

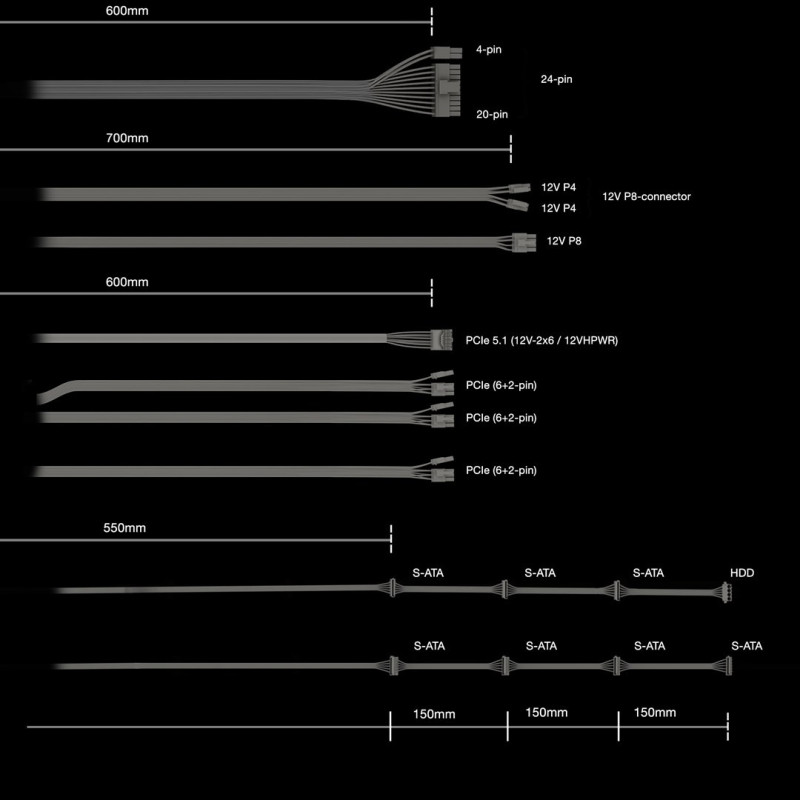

| SATA power cable length | 1000 mm, 700 mm, 550, 850 mm |
| CPU P4 connector (4-pin) | 1 |
| CPU power cable length | 70 cm |
| Number of SATA power connectors | 7 |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Peripheral (Molex) power cable length | 1000 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 60 cm |
| PCI Express power connectors (16-pin) | 1 |

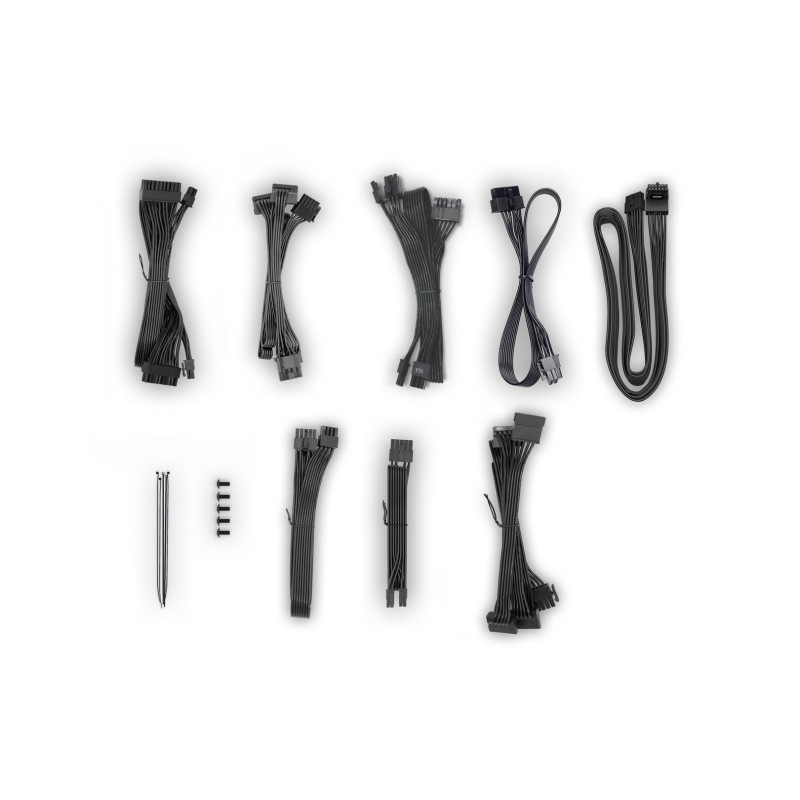

| Cable ties included | Yes |
| Screws included | Yes |
| Shipping (inner) case length | 65.1 cm |
| Products per shipping (inner) case | 6 pc(s) |
| Shipping (inner) case height | 34.6 cm |
| Shipping (inner) case gross weight | 19.6 kg |
| Shipping (inner) case width | 28.2 cm |
