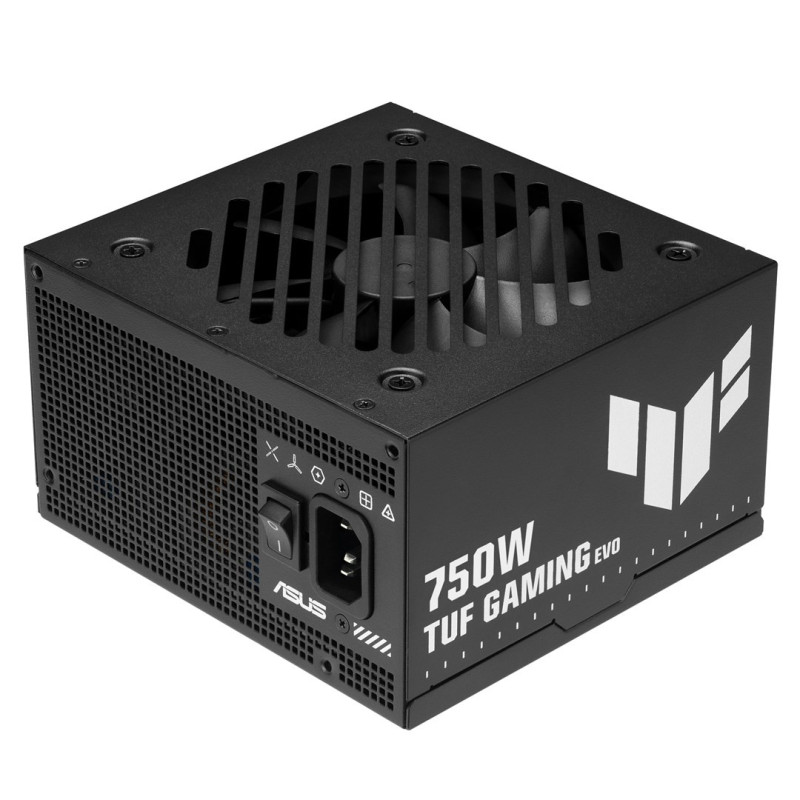

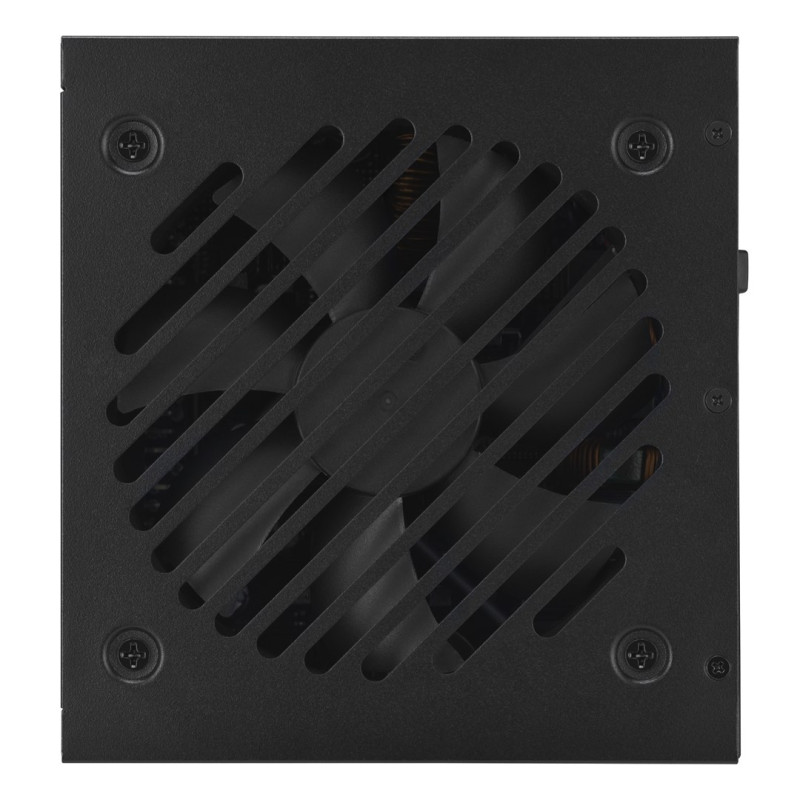

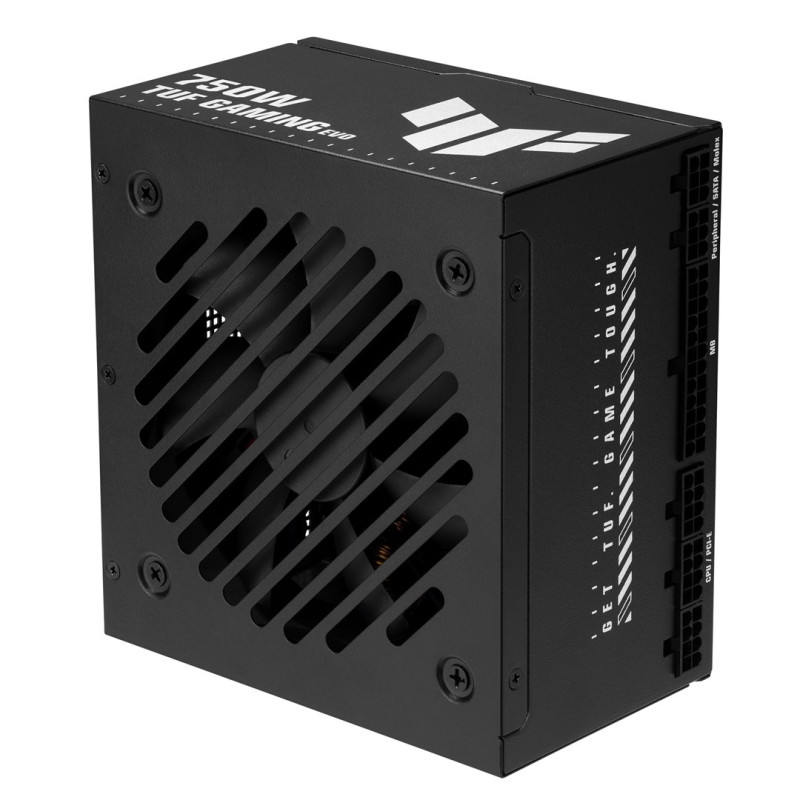

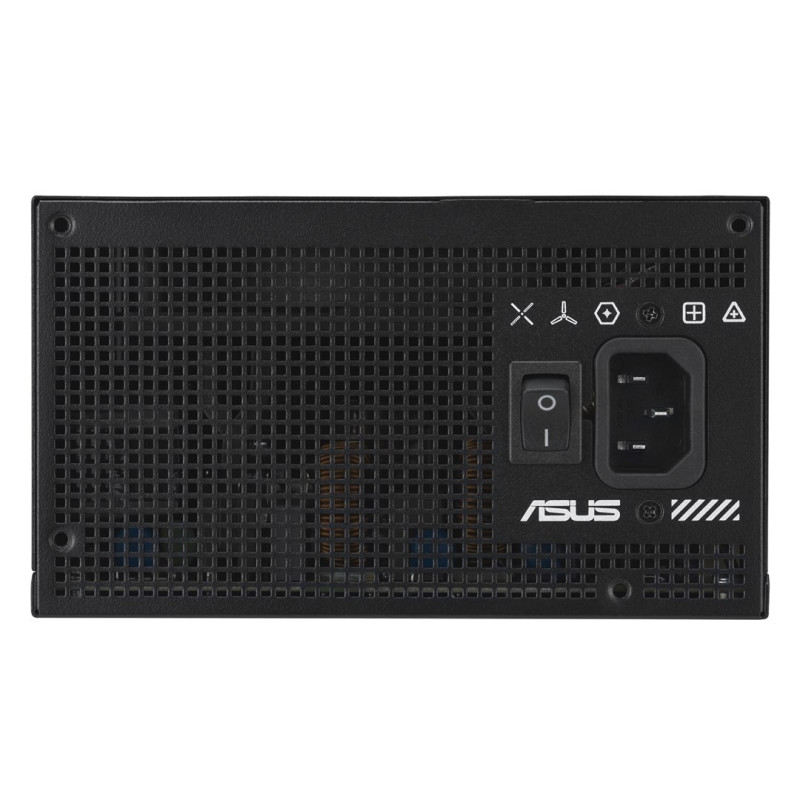

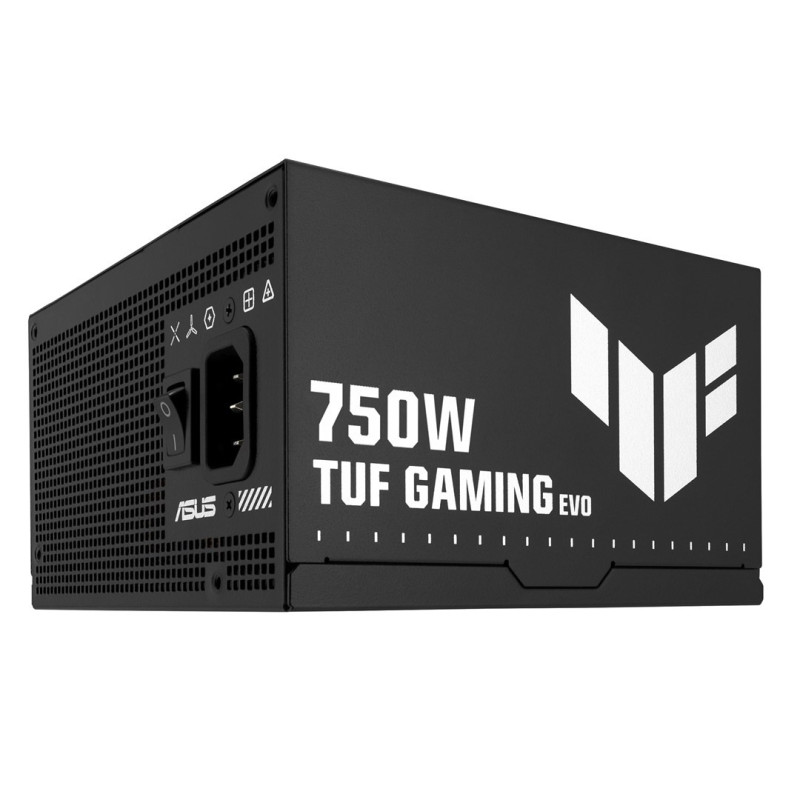

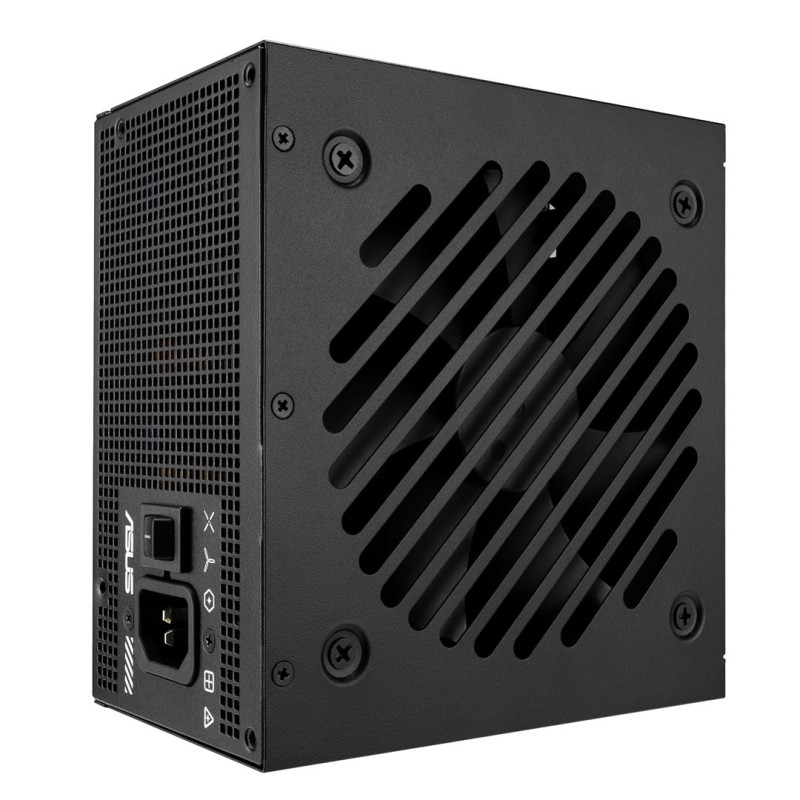

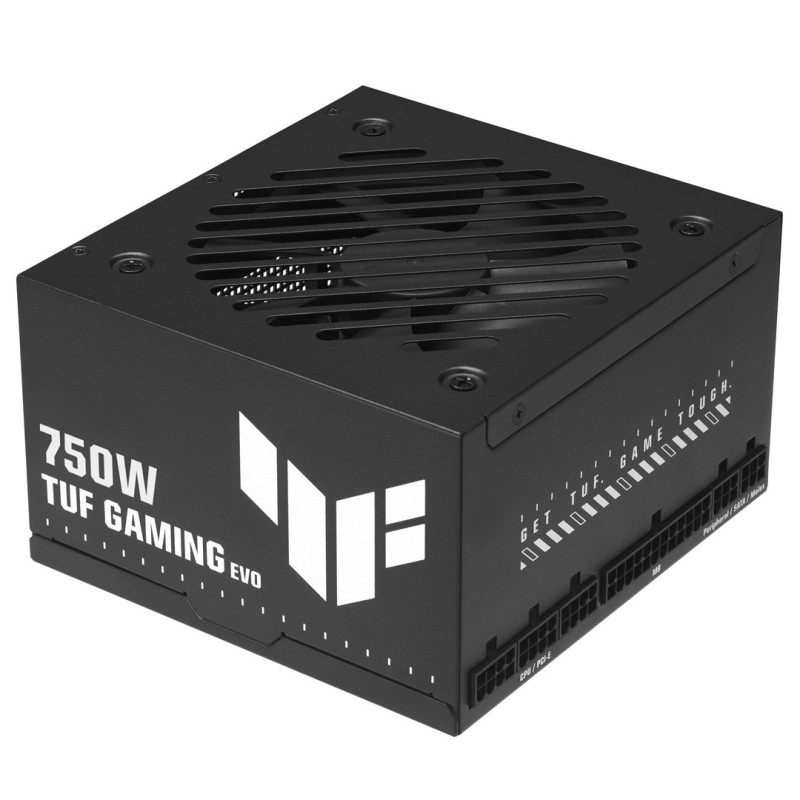

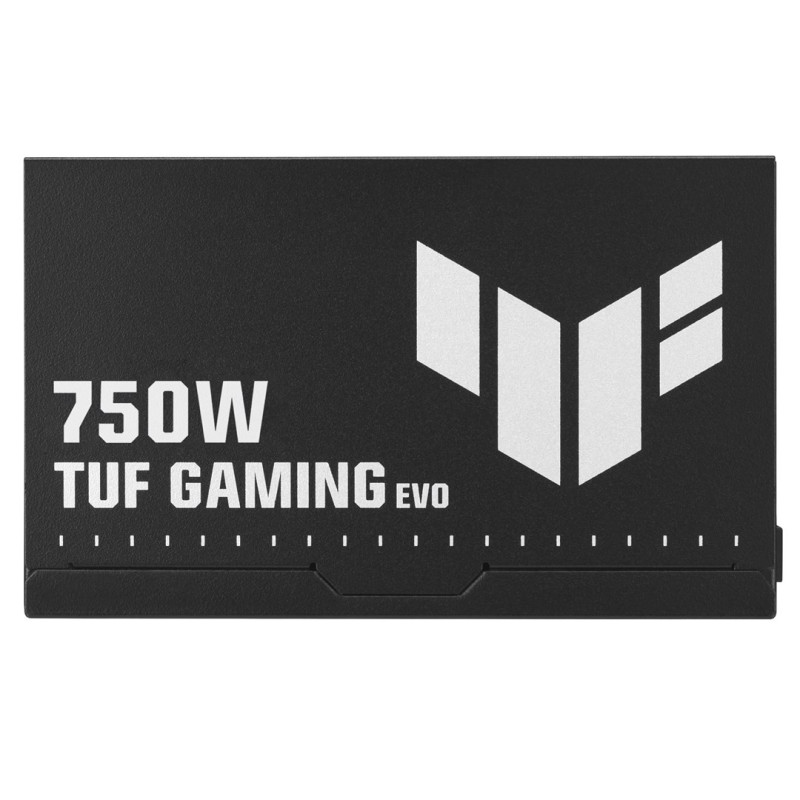

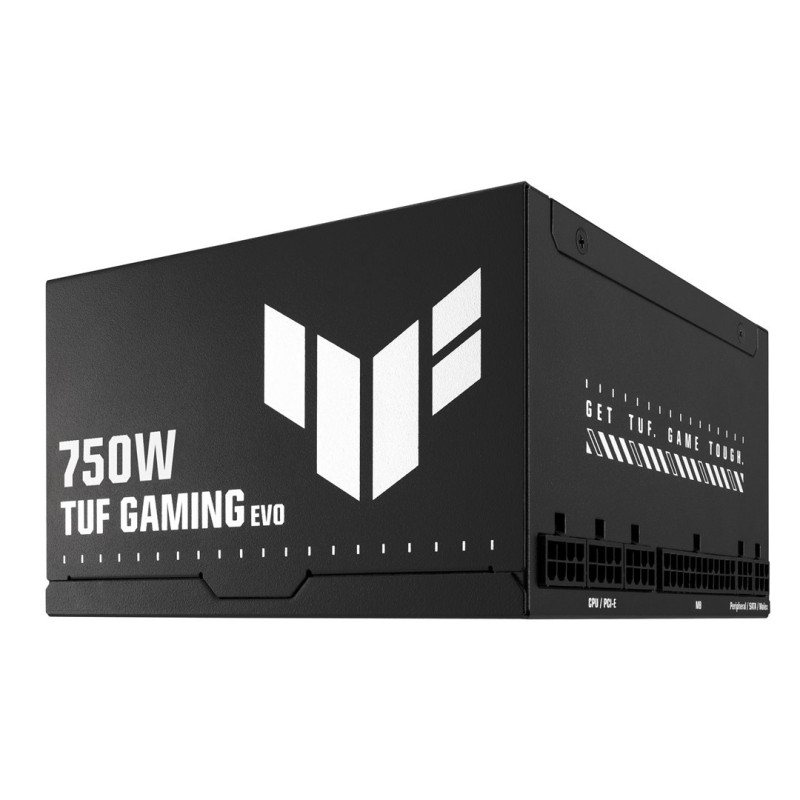

ASUS TUF-GAMING-750B-EVO power supply unit 750 W 20+4 pin ATX ATX Black
Product reference:
6-90YE00D5-B0NA00
ASUS TUF-GAMING-750B-EVO power supply unit 750 W 20+4 pin ATX ATX Black
ASUS TUF-GAMING-750B-EVO power supply unit 750 W 20+4 pin ATX ATX Black
Product reference:
6-90YE00D5-B0NA00
ASUS TUF-GAMING-750B-EVO power supply unit 750 W 20+4 pin ATX ATX Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
84 month
Delivery from Europe in
4 - 8
business days
| On/off switch | Yes |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Illumination | No |
| Fan location | Top |
| Power protection features | Under voltage, Over current, Short circuit, Over voltage, Over power, Overheating |
| AC input voltage | 100 - 240 V |
| Total power | 750 W |
| Max output current (+12V) | 62.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+5V) | 80 W |
| Combined power (+12V) | 750 W |
| Max output current (+3.3V) | 12 A |
| Combined power (+3.3V) | 80 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 12 A |
| Height | 86 mm |
| Depth | 150 mm |
| Width | 140 mm |
| Weight | 1.41 kg |
| Purpose | PC |
| Bearing technology | DBB |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
| Mean time between failures (MTBF) | 120000 h |

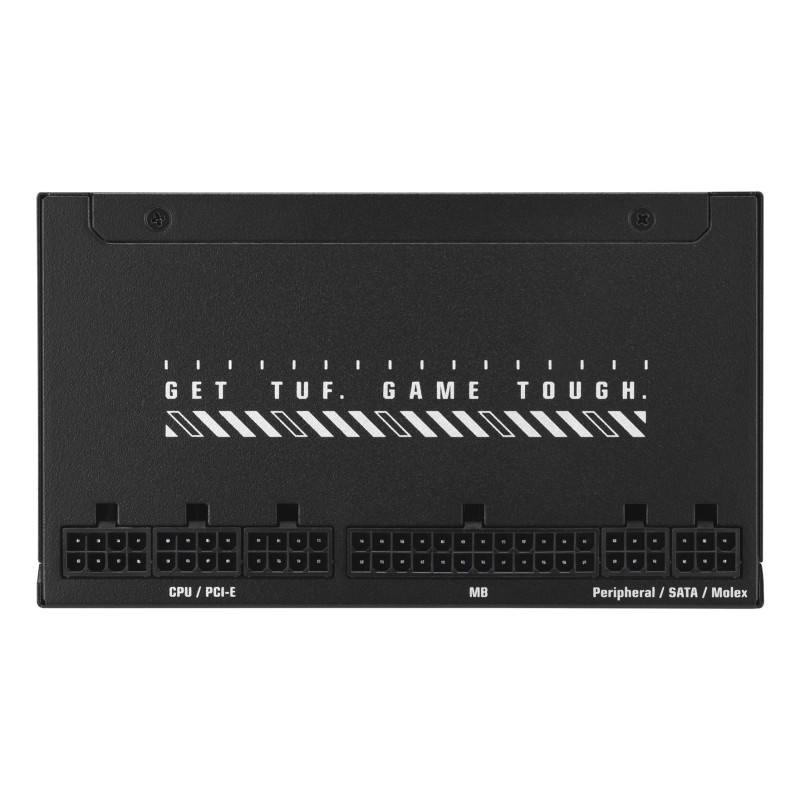

| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 3 |
| Cabling type | Fully-Modular |
| Motherboard power connector | 20+4 pin ATX |
| PCI Express connector | Yes |
| Peripheral (Molex) power cable length | 120, 400 mm |
| Motherboard power cable length | 50 cm |
| SATA power cable length | 120, 400 mm |
| Number of SATA power connectors | 4 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| PCI Express power cable length | 60 cm |
