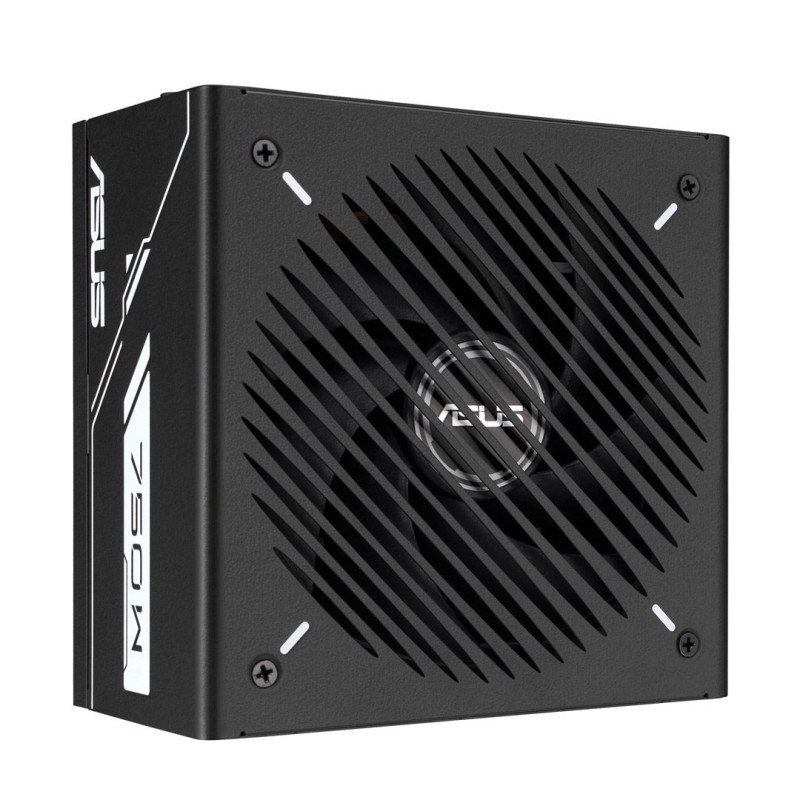

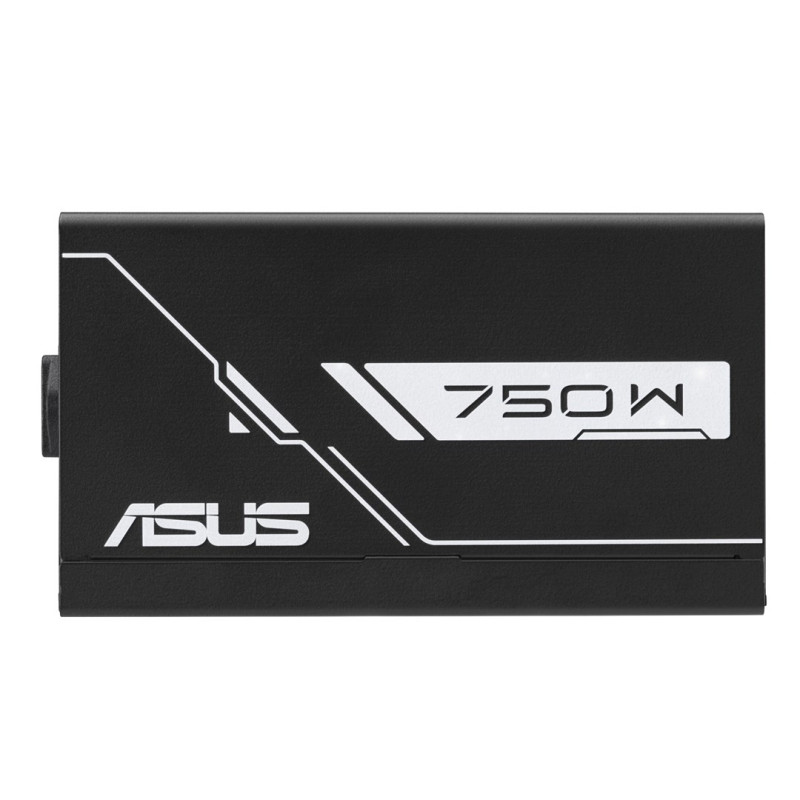

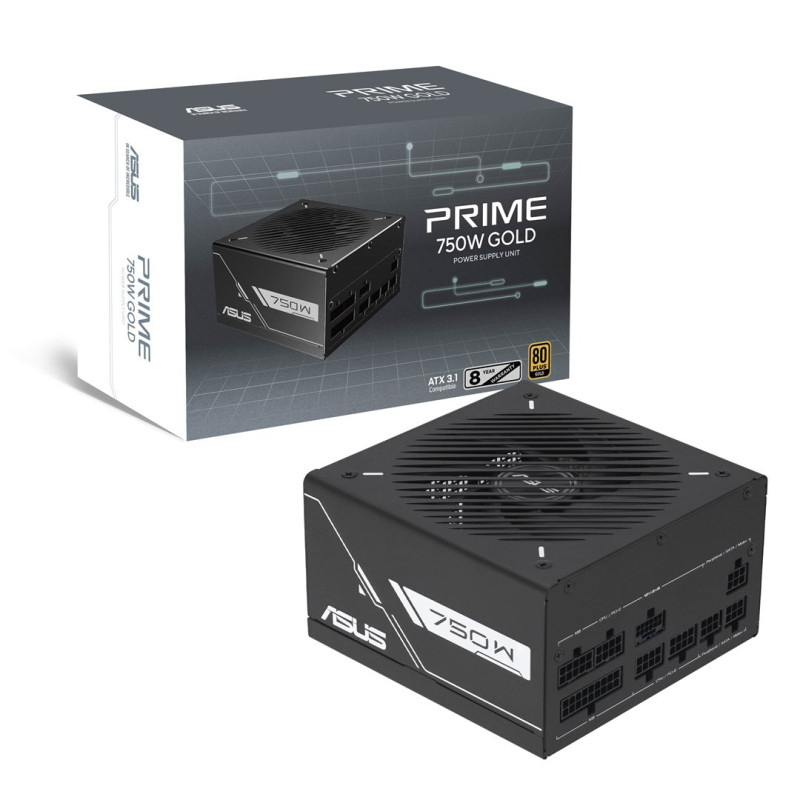

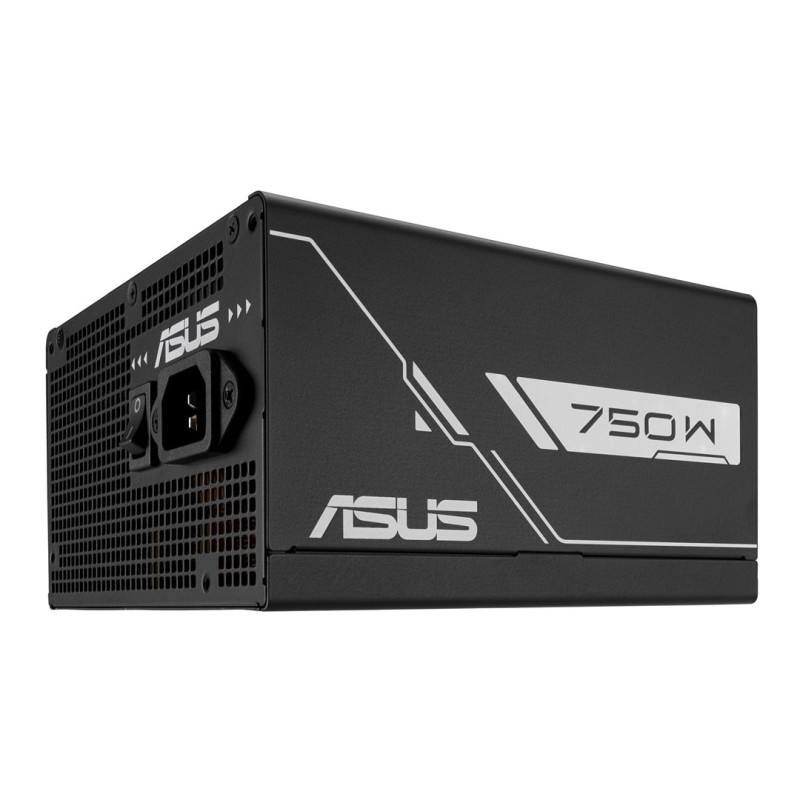

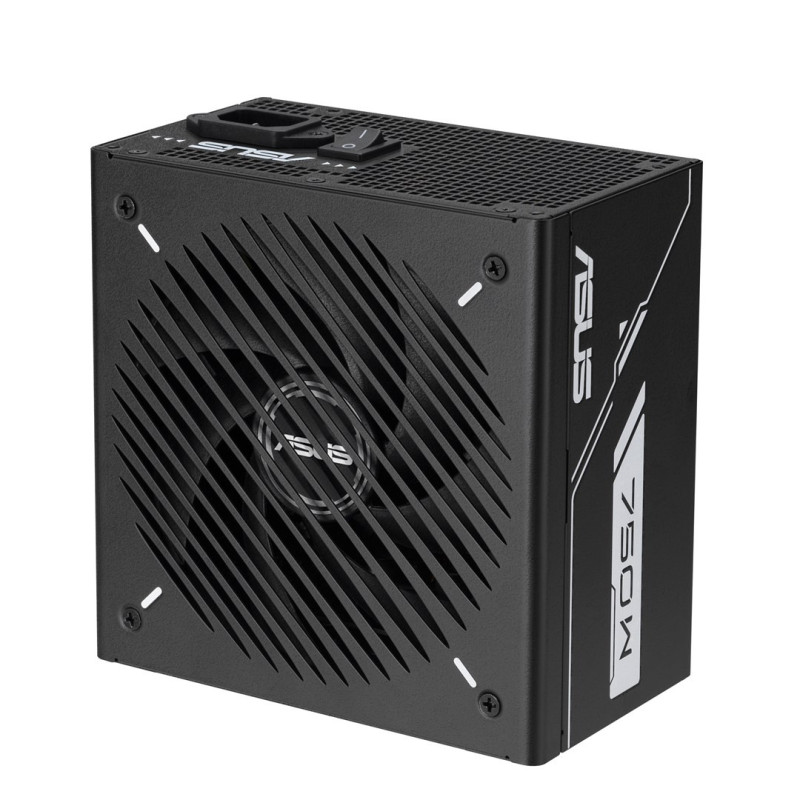

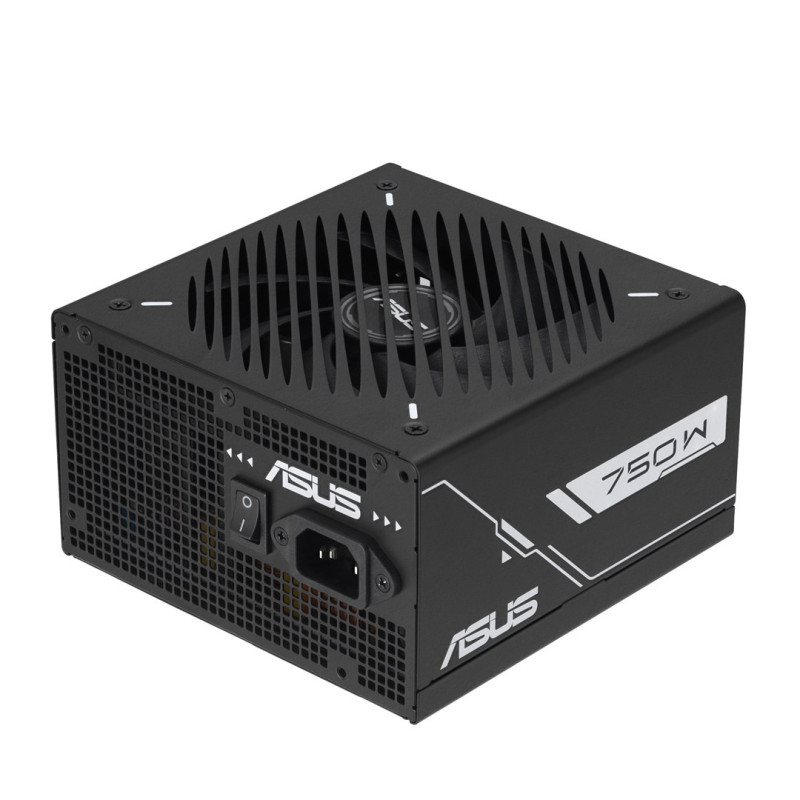

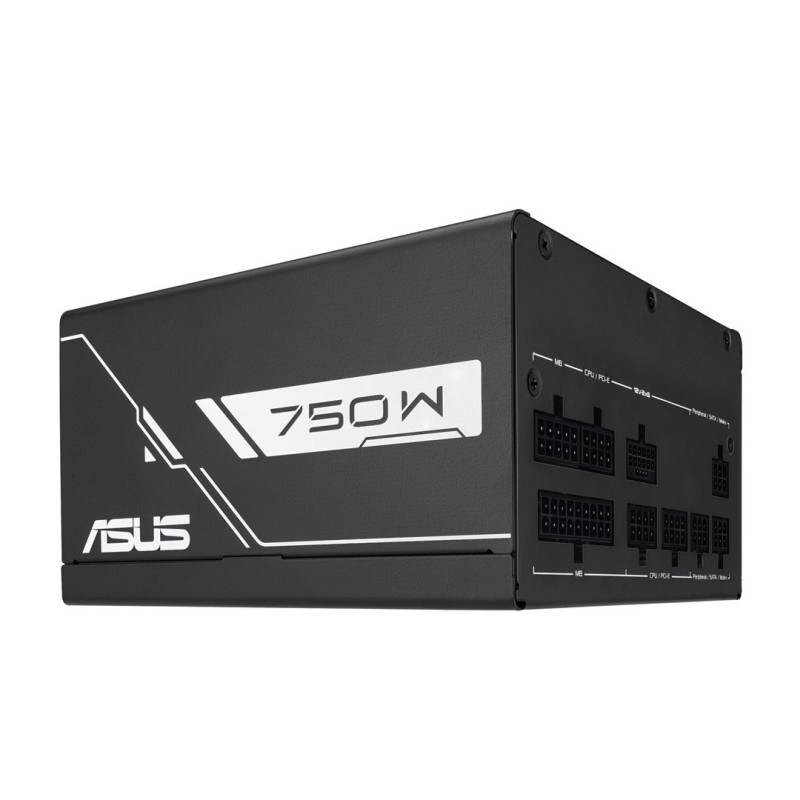

ASUS Prime -750G power supply unit 750 W 20+4 pin ATX ATX Black

Product reference: 6-90YE00U3-B0NA00

ASUS Prime -750G power supply unit 750 W 20+4 pin ATX ATX Black

Product reference: 6-90YE00U3-B0NA00

ASUS Prime -750G power supply unit 750 W 20+4 pin ATX ATX Black

You have 3 products in compare list, please remove someone and try again

Add to compare

14217 €

Product in warehouse

Guarantee
120 month

Delivery from Europe in
6 - 11
business days

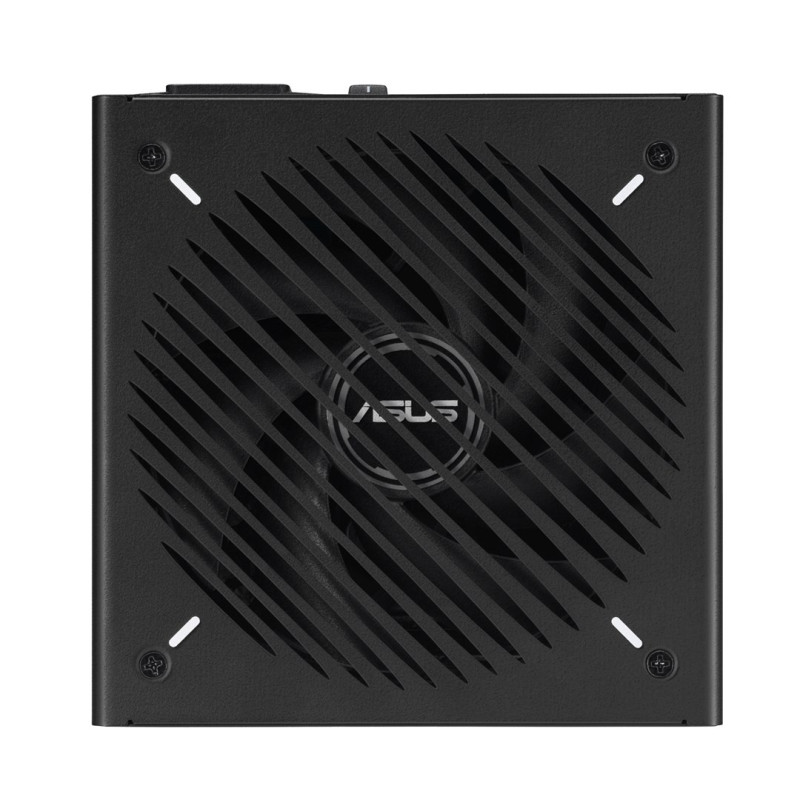

Fan location	Top
Cooling type	Active
Product colour	Black

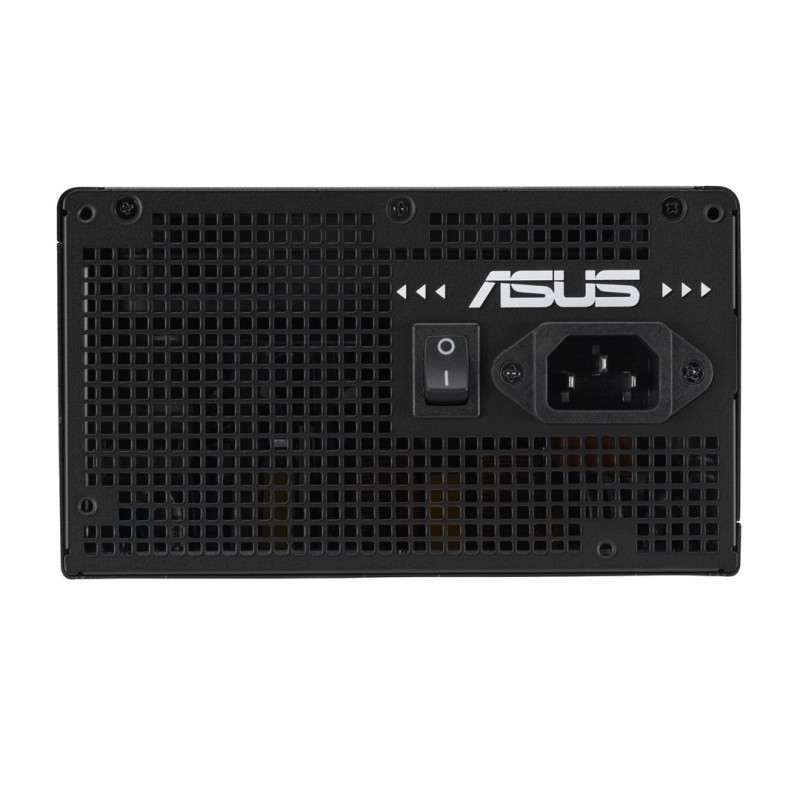

On/off switch	Yes
Number of fans	1 fan(s)
Power protection features	Over power, Overheating, Under voltage, Over current, Short circuit, Over voltage
Total power	750 W
Max output current (+3.3V)	20 A
AC input voltage	100 - 240 V
Combined power (-12V)	3.6 W
Combined power (+5Vsb)	12.5 W
Max output current (-12V)	0.3 A
Combined power (+5V)	110 W
Combined power (+12V)	744 W
Max output current (+5V)	20 A
Combined power (+3.3V)	110 W
Power Factor Correction (PFC) type	Active
Max output current (+12V)	62 A
Max output current (+5Vsb)	2.5 A
Width	150 mm
Weight	1.45 kg
Depth	150 mm
Height	86 mm
Power supply unit (PSU) form factor	ATX
ATX version	3.1
Purpose	PC
Mean time between failures (MTBF)	120000 h
Bearing technology	DBB
80 PLUS certification	80 PLUS Gold

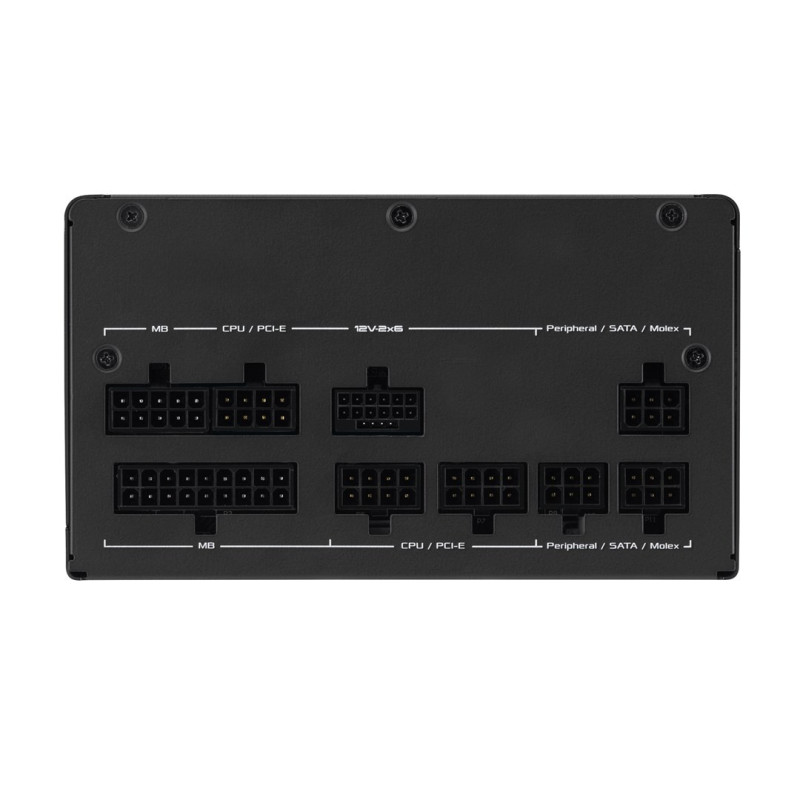

Cables included	CPU, PCIe, Peripheral (Molex), SATA
Cabling type	Fully-Modular
PCI Express power cable length	60 cm
Peripheral (Molex) power cable length	400 mm, 150
Motherboard power connector	20+4 pin ATX
Motherboard power cable length	60 cm
SATA power cable length	400, 120
PCI Express power connectors (16-pin)	1
PCI Express power connectors (6+2 pin)	2
Peripheral (Molex) power connectors (4-pin)	4
CPU power connector (4+4 pin)	Yes
Number of SATA power connectors	5
