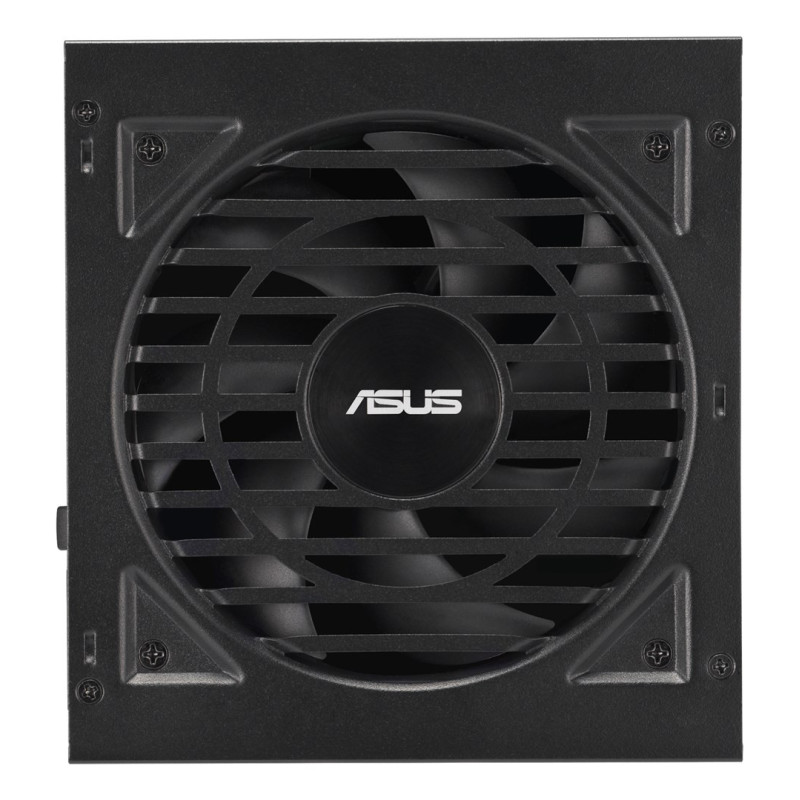

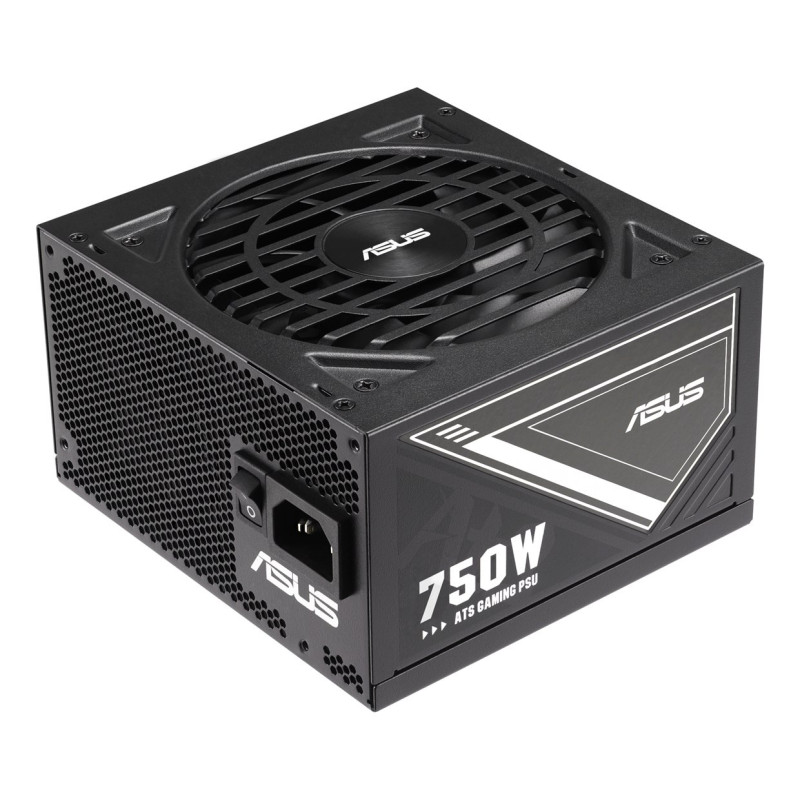

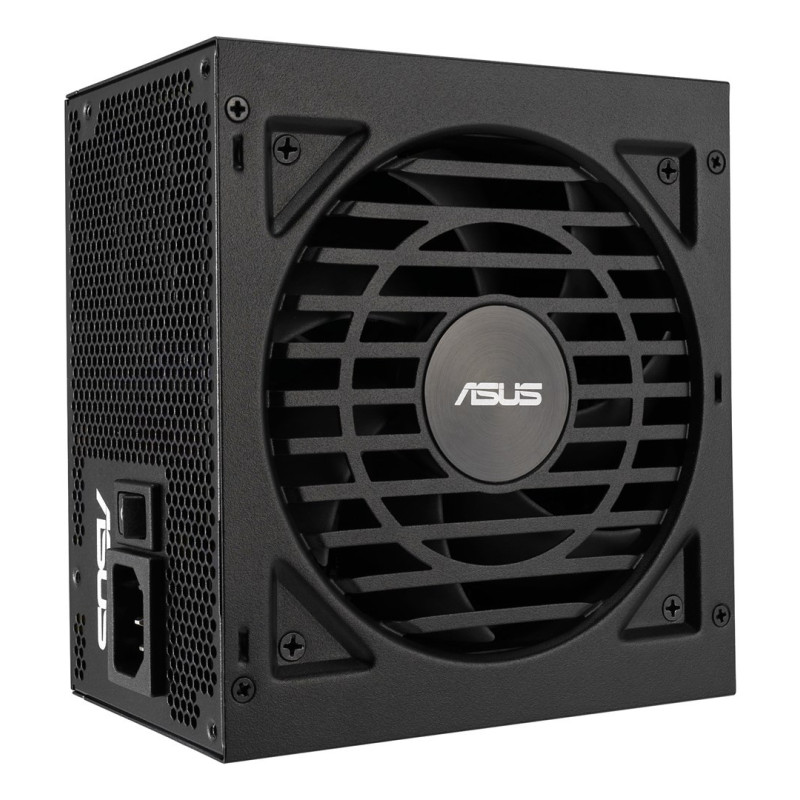

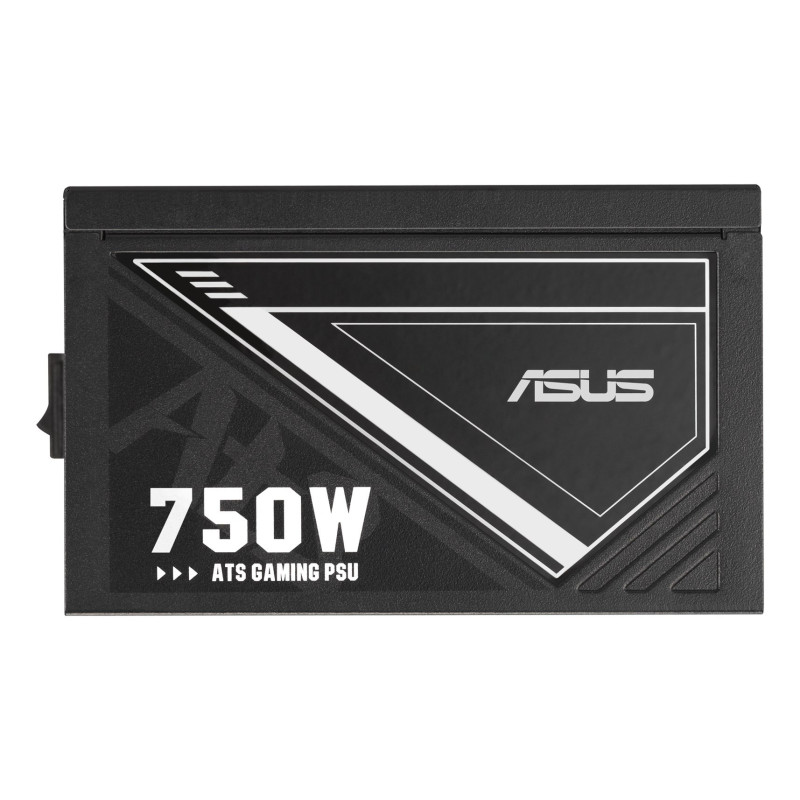

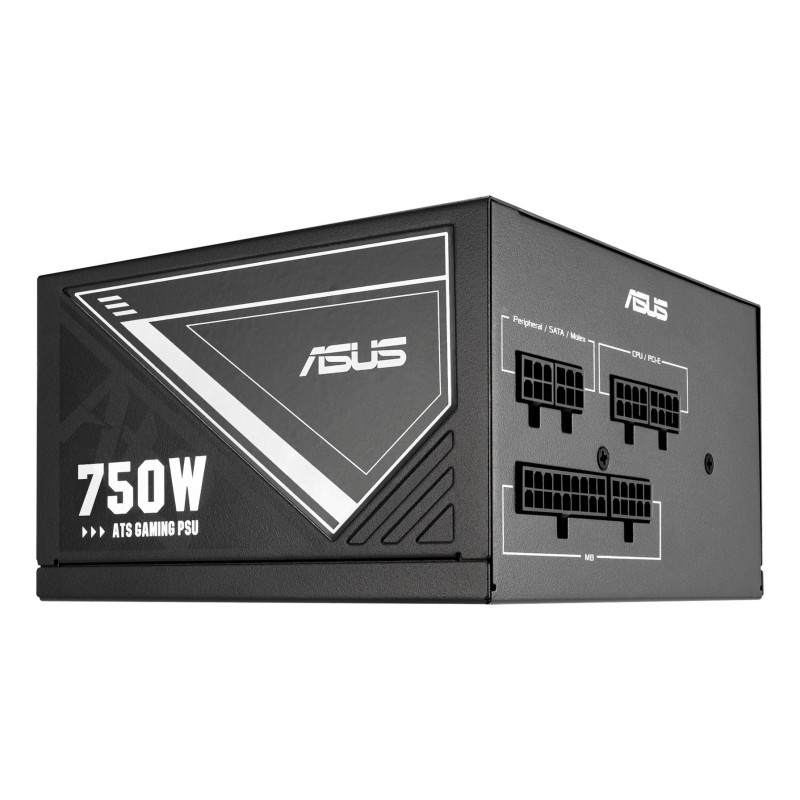

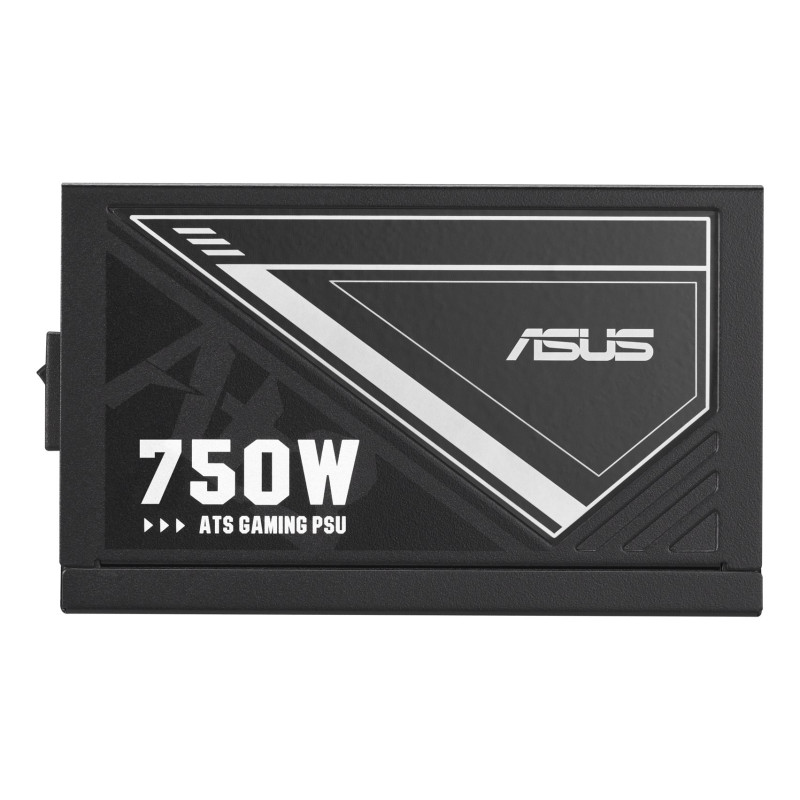

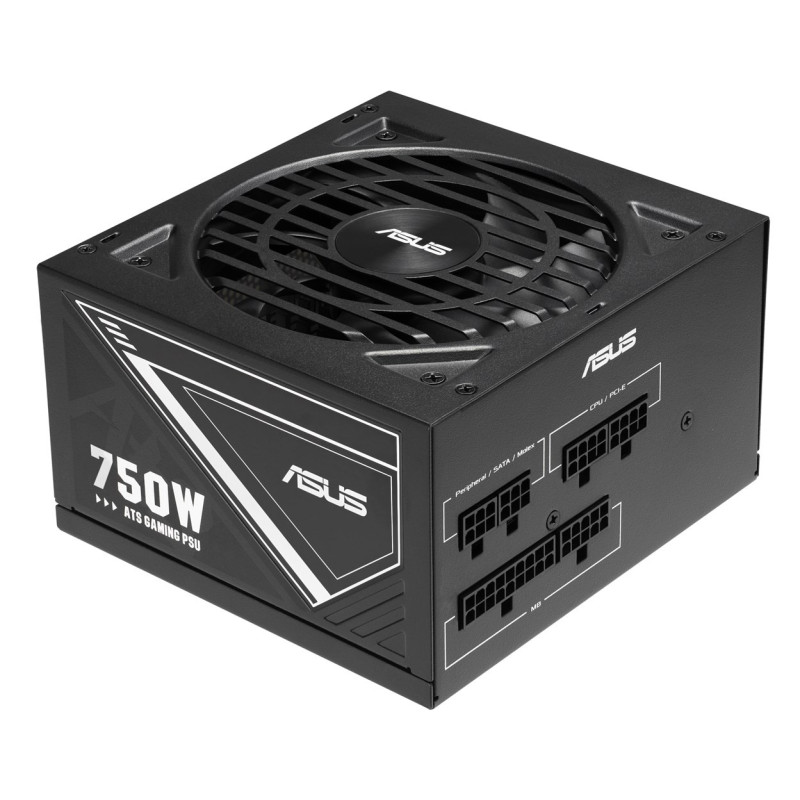

ASUS ATS-750G power supply unit 750 W 20+4 pin ATX ATX Black
Product reference:
6-90YE04A1-B0NC00
ASUS ATS-750G power supply unit 750 W 20+4 pin ATX ATX Black
ASUS ATS-750G power supply unit 750 W 20+4 pin ATX ATX Black
Product reference:
6-90YE04A1-B0NC00
ASUS ATS-750G power supply unit 750 W 20+4 pin ATX ATX Black
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Europe in
6 - 11
business days
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |

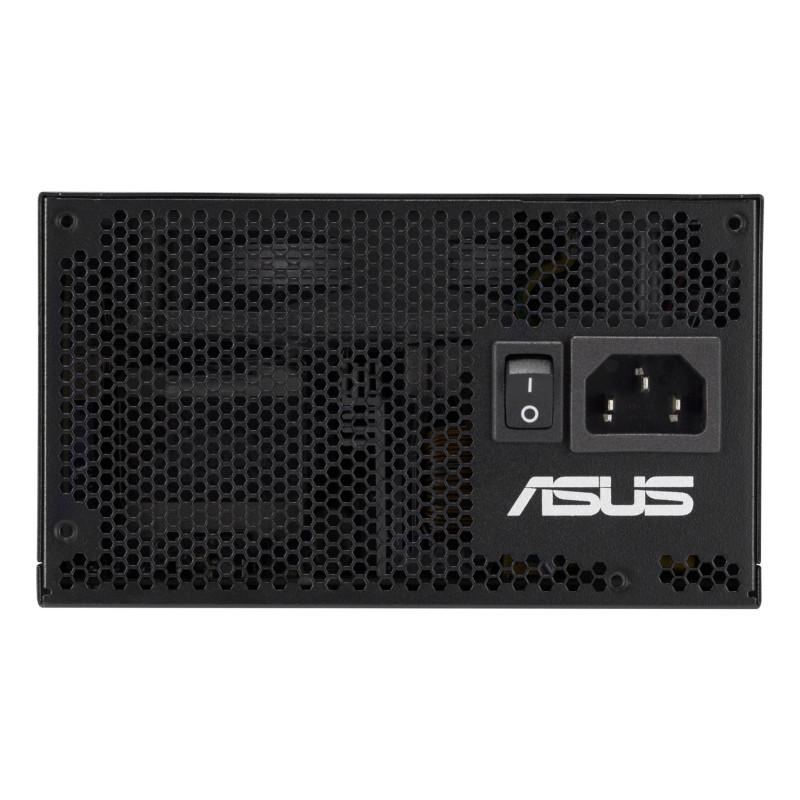

| On/off switch | Yes |
| Power protection features | Overheating, Short circuit, Over voltage, Over power, Under voltage, Over current |
| Total power | 750 W |
| Combined power (-12V) | 3.6 W |
| Efficiency | 92% |
| Combined power (+12V) | 750 W |
| Max output current (+5Vsb) | 3 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| AC input voltage | 110 - 240 V |
| Combined power (+5Vsb) | 15 W |
| Combined power (+5V) | 100 W |
| Max output current (+12V) | 62.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Max output current (-12V) | 0.3 A |
| Width | 150 mm |
| Weight | 1.53 kg |
| Depth | 140 mm |
| Height | 86 mm |
| Mean time between failures (MTBF) | 120000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | Ball bearing |
| Packaging content | Power Cord x 1 Motherboard Power Cable x 1 (550mm) CPU 1-to-2 Cable x 1 (650+100mm) PCI-E 1-to-2 Cable x 1 (675+100mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-3 Cable x 3 (400+120+120mm) Chassis Screws Package x 1 Quick Start Guide x 1 |
| Cables included | AC, PCIe, SATA |
| Compliance certificates | RoHS |

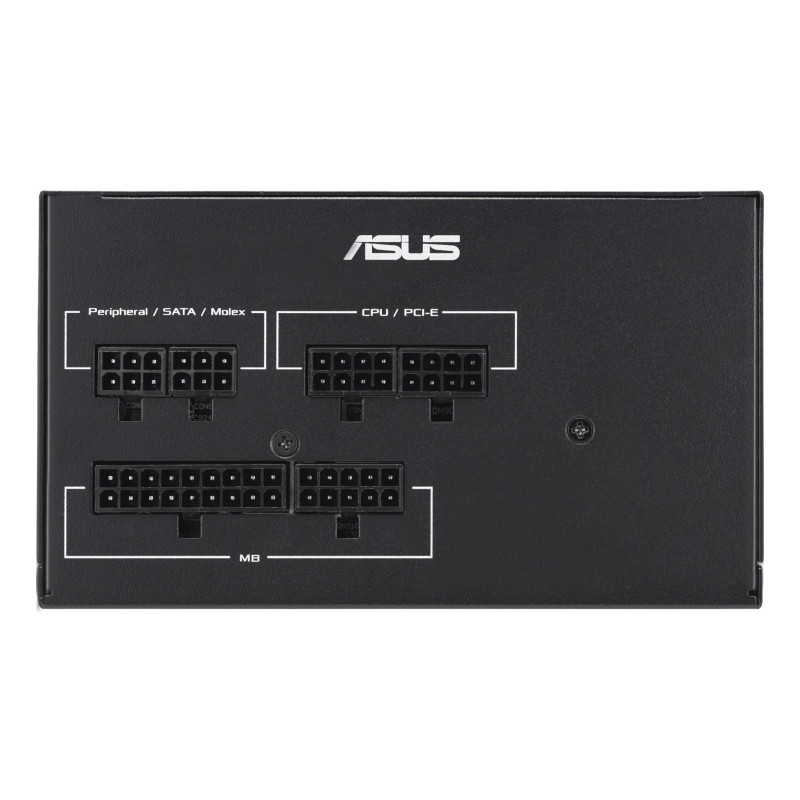

| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| ATX power connector (20+4 pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| Number of SATA power connectors | 3 |
| Motherboard power cable length | 55 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| PCI Express power cable length | 67.5 cm |
