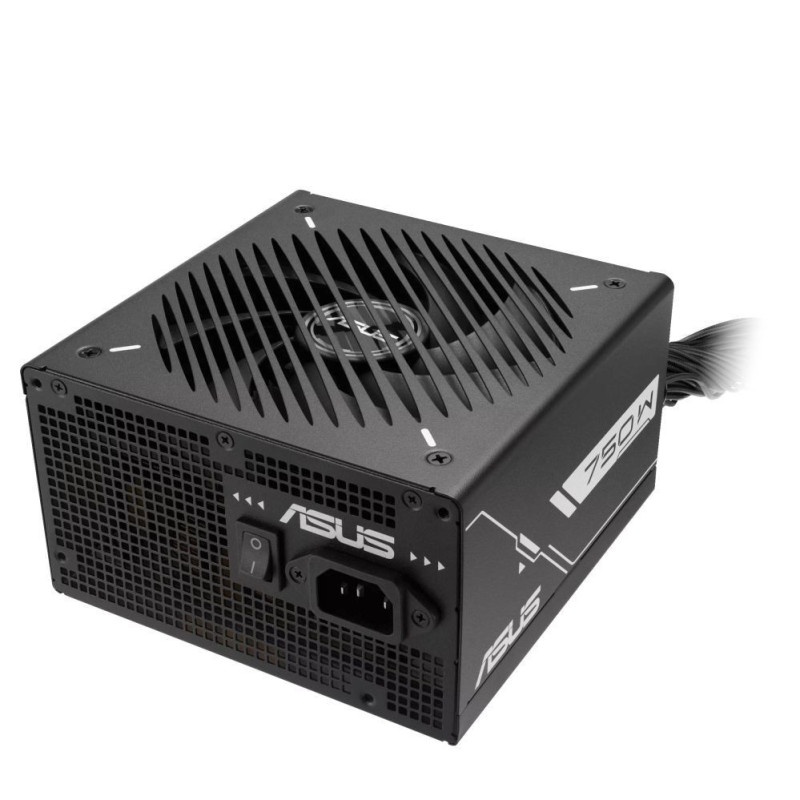

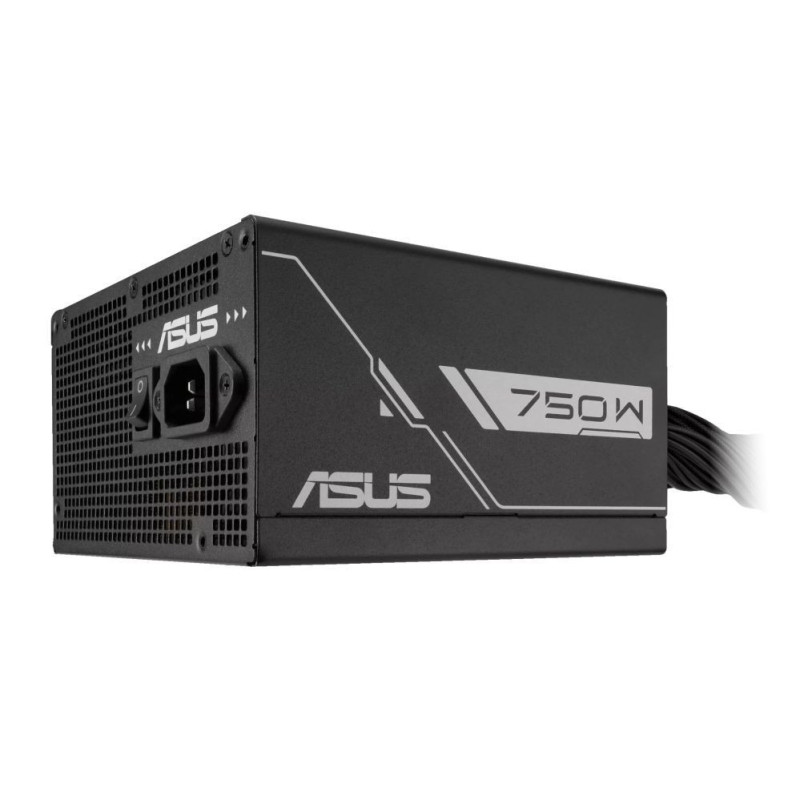

Asus ASUS Prime 750W Bronze PSU

EAN: 4711387635124

ASUS Prime 750W Bronze Power Supply - 750W, ATX12V, 80 PLUS Bronze, Black

Manufacturer: ASUS
Model: PRIME-750B-BLACK
Manufacturer Part Number: 90YE00Y0-B0NA00
EAN: 4711387635124
Product type: PC Power Supply Unit (PSU)
Power output: 750 W
Form factor: ATX12V
Efficiency certification: 80 PLUS Bronze
PFC: Active PFC
Colour: Black

PRODUCT DESCRIPTION

The ASUS Prime 750W Bronze is a reliable and efficient 750 W power supply designed for versatile desktop PCs and gaming systems. Combining 80 PLUS Bronze efficiency, high-quality components, durable cooling and comprehensive electrical protection, it provides stable power delivery for modern PC builds.

The 80 PLUS Bronze certification ensures efficient power conversion, helping to reduce unnecessary energy loss and heat generation. ASUS uses low-ESR electrolytic capacitors and other premium components to provide dependable and efficient operation.

The power supply features a durable fan with dual ball bearings. This bearing design offers an extended service life compared with conventional sleeve-bearing designs, providing reliable cooling during long-term operation.

Flexible etched cables simplify installation and cable management inside the PC case. The PSU provides all essential connectors for a modern computer, including a 24/20-pin motherboard connector, two CPU 4+4-pin connectors, three PCI-E 8-pin connectors, six SATA connectors and three peripheral connectors.

The ASUS Prime 750W Bronze incorporates multiple protection mechanisms, including over-power protection (OPP), over-voltage protection (OVP), short-circuit protection (SCP), over-current protection (OCP) and over-temperature protection (OTP).

With a rated output of 750 W and up to 62.5 A available on the +12 V rail, the PSU is suitable for powerful everyday computers and gaming systems with dedicated graphics cards.

KEY FEATURES

• 750 W total power output
• 80 PLUS Bronze efficiency certification
• ATX12V form factor
• Active Power Factor Correction (Active PFC)
• Dual ball-bearing fan for durable cooling
• Flexible etched cables for easier installation
• Multiple electrical protection systems
• Suitable for everyday and gaming PCs
• Black finish
• 6-year manufacturer warranty

TECHNICAL SPECIFICATIONS

Total output: 750 W
AC input voltage: 100-240 V AC
PFC type: Active PFC
Efficiency: 80 PLUS Bronze

DC output voltages:
+3.3 V / +5 V / +12 V / -12 V / +5Vsb

Maximum load:
+3.3 V: 20 A
+5 V: 20 A
+12 V: 62.5 A
-12 V: 0.3 A
+5Vsb: 2.5 A

Combined power:
+3.3 V: 120 W
+5 V: 120 W
+12 V: 750 W
-12 V: 3.6 W
+5Vsb: 12.5 W

CONNECTORS

Motherboard: 1 × 24/20-pin
CPU: 2 × 4+4-pin
PCI-E: 3 × 8-pin
SATA: 6
Peripheral: 3

CABLES

Motherboard power cable: 1 × 600 mm
CPU cables: 2 × 800 mm
PCI-E 1-to-2 cable: 1 × 600 mm
PCI-E 1-to-1 cable: 1 × 600 mm
SATA 1-to-3 cables: 2 × 400 + 120 + 120 mm
Peripheral 1-to-3 cable: 1 × 400 + 120 + 120 mm

PROTECTION FEATURES

• OPP - Over Power Protection
• OVP - Over Voltage Protection
• SCP - Short Circuit Protection
• OCP - Over Current Protection
• OTP - Over Temperature Protection

PHYSICAL SPECIFICATIONS

Dimensions: 150 × 150 × 86 mm
Weight: approx. 2.2 kg
Colour: Black
MTBF: > 120,000 hours at 25°C
0dB technology: No

PACKAGE CONTENTS

• ASUS Prime 750W Bronze power supply
• Power cord
• Motherboard power cable
• 2 × CPU cables
• PCI-E cables
• SATA cables
• Peripheral cable
• User manual

The ASUS Prime 750W Bronze is an excellent choice for users looking for a dependable 750 W PSU with efficient power delivery, durable cooling, comprehensive protection and a long manufacturer warranty.
