Akyga AK-B1-700 power supply unit 700 W 20+4 pin ATX ATX Grey
Product reference:
6-AK-B1-700
Akyga AK-B1-700 power supply unit 700 W 20+4 pin ATX ATX Grey
Akyga AK-B1-700 power supply unit 700 W 20+4 pin ATX ATX Grey
Product reference:
6-AK-B1-700
Akyga AK-B1-700 power supply unit 700 W 20+4 pin ATX ATX Grey
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
12 - 17
business days
| Compliance certificates | RoHS |
| Cooling type | Active |
| On/off switch | Yes |
| Product colour | Grey |
| Fan location | Side |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Combined power (+12V) | 384 W |
| Combined power (-12V) | 18.5 W |
| Combined power (+3.3V) | 300 W |
| Power Factor Correction (PFC) type | Passive |
| Max output current (-12V) | 0.5 A |
| Max output current (+3.3V) | 35 A |
| Power protection features | Over power, Over current, Short circuit, Over voltage, Overheating |
| Combined power (+5V) | 300 W |
| Max output current (+5Vsb) | 2.5 A |
| AC input frequency | 50 Hz |
| Combined power (+5Vsb) | 18.5 W |
| Max output current (+5V) | 38 A |
| Max output current (+12V) | 32 A |
| Total power | 700 W |
| AC input voltage | 220 - 230 V |
| Efficiency | 70% |
| Operating temperature (T-T) | 5 - 50 °C |
| Height | 85 mm |
| Width | 150 mm |
| Depth | 160 mm |
| Weight | 1.26 kg |
| Certification | CE, FCC, RoHS, REACH |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 2.31 |

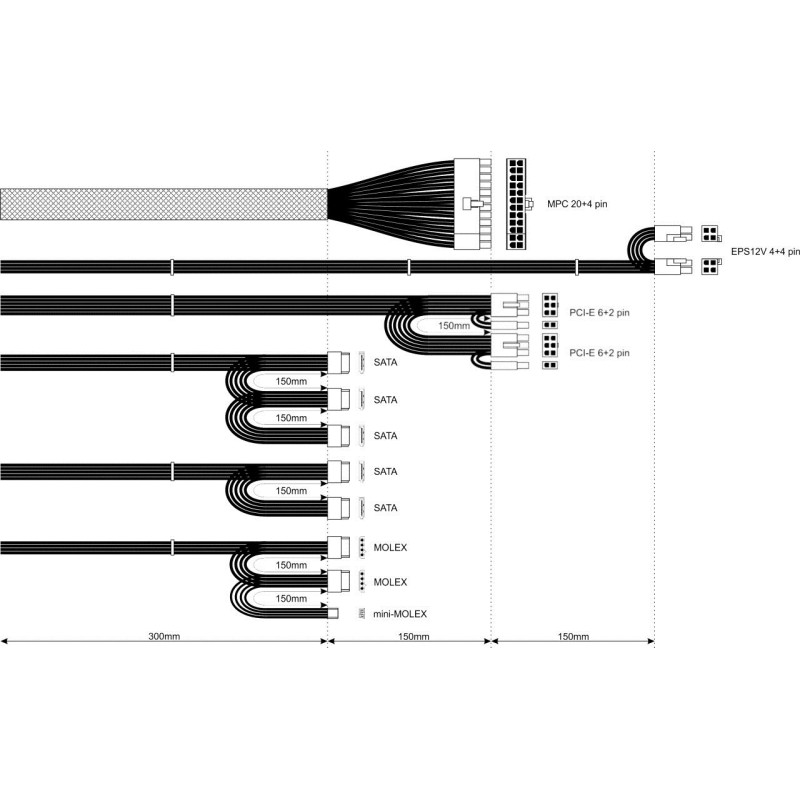

| PCI Express power cable length | 45 cm |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power cable length | 150, 300 mm |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Motherboard power cable length | 45 cm |
| Cabling type | Non-Modular |
| EPS power connector (4+4 pin) | Yes |
| SATA power cable length | 300, 150 |
| Motherboard power connector | 20+4 pin ATX |
| EPS cable length | 60 cm |
