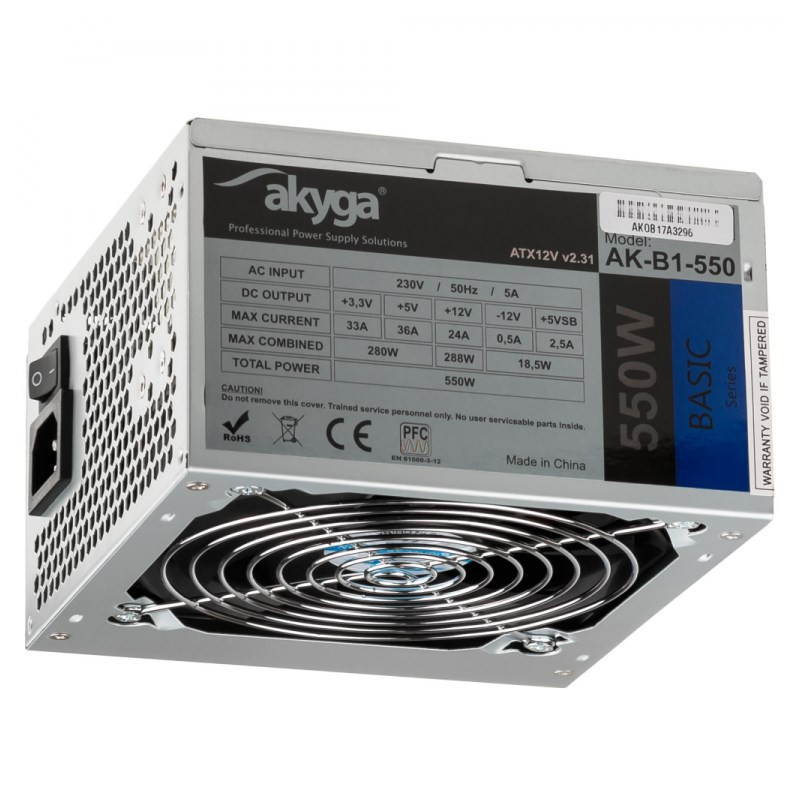

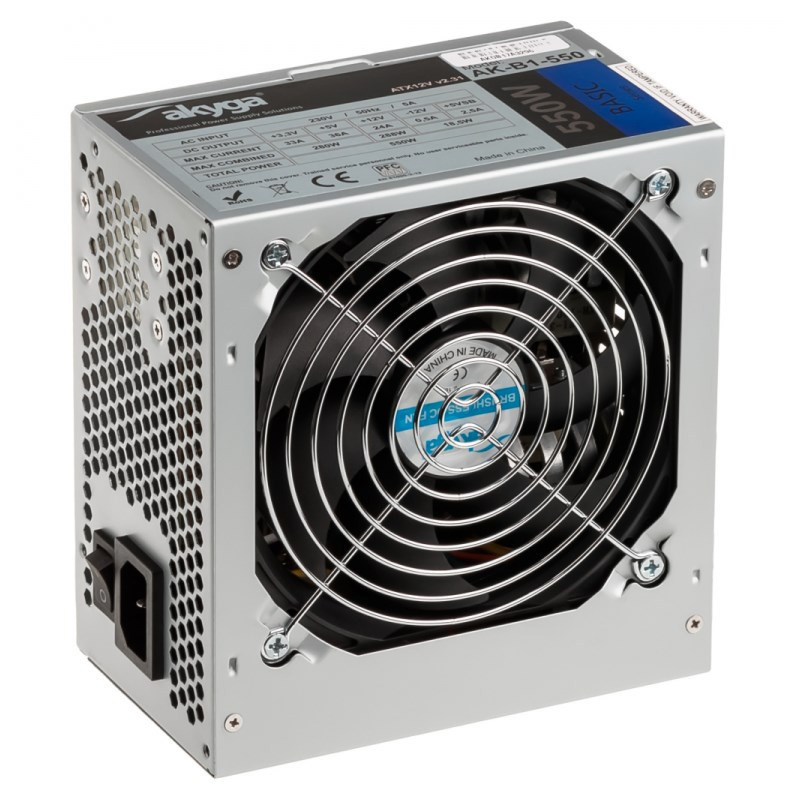

Akyga AK-B1-550 power supply unit 550 W 20+4 pin ATX ATX Grey

Product reference: 6-AK-B1-550

You have 3 products in compare list, please remove someone and try again

Add to compare

32,14 €

33,83 €

Product in warehouse

Guarantee
24 month

Delivery from Europe in
6 - 10
business days

Your message has been successfully sent!

Fill in the required fields*

Not available

AC input voltage	230 V
ATX version	2.31
Cabling type	Non-Modular
Certification	CE, REACH
Combined power (+12V)	288 W
Combined power (+3.3V)	280 W
Combined power (+5V)	280 W
Combined power (+5Vsb)	18.5 W
Combined power (-12V)	18.5 W
Cooling type	Active
CPU P4 connector (4-pin)	1
CPU power cable length	45 cm
Depth	140 mm
Efficiency	70%
Fan diameter	12 cm
Fan location	Top
Height	85 mm
Input current	5 A
Max output current (+12V)	24 A
Max output current (+3.3V)	33 A
Max output current (+5V)	36 A
Max output current (+5Vsb)	2.5 A
Max output current (-12V)	0.5 A
Mean time between failures (MTBF)	100000 h
Motherboard power connector	20+4 pin ATX
Number of fans	1 fan(s)
Number of SATA power connectors	3
On/off switch	Yes
Operating temperature (T-T)	5 - 50 °C
PCI Express power connectors (6-pin)	1
Peak power	550 W
Peripheral (Molex) power cable length	300
Peripheral (Molex) power connectors (4-pin)	2
Power protection features	Over current, Overheating, Over power, Over voltage, Short circuit
Power supply unit (PSU) form factor	ATX
Product colour	Grey
Purpose	PC
SATA power cable length	300 mm
Supported motherboard form factors	ATX
Sustainability certificates	RoHS
Total power	550 W
Warranty card	Yes
Weight	1.04 kg
Width	150 mm
