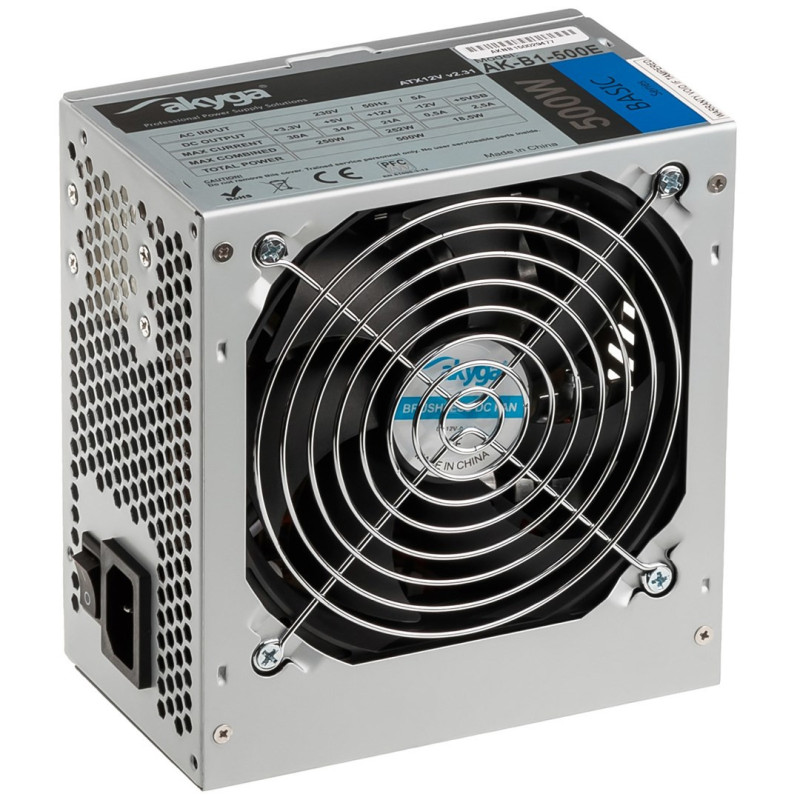

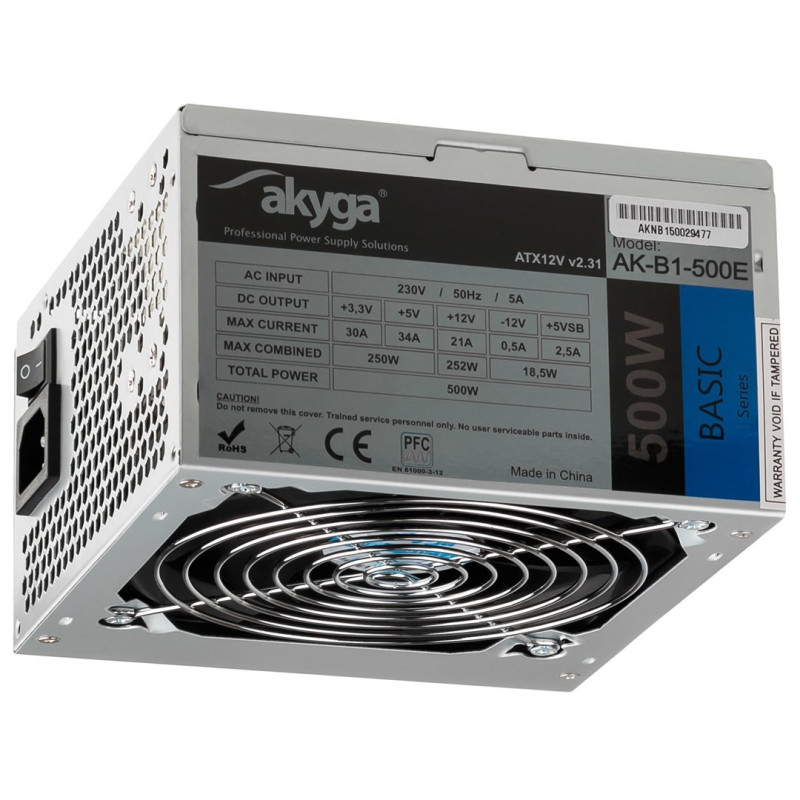

Akyga AK-B1-500E power supply unit 500 W 20+4 pin ATX ATX Grey

Product reference: 6-AK-B1-500E

You have 3 products in compare list, please remove someone and try again

Add to compare

23,89 €

24,38 €

Product in warehouse

Guarantee
24 month

Delivery from Europe in
4 - 8
business days

Your message has been successfully sent!

Fill in the required fields*

Not available

AC input voltage	220 V
ATX power connector (12+4 pin)	Yes
ATX version	2.31

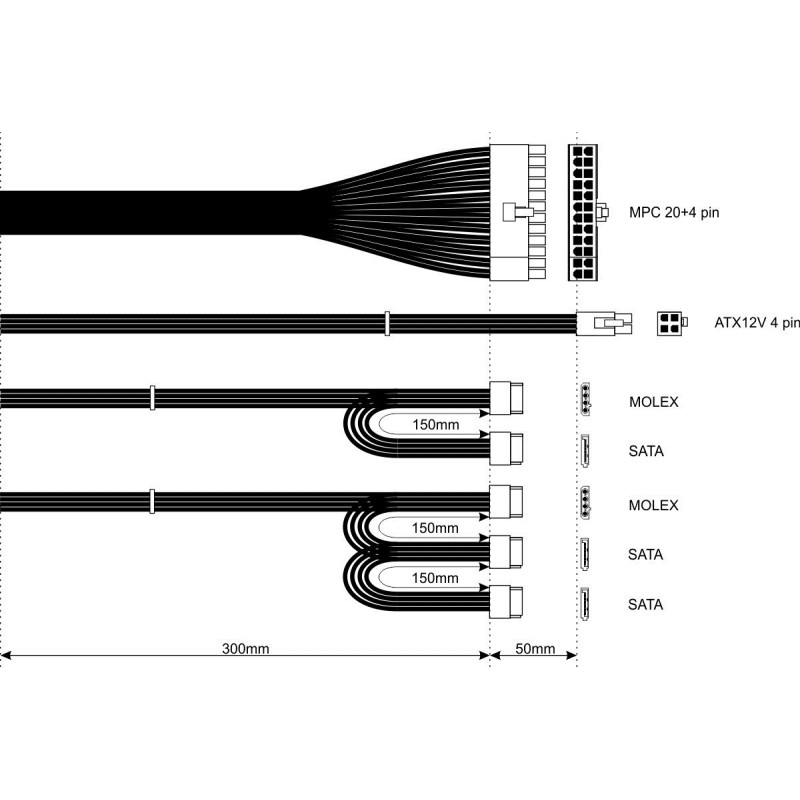

Cables included	Peripheral (Molex) to SATA 3.3, SATA
Certification	CE, RoHS, REACH
Combined power (+12V)	252 W
Combined power (+3.3V)	250 W
Combined power (+5V)	250 W
Depth	140 mm
EPS power connector (8-pin)	No
Fan controller	Yes
Fan diameter	12 cm
Height	85 mm
Input current	5 A
Max output current (+12V)	21 A
Max output current (+3.3V)	30 A
Max output current (+5V)	34 A
Mean time between failures (MTBF)	100000 h
Motherboard power connector	20+4 pin ATX
Number of cables	4
Number of fans	1 fan(s)
Number of SATA power connectors	3
On/off switch	Yes
Operating temperature (T-T)	5 - 50 °C
Peripheral (Molex) power cable length	300
Peripheral (Molex) power connectors (4-pin)	2
Power Factor Correction (PFC) type	Passive
Power supply unit (PSU) form factor	ATX
Product colour	Grey
Purpose	PC
SATA power cable length	300 mm
Supported motherboard form factors	ATX
Sustainability certificates	RoHS
Total power	500 W
Voltage tolerance	70%
Warnings	Avoid contact of the product with water or other liquids., Do not open the case - risk of electric shock., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations.
Warranty card	Yes
Weight	1.01 kg
Width	150 mm
