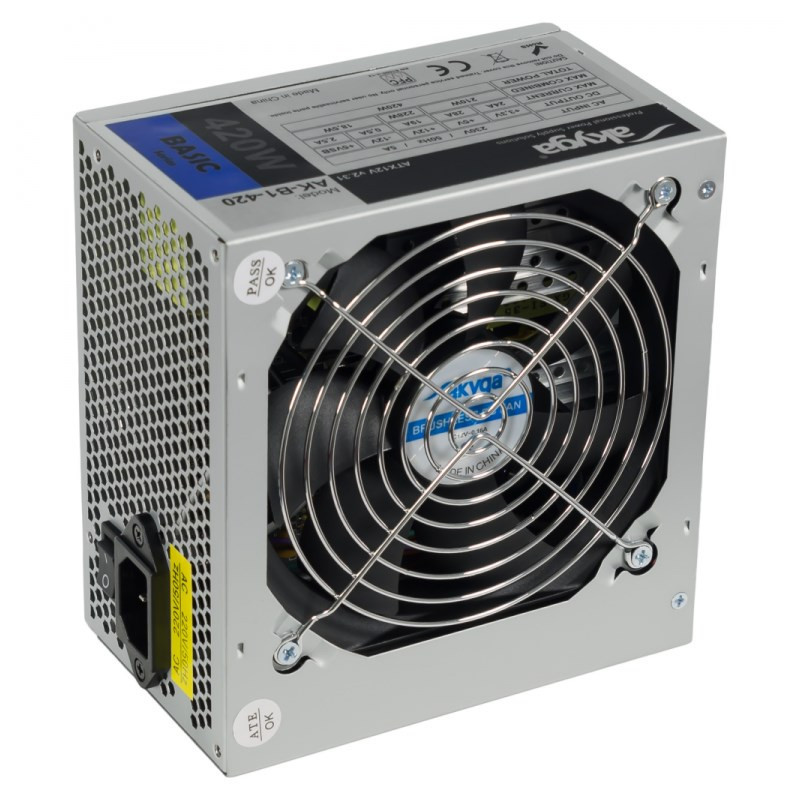

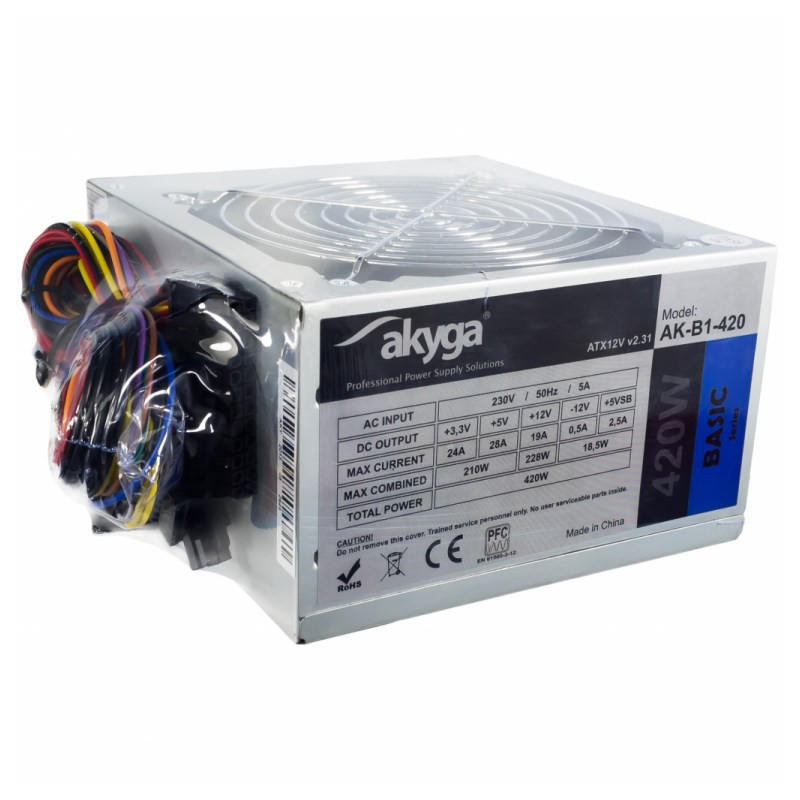

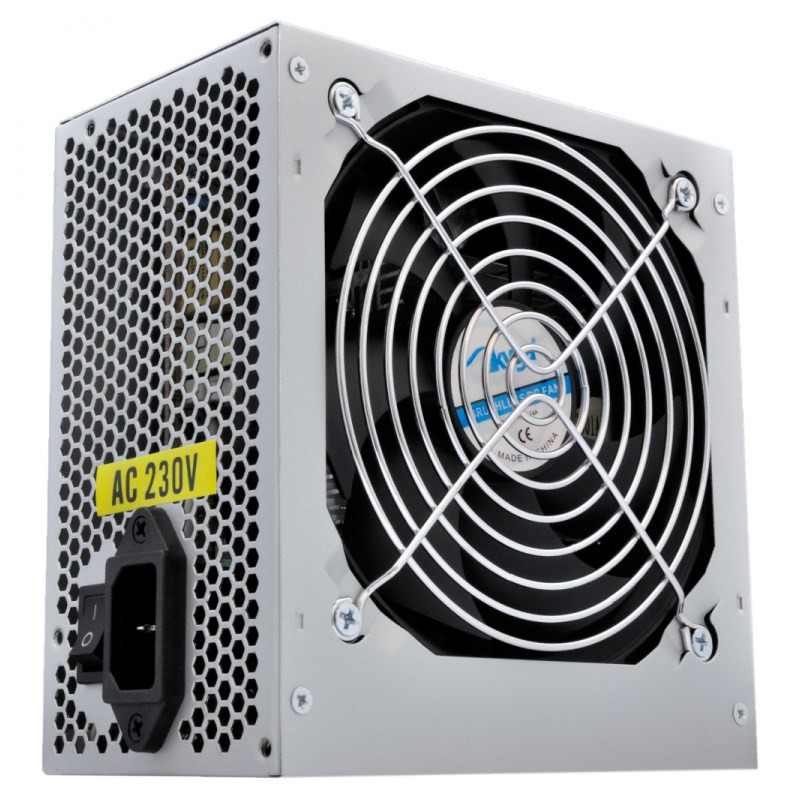

Akyga AK-B1-420 power supply unit 420 W 20+4 pin ATX ATX Grey
Product reference:
6-AK-B1-420
Akyga AK-B1-420 power supply unit 420 W 20+4 pin ATX ATX Grey
Akyga AK-B1-420 power supply unit 420 W 20+4 pin ATX ATX Grey
Product reference:
6-AK-B1-420
Akyga AK-B1-420 power supply unit 420 W 20+4 pin ATX ATX Grey
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 8
business days
Not available

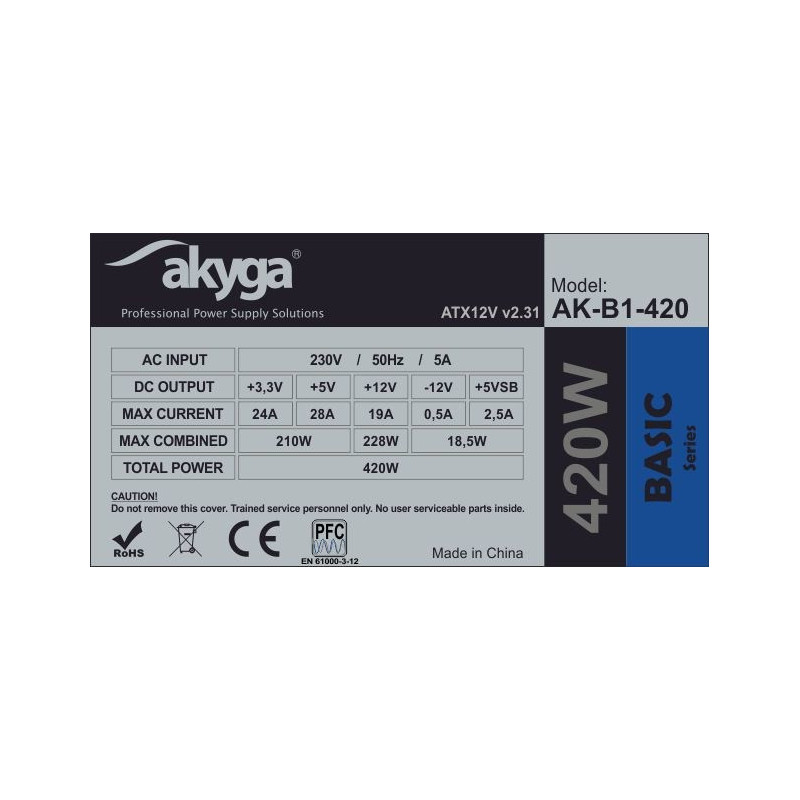

| AC input frequency | 50 Hz |
| AC input voltage | 230 V |
| ATX Power connector (20-pin) | Yes |
| ATX version | 2.31 |
| Certification | REACH, CE |
| Combined power (+12V) | 228 W |
| Combined power (+3.3V) | 210 W |
| Combined power (+5V) | 210 W |
| Combined power (+5Vsb) | 18.5 W |
| Combined power (-12V) | 18.5 W |
| CPU P4 connector (4-pin) | 1 |
| Depth | 140 mm |
| Efficiency | 70% |
| Height | 85 mm |
| Input current | 5 A |
| Max output current (+12V) | 19 A |
| Max output current (+3.3V) | 24 A |
| Max output current (+5V) | 28 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.5 A |
| Mean time between failures (MTBF) | 100000 h |

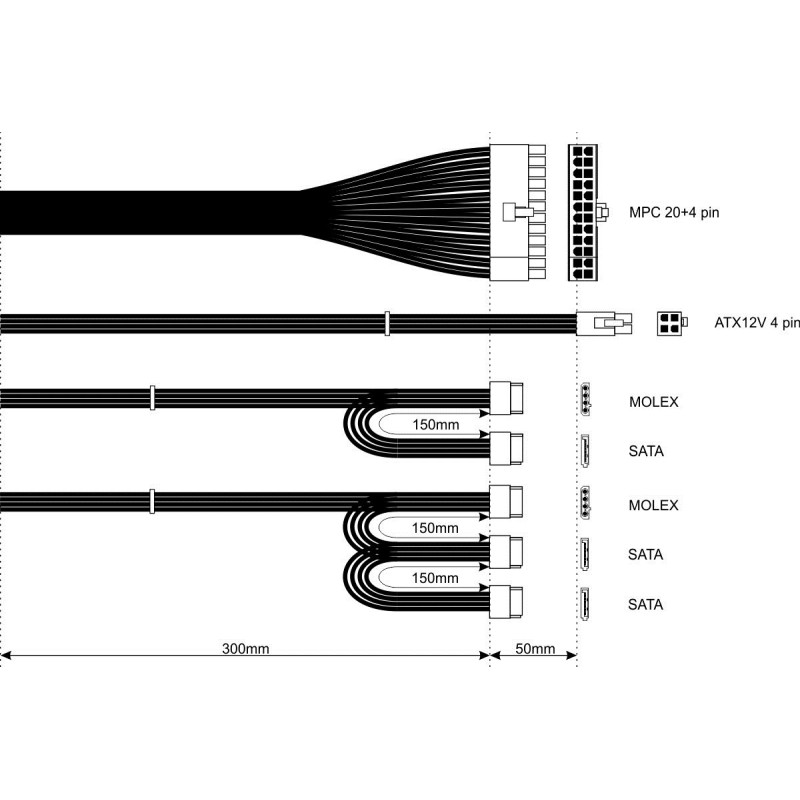

| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Operating temperature (T-T) | 5 - 50 °C |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Grey |
| Purpose | PC |
| Sustainability certificates | RoHS |
| Total power | 420 W |
| Weight | 1.04 kg |
| Width | 150 mm |
