Przekaźnik samochodowy wiązka gniazdo 5 PIN 12V 40A AMIO-03510

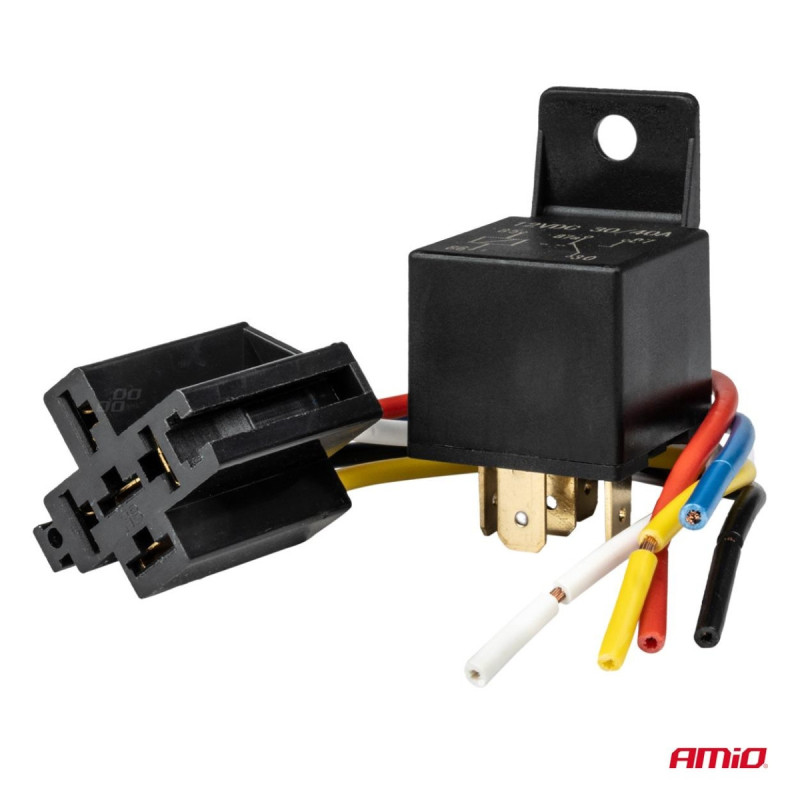

This 12V/40A automotive relay kit with a dedicated socket is designed for applications such as lighting, ignition lock, and car alarm systems. The relay features a mounting hole for easy installation. The kit is manufactured using high-quality materials to ensure long-term and safe operation.

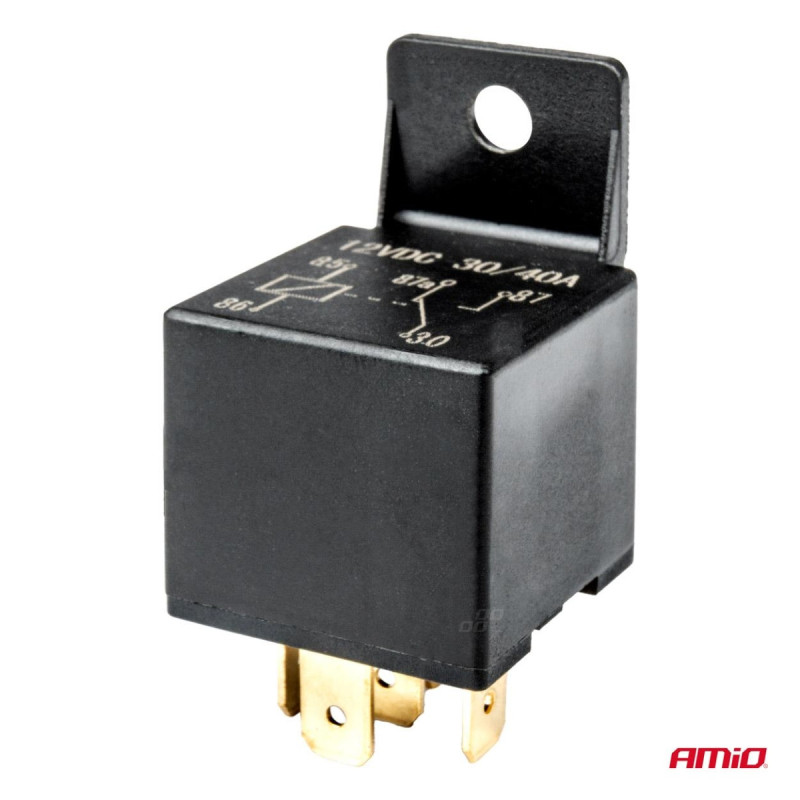

Relay specifications:

• Power supply voltage: 12V
• Maximum current: 40A
• Coil resistance: 82Ω
• Number of connectors: 5
• Connector width: 6.3mm
• Dimensions: 28.5x28.5x25mm
• Mounting bracket: built-in

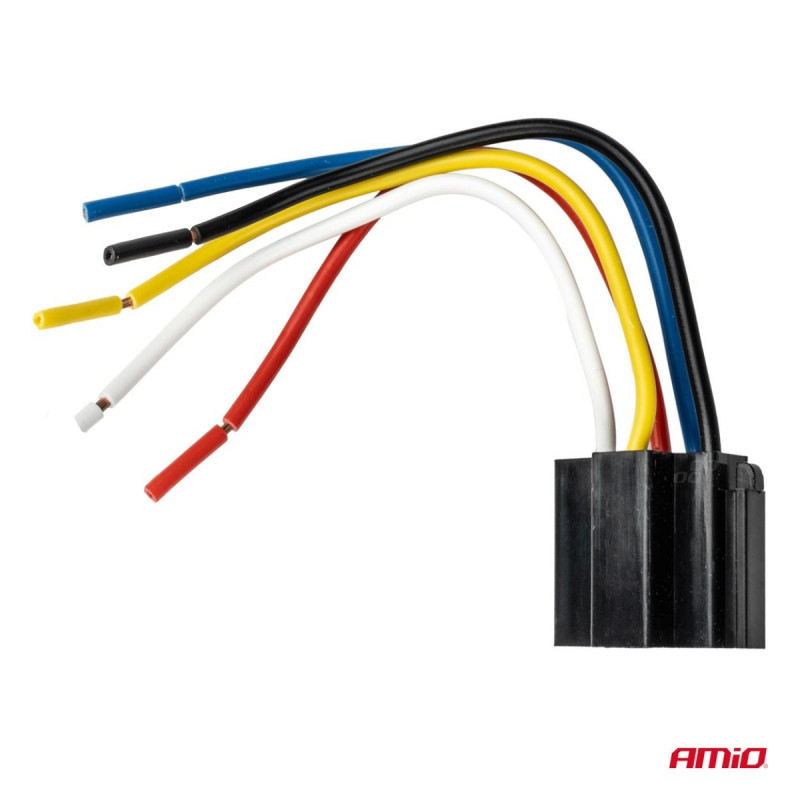

Socket specifications:

• Number of wires: 5
• Cable Specifications: 3-16AWG, 2-18AWG
• Cable colors: red, black, yellow, white, blue
• Cable length: 14.5 cm
• Set contents:
• Relay: 1 pc
• Socket with wiring: 1 pc
