Prostownik cyfrowy ładowarka do akumulatora 6V 12V - 2A 4A - DVL DBC AMIO-02088

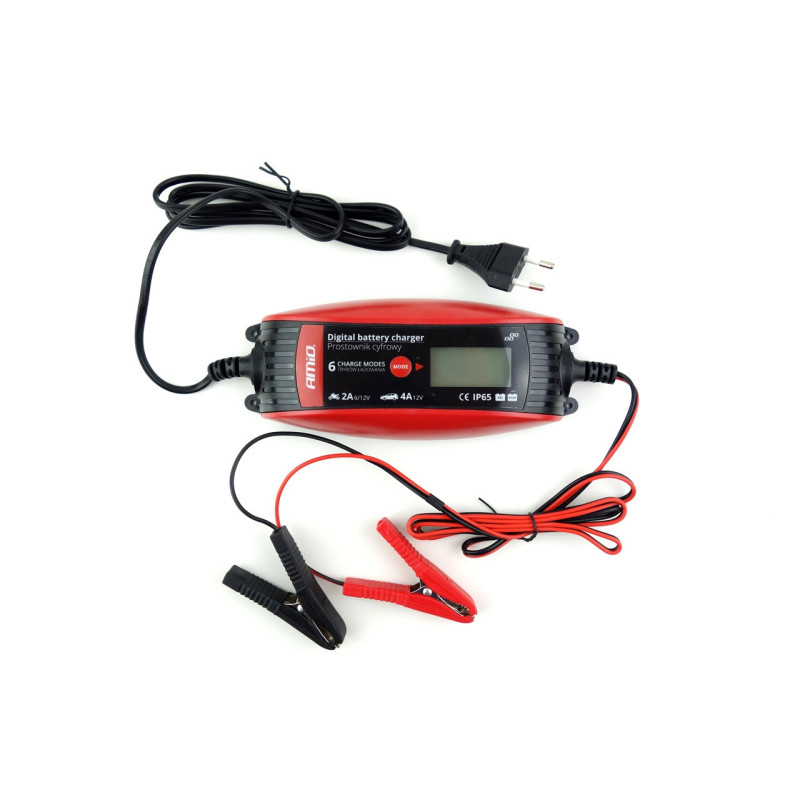

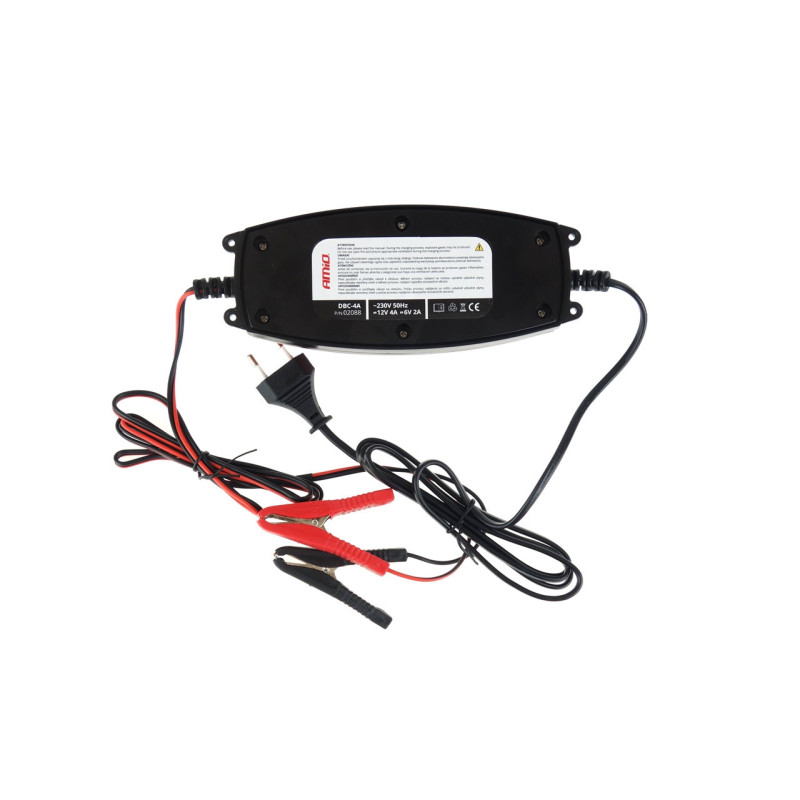

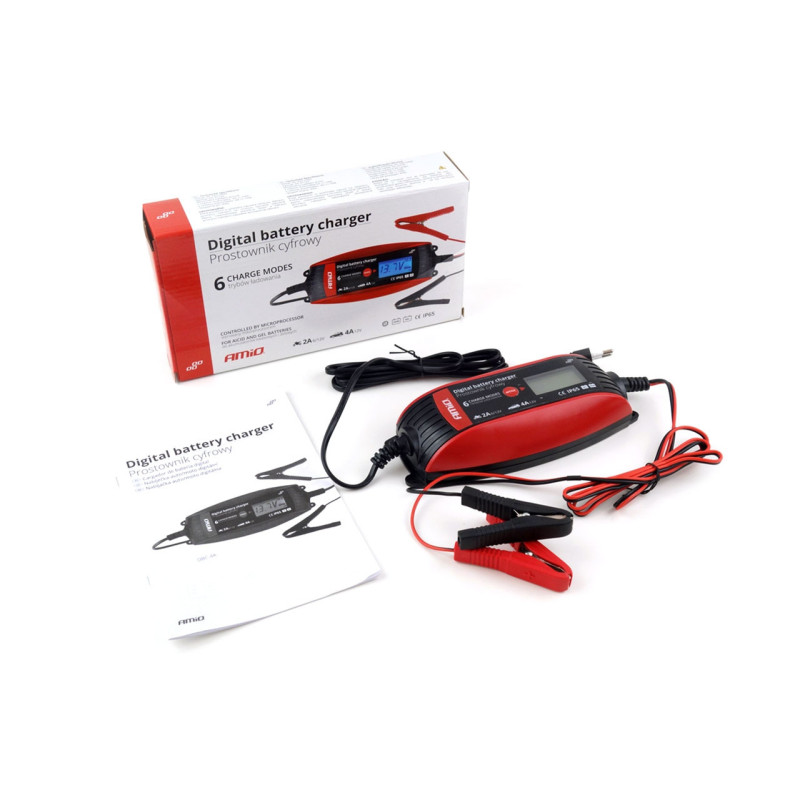

The DBC-4A charger can charge lead-acid (standard and MF), Ca/Ca, AGM, and gel batteries. It is a microprocessor-based charger, manufactured to the IP65 standard, meaning it is resistant to dust, splashes, and low-pressure water jets. It is protected against:

• short circuit
• reverse battery connection (reverse polarity)
• open circuit
• spark protection
• battery overcharging
• rectifier overload
• rectifier overheating

has 6 charging modes:

Batteries 6V to 14Ah

• 7.2V to 2A
• 7.4V to 2A (low temperature charging)

12V to 14Ah and deeply discharged batteries

• 14.3V to 2A
• 14.7V to 2A (low temperature charging)

12V batteries over 14Ah

• 14.3V to 4A
• 14.7V to 4A (low temperature charging)

It continuously displays the battery voltage and charge level, and regulates the charging current based on the battery's needs. Once charged, it displays the "FULL" message and maintains the battery voltage.

Specification:

Supply voltage 230V 50 Hz

Output voltage: 6/12V

Power consumption: about 60W (1W standby)

Maximum charging voltage:

• 7.4V (for 6V batteries)
• 14.7V (for 12V batteries)

Maximum charging current:

• 2A +/- 10%,
• 4A +/- 10%

Supported battery capacities:
