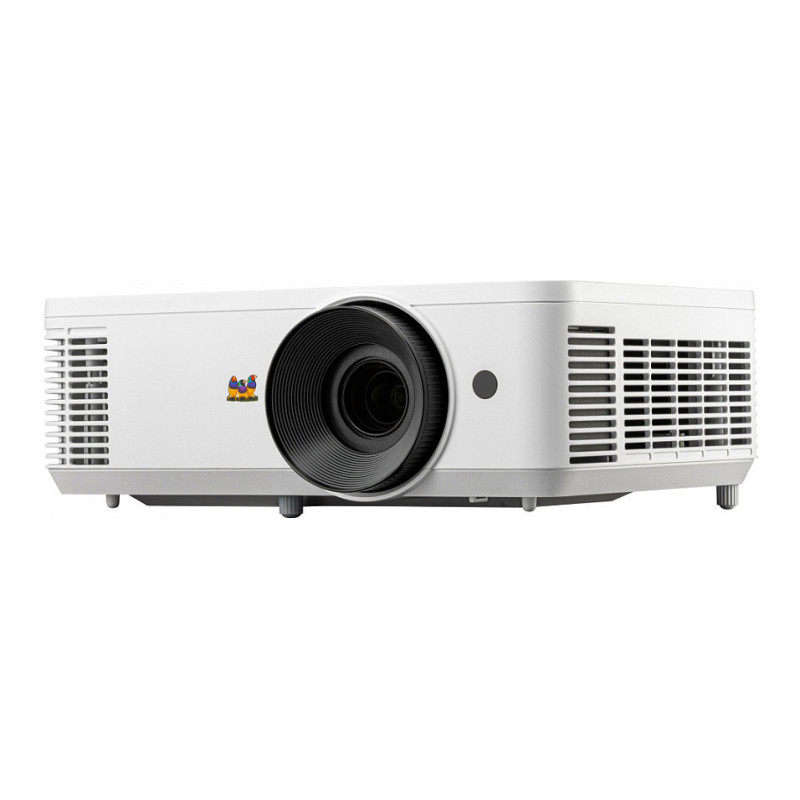

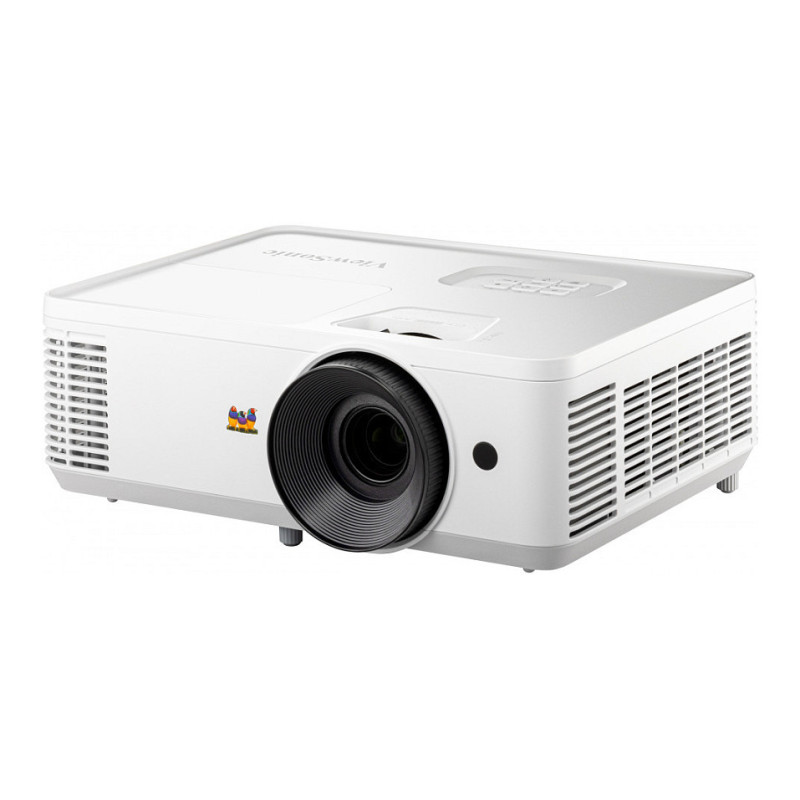

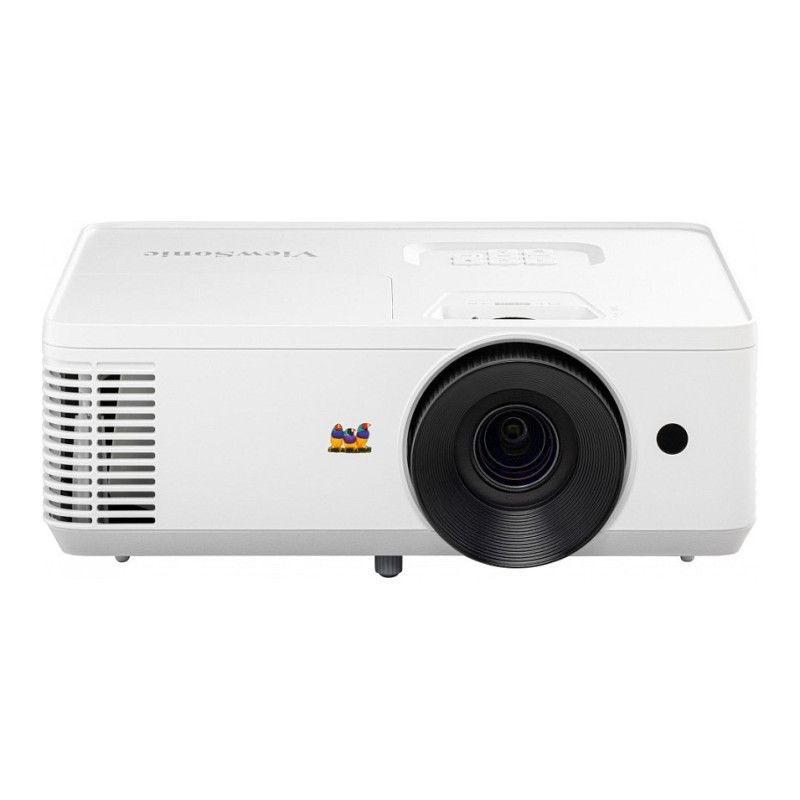

Viewsonic PA700W data projector

Viewsonic PA700W. Projector brightness: 4500 ANSI lumens, Projector native resolution: WXGA (1280x800), Contrast ratio (typical): 12500:1. Light source type: Lamp, Service life of light source: 4000 h, Service life of light source (economic mode): 12000 h. Focus: Manual, Focal length range: 21.85 - 24 mm, Aperture range (F-F): 2.41 - 2.53. Analog signal format system: NTSC, PAL, SECAM, Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080), Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. Serial interface type: RS-232, HDMI connector type: Full-size, Service port type: USB Type-A

The PA700W is ViewSonic's high brightness WXGA business/education projector. With 4,500 ANSI Lumens of highbrightness, the projector offers clear images of up-to-300" large screen in meeting rooms, classrooms, or anyother bright environment. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switchingbetween content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless contentstreaming more convenient. The projector also allows software updates via USB cable connection with simply yourlaptops, skipping trips to service centers.

High Brightness for Business & Education Environments
Thanks to 4,500 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which areperfectly suitable for spaces with a lot of ambient light.

Ultra-Large Screen with Lower Cost-per-inch
The projector allows for an up-to-300" image size, which is much larger and easier to install thancommercial displays.

Easy and Flexible Connection
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices.You no longer have to unplug your existing device to switch to a new one. Simply use the on-screendisplay to select and change the input source.

Present the Best with Vibrant Colors
Impress any audience with ViewSonic's exclusive color technology and elevate your presentationwith a true-to-life color experience.

A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via USB cableconnection with your laptop.

*The latest projector softwareupdate can be found in the download section at the bottom of the page when available.

USB Type A Power Supply
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminatingthe need for separate power adapters when streaming your multimedia content.

Projector

Screen size compatibility: 762 - 7620 mm (30 - 300")
Projection distance: 1 - 11.11 m
Projector brightness: 4500 ANSI lumens
Projector native resolution: WXGA (1280x800)
Contrast ratio (typical): 12500:1
Number of colours: 1.07 billion colours
Horizontal scan range: 15 - 102 kHz
Vertical scan range: 23 - 120 Hz
Keystone correction, vertical: -40 - 40°

Light source

Light source type: Lamp
Service life of light source: 4000 h
Service life of light source (economic mode): 12000 h
Lamp type: UHP
Lamp power: 240 W
Lamps quantity: 1 lamp(s)

Lens system

Focus: Manual
Focal length range: 21.85 - 24 mm
Aperture range (F-F): 2.41 - 2.53
Feature: Zoom capability
Digital zoom: 2x
Optical zoom: 1.1x
Throw ratio: 1.544 - 1.72
Offset: 112.4%

Video

Analog signal format system: NTSC, PAL, SECAM
Feature: Full HD
Supported graphics resolutions: 640 x 480 (VGA), 1920 x 1080 (HD 1080)
Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p

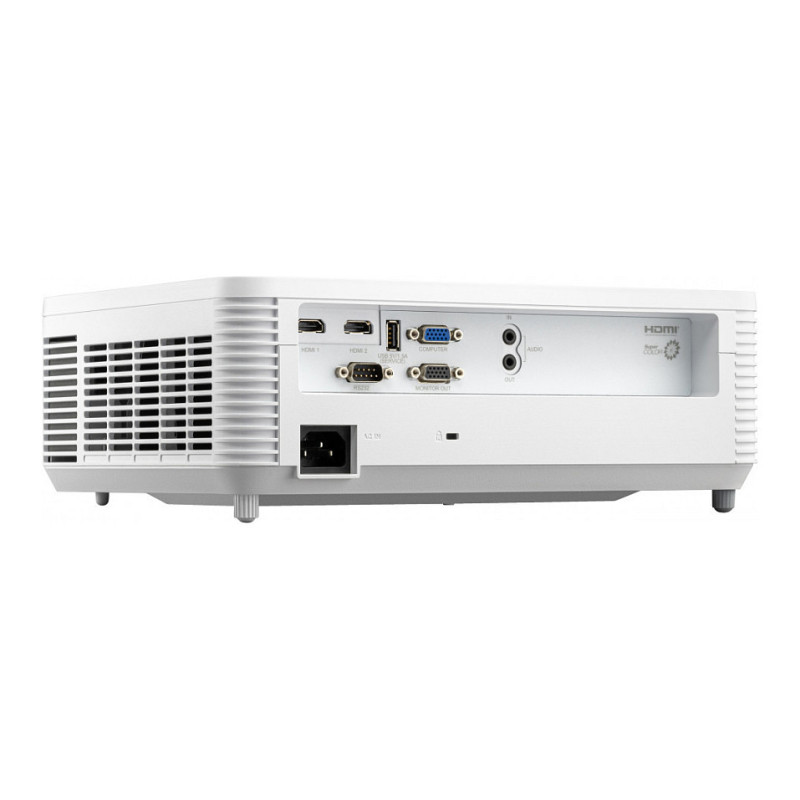

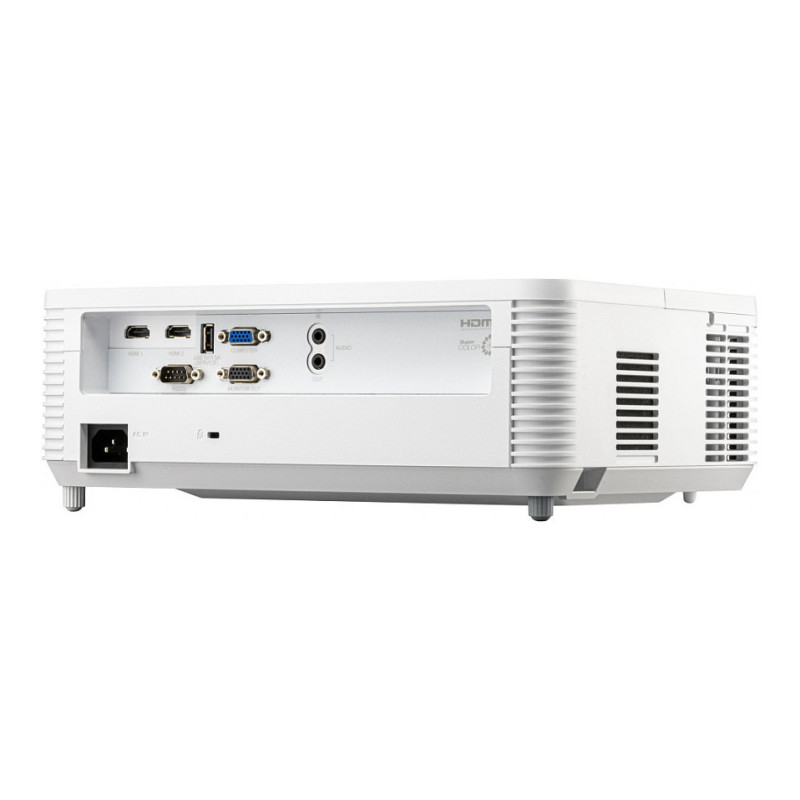

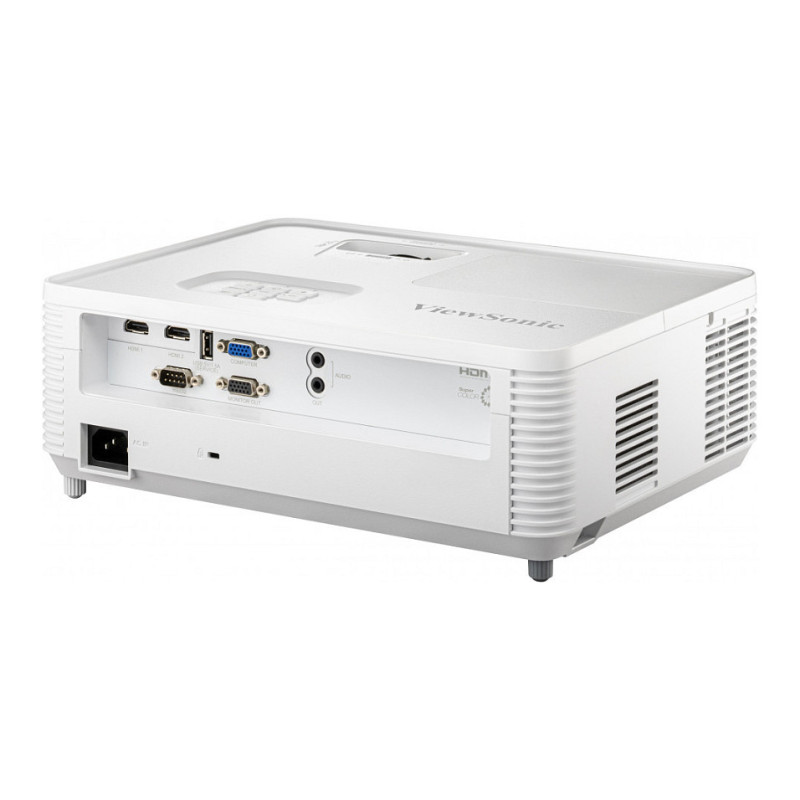

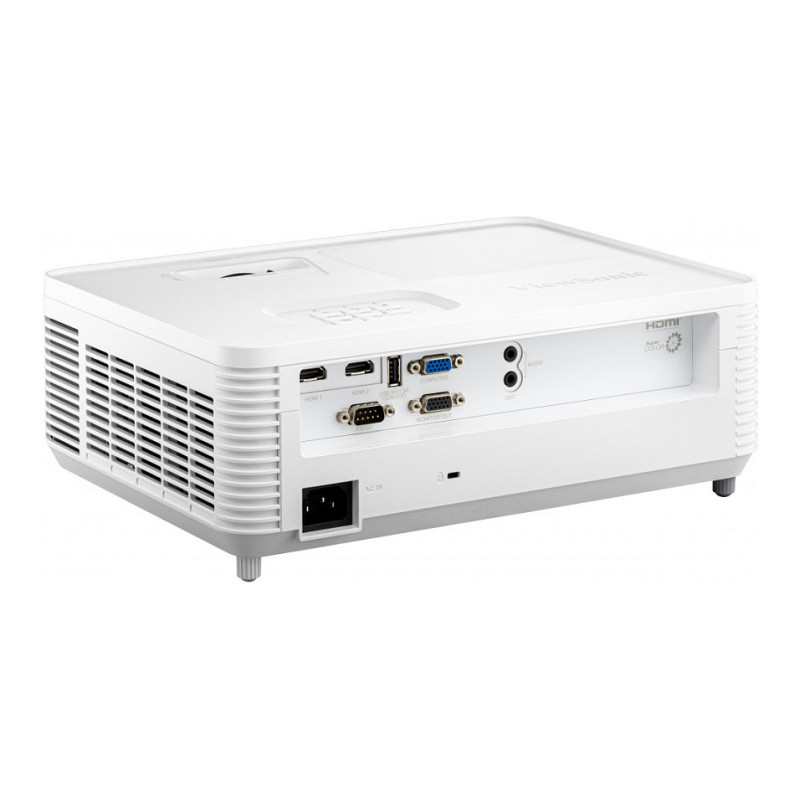

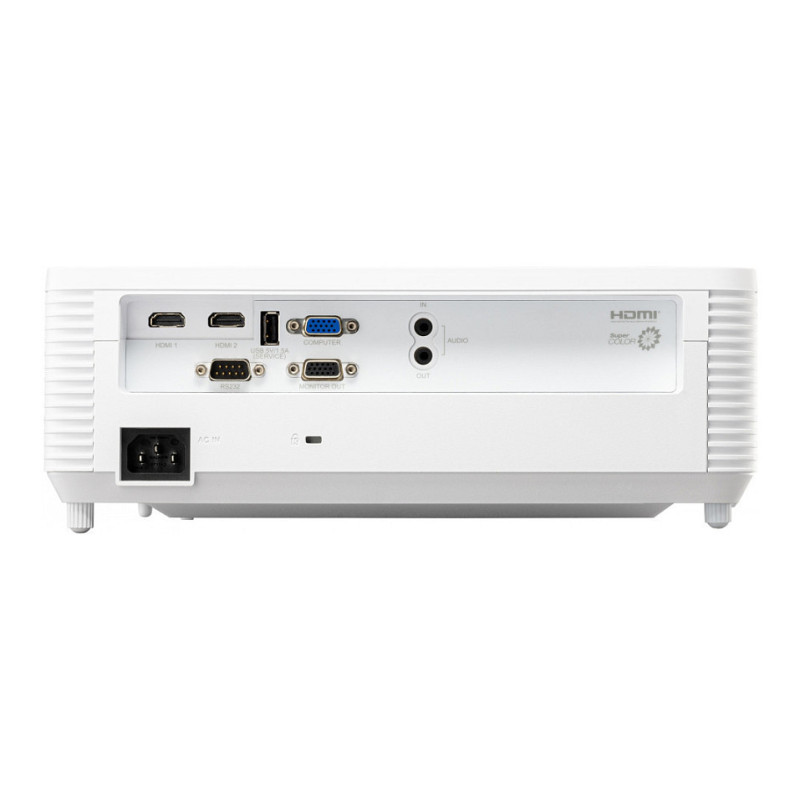

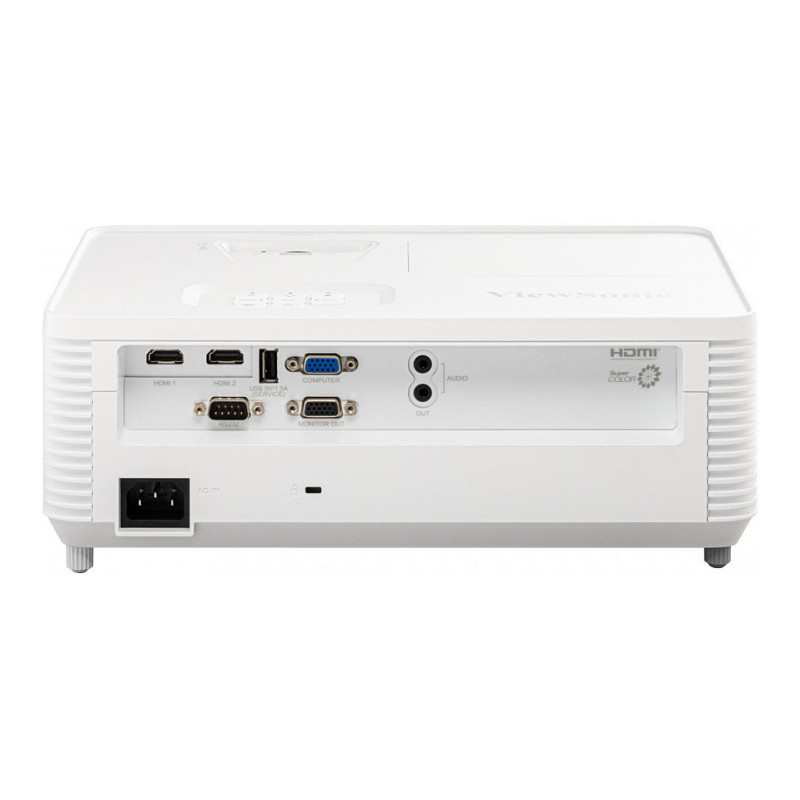

Ports & interfaces

HDMI connector type: Full-size
HDMI version: 1.4
Service port type: USB Type-A
USB 2.0 ports quantity: 1
Serial interface type: RS-232
Feature: PC Audio in
Feature: PC Audio out
Feature: PC in (D-Sub)
VGA (D-Sub) ports quantity: 2
HDMI ports quantity: 2
Feature: AC (power) in

Features

Noise level (economic mode): 25 dB
Feature: HDCP
Feature: On Screen Display (OSD)
Number of OSD languages: 22
HDCP version: 1.4
Noise level: 34 dB
Feature: Air filter

Multimedia

Feature: Built-in speaker(s)
RMS rated power: 3 W
Number of built-in speakers: 1

Design

Market positioning: Education
Product type: Standard throw projector
Product colour: White
LED indicators: Yes
Feature: Cable lock slot
Cable lock slot type: Kensington

Power

Power source: AC
Power consumption (typical): 295 W
Power consumption (standby): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 309 mm
Depth: 234 mm
Height: 115 mm
Weight: 2.7 kg
Package width: 400 mm
Package depth: 168 mm
Package height: 337 mm
Package weight: 3.8 kg

Packaging content

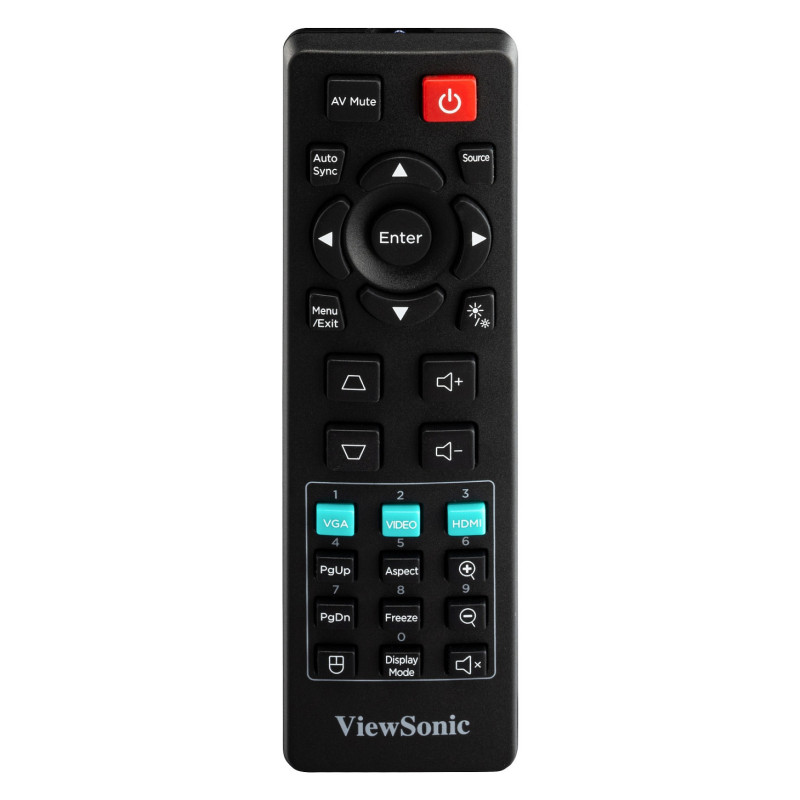

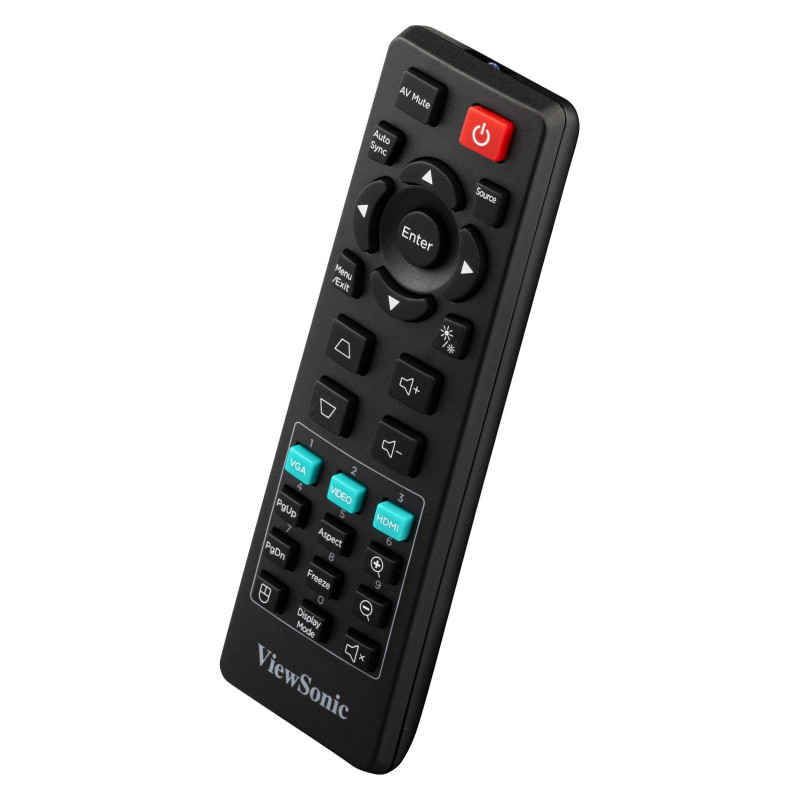

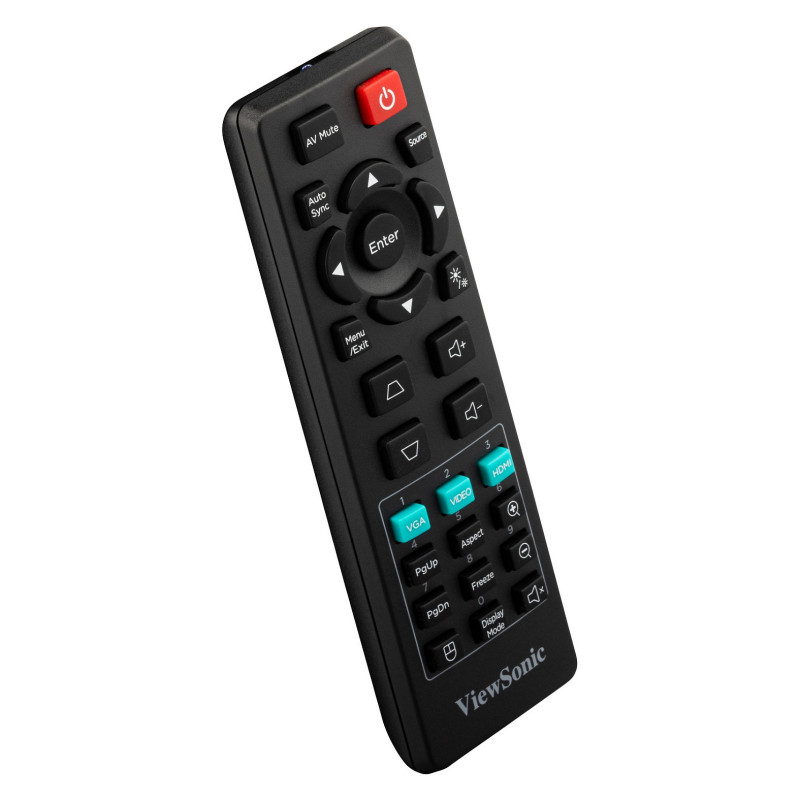

Feature: Remote control included
Remote control type: IR
Cables included: AC, VGA
Feature: Quick start guide
Feature: Warranty card

Technical details

Image lag time: 33.2 ms

Logistics data

Pallet gross length: 102 cm
Pallet gross width: 122 cm
Pallet gross height: 184.5 cm
Products per master (outer) case: 1 pc(s)
Harmonized System (HS) code: 8528620000
