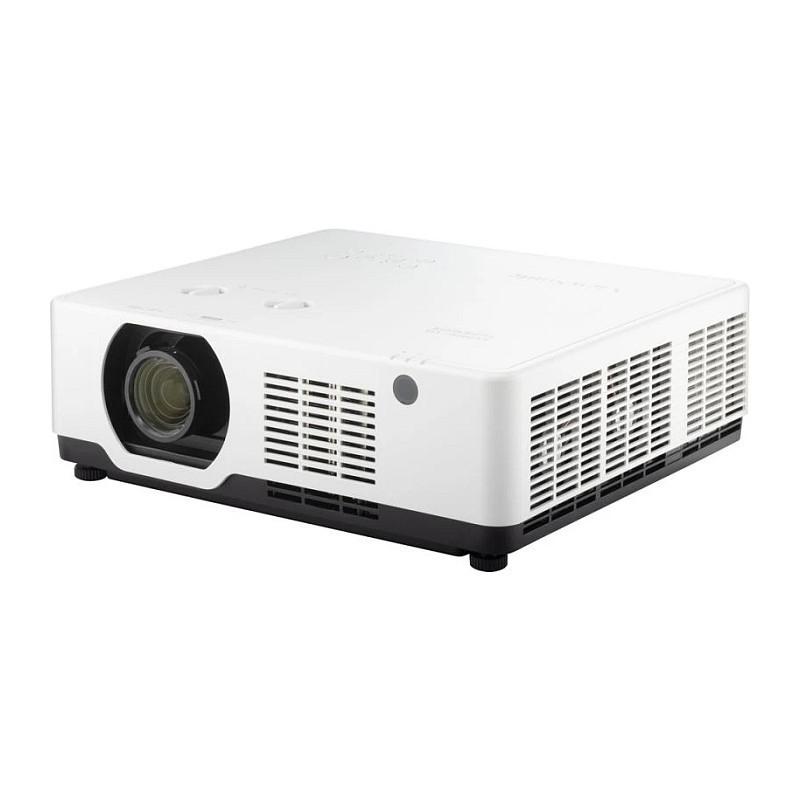

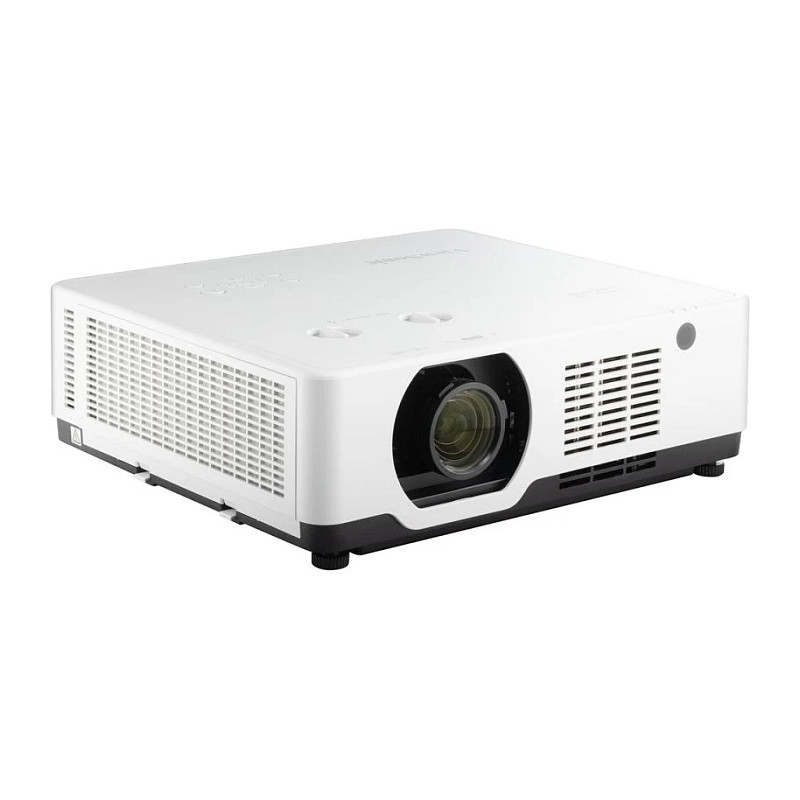

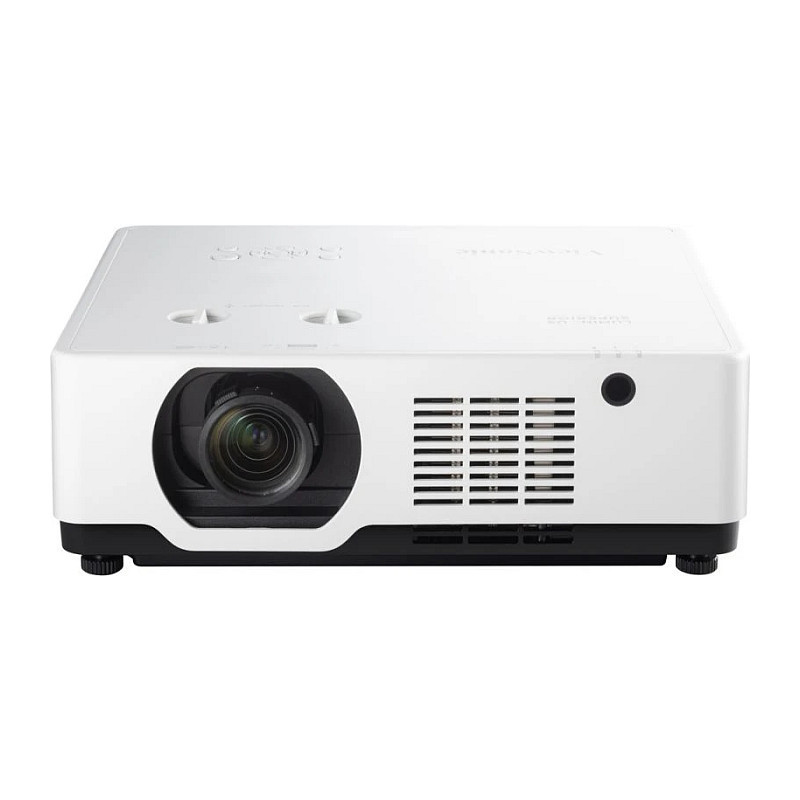

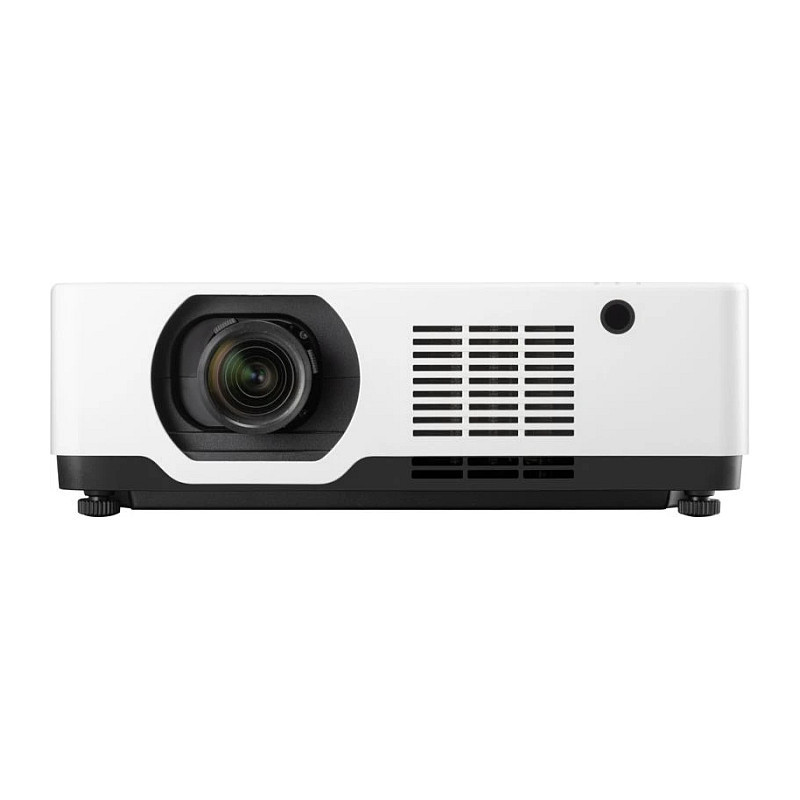

Viewsonic LSC601WU data projector

Viewsonic LSC601WU. Projector brightness: 6000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Lamp, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focal length range: 15.3 - 24.6 mm, Aperture range (F-F): 1.58 - 2.02, Throw ratio: 1.08 - 1.76. Supported graphics resolutions: 1920 x 1200 (WUXGA). Serial interface type: RS-232

The LSC601WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 2nd generation laser phosphor technology, this projector delivers 6,000 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300" in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC601WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.

Bright Images for Large Venues

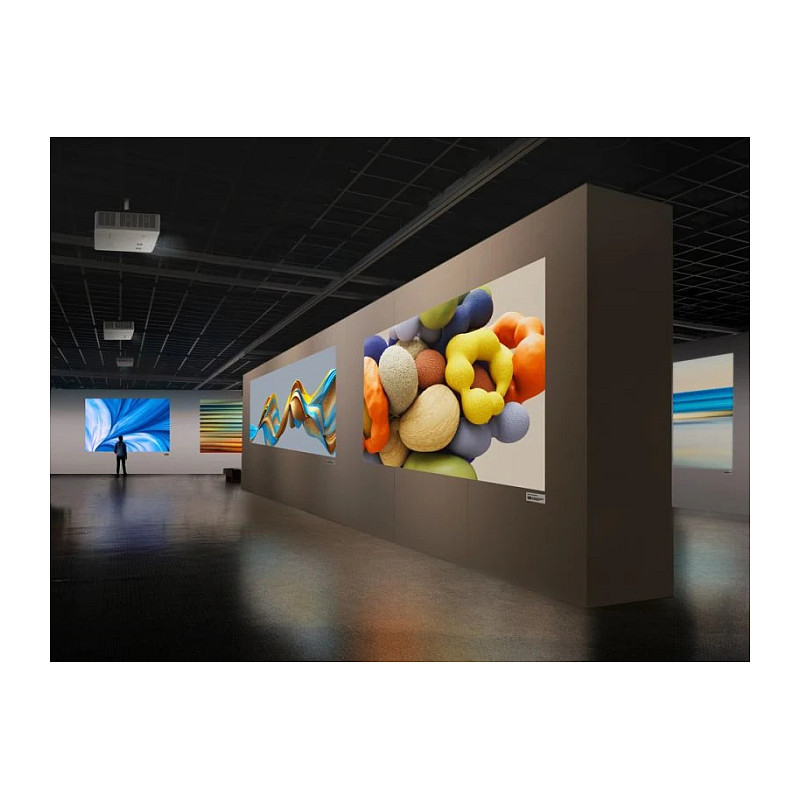

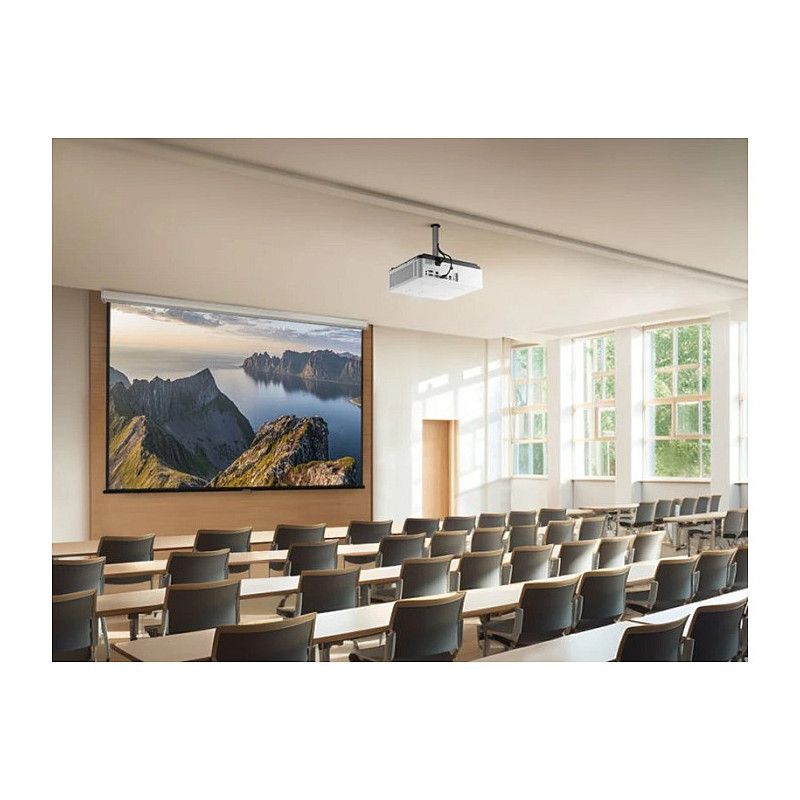

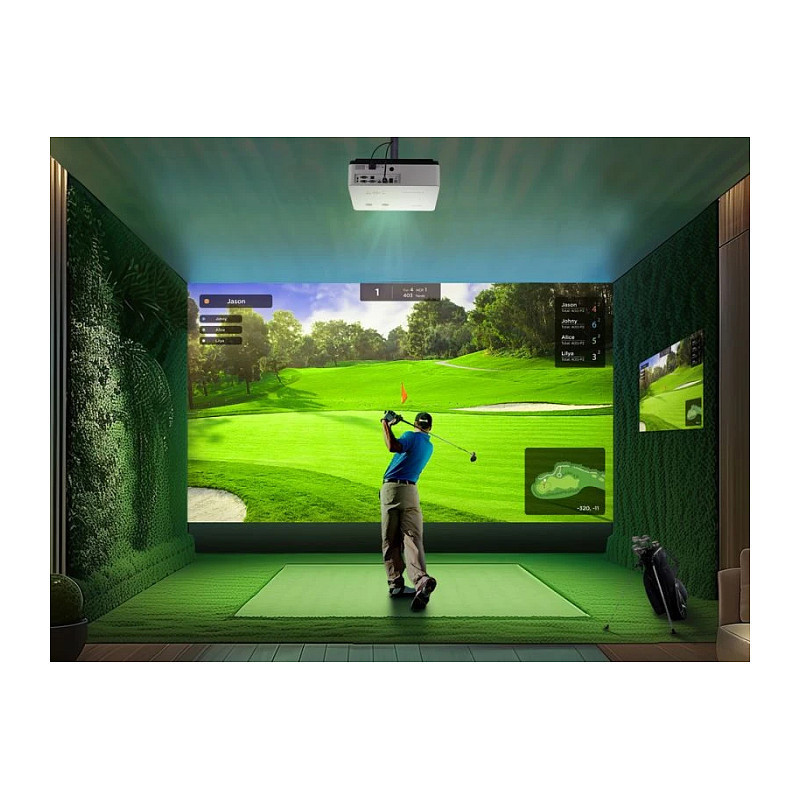

Delivering 6,000 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces

Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300", offering a lower cost-per-inch compared to other types of commercial displays.

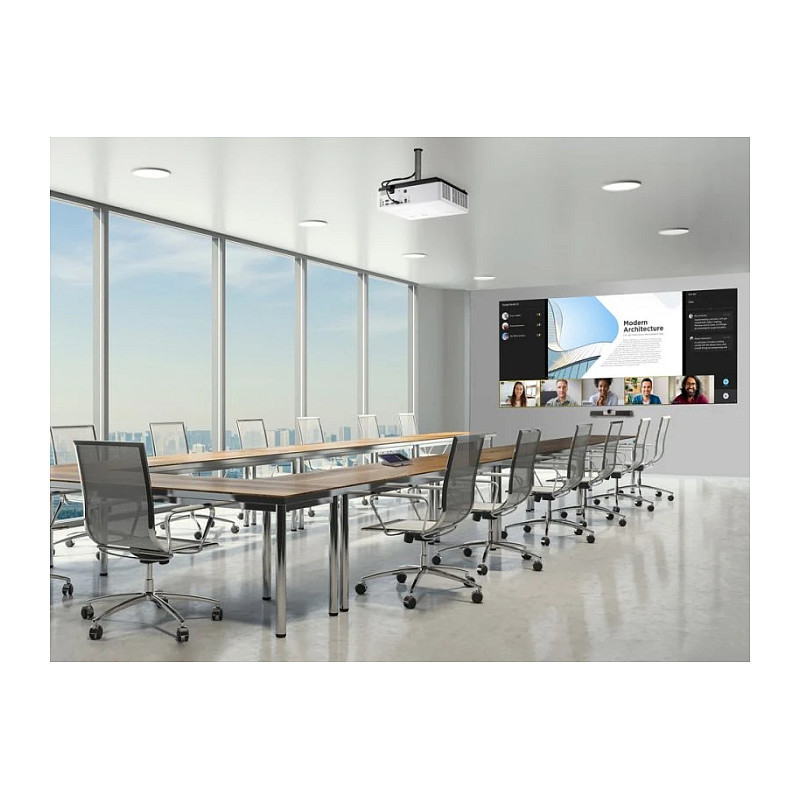

Next-Gen Meeting Experience with 21:9 Aspect Ratio
The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.

Adaptable to Any Environment

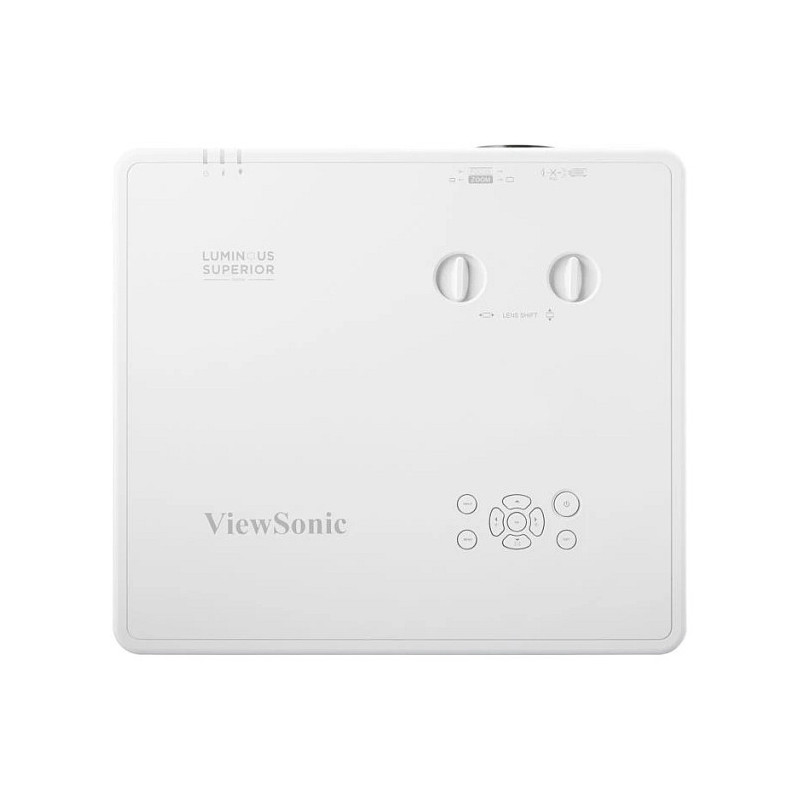

Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.

2nd Generation Laser Phosphor Technology
The projector adopts the 2nd generation laser phosphor technology. In addition to inheriting excellent color performance, lamp-free design, and instant power on/off from the previous generation, technology on the new generation improves around 20% of brightness, better heat-resistance, and a smaller module design, making the images consistent in ambient settings as well as increased reliability with a more compact size for extended use in various scenarios.

Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency .

Projector

Supported aspect ratios: 16:10, 16:9
Screen size compatibility: 762 - 7620 mm (30 - 300")
Projection distance: 0.7 - 11.37 m
Projector brightness: 6000 ANSI lumens
Projection technology: 3LCD
Projector native resolution: WUXGA (1920x1200)
Contrast ratio (typical): 3000000:1
Native aspect ratio: 16:10
Number of colours: 1.07 billion colours
Keystone correction, horizontal: -30 - 30°
Keystone correction, vertical: -30 - 30°
Horizontal synchronization (min): 15 kHz
Horizontal synchronization (max): 100 kHz
Vertical synchronization (max): 0.085 kHz

Light source

Light source type: Lamp
Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h

Lens system

Focal length range: 15.3 - 24.6 mm
Aperture range (F-F): 1.58 - 2.02
Feature: Zoom capability
Throw ratio: 1.08 - 1.76
Offset: 5%

Video

Feature: Full HD
Supported graphics resolutions: 1920 x 1200 (WUXGA)

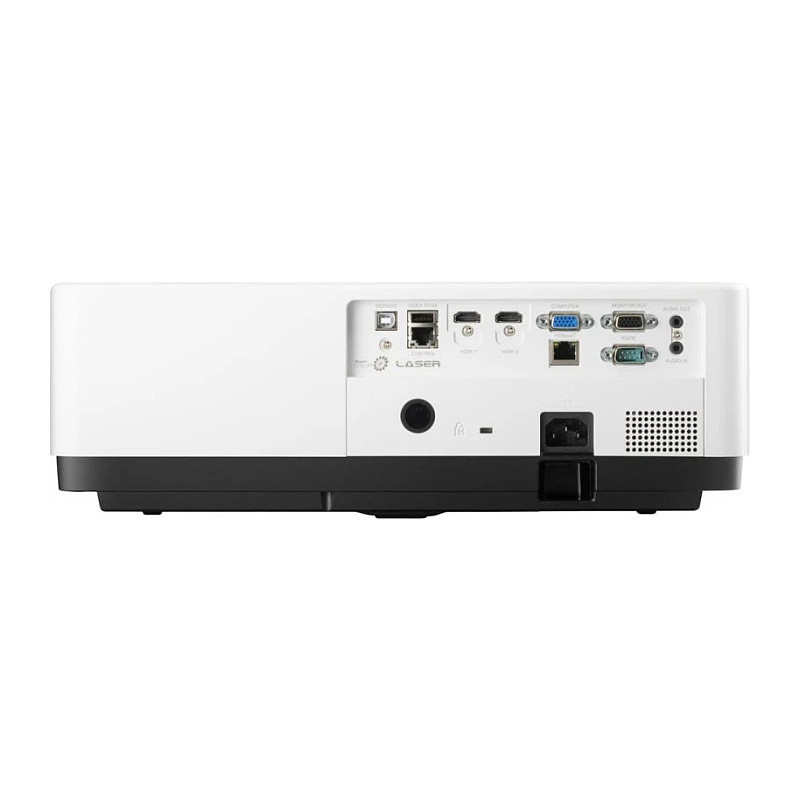

Ports & interfaces

USB 2.0 Type-B ports quantity: 1
Audio (L/R) in: 1
Serial interface type: RS-232
HDMI ports quantity: 2
Feature: AC (power) in

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1

Features

Noise level (economic mode): 25 dB
Noise level: 35 dB

Multimedia

Feature: Built-in speaker(s)
RMS rated power: 16 W
Number of built-in speakers: 1

Design

Market positioning: Education
Product type: Standard throw projector
Product colour: White

Power

Power source: AC
Power consumption (typical): 330 W
Power consumption (standby): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 405 mm
Depth: 358 mm
Height: 137 mm
Weight: 7.9 kg
Package width: 510 mm
Package depth: 498 mm
Package height: 260 mm
Package weight: 10.9 kg

Packaging content

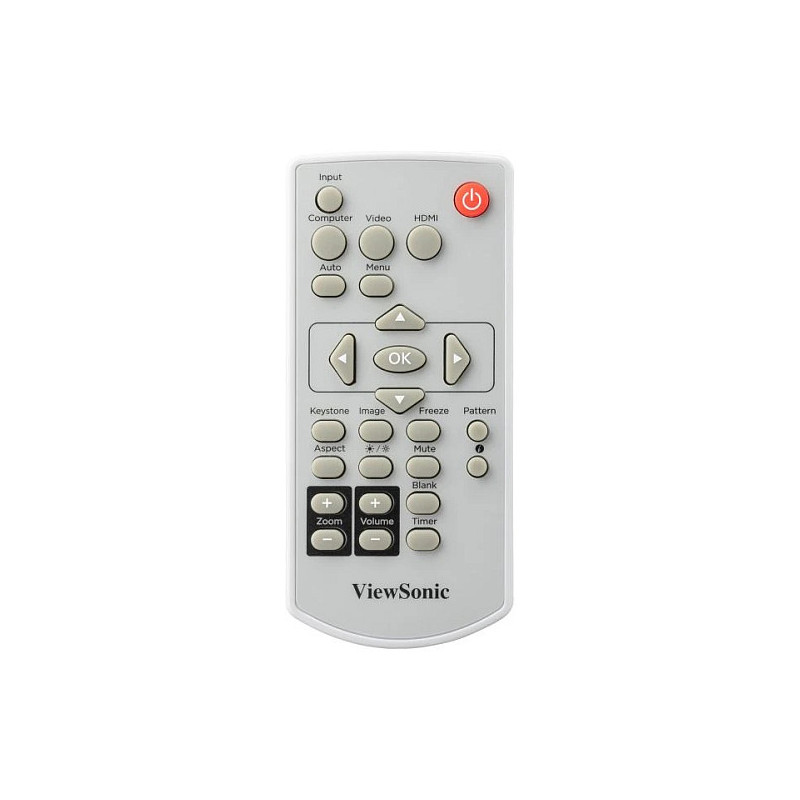

Feature: Remote control included
Feature: Manual

Logistics data

Pallet gross length: 100 cm
Pallet gross width: 120 cm
Pallet gross height: 170 cm
Products per master (outer) case: 1 pc(s)
Harmonized System (HS) code: 8528620000
