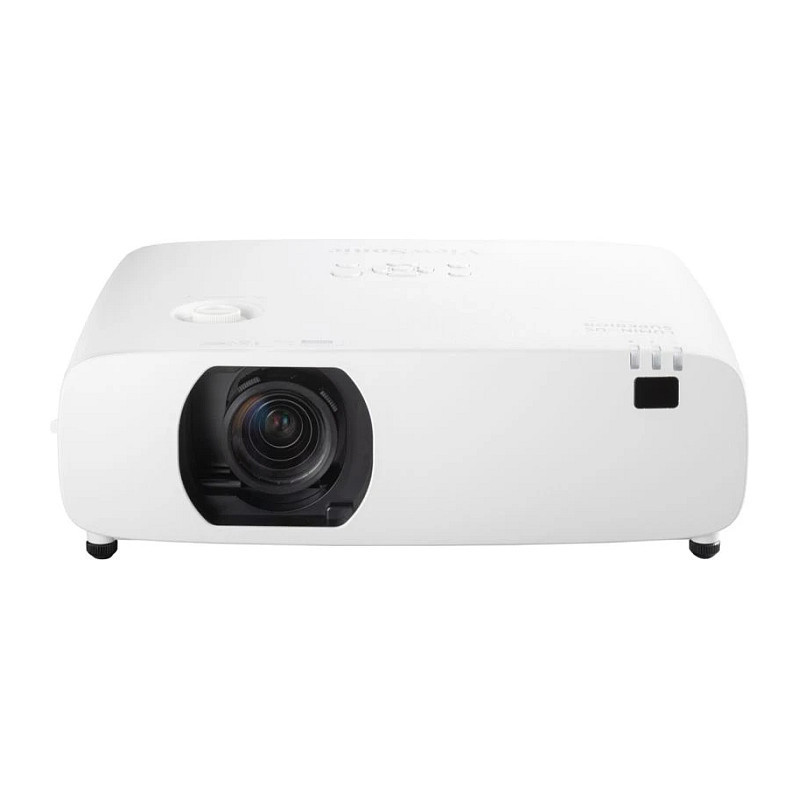

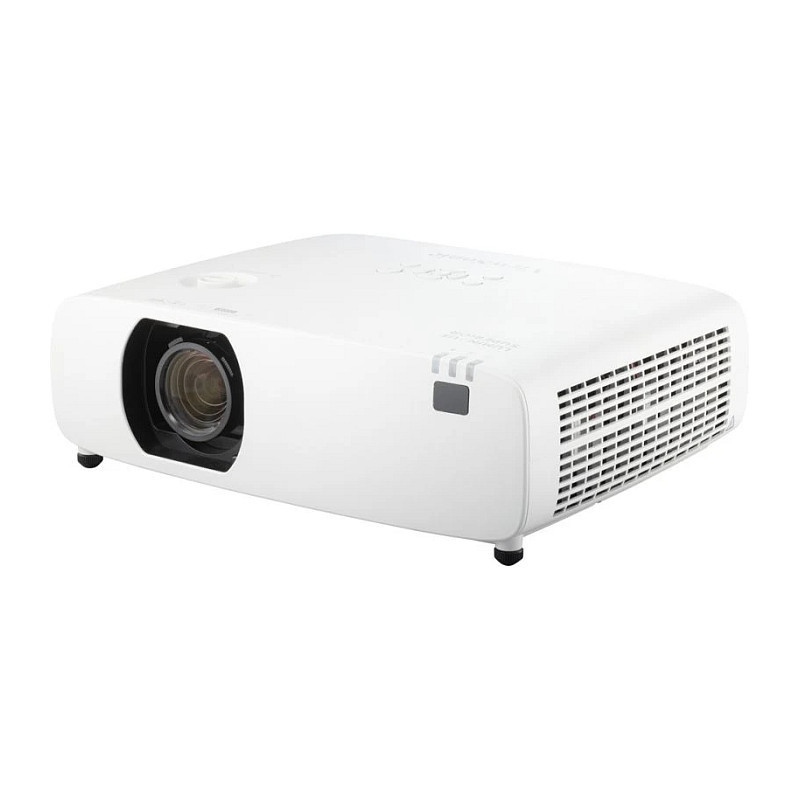

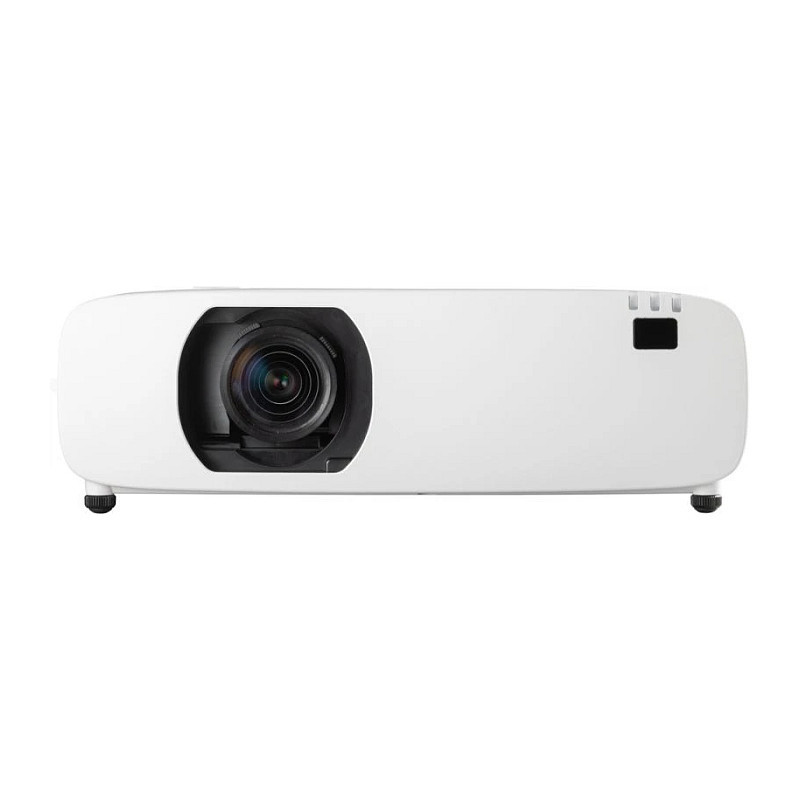

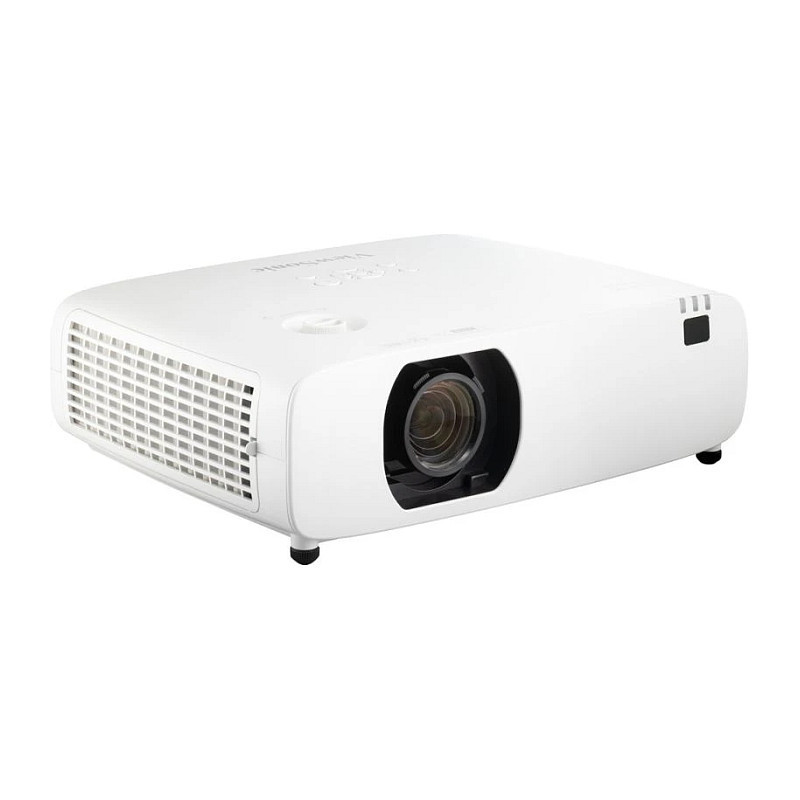

Viewsonic LSC520WU data projector

Viewsonic LSC520WU. Projector brightness: 5200 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Lamp, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focal length range: 15.3 - 24.6 mm, Aperture range (F-F): 1.58 - 2.02, Throw ratio: 1.08 - 1.76. Supported graphics resolutions: 1920 x 1200 (WUXGA). Serial interface type: RS-232

The LSC520WU is a lamp-free, high-brightness projector designed for commercial, educational, and public spaces. Utilizing 3rd generation laser phosphor technology, this projector delivers 5,200 ANSI Lumens of brightness for up to 30,000 hours and can project an ultra-large screen up to 300" in WUXGA resolution. Ideal for modern workplaces, its 21:9 aspect ratio is optimized for Microsoft Teams Rooms applications, enhancing collaborative environments. Equipped with features like V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capabilities, the LSC520WU offers flexible setup possibilities. Additionally, its comprehensive LAN control ensures seamless integration into existing device management networks.

Bright Images for Large Venues

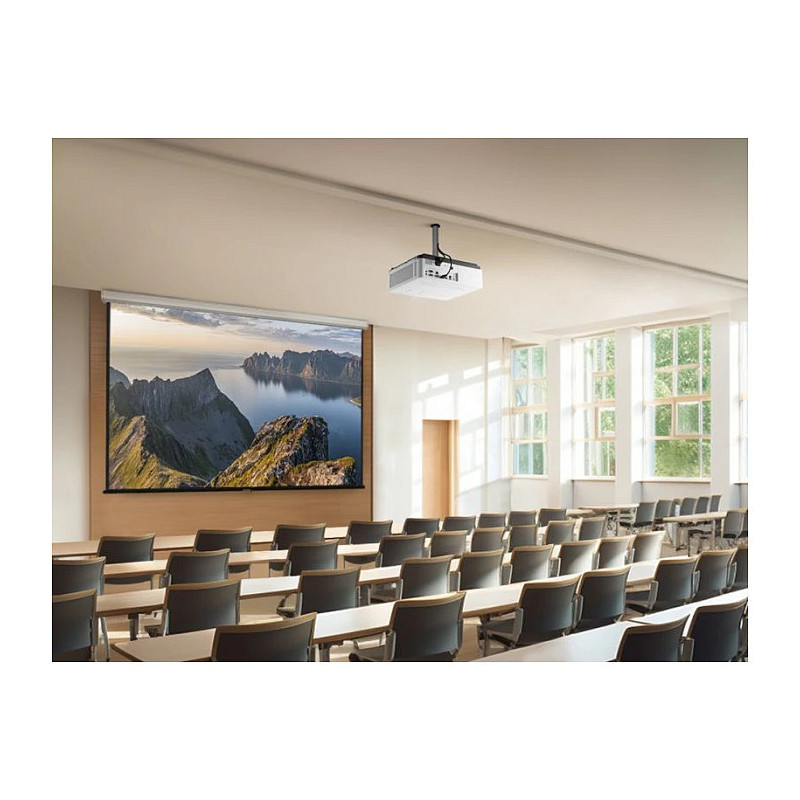

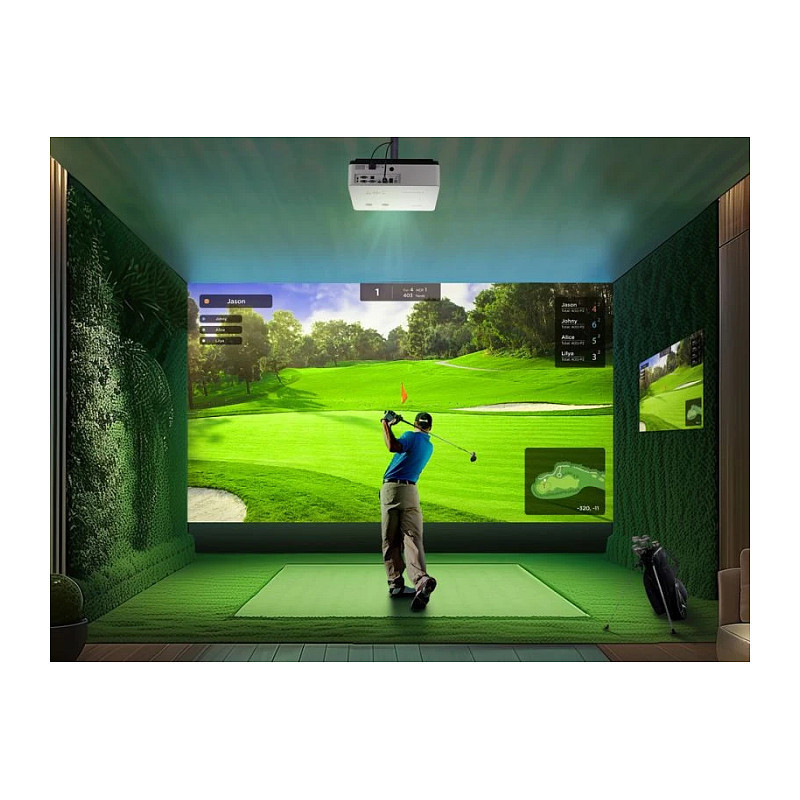

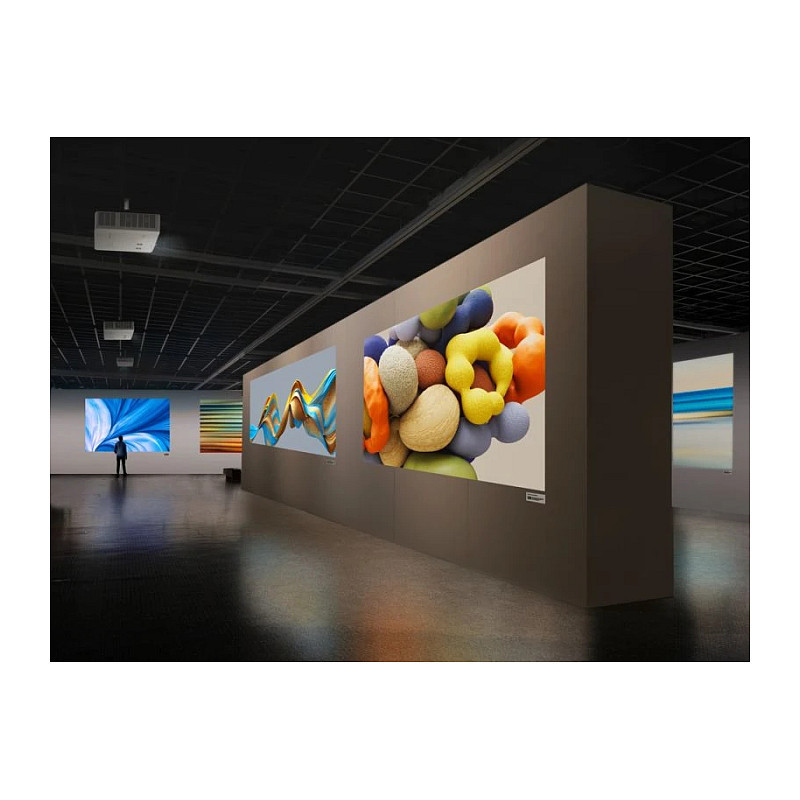

Delivering 5,200 ANSI Lumens, the projector provides vibrant and sharp projection in all lighting conditions, making it ideal for boardrooms, lecture halls, galleries, simulation experience venues, and other expansive spaces.

Ultra-large Screen with Lower Cost-per-inch
This easy-to-install projector allows for an image size of up to 300", offering a lower cost-per-inch compared to other types of commercial displays.

Next-Gen Meeting Experience with 21:9 Aspect Ratio

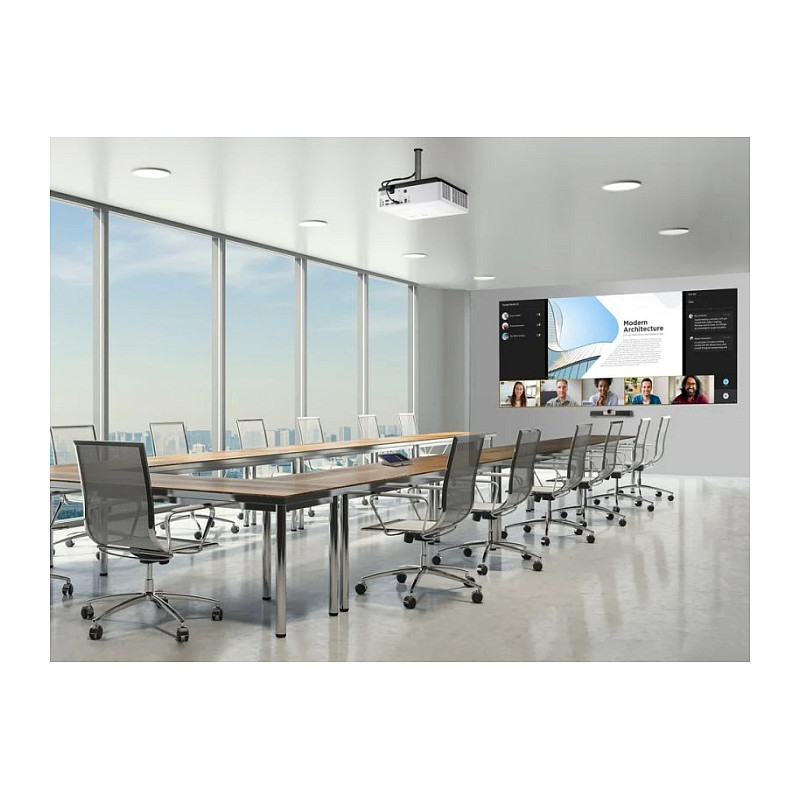

The projector supports a 21:9 aspect ratio, tailored for Microsoft Teams Rooms (MTR) in front-row mode. This widescreen format enhances meeting experiences by simultaneously displaying the presentation, chat box, hands-up notifications, and participant video feeds, fostering a highly engaging and collaborative environment.

Adaptable to Any Environment

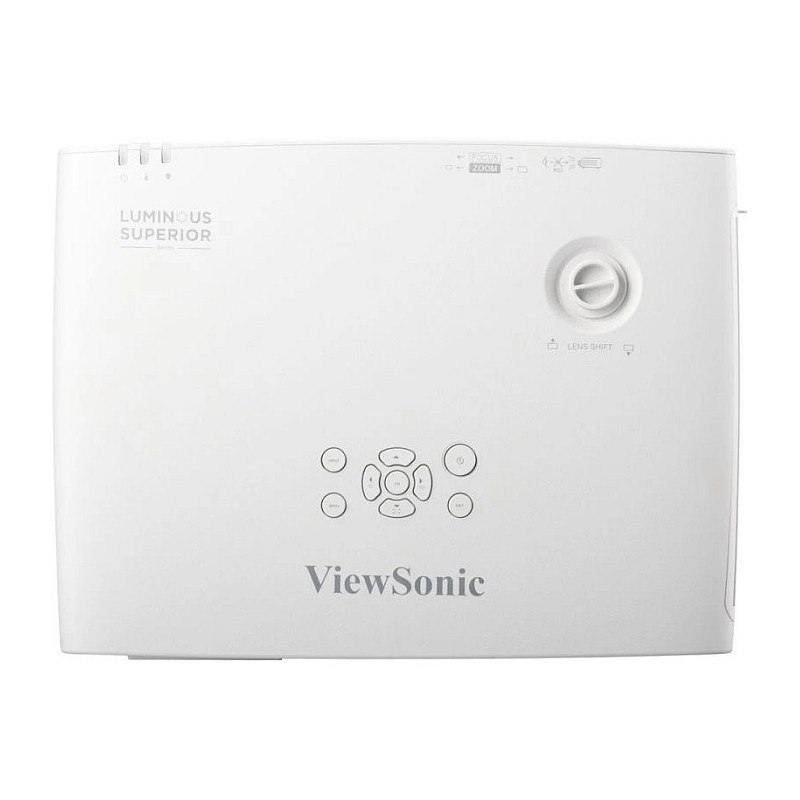

Featuring tool-free lens shift control knobs, 1.6x optical zoom, H/V keystone correction, and 4-corner adjustment capabilities, this projector allows image adjustments without relocation, ensuring it fits any environment.

Bright, Compact, Durable
The projector incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.

Centralized Control for Management Efficiency
The projector is compatible with Crestron, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency .

Projector

Supported aspect ratios: 16:10, 16:9
Screen size compatibility: 762 - 7620 mm (30 - 300")
Projection distance: 0.7 - 11.37 m
Projector brightness: 5200 ANSI lumens
Projection technology: 3LCD
Projector native resolution: WUXGA (1920x1200)
Contrast ratio (typical): 3000000:1
Native aspect ratio: 16:10
Number of colours: 1.07 billion colours
Keystone correction, horizontal: -30 - 30°
Keystone correction, vertical: -30 - 30°
Horizontal synchronization (min): 15 kHz
Horizontal synchronization (max): 100 kHz
Vertical synchronization (min): 0.023 kHz
Vertical synchronization (max): 0.085 kHz

Light source

Light source type: Lamp
Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h

Lens system

Focal length range: 15.3 - 24.6 mm
Aperture range (F-F): 1.58 - 2.02
Feature: Zoom capability
Throw ratio: 1.08 - 1.76
Offset: 5%

Video

Feature: Full HD
Supported graphics resolutions: 1920 x 1200 (WUXGA)

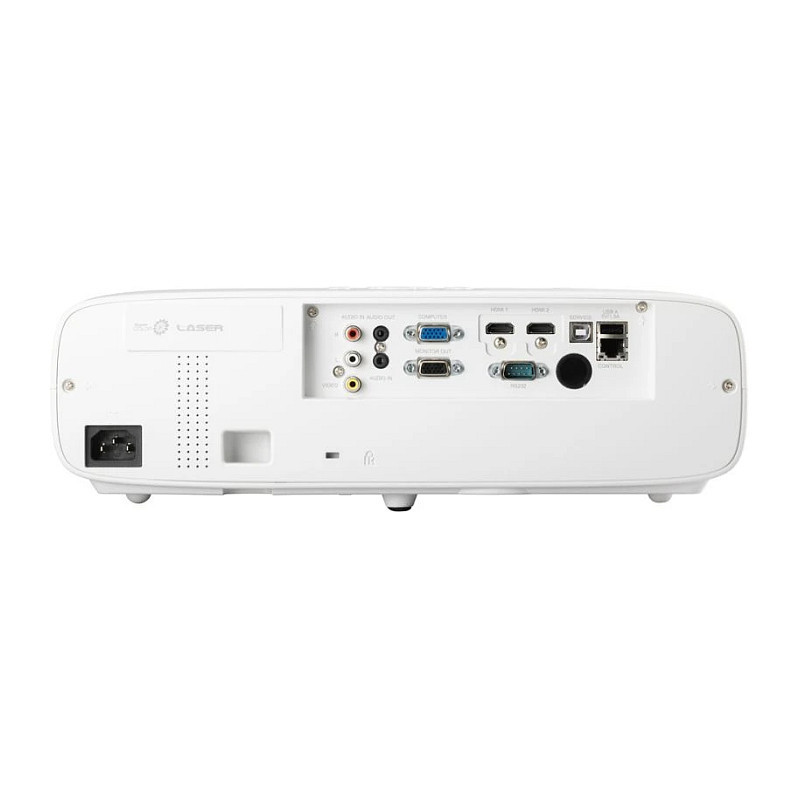

Ports & interfaces

Mini-USB 2.0 ports quantity: 1
Audio (L/R) in: 1
Serial interface type: RS-232
HDMI ports quantity: 2
Feature: AC (power) in

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1

Features

Noise level (economic mode): 26 dB
Noise level: 35 dB

Multimedia

Feature: Built-in speaker(s)
RMS rated power: 16 W
Number of built-in speakers: 1

Design

Market positioning: Education
Product type: Standard throw projector
Product colour: White

Power

Power source: AC
Power consumption (typical): 230 W
Power consumption (standby): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight & dimensions

Width: 390 mm
Depth: 294 mm
Height: 128 mm
Weight: 5.2 kg
Package width: 492 mm
Package depth: 443 mm
Package height: 239 mm
Package weight: 7.23 kg

Packaging content

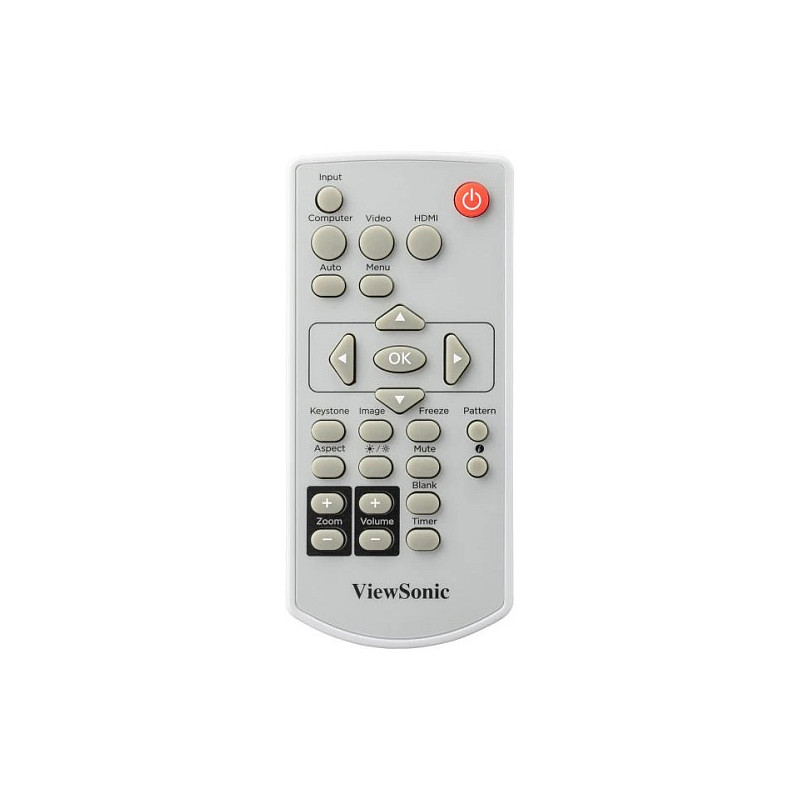

Feature: Remote control included
Feature: Manual

Logistics data

Pallet gross length: 100 cm
Pallet gross width: 100 cm
Pallet gross height: 181 cm
Products per master (outer) case: 1 pc(s)
Harmonized System (HS) code: 8528620000
