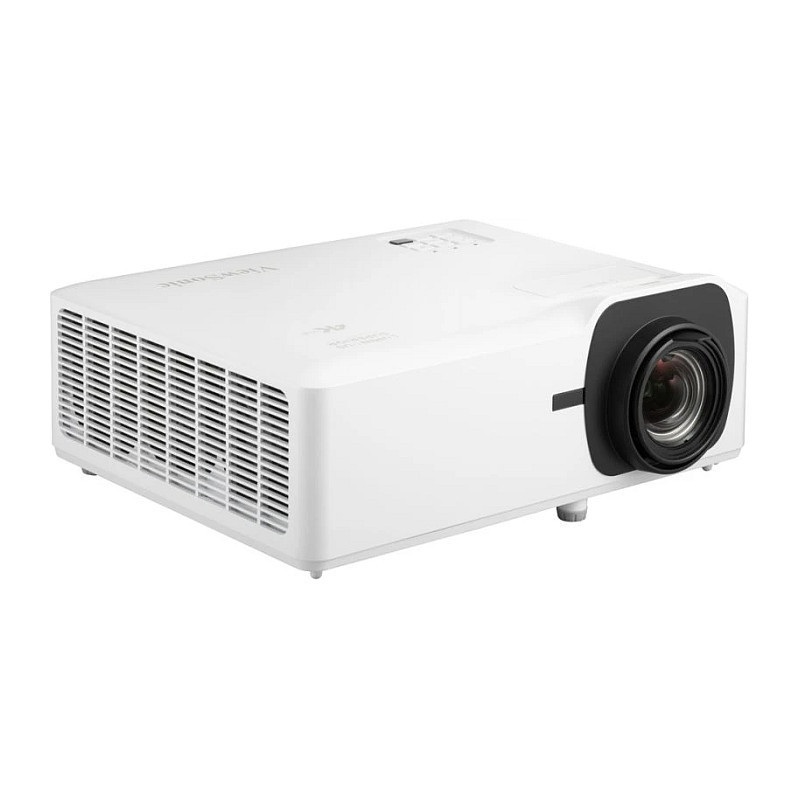

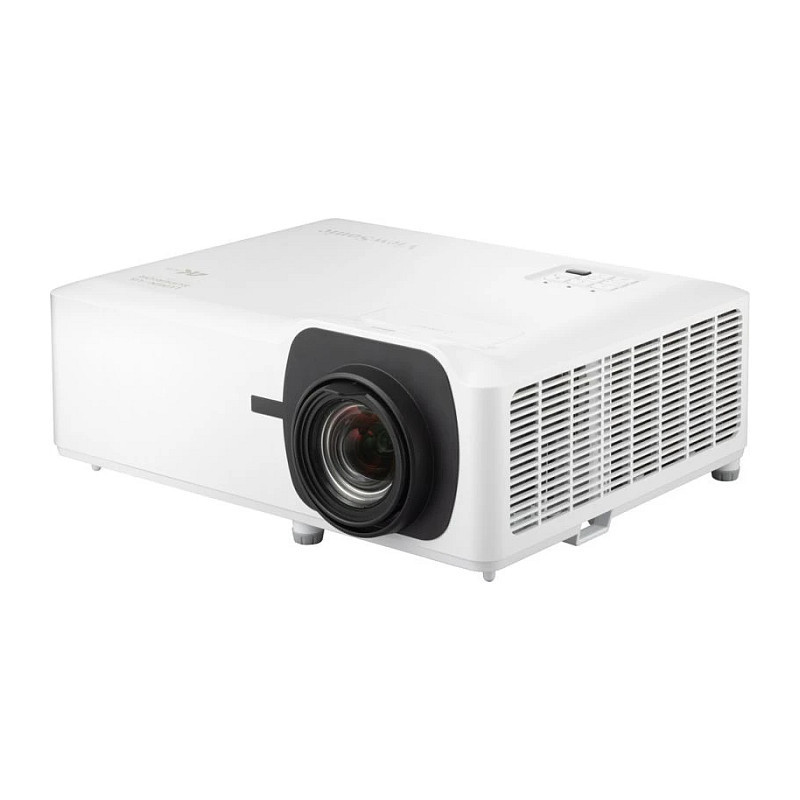

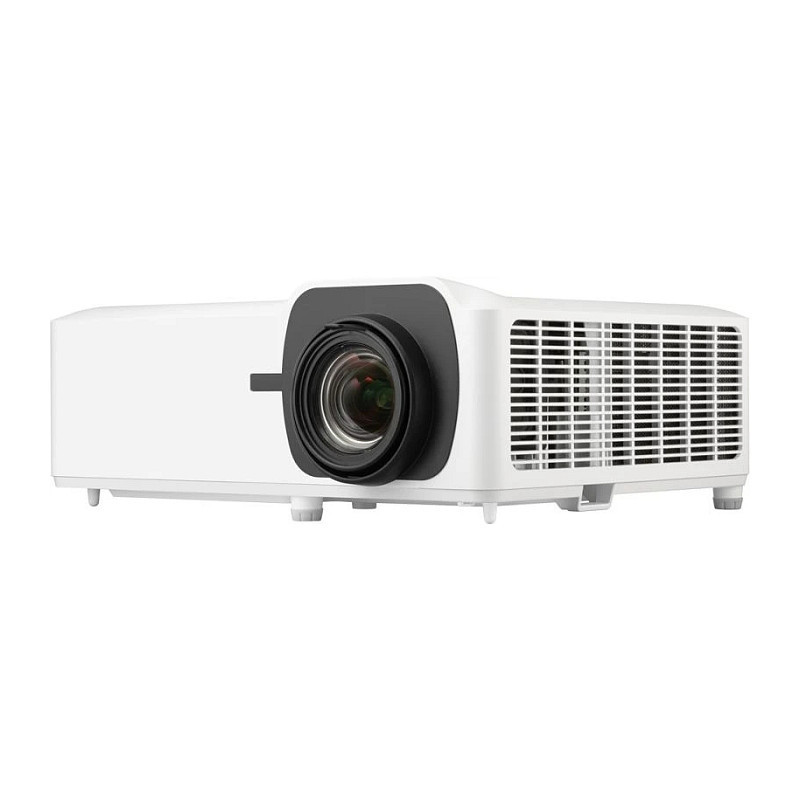

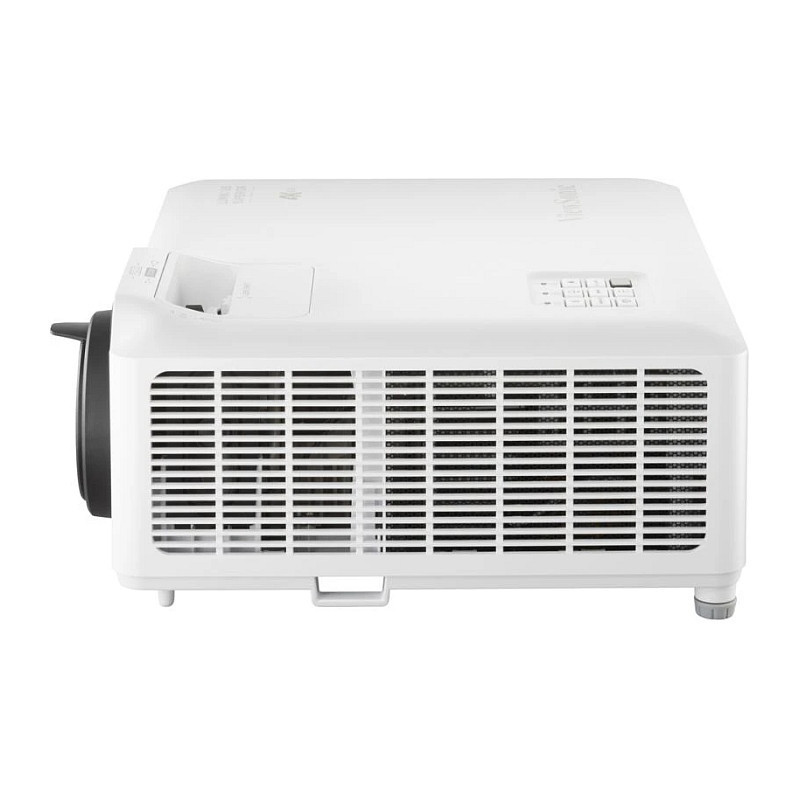

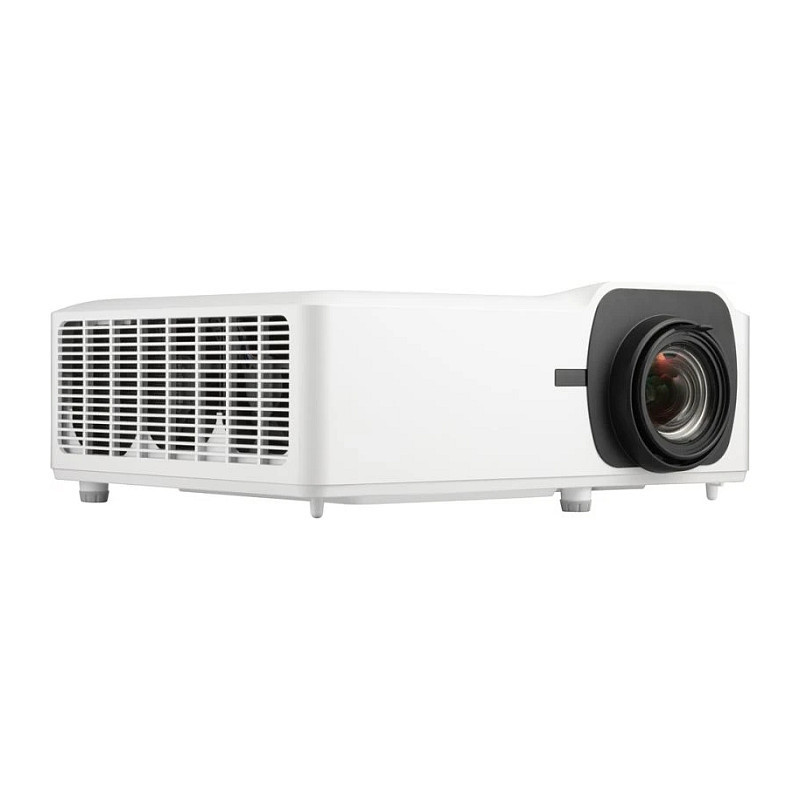

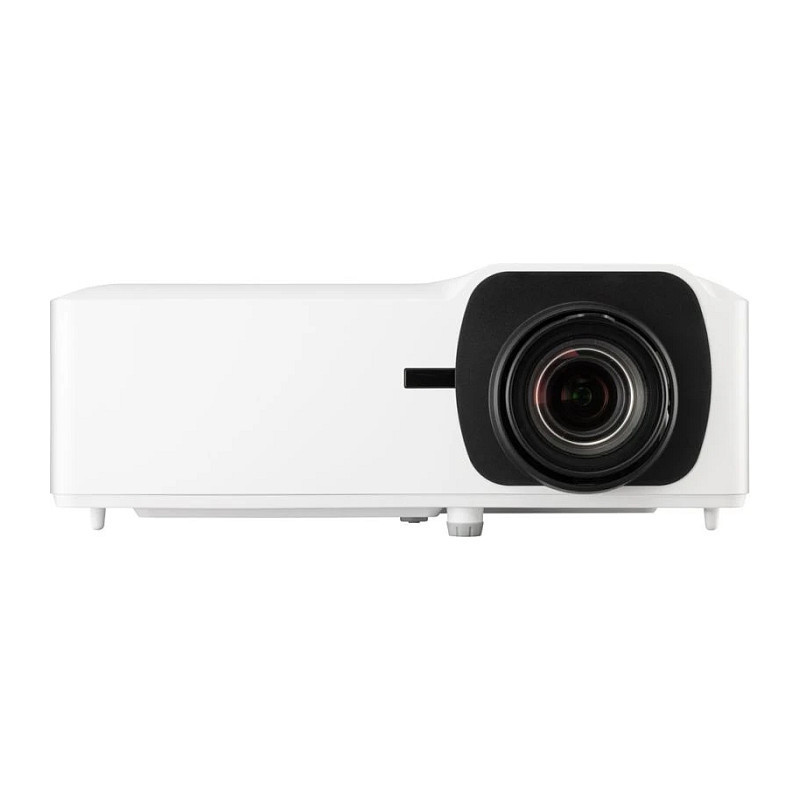

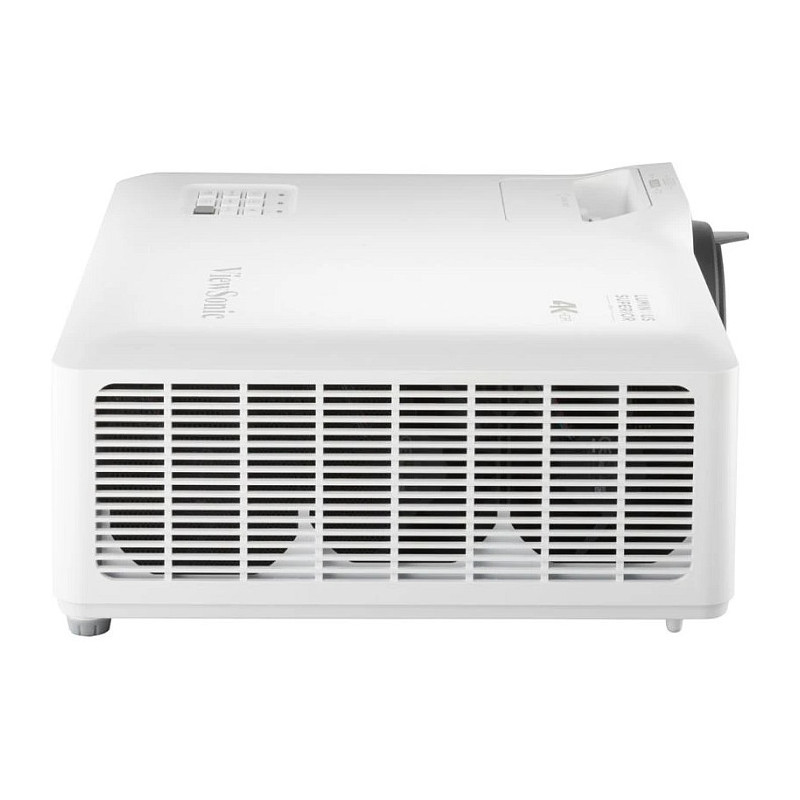

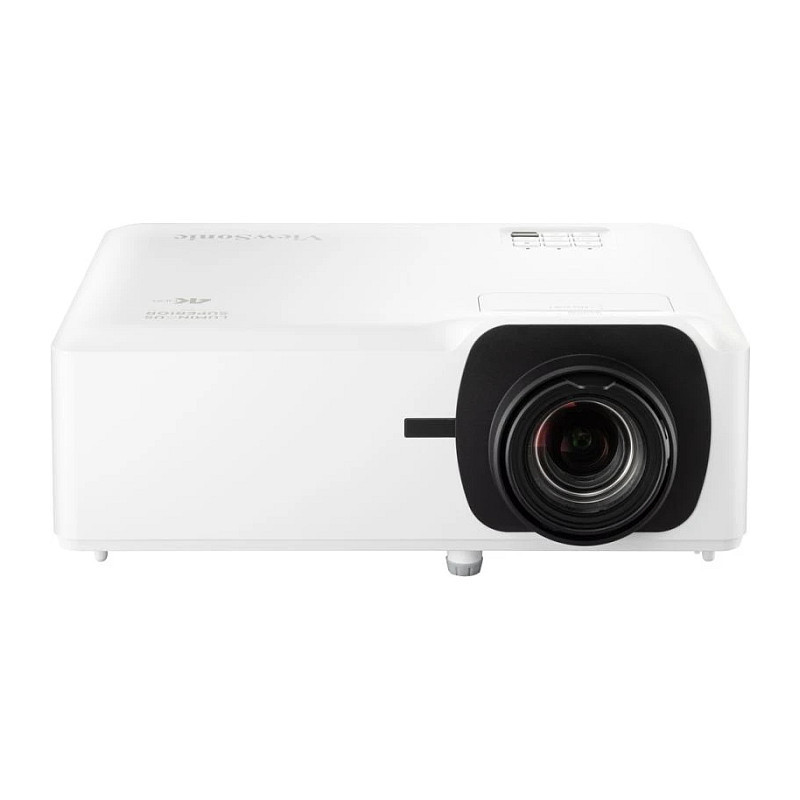

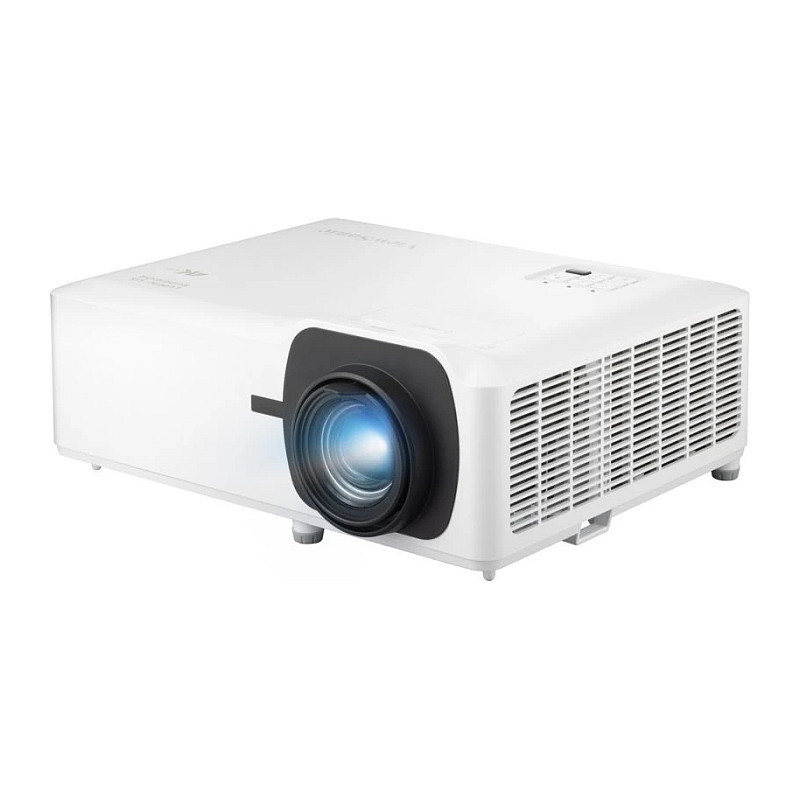

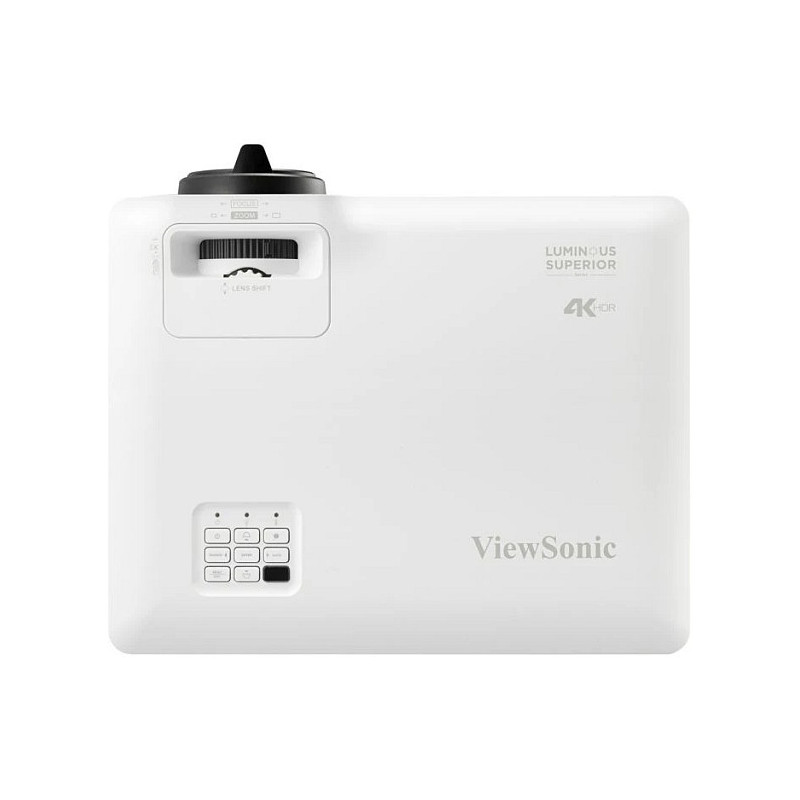

Viewsonic LS901-4K data projector

Viewsonic LS901-4K. Projector brightness: 5500 ANSI lumens, Projector native resolution: UHD 4K (3840x2160), Contrast ratio (typical): 3000000:1. Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focal length range: 17.63 - 27.9 mm, Aperture range (F-F): 2.3 - 3, Vertical lens shift range: -21 - 0%. Serial interface type: RS-232. Noise level: 31 dB, Noise level (economic mode): 25 dB
Introducing the LS901-4K from ViewSonic's Luminous Superior Series, tailored for expansive venue displays. Featuring 5,500 ANSI lumens of brightness and high native contrast provided by a 0.65" DMD chip through DLP technology, it delivers stunning 4K UHD visuals on screens larger than 100 inches. Perfect for museums and educational institutions, the LS901-4K's ultra-high resolution with HDR/HLG support ensures every detail is vivid and clear, enhancing viewer engagement. With 21:9 aspect ratio support, the LS901-4K is also an ideal choice for Microsoft Teams Rooms. Its 1.7x optical zoom allows for a flexible setup to suit various installation needs, and the vertical lens shift and H/V keystone adjustment make the process a breeze. Additionally, portrait mode and 360° projection capabilities cater to more advanced requirements. Comprehensive LAN control ensures seamless integration into corporate networks. Employing advanced 3rd generation laser phosphor technology, the LS901-4K boasts a remarkable 30,000-hour lifespan, reducing maintenance costs for both business and educational institutions.

Projector

Screen size compatibility: 762 - 7620 mm (30 - 300")
Projection distance: 0.8 - 13.55 m
Projector brightness: 5500 ANSI lumens
Projector native resolution: UHD 4K (3840x2160)
Contrast ratio (typical): 3000000:1
Native aspect ratio: 16:9
Number of colours: 1.07 billion colours
Horizontal scan range: 15 - 255 kHz
Vertical scan range: 23 - 240 Hz
Keystone correction, horizontal: -30 - 30°
Keystone correction, vertical: -30 - 30°

Light source

Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h

Lens system

Focal length range: 17.63 - 27.9 mm
Aperture range (F-F): 2.3 - 3
Zoom capability: Yes
Vertical lens shift range: -21 - 0%
Offset: 154%

Video

Full HD: Yes

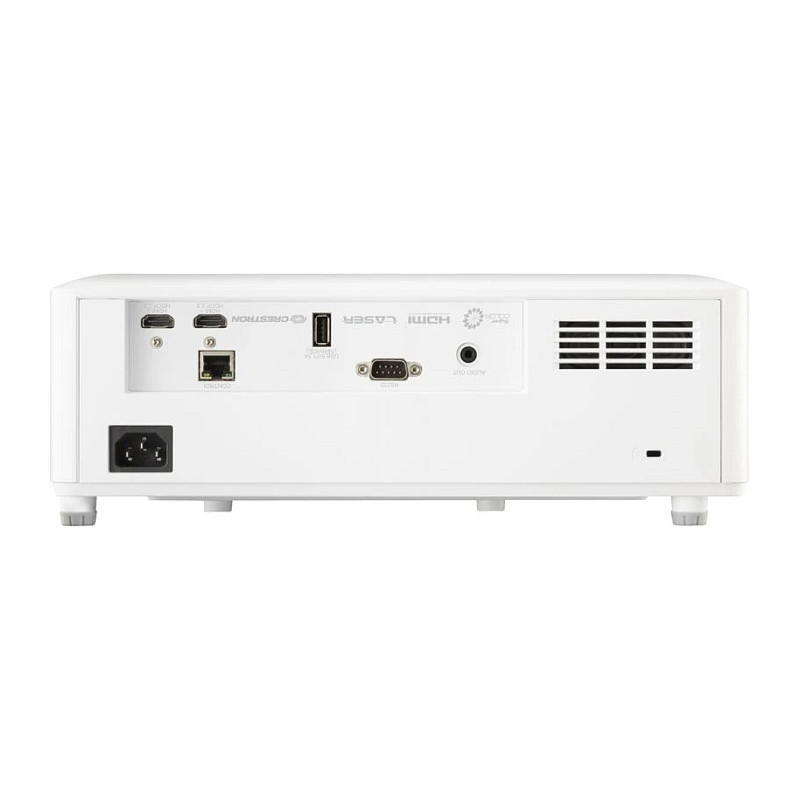

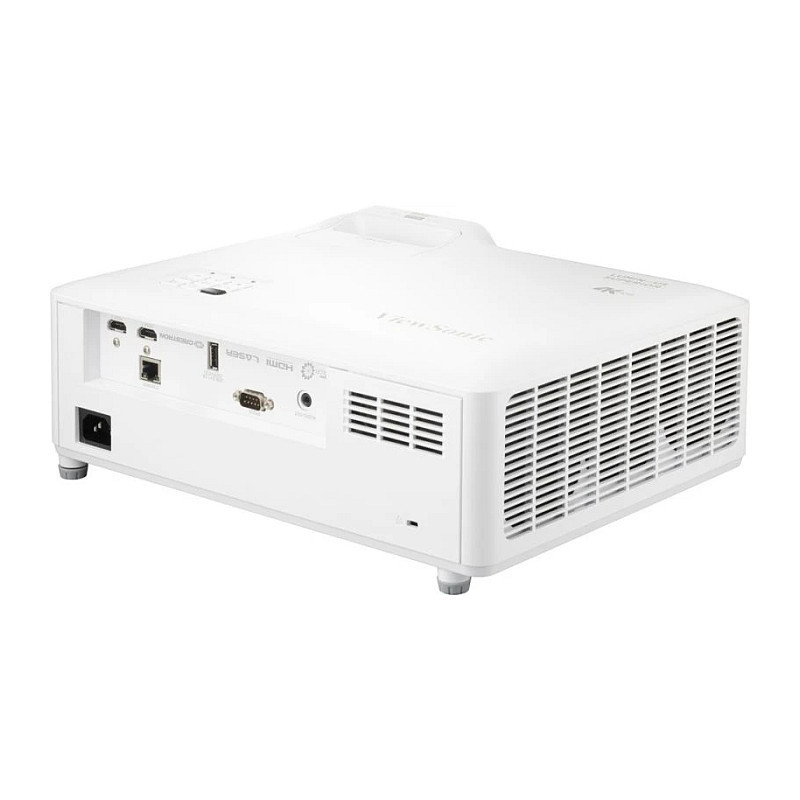

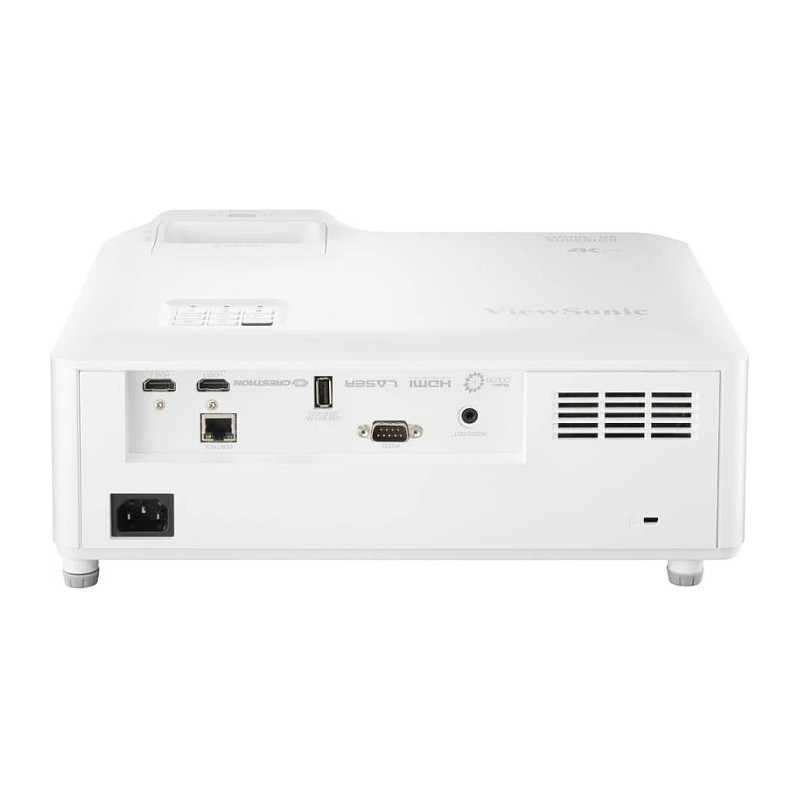

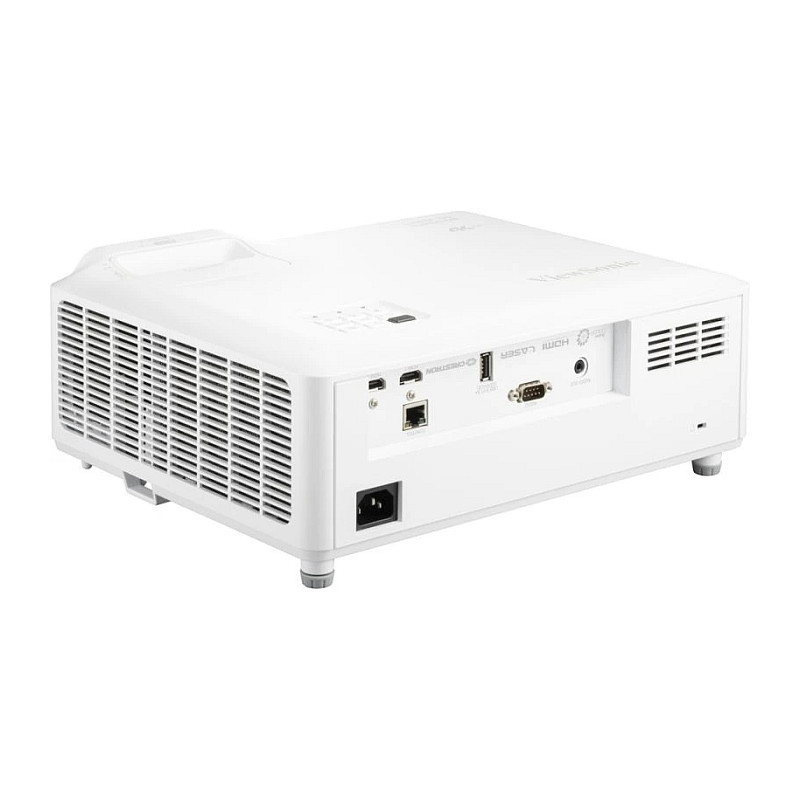

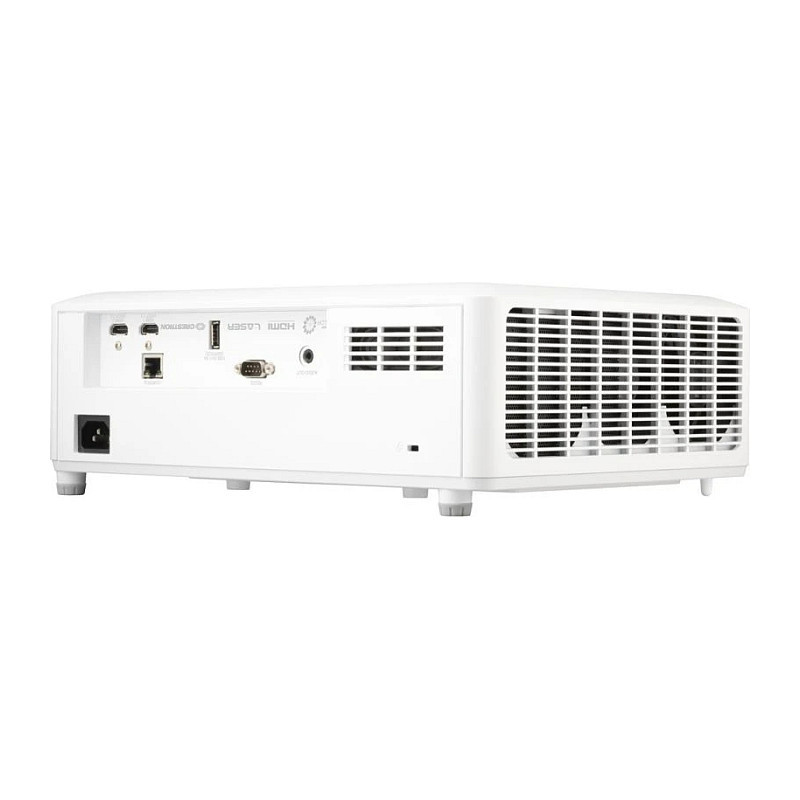

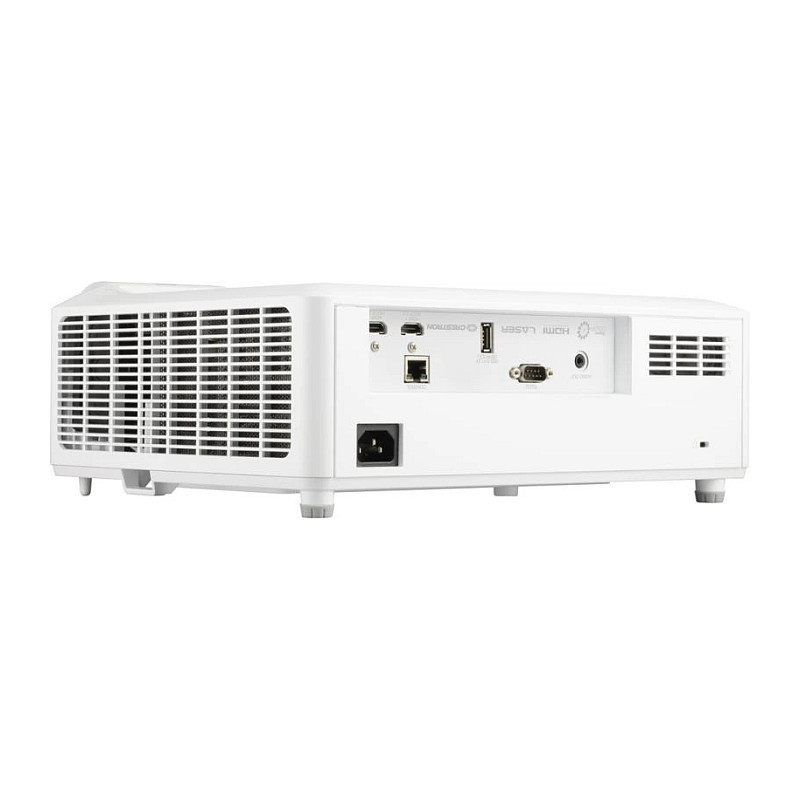

Ports interfaces

USB 2.0 ports quantity: 2
Audio (L/R) out: 1
Serial interface type: RS-232
HDMI ports quantity: 2
AC (power) in: Yes

Network

Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1

Features

Noise level (economic mode): 25 dB
Noise level: 31 dB

Multimedia

Built-in speaker(s): Yes
RMS rated power: 30 W
Number of built-in speakers: 2

Design

Market positioning: Education
Product type: Standard throw projector
Product colour: White
LED indicators: Yes

Display

Built-in display: No

Power

Power source: AC
Power consumption (typical): 245 W
Power consumption (standby): 0.5 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Operational conditions

Operating temperature (T-T): 0 - 40 °C

Weight dimensions

Width: 337 mm
Depth: 280 mm
Height: 132 mm
Weight: 4.85 kg
Package width: 496 mm
Package depth: 195 mm
Package height: 387 mm
Package weight: 6.8 kg

Packaging content

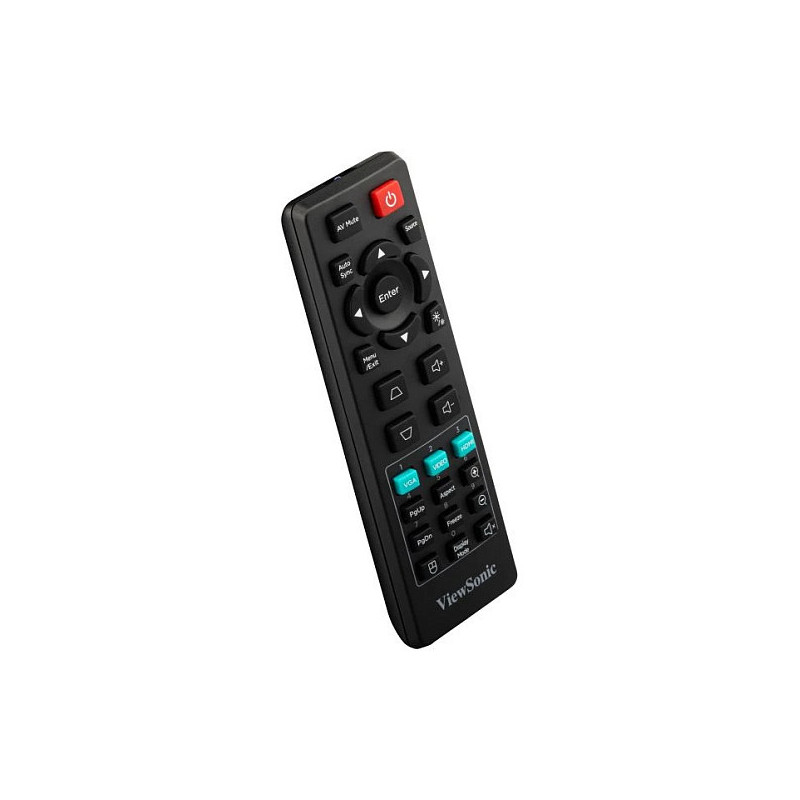

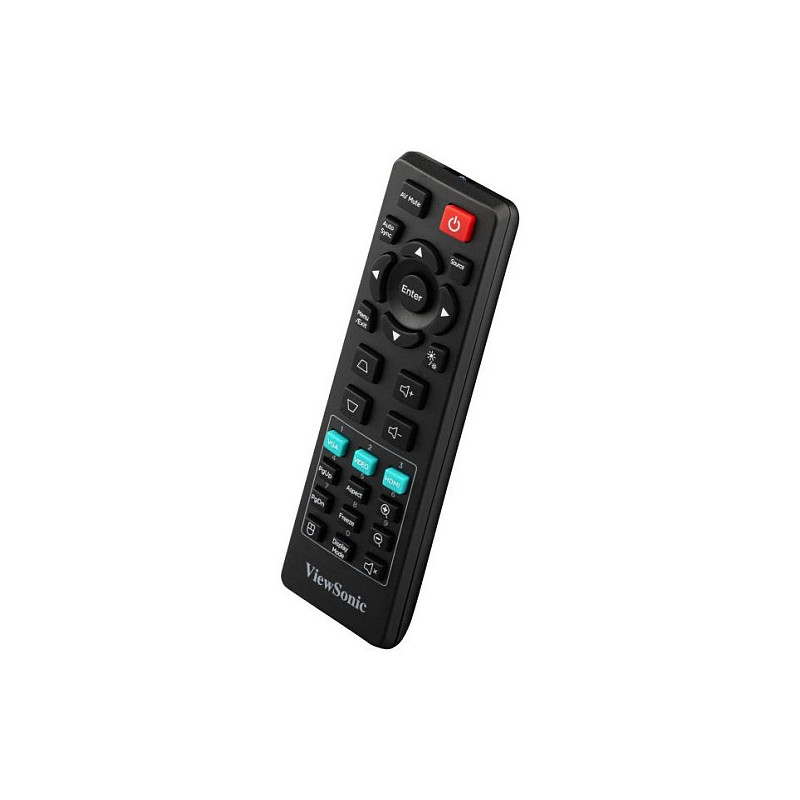

Remote control included: Yes
Manual: Yes

Logistics data

Pallet gross length: 102 cm
Pallet gross width: 122 cm
Pallet gross height: 2.06 m
Products per master (outer) case: 1 pc(s)
Harmonized System (HS) code: 8528620000
