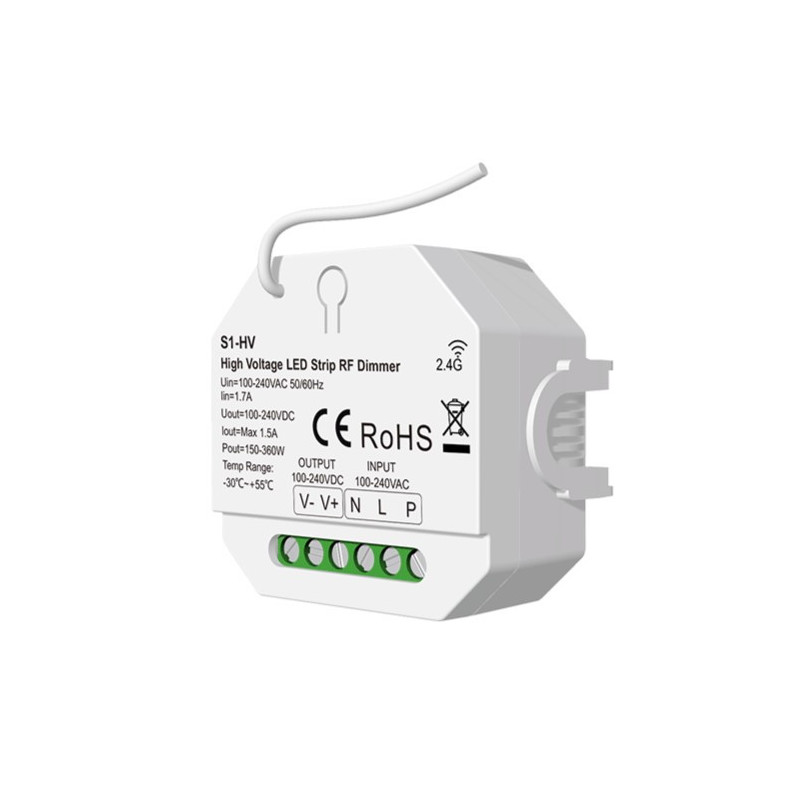

Lighting Controller - S1-HV Dimmer 1Ch 230V 150-360W Push-Dimm
Product reference:
14-9990001084585
High-voltage LED strip controller for single-color strips, controls up to 25 m with a maximum power of 360 W. Offers smooth dimming with 4096 levels and is compatible with RF 2.4 GHz remote controllers.
Lighting Controller - S1-HV Dimmer 1Ch 230V 150-360W Push-Dimm
Product reference:
14-9990001084585
High-voltage LED strip controller for single-color strips, controls up to 25 m with a maximum power of 360 W. Offers smooth dimming with 4096 levels and is compatible with RF 2.4 GHz remote controllers.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
4 - 5
business days
Not available
S1-HV Dimmer, 1Ch, 230V, 150-360W, Push-Dimm
High voltage LED strip dimmer for single color strips, controls up to 25m with maximum power 360W. Offers smooth dimming with 4096 levels and compatibility with RF 2.4 GHz remote controls.
- Controls single-color LED bands up to 25 meters with a maximum power of 360W.
- Offers smooth dimming with 4096 levels from 0 to 100% and a fade time of up to 3 seconds.
- Compatible with RF 2.4 GHz remote controls, allowing you to connect up to ten remote controls.
- Compact design fits into standard wall mounting boxes, with easy Push-Dimm function.
Features | |
|---|---|
| Product type | Lighting controller |
| Model | S1-HV Dimer |
Specifications | |
| Channel number | 1 |
| Input voltage | 100V-240V AC |
| Input current | 1.7A |
| Output voltage | 100V-240V AC |
| Output current | 1.5A |
| Maximum output power | 150-360W |
| PWM frequency | 2kHz |
| Operating distance | Until 30m (in open space) |
| Operating temperature | -30~+55°C |
| Dimensions | 56 x 49.5 x 28 mm |
| Weight | 67g |
| Color | White |
Certificates | |
| Compliance | CE, EMC, LVD, RED, RoHS |
| Height | 50mm |
| Length | 150mm |
| Weight | 100g |
| Width | 100mm |
