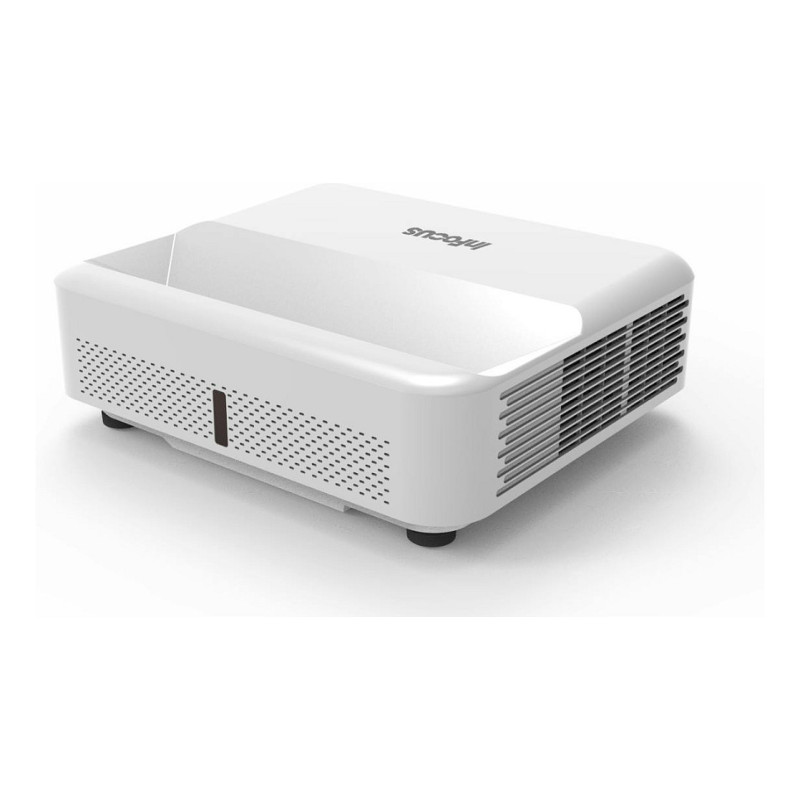

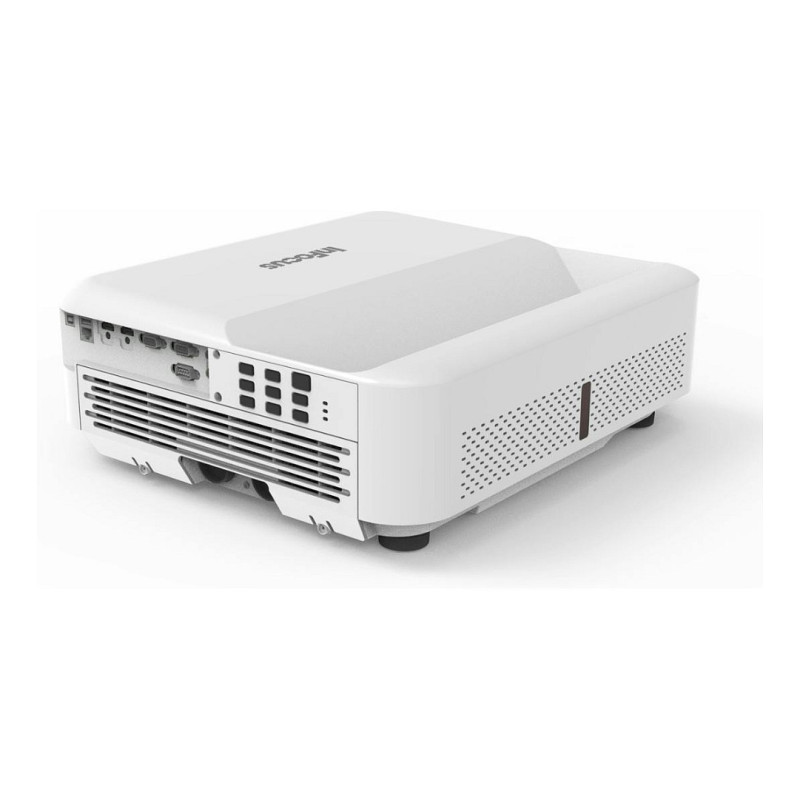

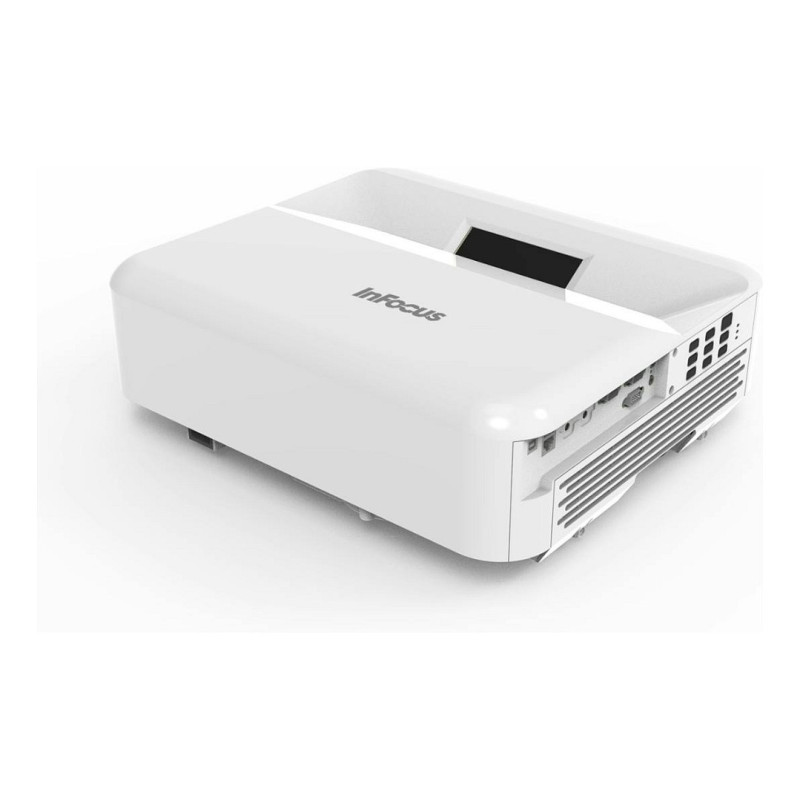

InFocus IN2009UT data projector

InFocus IN2009UT. Projector brightness: 4100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 30000 h. Focus: Manual, Zoom type: Manual, Throw ratio: 0.235:1. Serial interface type: RS-232C. Noise level: 37 dB, Noise level (economic mode): 30 dB, Certification: CCC, CB, cTUVus, FCC, FDA, CE-EMC, CE-LVD, CE-ERP, PSB

Experience the power of large-scale viewing without worrying about room size. The InFocus IN2009UT, an ultra short throw WXGA projector, projects widescreen vivid, razor-sharp images just inches from the wall. Perfect for classrooms, lecture halls, or meeting spaces, it transforms even the most compact environments into immersive viewing areas.

With its ultra short throw design, disruptive shadows and glare are eliminated—keeping presentations, lessons, and content in clear focus. Easy to install and seamlessly adaptable to a wide range of spaces, the IN2009UT combines space efficiency with professional-grade visual performance, proving that big impact doesn't require big installations.

Big-Screen Brilliance, Even with Tight Spaces
With IN2009UT, you can create an expansive 100" image with placement less than a meter from the screen. Whether it's a classroom or corporate space, you can transform any space into an immersive viewing or presentation environment.

Flexible Installation, Perfect Alignment
Equipped with 360-degree orientation capability, the InFocus IN2009UT adapts seamlessly to ceilings, walls, floors, or angled surfaces without sacrificing image quality. Advanced image correction tools — including four-corner and six-corner geometry correction, pincushion/barrel correction, and grid image tuning — ensure precise adjustments for a perfectly square and balanced picture, even on uneven surfaces.

Uninterrupted, Glare-Free Viewing Experience
The ultra short throw design keeps the projection path safely out of the way without casting shadows that block the image. With the light source positioned close to the screen, presenters and viewers do not have to worry about bright light shining directly toward their eyes. The result is a clear, comfortable viewing experience for both presenters and audiences.

Seamless Network Management
The IN2009UT supports industry-standard LAN control protocols, including Crestron, AMX Discovery, and PJLink, enabling seamless integration into existing AV networks. This allows IT managers and facility operators to monitor, manage, and control projectors centrally for greater efficiency and ease of operation.

Projector

Projector brightness: 4100 ANSI lumens
Projection technology: 3LCD
Projector native resolution: WUXGA (1920x1200)
Contrast ratio (typical): 5000000:1
Native aspect ratio: 16:10
Uniformity: 80%
Keystone correction, horizontal: ± 5°
Keystone correction, vertical: ± 5°
Horizontal synchronization (min): 15 kHz
Horizontal synchronization (max): 100 kHz
Vertical synchronization (min): 24 kHz
Vertical synchronization (max): 85 kHz

Light source

Light source type: Laser
Service life of light source: 30000 h

Lens system

Focus: Manual
F-number (relative aperture): 1.7
Feature: Zoom capability
Zoom type: Manual
Throw ratio: 0.235:1

Ports & interfaces

USB 2.0 Type-A ports quantity: 1
USB 2.0 Type-B ports quantity: 1
Serial interface type: RS-232C
HDMI ports quantity: 2

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1

Features

Noise level (economic mode): 30 dB
Noise level: 37 dB
Certification: CCC, CB, cTUVus, FCC, FDA, CE-EMC, CE-LVD, CE-ERP, PSB

Multimedia

Feature: Built-in speaker(s)
RMS rated power: 16 W

Design

Market positioning: Business
Product type: Ultra short throw projector
Product colour: White

Display

Feature: Built-in display

Power

Power source: AC
Power consumption (typical): 180 W
Power consumption (standby): 0.5 W
Power consumption (max): 270 W
Power consumption (economy mode): 160 W
AC input voltage: 100-240 V
AC input frequency: 50/60 Hz

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -10 - 50 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 85%
Operating altitude: 3000 - 9843 m

Weight & dimensions

Width: 470 mm
Depth: 410 mm
Height: 166 mm
Weight: 8.5 kg
Package width: 612 mm
Package depth: 533 mm
Package height: 274 mm
Package weight: 11 kg

Packaging content

Feature: Remote control included
Cables included: Power
Feature: Manual
