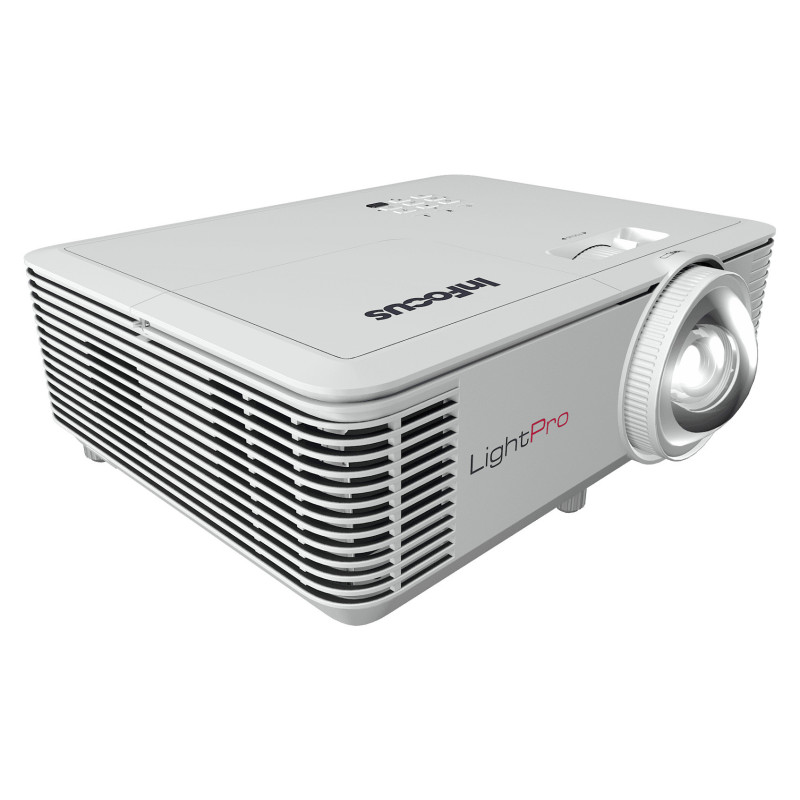

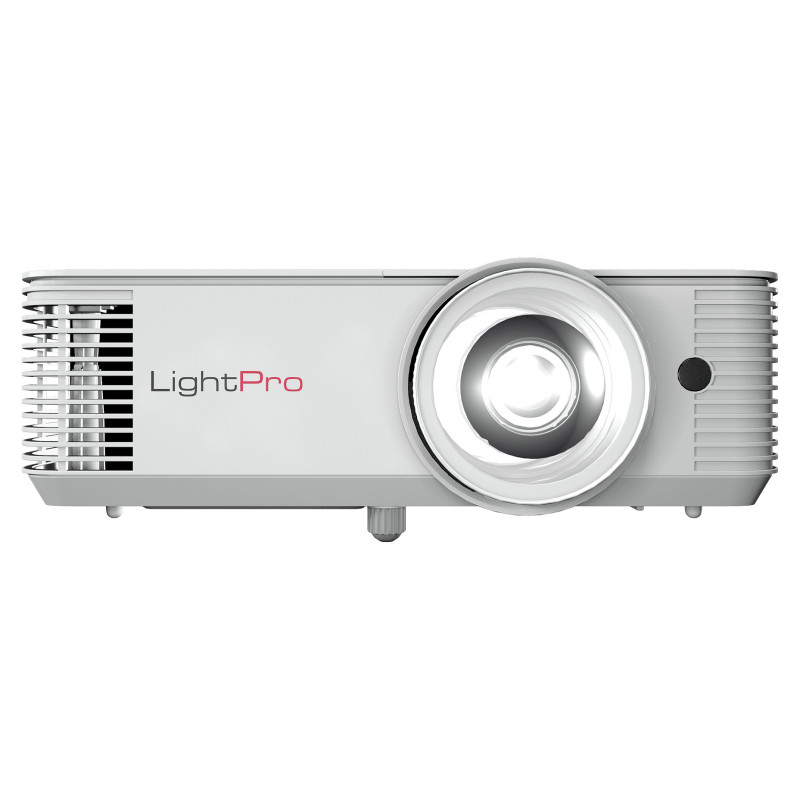

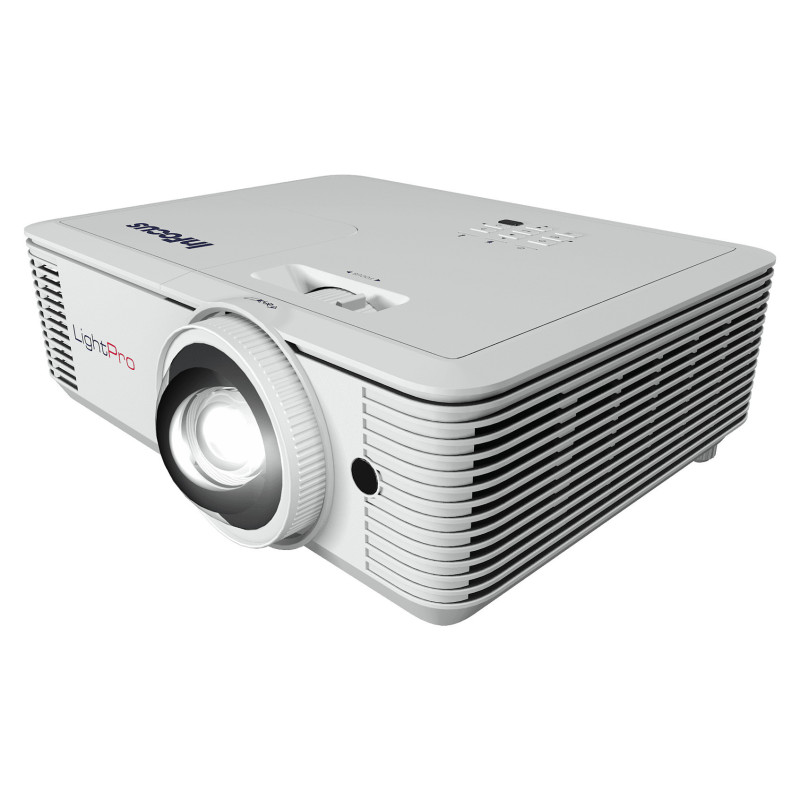

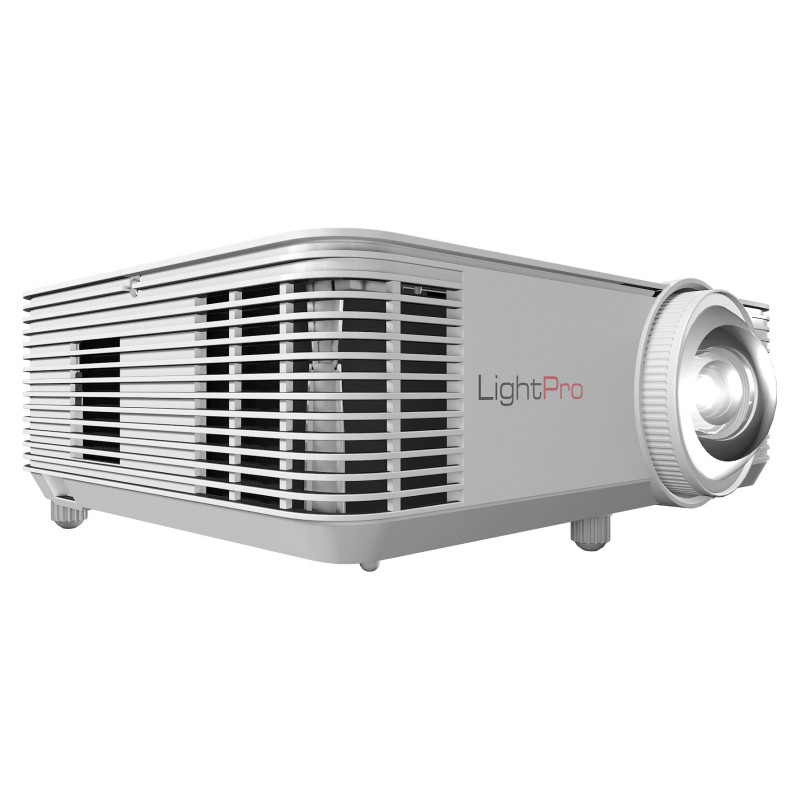

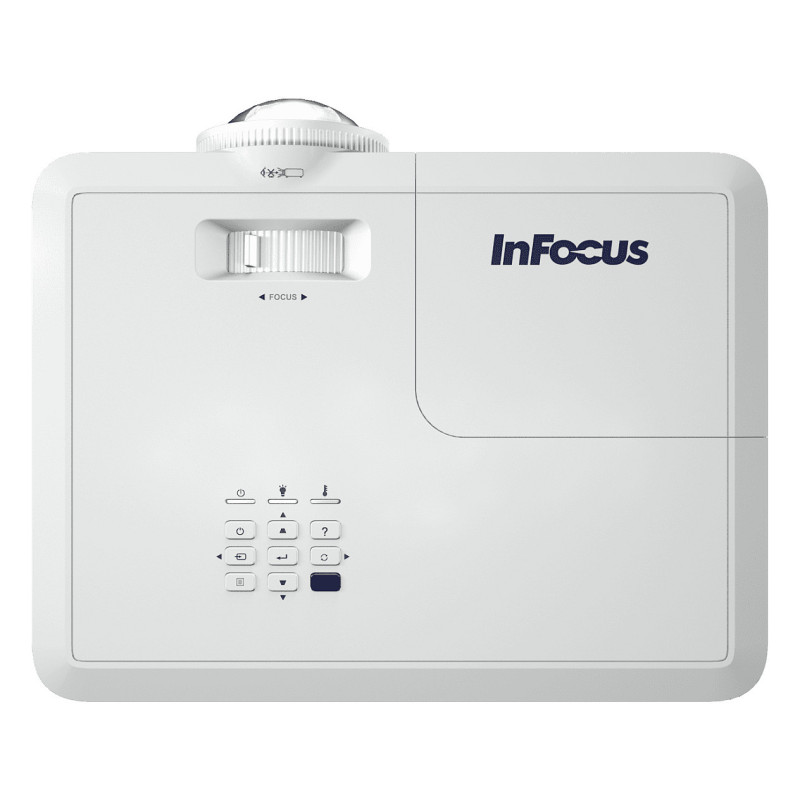

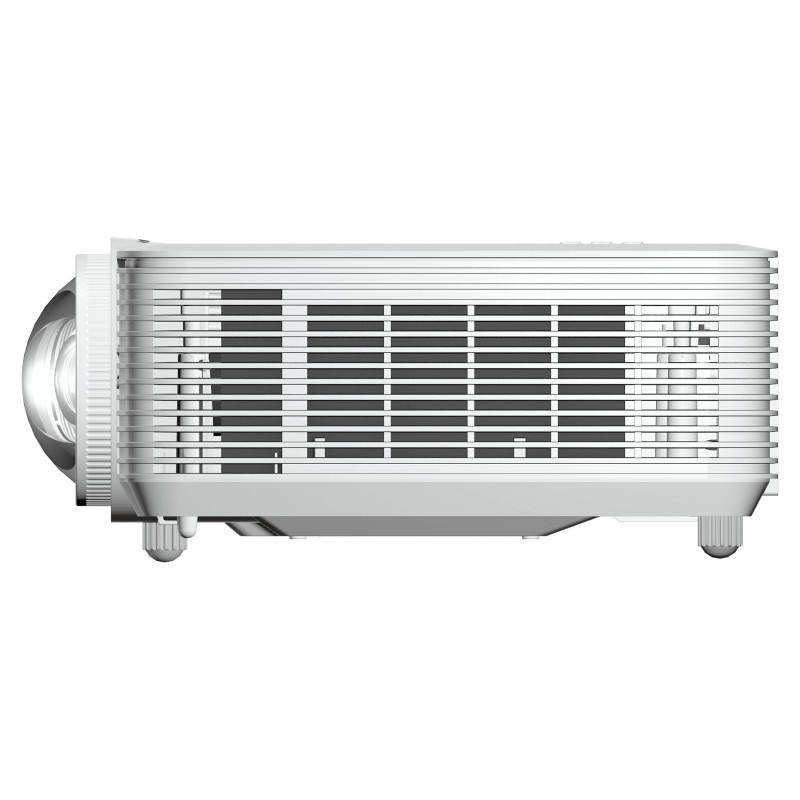

InFocus IN0048ST data projector

InFocus IN0048ST. Projector brightness: 4000 ANSI lumens, Projection technology: DLP, Projector native resolution: 1080p (1920x1080). Light source type: Lamp, Service life of light source: 15000 h, Service life of light source (economic mode): 10000 h. Focus: Manual, Focal length range: 7.15 mm, Zoom type: Fixed. Analog signal format system: NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM, Supported graphics resolutions: 1920 x 1200 (WUXGA). Serial interface type: RJ-45, RS-232, Service port type: USB Type-A
Centralised Control for Efficient Management
The Vista II lineup is compatible with major network protocol standards, including Crestron, PJLink, AMX, Extron, and an extensive set of RS232 commands, making network infrastructure integration easy, enhancing control efficiency, and simplifying device management.
Versatile for Different Spaces
From XGA to Full HD, the Vista II Series offers a wide range of resolutions. The series also comes with both short and standard throw lens options, providing flexibility for different setups. With features like digital edge masking and image shift, Vista II Series makes it easy to get a perfect image every time.
Bright and Vibrant Visuals Any Time
Get bright and vivid images on any surface with 4400-4700 lumens on the standard throw models and 4000-4300 lumens on short throw models. The Vista II Series offers rich colours and crisp text, making it ideal for classrooms and meeting spaces with ambient light.

Projector

Supported aspect ratios: 4:3, 16:10, 16:9
Smart projector: No
Projection distance: 0.4 - 3.3 m
Projector brightness: 4000 ANSI lumens
Projection technology: DLP
Projector native resolution: 1080p (1920x1080)
Contrast ratio (typical): 30000:1
Native aspect ratio: 16:9
Uniformity: 80%
Keystone correction, vertical: ± 20°
Matrix size: 1.4 cm (0.55")
Matrix type: DMD
Horizontal synchronization (min): 15 kHz
Horizontal synchronization (max): 97.55 kHz
Vertical synchronization (min): 0.054 kHz
Vertical synchronization (max): 0.085 kHz

Light source

Light source type: Lamp
Service life of light source: 15000 h
Service life of light source (economic mode): 10000 h
Lamp type: UHP
Lamp power: 240 W

Lens system

Focus: Manual
Focal length range: 7.15 mm
F-number (relative aperture): 2.43
Zoom capability: No
Zoom type: Fixed
Zoom ratio: 1.1:1
Throw ratio: 0.496
Offset: 116%

Video

Analog signal format system: NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
Full HD: No
3D: Yes
Supported graphics resolutions: 1920 x 1200 (WUXGA)

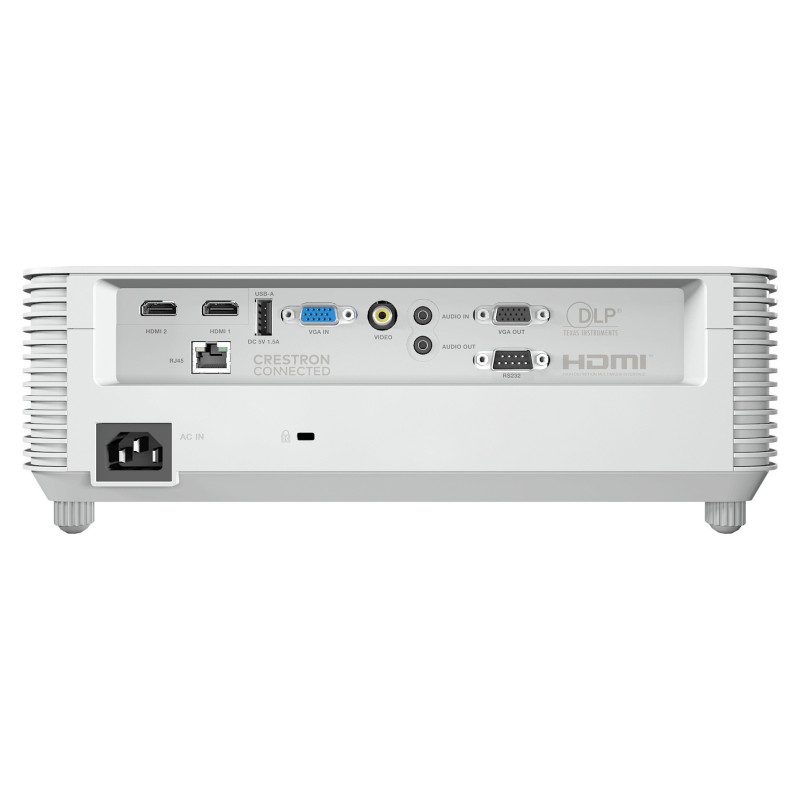

Ports interfaces

HDMI version: 1.4
S-Video inputs quantity: 1
Service port type: USB Type-A
Audio (L/R) in: 1
Audio (L/R) out: 1
Serial interface type: RJ-45, RS-232
PC in (D-Sub): Yes
VGA (D-Sub) ports quantity: 2
HDMI ports quantity: 2
DVI port: No
AC (power) in: Yes

Network

Smart TV: No
Ethernet LAN: No
Wi-Fi: No

Storage

Card reader integrated: No

Features

Interactive: No
Noise level: 27 dB
Certification: CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BISWEEE, EU RoHS, China RoHS, CEL, CECP

Multimedia

Built-in speaker(s): Yes
RMS rated power: 10 W
Number of built-in speakers: 1

Design

Market positioning: Presentation
Product type: Standard throw projector
Product colour: White
Cable lock slot: Yes
Cable lock slot type: Kensington

Display

Built-in display: No

Power

Power source: AC
Power consumption (typical): 210 W
Power consumption (standby): 0.5 W
Power consumption (max): 267 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Operational conditions

Operating temperature (T-T): 5 - 40 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 10 - 85%
Operating altitude: 0 - 3048 m

Weight dimensions

Width: 313 mm
Depth: 236 mm
Height: 96.4 mm
Weight: 2.9 kg
Package width: 395 mm
Package depth: 337 mm
Package height: 166 mm
Package weight: 4.1 kg

Packaging content

Remote control included: Yes
Remote control type: IR
Batteries included: No
Manual: Yes
