Equip 650377 TV mount / stand

Equip 43"-86" Back to Back Dual Screen Ceiling Mount. Maximum weight capacity: 100 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 2.18 m (86"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -20 - 5°, Swivel angle range: -180 - 180°, Distance to the wall (min): 109 cm, Distance to the wall (max): 169 cm. Product colour: Black

The 43"-86" Back to Back Dual TV Ceiling Mount is a premium mounting solution designed for large displays in commercial, corporate and public spaces. Supporting two screens from 43 to 86 inches, it provides dual-sided visibility that is ideal for airports, shopping malls, restaurants and conference areas where content must be viewed from multiple directions. Constructed from high-strength steel, the mount offers exceptional stability and long-term durability. The adjustable telescopic pole design enables flexible height positioning, while tilt, swivel and 360° rotation around the pole allow precise viewing angle adjustments. Integrated cable management keeps wiring neatly concealed for a professional, clutter-free appearance, and compatibility with VESA patterns up to 600 x 400 ensures efficient installation and a secure fit for large-format displays.

Mounting

Maximum weight capacity: 100 kg
Minimum screen size: 109.2 cm (43")
Number of displays supported: 2
Maximum weight capacity (per display): 50 kg
Maximum screen size: 2.18 m (86")
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,300 x 200,400 x 200,300 x 300,400 x 300,400 x 400,600 x 400
Mounting type: Ceiling

Ergonomics

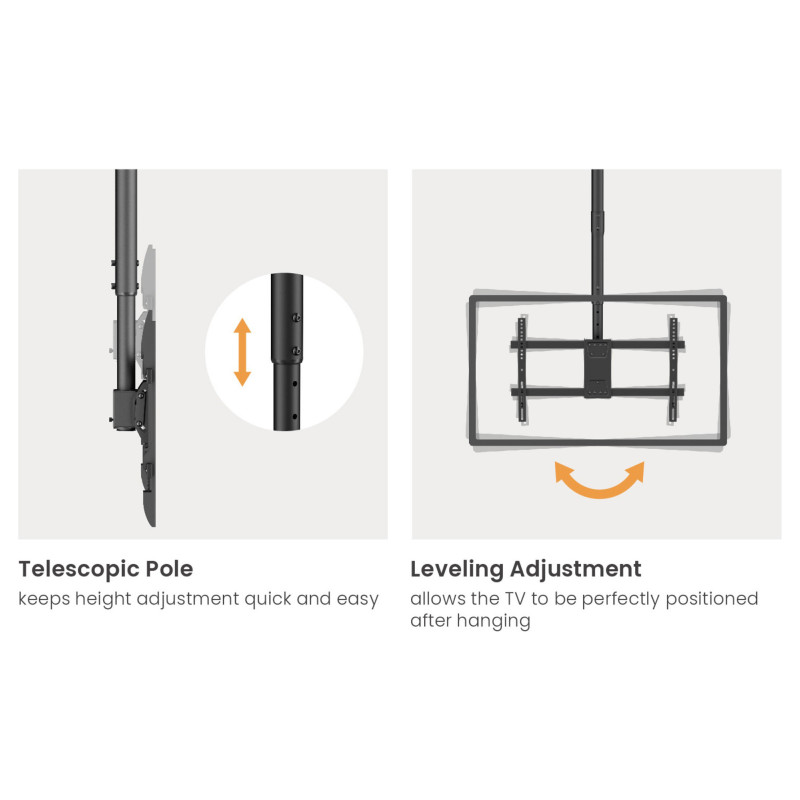

Feature: Height adjustment
Feature: Tilt adjustment

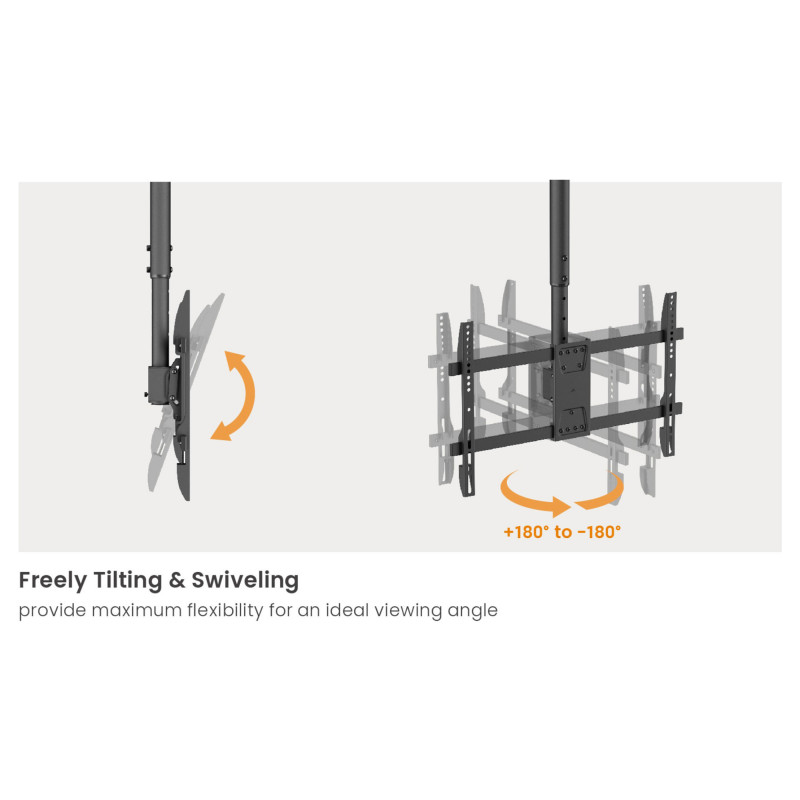

Tilt angle range: -20 - 5°
Feature: Swivelling
Swivel angle range: -180 - 180°
Feature: Cable management
Distance to the wall (max): 169 cm
Distance to the wall (min): 109 cm
Feature: Suitable for curved screen

Design

Product colour: Black
Housing material: Stainless steel
Feature: Anti-theft function

Technical details

Country of origin: China
Compliance certificates: REACH, RoHS

Packaging content

Feature: Screws included
Feature: Manual

Weight & dimensions

Width: 689 mm
Depth: 154 mm
Height: 1905 mm
Weight: 8.2 kg

Packaging data

Package width: 937 mm
Package depth: 254 mm
Package height: 168 mm
Package weight: 9.3 kg

Logistics data

Master (outer) case width: 937 mm
Master (outer) case length: 254 mm
Master (outer) case height: 168 mm
Master (outer) case gross weight: 9.3 kg
Products per master (outer) case: 1 pc(s)
Customs product code (TARIC): 8529909700
