Equip 650375 TV mount / stand

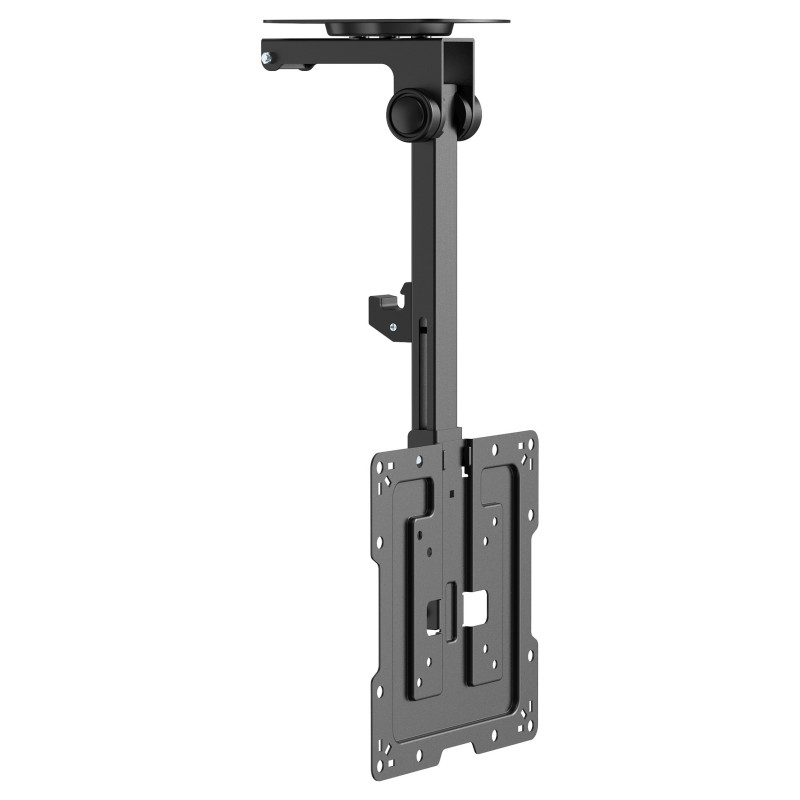

Equip 23"-55" Ceiling Mount TV Bracket. Maximum weight capacity: 20 kg, Minimum screen size: 58.4 cm (23"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 400 x 400 mm. Height adjustment range: 520 - 614 mm, Tilt angle range: 0 - 80°, Swivel angle range: -45 - 45°, Distance to the wall (max): 8.3 cm. Product colour: Black

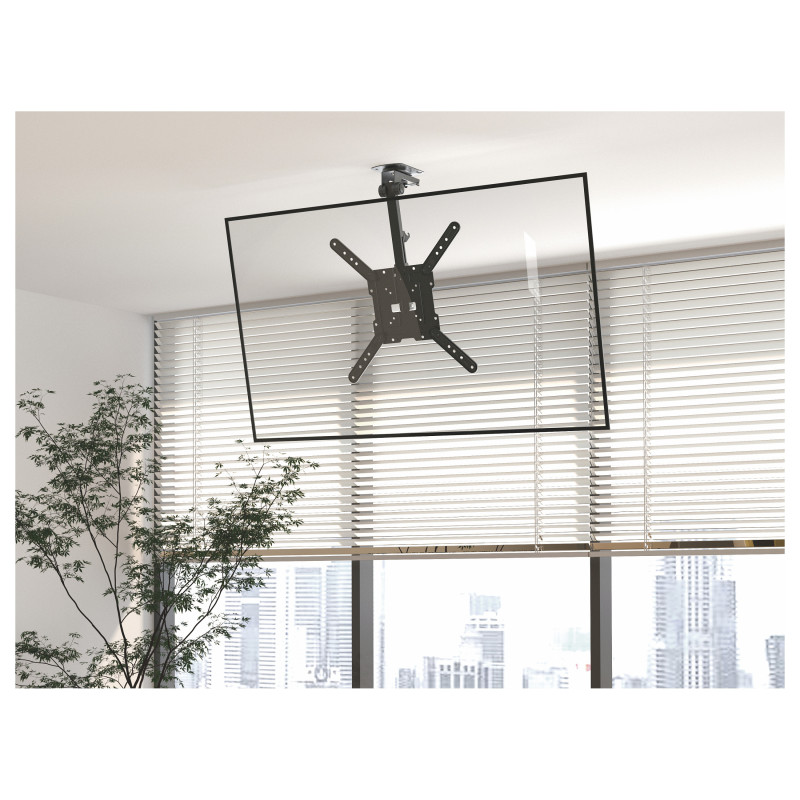

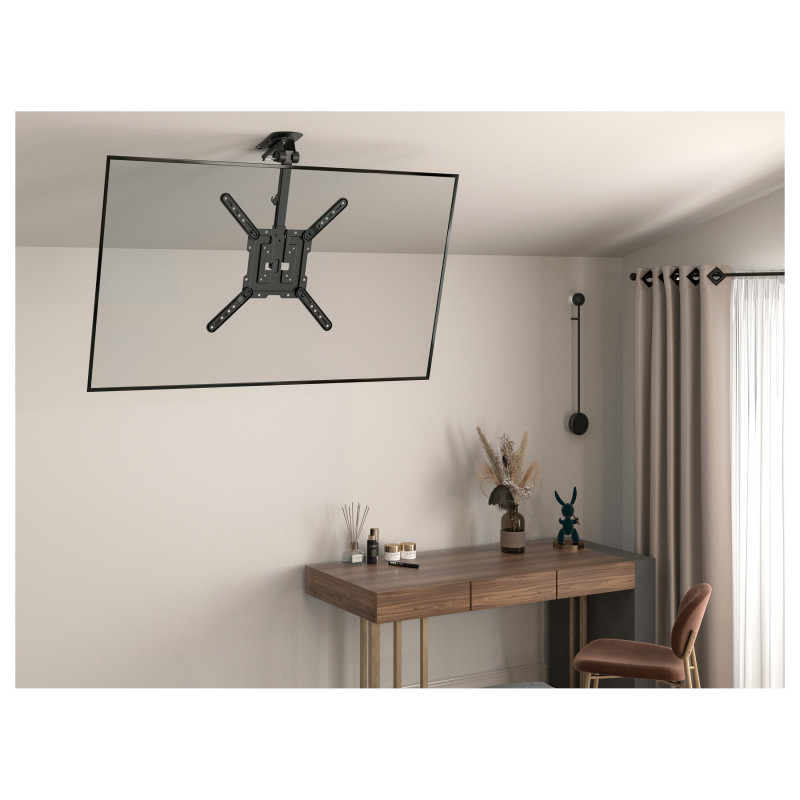

"The Equip 650375 23""-55"" Ceiling Mount TV Bracket is a versatile and practical solution for mounting your television on the ceiling. This bracket is designed to accommodate TVs with screen sizes ranging from 23 inches to 55 inches, offering flexibility for various viewing setups.

Featuring a sturdy and durable construction, the ceiling mount TV bracket ensures stability and secure support for your television. The adjustable design allows you to customize the viewing angle, making it suitable for a variety of room configurations. This is particularly useful for spaces where wall mounting may not be practical or desired.

Installation is straightforward, and the bracket is compatible with a range of ceiling heights. The versatile design is ideal for both residential and commercial settings, such as living rooms, bedrooms, conference rooms, or retail spaces."

Mounting

Maximum weight capacity: 20 kg
Minimum screen size: 58.4 cm (23")
Number of displays supported: 1
Maximum screen size: 139.7 cm (55")
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 400 x 400 mm
Panel mounting interface: 75 x 75,100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 400,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300
Mounting type: Ceiling

Ergonomics

Feature: Height adjustment

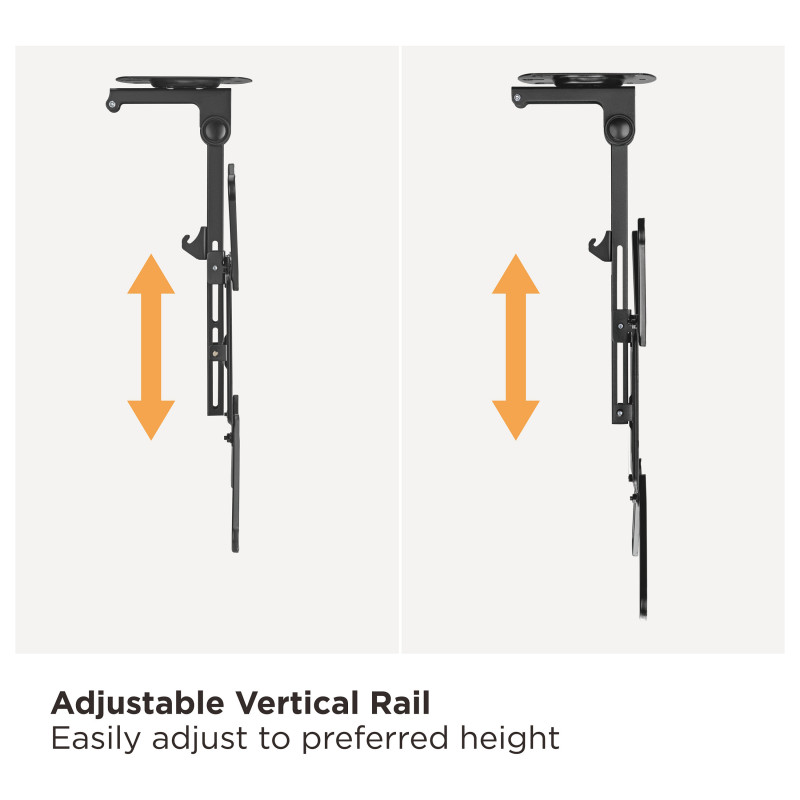

Height adjustment range: 520 - 614 mm

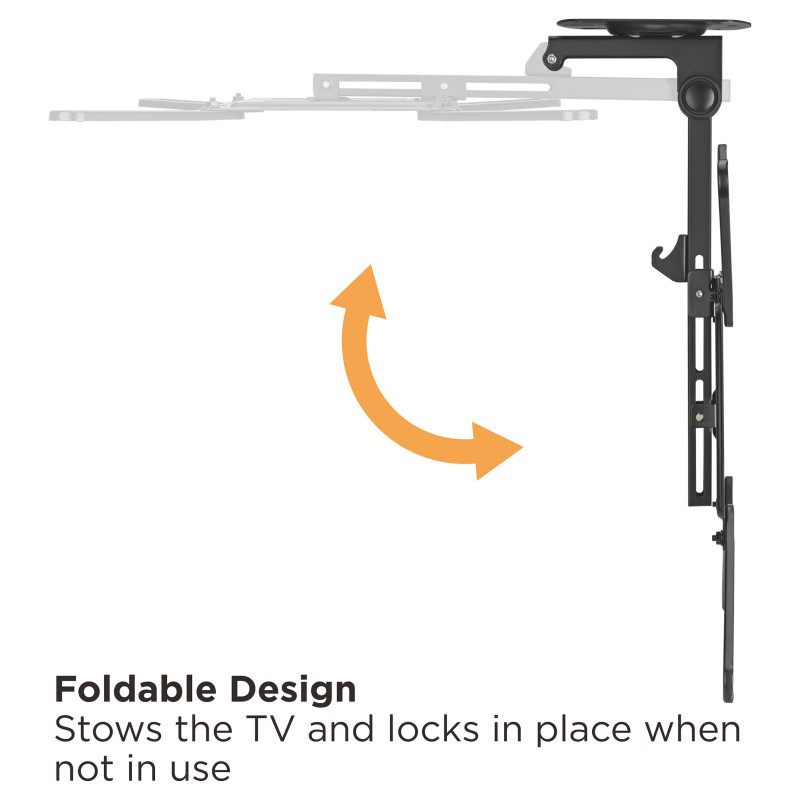

Feature: Tilt adjustment
Tilt angle range: 0 - 80°
Feature: Swivelling

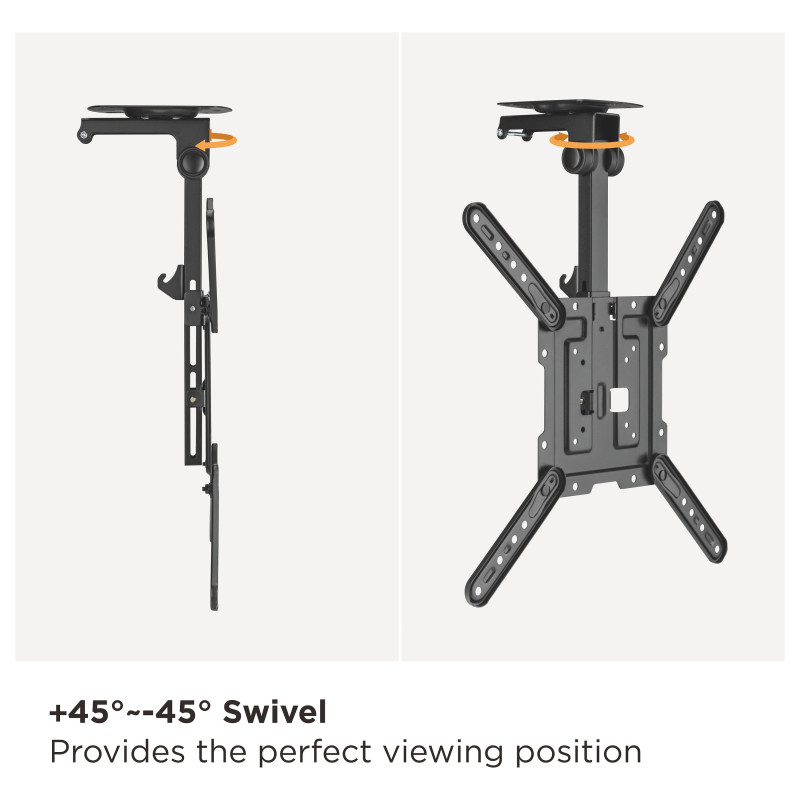

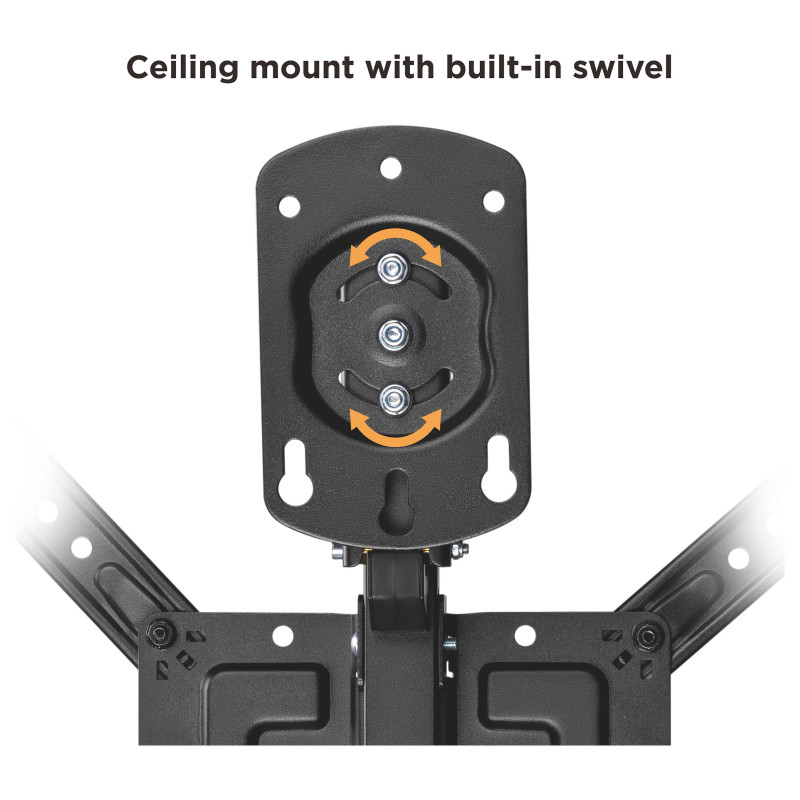

Swivel angle range: -45 - 45°
Distance to the wall (max): 8.3 cm
Feature: Suitable for curved screen

Design

Product colour: Black
Housing material: Stainless steel

Technical details

Country of origin: China
Feature: Sustainability compliance
Compliance certificates: REACH, RoHS

Packaging content

Feature: Screws included
Feature: Manual

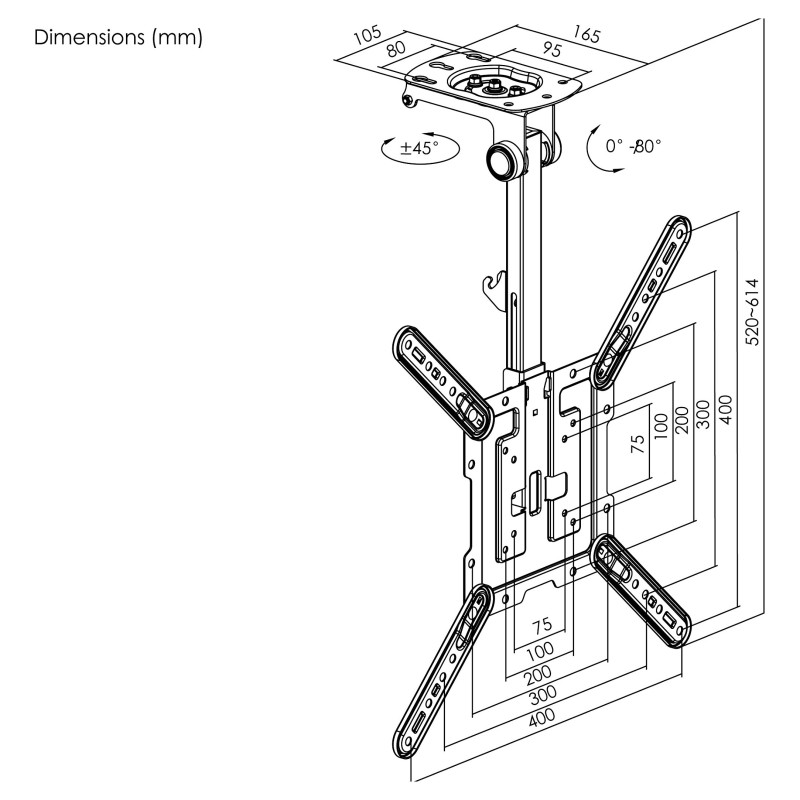

Weight & dimensions

Width: 435 mm
Depth (max): 16.5 cm
Height: 614 mm
Weight: 2.11 kg

Packaging data

Package width: 415 mm
Package depth: 225 mm
Package height: 90 mm
Package weight: 2.45 kg

Logistics data

Master (outer) case width: 470 mm
Master (outer) case length: 430 mm
Master (outer) case height: 382 mm
Master (outer) case gross weight: 20.5 kg
Products per master (outer) case: 8 pc(s)
Harmonized System (HS) code: 8529908100
