Equip 650371 signage display mount

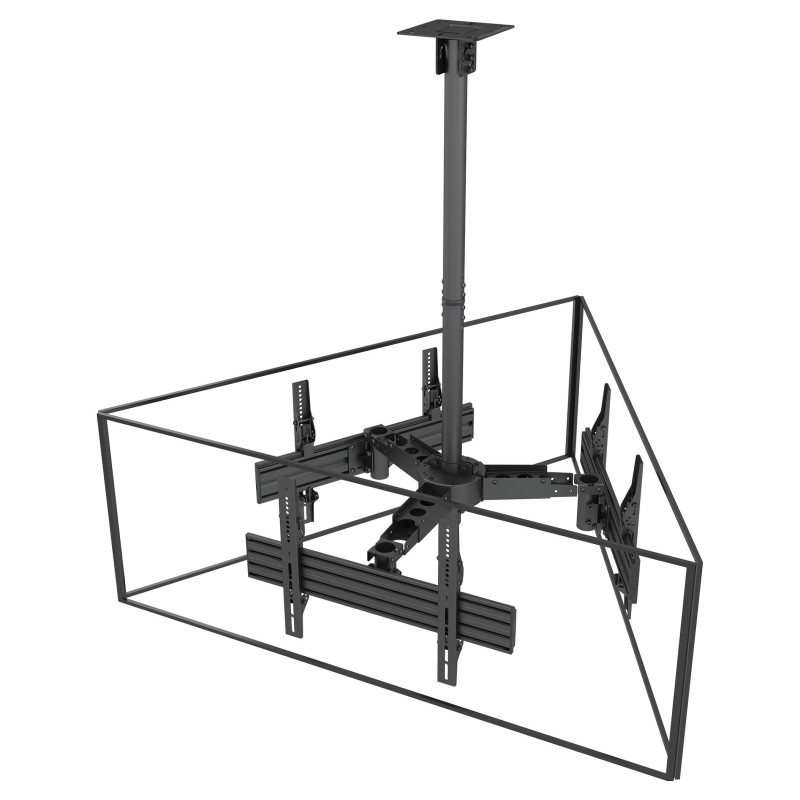

Equip 32"-65" Ceiling Mount Triple Screen TV Bracket. Maximum weight capacity: 90 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 165.1 cm (65"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: 0 - 15°. Product colour: Black

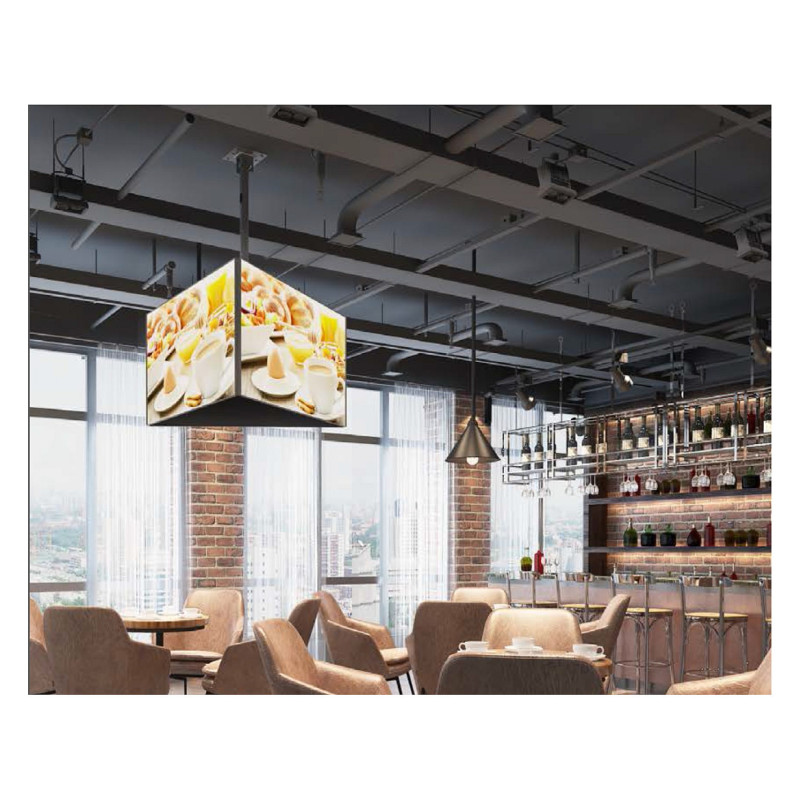

The industrial-grade triple TV ceiling mount from equip is perfectly suited for signage applications. The tilt adjustment allows installation with precise and even screen tilt of all three screens to provide ideal viewing conditions. The ideal choice for publicity.

Mounting

Maximum weight capacity: 90 kg
Minimum screen size: 81.3 cm (32")
Number of displays supported: 3
Maximum screen size: 165.1 cm (65")
Mounting type: Ceiling
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 600 x 400 mm

Ergonomics

Feature: Height adjustment
Tilt angle range: 0 - 15°
Feature: Cable management

Design

Product colour: Black
Housing material: Aluminium, Plastic, Steel
Certification: CE, RoHS

Weight & dimensions

Width: 3000 mm
Depth: 690 mm
Height: 690 mm
Weight: 36 kg

Packaging data

Package width: 408 mm
Package depth: 170 mm
Package height: 1015 mm
Package weight: 38 kg

Packaging content

Feature: Manual
Feature: Mounting kit

Other features

Country of origin: China

Logistics data

Harmonized System (HS) code: 85299097
Master (outer) case width: 170 mm
Master (outer) case length: 408 mm
Master (outer) case height: 1015 mm
Master (outer) case gross weight: 38 kg
Products per master (outer) case: 1 pc(s)
