Equip 650321 signage display mount

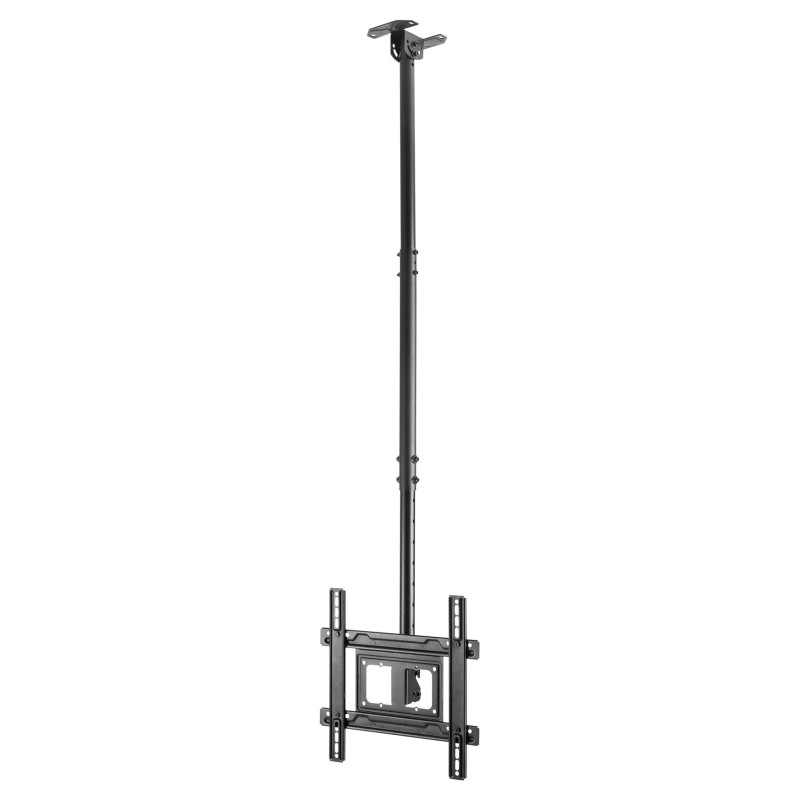

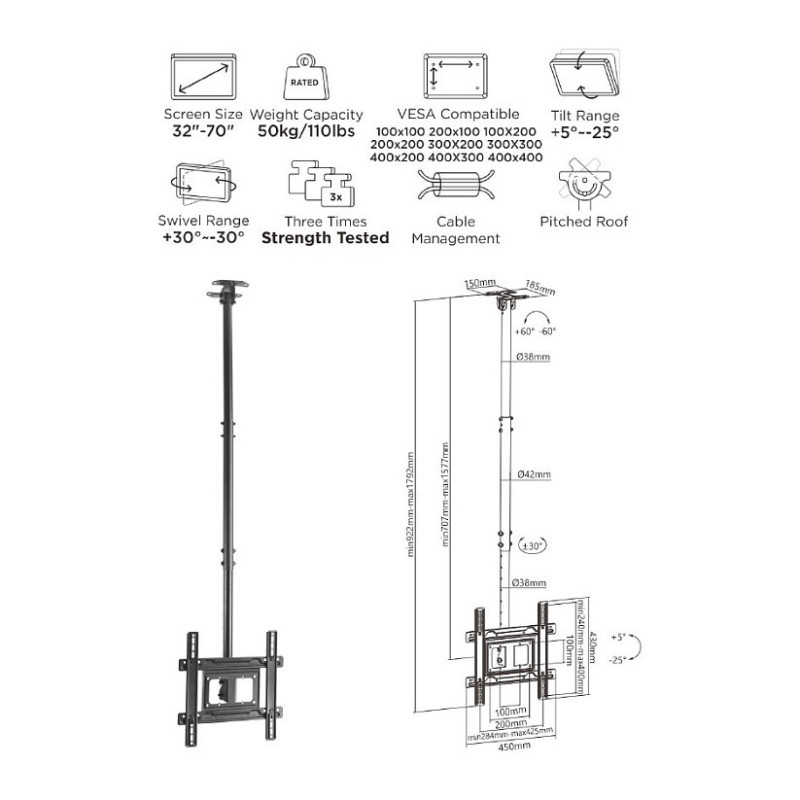

Equip 32"-70" Ceiling Mount TV Bracket. Maximum weight capacity: 50 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: 5 - 25°. Product colour: Black

The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens

Mounting

Maximum weight capacity: 50 kg
Minimum screen size: 81.3 cm (32")
Maximum screen size: 177.8 cm (70")
Mounting type: Ceiling
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 400 x 400 mm
Panel mounting interface: 100 x 100,100 x 200,200 x 100,200 x 200,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300

Ergonomics

Tilt angle range: 5 - 25°
Swivel angle range: -30 - 30°

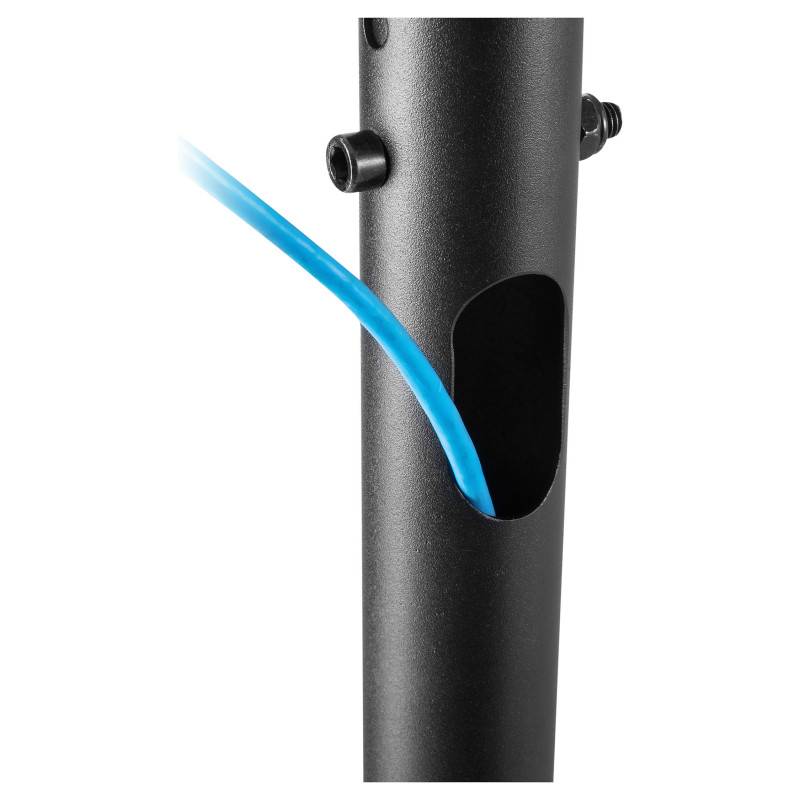

Feature: Cable management
Distance to the wall (min): 70.7 cm
Distance to the wall (max): 157.7 cm

Design

Product colour: Black
Housing material: Plastic, Steel
Certification: CE, RoHS

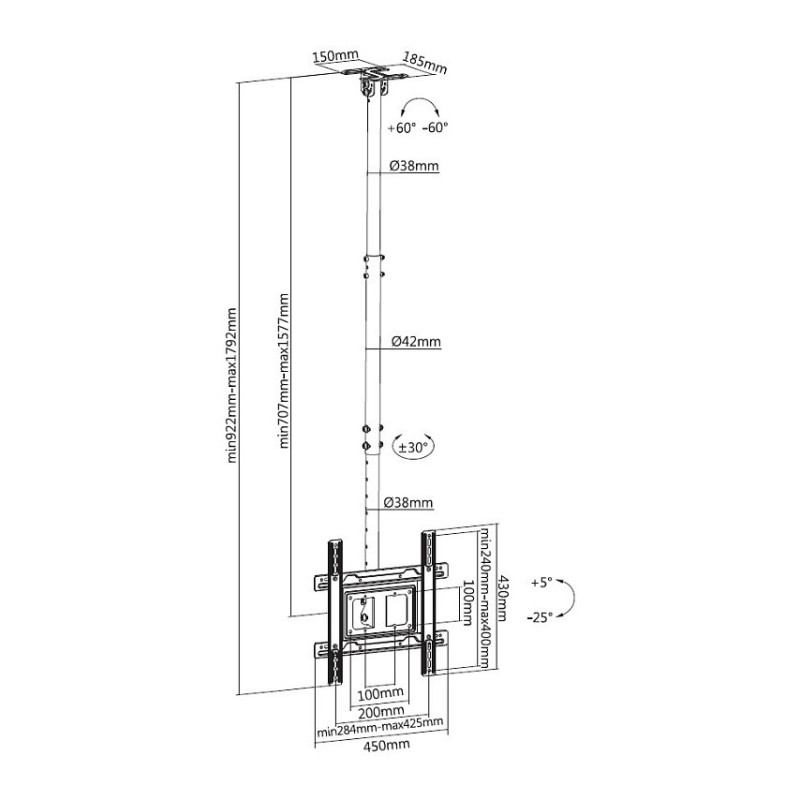

Weight & dimensions

Width: 185 mm
Depth: 450 mm
Height: 1792 mm
Weight: 5.06 kg

Packaging data

Package width: 265 mm
Package depth: 642 mm
Package height: 77 mm
Package weight: 5.58 kg

Packaging content

Feature: User guide
Feature: Screws included

Technical details

Package dimensions (WxDxH): 265 x 642 x 77 mm

Other features

Country of origin: China

Logistics data

Harmonized System (HS) code: 85299097
Master (outer) case width: 280 mm
Master (outer) case length: 660 mm
Master (outer) case height: 255 mm
Master (outer) case gross weight: 17.2 kg
Products per master (outer) case: 3 pc(s)
