Epson EB-W49

Epson EB-W49. Projector brightness: 3800 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280x800). Light source type: Lamp, Service life of light source: 8000 h, Service life of light source (economic mode): 17000 h. Focus: Manual, Focal length range: 16.9 - 20.28 mm, Aperture range (F-F): 1.49 - 1.72. Video processing: 10 bit, Video colour modes: Blackboard, Dynamic, Presentation, sRGB, Theatre. Serial interface type: RS-232C, HDMI connector type: Full-size

Flexible, HD-Ready WXGA display
The compact, stylish design of the EB-W49 makes it the ideal choice for sharp, legible presentations and vivid video content, especially in roles where portability is key. Long lamp life and trusted Epson durability offer peace of mind and minimal maintenance.

Projector

Supported aspect ratios: 16:10
Screen size compatibility: 838.2 - 8128 mm (33 - 320")
Contrast ratio (dynamic): 16000:1
Projector brightness: 3800 ANSI lumens
Projection technology: 3LCD
Projector native resolution: WXGA (1280x800)
Contrast ratio (typical): 16000:1
Native aspect ratio: 16:10
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 2600 ANSI lumens
Vertical scan range: 100 - 120 Hz
Keystone correction, horizontal: ±30°
Keystone correction, vertical: ±30°
Matrix size: 1.5 cm (0.59")

Light source

Light source type: Lamp
Service life of light source: 8000 h
Service life of light source (economic mode): 17000 h
Lamp type: UHE
Lamp power: 210 W
Lamps quantity: 1 lamp(s)

Lens system

Focus: Manual
Focal length range: 16.9 - 20.28 mm
Aperture range (F-F): 1.49 - 1.72
Feature: Zoom capability
Zoom type: Manual
Zoom ratio: 1.2:1
Throw ratio: 1.30 - 1.56:1

Video

Video processing: 10 bit
Video colour modes: Blackboard, Dynamic, Presentation, sRGB, Theatre

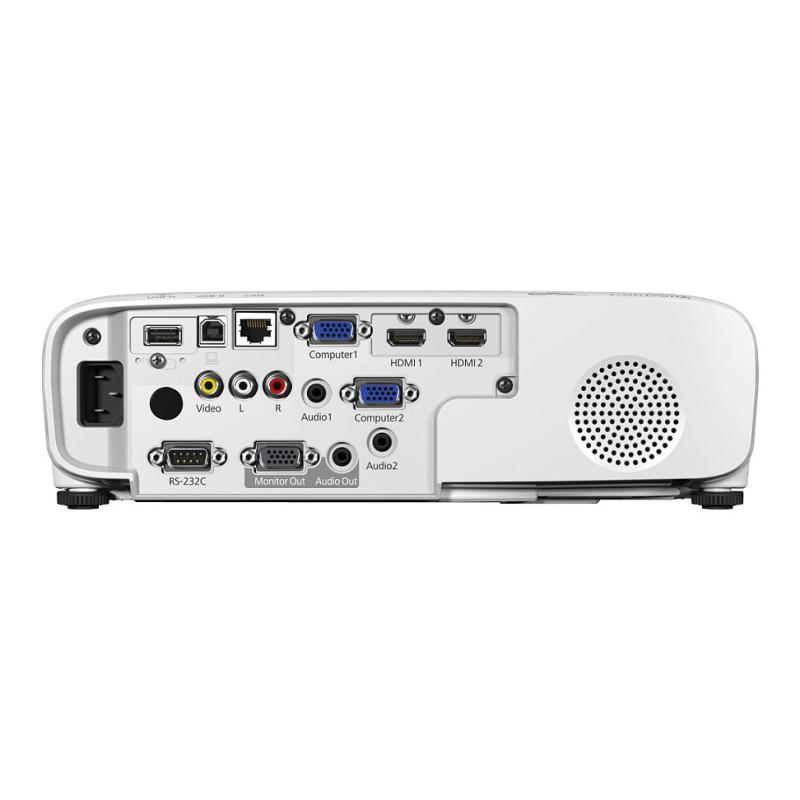

Ports & interfaces

HDMI connector type: Full-size
USB 2.0 ports quantity: 1
USB 2.0 Type-B ports quantity: 1
Serial interface type: RS-232C
Feature: PC Audio in
Feature: PC Audio out
Feature: PC in (D-Sub)
VGA (D-Sub) ports quantity: 3
HDMI ports quantity: 2
Composite video in: 1
Feature: AC (power) in

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1

Features

Noise level (economic mode): 28 dB
Noise level (standby): 28 dB
Preset modes: Blackboard, Dynamic, Presentation, Theatre, sRGB
Feature: On Screen Display (OSD)
Noise level: 37 dB
Country of origin: Philippines

Multimedia

Feature: Built-in speaker(s)
RMS rated power: 5 W
Number of built-in speakers: 1

Design

Market positioning: Portable
Product colour: White
Placement: Ceiling, Desktop
Feature: Cable lock slot
Cable lock slot type: Kensington

Power

Power source: AC
Power consumption (typical): 327 W
Power consumption (standby): 0.3 W
Power consumption (economy mode): 225 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Software

Software support: via: AMX, Crestron (Network), Control4, Extron

Operational conditions

Operating temperature (T-T): 5 - 35 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 302 mm
Depth: 249 mm
Height: 87 mm
Weight: 2.7 kg
Package width: 350 mm
Package depth: 380 mm
Package height: 160 mm
Package weight: 4.01 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: AC, HDMI
Feature: WLAN adapter included
Bundled software: EasyMP Network Projection, Epson Projector Management

Technical details

USB display function: 2 in 1: Image/ Sound
Feature: Mobile app support

Logistics data

Quantity per pack: 1 pc(s)
Products per pallet: 78 pc(s)
Pallet gross weight: 0 g
Products per pallet (UK): 78 pc(s)
Pallet weight (UK): 0 g
Harmonized System (HS) code: 85286200

Other features

Control panel: 0.59 inch with C2 Fine
Supported network protocols: PJLink
Box contents: HDMI Cable, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User Manual (CD-ROM), Warranty document
Security features: Kensington lock, Security cable hole, Wireless LAN unit lock
