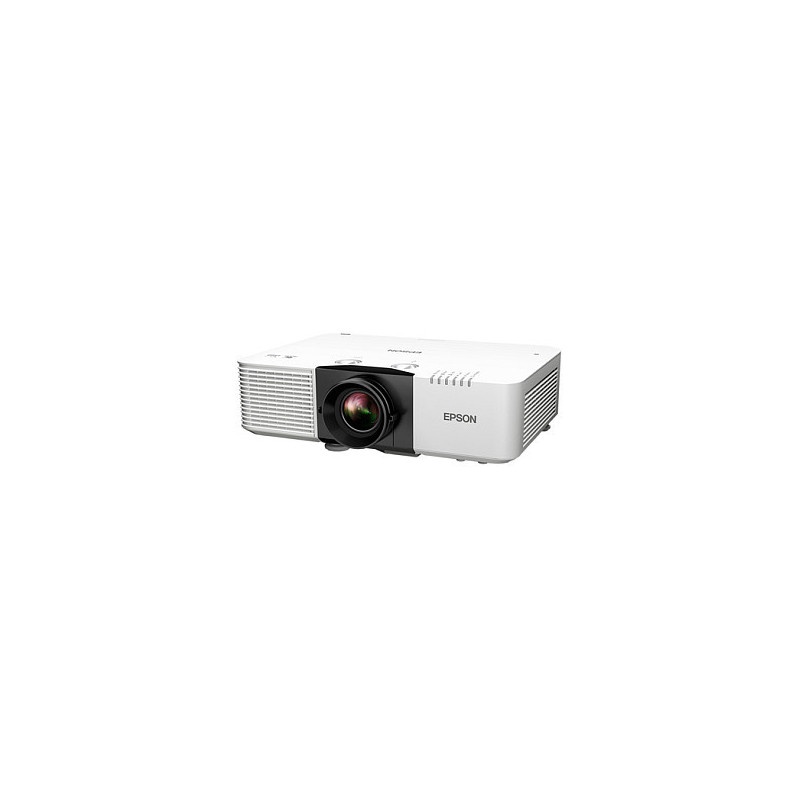

Epson EB-L790U

Epson EB-L790U. Projector brightness: 7300 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 30000 h, Service life of light source (economic mode): 20000 h. Focus: Manual, Focal length range: 20 - 31.8 mm, Aperture range (F-F): 1.5 - 1.7. Supported graphics resolutions: 1920 x 1200 (WUXGA), Video processing: 10 bit, Video colour modes: BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation. Noise level: 34 dB, Noise level (economic mode): 25 dB, Country of origin: Philippines

Powerful 7,300 lumens, WUXGA 3LCD display solution
The EB-L790U offers 7,300 lumens, WUXGA resolution, HDR and advanced installation features. It provides up to 30,000 hours of maintenance-free projection in Eco mode. Featuring a fixed centre lens with manual lens shift, 1.6x zoom and 10W speakers, it's ideal for professional applications and offers flexible control options via HDBaseT, LAN and wireless.

Powerful, vibrant visuals for any space
The EB-L790U delivers 7,300 lumens of brightness and WUXGA resolution with 3LCD technology, ensuring sharp, vibrant visuals. Its precise lens shift and built-in 10W speakers enhance performance, while the compact white chassis allows for easy installation and quiet operation. Ideal for lecture halls, auditoriums, training rooms, and other professional environments, it performs exceptionally well even in brightly lit spaces.

Easy-to-setup, big impact

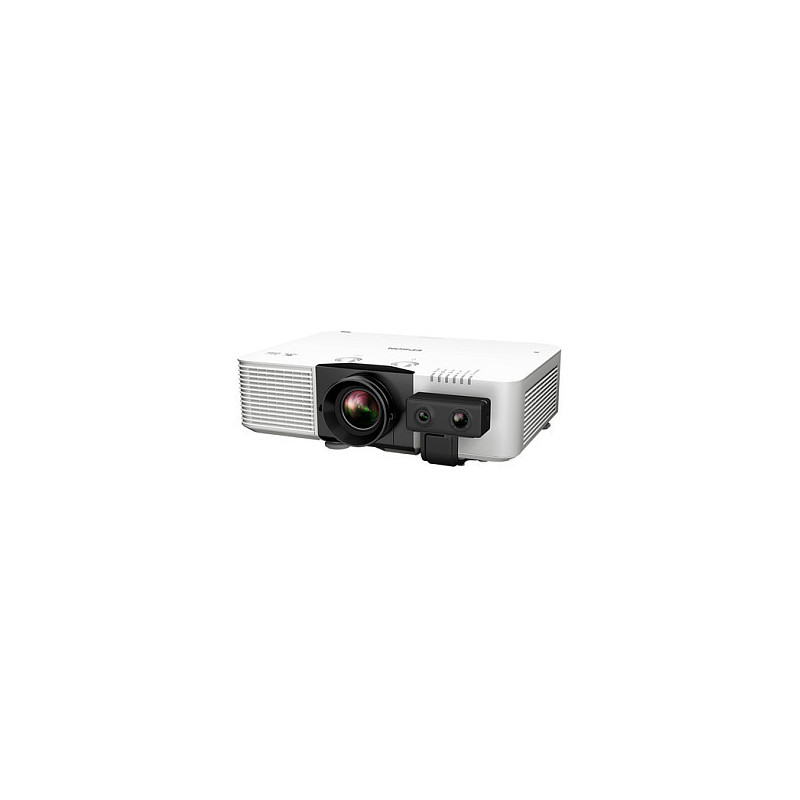

With flexible installation options including a standard throw ratio of 1.35-2.2:1 and 1.6x optical zoom, the EB-L790U can project images up to 500 inches. Advanced geometry correction and the optional ELPEC01 camera, combined with the Epson Projector Professional Tool, enable quick, straightforward setup and calibration—streamlining advanced installation for any space.

Smart control for seamless experience
The EB-L790U enhances usability with NFC for easy large-scale rollouts using the Epson Projector Config Tool. Its user-friendly OSD menu simplifies navigation, while Epson's EPMC cloud monitoring allows effortless remote management. Fully compatible with Crestron XiO Cloud, it offers centralised control. OTA firmware updates ensure the projector remains up-to-date, improving performance for a seamless experience.

Proven brand reliability
Engineered for long-lasting performance, the EB-L790U features fit-and-forget laser technology, backed by a 3-year warranty. It minimises maintenance needs, reduces downtime, and offers peace of mind with Epson's renowned after-sales support.

Environmentally friendly design
Built with sustainability in mind, our projectors are manufactured using 100% renewable electricity{s2 and packaged in 100% recyclable cardboard. With low maintenance and energy consumption and benefits from end-of-life recycling and energy recovery services across Europe.

Stream and share easily
With Apple AirPlay 2 and Miracast connectivity{s1 , sharing content is quick and simple - users can wirelessly mirror their device screens to the display for seamless collaboration. The USB-A port also enables PC-free streaming, while additional options like HDBaseT and HDMI daisy-chaining further enhance flexibility.

Projector

Feature: Smart projector
Screen size compatibility: 1270 - 12700 mm (50 - 500")
Projection distance (wide): 1.4 - 14.8 m
Projection distance (tele): 2.4 - 23.8 m
Contrast ratio (dynamic): 5000000:1
Projector brightness: 7300 ANSI lumens
Projection technology: 3LCD
Projector native resolution: WUXGA (1920x1200)
Native aspect ratio: 16:10
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 5110 ANSI lumens
Keystone correction, horizontal: ±30°
Keystone correction, vertical: ±30°

Light source

Light source type: Laser
Service life of light source: 30000 h
Service life of light source (economic mode): 20000 h

Lens system

Focus: Manual
Focal length range: 20 - 31.8 mm
Aperture range (F-F): 1.5 - 1.7
Feature: Zoom capability
Zoom type: Manual
Zoom ratio: 1.6:1
Throw ratio: 1.35 - 2.20:1

Video

Feature: Full HD
Supported graphics resolutions: 1920 x 1200 (WUXGA)
Video processing: 10 bit
Video colour modes: BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation

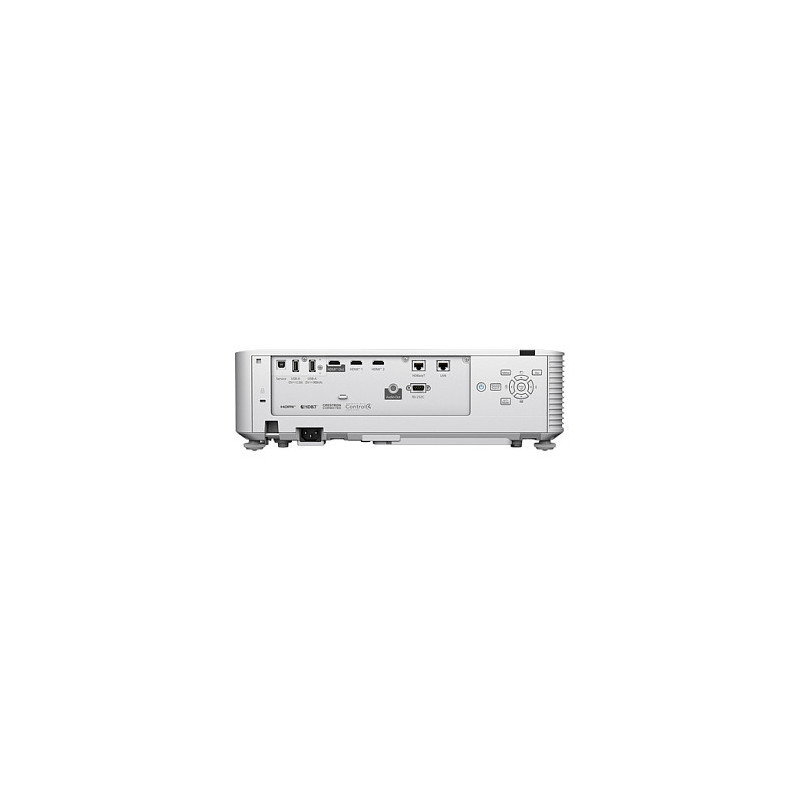

Ports & interfaces

Feature: HDBaseT port
USB 2.0 Type-A ports quantity: 1
HDMI ports quantity: 1

Network

Feature: Ethernet LAN
Feature: Miracast
Feature: Apple AirPlay 2 support

Features

Noise level (economic mode): 25 dB
Noise level: 34 dB
Country of origin: Philippines
Feature: High Dynamic Range (HDR) supported
Feature: Password protection

Multimedia

Feature: Built-in speaker(s)
RMS rated power: 10 W
Number of built-in speakers: 1

Design

Product type: Standard throw projector
Product colour: White
Housing material: Plastic
Feature: Cable lock slot
Cable lock slot type: Kensington

Power

Power source: USB
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz

Supplier features

Material: Recycled plastic

Operational conditions

Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 440 mm
Height: 138 mm
Weight: 8.2 kg
Package width: 510 mm
Package depth: 510 mm
Package height: 230 mm
Package weight: 11.6 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: Power
Feature: Manual

Technical details

Warranty period: 3 year(s)
Feature: Mobile app support

Logistics data

Quantity per pack: 1 pc(s)
Products per pallet: 14 pc(s)
Products per pallet layer: 2 pc(s)
Products per pallet layer (UK): 2 pc(s)
Products per pallet (UK): 14 pc(s)

Other features

Control panel: 0.67 inch with C2 Fine
Supported network protocols: HTTPS, SNMP, ESC/VP.net, PJLink
Box contents: Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User guide, Warranty document
Security features: Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
