Epson EB-L520U

Epson EB-L520U. Projector brightness: 5200 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 20 - 31.8 mm, Aperture range (F-F): 1.5 - 1.7. Video processing: 10 bit, Video colour modes: Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode. Serial interface type: RS-232C

WUXGA laser display
Deliver professional content with sharp images and bright colours to any audience. The EB-L520U is designed to project a scalable laser display up to 500 inches, and offers a range of connectivity options to make content sharing an easy, seamless experience.


Featuring 5,200 lumens high-brightness capability, along with Full HD, WUXGA, 16:6 wide screen, support for 4K input and detail enhancement technology, it gives users brighter, more vivid displays of up to 500".


Providing more premium features than you would typically expect to find in this display class, the EB-L520U delivers edge-blending and geometric correction to achieve one seamless large-format display. And for multimedia content, you can playback content without any lagging, and create playlists and set schedules directly from USB memory, all thanks to H.264 advanced video coding and the Epson Content Manager.


Flexibility is another hallmark of this display solution - a split-screen function allows two or four images from different sources to be combined in one large display; wired or optional wireless{s1 with support for Miracast{s1 makes connectivity simple and straightforward; and HDBaseT content can be shared and distributed without compromising on quality.


Thanks to the renowned market leading{s2 reliability of Epson laser displays, this fit and forget solution eliminates the need for regular maintenance. And for added confidence the EB-L520U comes with a standard 3-year warranty to provide lasting peace of mind.

Projector

Screen size compatibility: 1270 - 12700 mm (50 - 500")
Projector brightness: 5200 ANSI lumens
Projection technology: 3LCD
Projector native resolution: WUXGA (1920x1200)
Contrast ratio (typical): 2500000:1
Native aspect ratio: 16:10
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 3640 ANSI lumens
Vertical scan range: 192 - 240 Hz
Keystone correction, horizontal: -30 - 30°
Keystone correction, vertical: -30 - 30°
Matrix size: 1.7 cm (0.67")

Light source

Light source type: Laser
Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h

Lens system

Focus: Manual
Focal length range: 20 - 31.8 mm
Aperture range (F-F): 1.5 - 1.7
Feature: Zoom capability
Zoom type: Manual
Zoom ratio: 1.6:1
Throw ratio: 1.35 - 2.2:1

Video

Analog signal format system: Not supported
Feature: Full HD
Video processing: 10 bit
Video colour modes: Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode

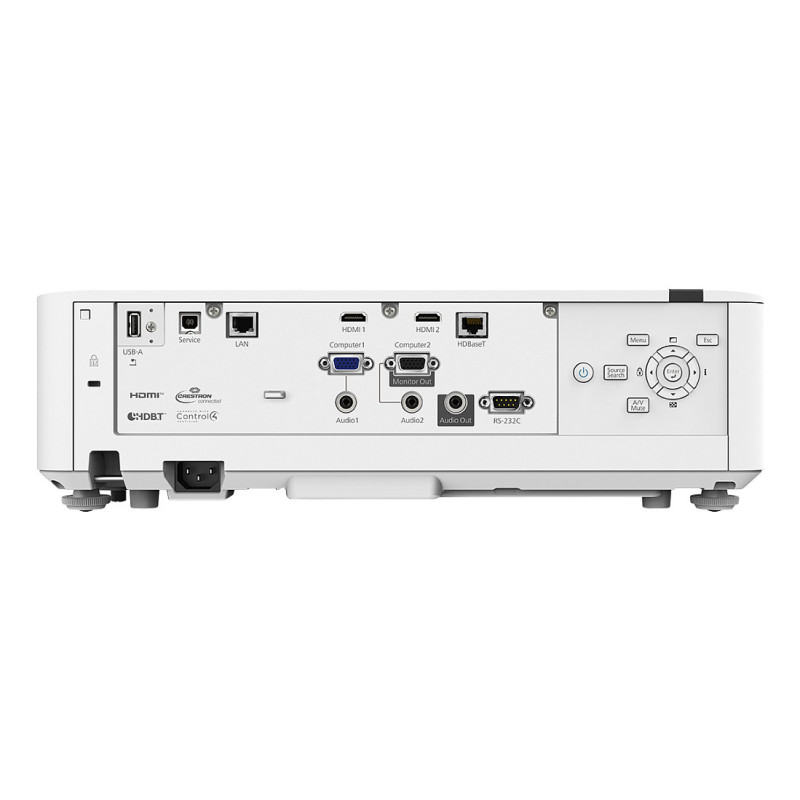

Ports & interfaces

USB 2.0 ports quantity: 2
USB 2.0 Type-B ports quantity: 1
Audio (L/R) in: 1
Serial interface type: RS-232C
VGA (D-Sub) ports quantity: 3
HDMI ports quantity: 2

Network

Feature: Ethernet LAN
Feature: Wi-Fi
Wi-Fi standards: 802.11a, Wi-Fi 4 (802.11n)

Features

Noise level (economic mode): 23 dB
Noise level: 31 dB
Country of origin: Philippines

Multimedia

Feature: Built-in speaker(s)
RMS rated power: 10 W
Number of built-in speakers: 1

Design

Market positioning: Presentation
Product type: Standard throw projector
Product colour: White
Placement: Ceiling, Desktop, Floor, Wall
Feature: Cable lock slot
Cable lock slot type: Kensington

Power

Power source: AC
Power consumption (typical): 293 W
Power consumption (standby): 0.3 W
Power consumption (economy mode): 223 W
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz

Operational conditions

Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 440 mm
Depth: 122 mm
Height: 304 mm
Weight: 7.7 kg
Package width: 540 mm
Package depth: 530 mm
Package height: 210 mm
Package weight: 10.4 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: AC, HDMI
Feature: Warranty card
Bundled software: EasyMP Multi PC Projection

Technical details

USB display function: 3 in 1: Image / Mouse / Sound
Sustainability certificates: TCO

Logistics data

Quantity per pack: 1 pc(s)
Products per pallet: 14 pc(s)
Pallet gross weight: 0 g
Products per pallet (UK): 14 pc(s)
Pallet weight (UK): 0 g
Harmonized System (HS) code: 85286200
