Epson EB-760W

Epson EB-760W. Projector brightness: 4100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Laser/LED hybrid, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Fixed focal length: 3.7 mm, Zoom ratio: 1.35:1. Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB. Serial interface type: RS-232C

Agile UST laser display
Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.

The EB-760W's bright image, scalable up to 150", is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.


The EB-760W's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.


With 4,100 lumens Colour Light Output and Epson 3LCD technology, the display is bright and vibrant up-to 150", clearly visible from all angles and from a distance. The experience is immersive and user-friendly.


Projection also enables flexible display sizes, scalable from 49-150", display sizes can be optimised for each room with one familiar product and at a fixed cost


Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices. With a connected optional Epson visualiser, documents, presentations or 3D objects can be viewed with incredible detail.


Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygienic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.

Projector

Supported aspect ratios: 16:10
Screen size compatibility: 1524 - 3810 mm (60 - 150")
Projector brightness: 4100 ANSI lumens
Projection technology: 3LCD
Projector native resolution: 1080p (1920x1080)
Contrast ratio (typical): 2500000:1
Native aspect ratio: 16:10
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 2800 ANSI lumens
Vertical scan range: 100 - 120 Hz
Keystone correction, horizontal: -3 - 3°
Keystone correction, vertical: -3 - 3°
Heat dissipation: 895 BTU/h

Light source

Light source type: Laser/LED hybrid
Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h

Lens system

Focus: Manual
Fixed focal length: 3.7 mm
F-number (relative aperture): 1.6
Feature: Zoom capability
Zoom ratio: 1.35:1
Throw ratio: 0.27 - 0.37:1

Video

Feature: Full HD
Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB

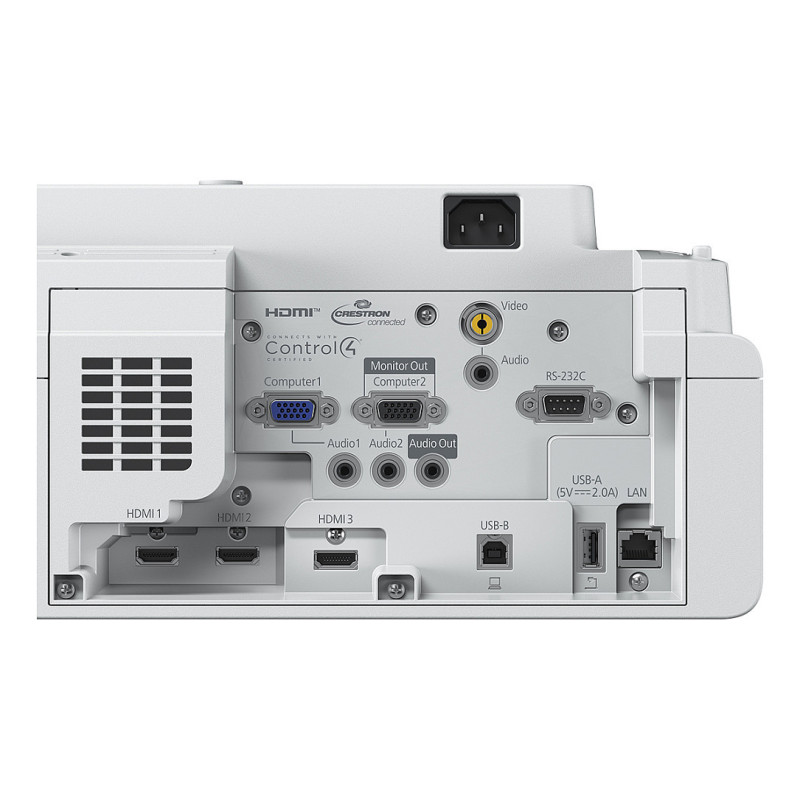

Ports & interfaces

USB 2.0 ports quantity: 3
USB 2.0 Type-A ports quantity: 2
USB 2.0 Type-B ports quantity: 1
Audio (L/R) in: 3
Audio (L/R) out: 1
Feature: Microphone in
Serial interface type: RS-232C
VGA (D-Sub) ports quantity: 2
HDMI ports quantity: 3
Composite video in: 1
Feature: Consumer Electronics Control (CEC) support
Feature: Audio Return Channel (ARC)

Network

Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Feature: Miracast

Features

Noise level (economic mode): 27 dB
Feature: On Screen Display (OSD)
Feature: Screen mirroring
Noise level: 37 dB

Multimedia

Feature: Built-in speaker(s)
RMS rated power: 16 W

Design

Market positioning: Presentation
Product type: Ultra short throw projector
Product colour: White
Feature: Cable lock slot
Cable lock slot type: Kensington

Power

Power source: AC
Power consumption (typical): 197 W
Power consumption (standby): 0.5 W
Power consumption (max): 263 W
Power consumption (PowerSave): 199 W
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Supplier features

Recommended gender: Any gender

Operational conditions

Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 356 mm
Depth: 395 mm
Height: 133 mm
Weight: 5.9 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: AC
Feature: Manual

Technical details

Warranty period: 5 year(s)
