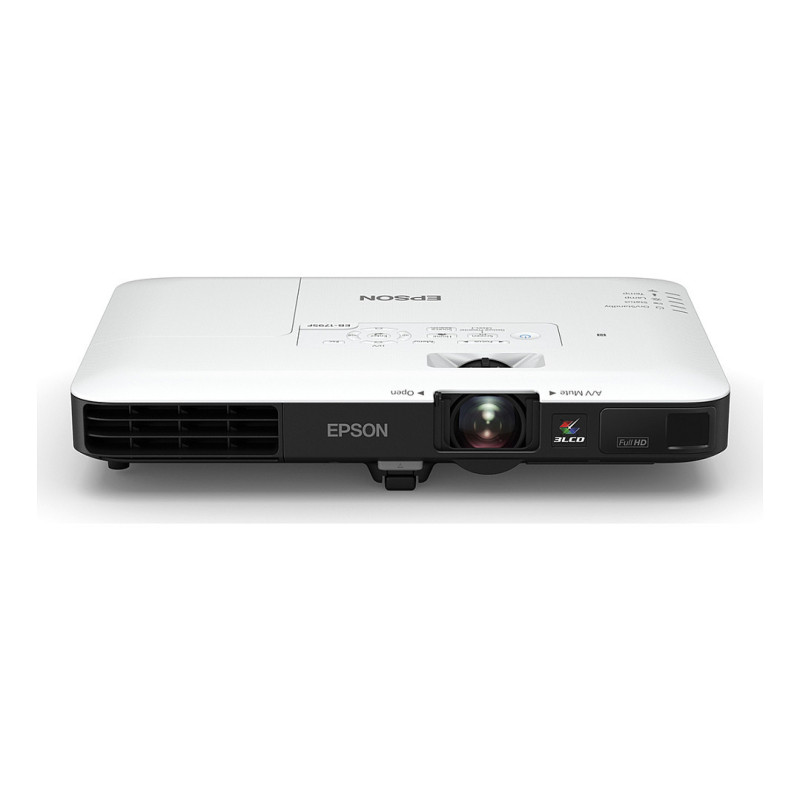

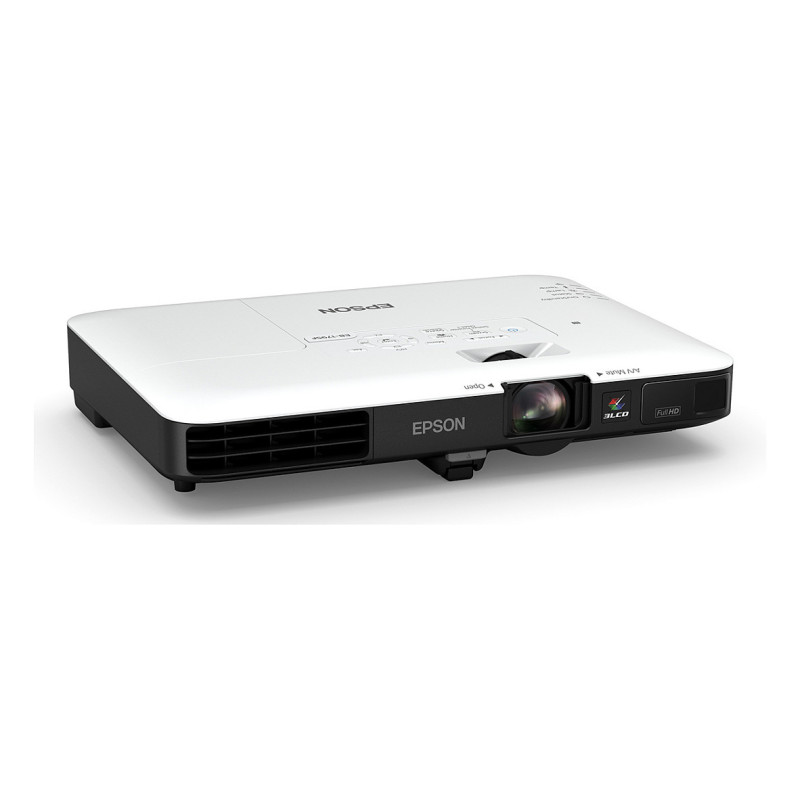

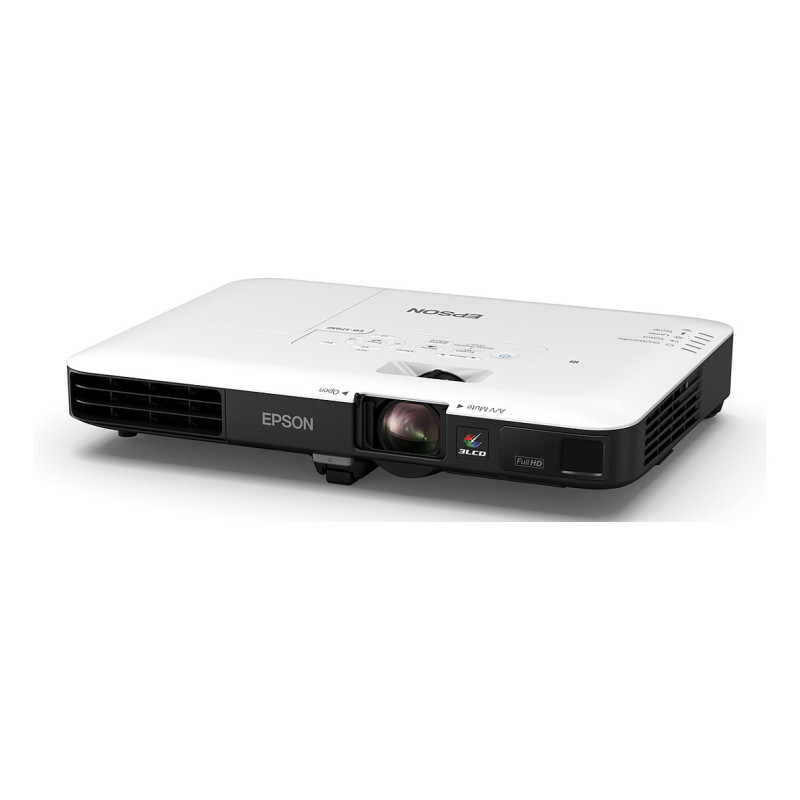

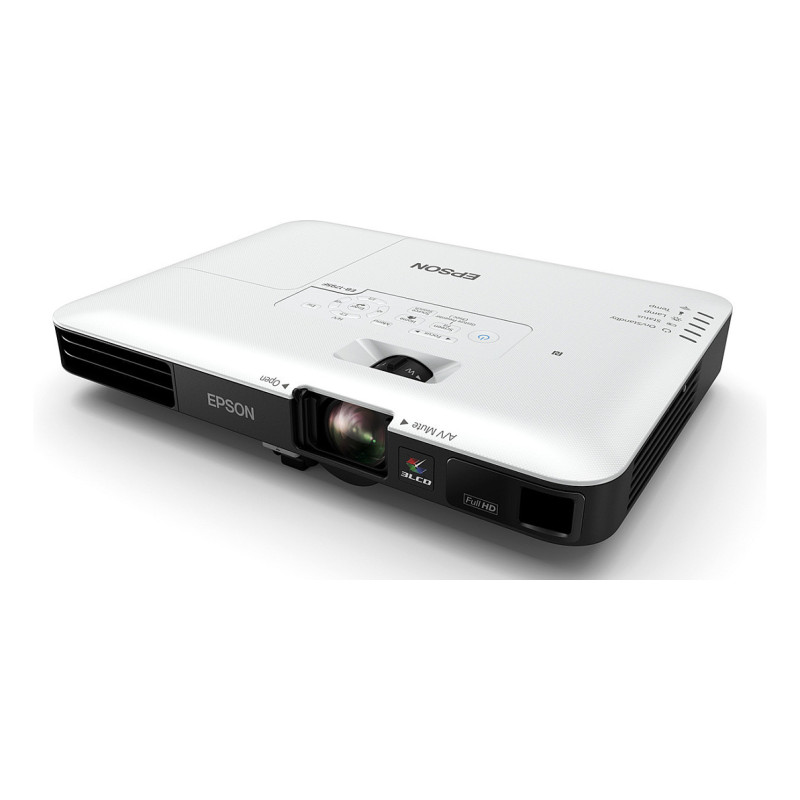

Epson EB-1795F

Epson EB-1795F. Projector brightness: 3200 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Lamp, Service life of light source: 4000 h, Service life of light source (economic mode): 7000 h. Focus: Manual, Focal length range: 13.52 - 16.22 mm, Aperture range (F-F): 1.58 - 1.7. Supported graphics resolutions: 1920 x 1080 (HD 1080), Supported video modes: 1080p, Video processing: 10 bit. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ultra-mobile business projector
Intelligent ultra-mobile, Full HD1080p projector for on-the-go business users, combining superb image quality, easy set-up and true portability.

EB-1795F
Perfect for people who are constantly on the move and frequently make presentations at customer sites, this ultra-mobile projector offers a winning combination of ultra-slim lightweight design, exceptional image quality and advanced functionality. With traditional wired and built-in wireless connectivity, time-saving set-up plus a range of advanced features, it's the ideal tool for polished presentations.

Exceptional image quality
Enjoy superb image quality, impressive natural colours with an equally high white and colour light output of 3,200 lumens thanks to Epson's 3LCD technology. True Colours technology delivers a faithful reproduction of colours as they are meant to be and, with a 10,000:1 contrast ratio, projected images are crisp and clear.

East set-up
Automatic vertical and horizontal keystone correction and Screen Fit makes it easy to set up the projector almost anywhere. The short throw ratio projects a large image from a shorter distance so that all meeting participants can be seated behind the projector as the front exhaust directs heat away from them. Auto Power On turns the projector on when it detects signal input, and NFC makes it easy to connect to mobile devices using the built-in Wi-Fi connectivity.

Smarter presentations
Gesture Presenter allows users to advance through a presentation directly with their hands. View two data sources side by side with split screen, while you can share mobile content easily with screen mirroring. MHL can show high-quality video and audio content from mobile devices while charging them at the same time.

True portability
The ultra-slim form factor and lightweight design makes this the ideal projector for anyone on the move. A carry case is included and the projector fits easily into a standard laptop bag.

Key Features
- Exceptional image quality: Equally high white and colour light output of 3,200 lumens
- Gesture Presenter: Advance through a presentation directly with your hands
- Horizontal and Vertical Keystone correction: Slides and images can be aligned and distortion corrected
- Wireless connectivity: NFC makes it easy to connect or the projector wirelessly
- Lightweight & ultra-slim form factor: Fits in the same bag as a laptop computer

Projector

Screen size compatibility: 762 - 7620 mm (30 - 300")
Projection distance: 1.35 - 1.62 m
Projection distance (wide): 0.7 - 6.8 m
Projection distance (tele): 0.8 - 8.2 m
Projector brightness: 3200 ANSI lumens
Projection technology: 3LCD
Projector native resolution: 1080p (1920x1080)
Contrast ratio (typical): 10000:1
Native aspect ratio: 16:9
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 1900 ANSI lumens
Vertical scan range: 100 - 120 Hz
Keystone correction, horizontal: -20 - 20°
Keystone correction, vertical: -30 - 30°
Matrix size: 1.5 cm (0.59")

Light source

Light source type: Lamp
Service life of light source: 4000 h
Service life of light source (economic mode): 7000 h
Lamp power: 214 W
Lamps quantity: 1 lamp(s)

Lens system

Focus: Manual
Focal length range: 13.52 - 16.22 mm
Aperture range (F-F): 1.58 - 1.7
Feature: Zoom capability
Zoom type: Manual
Zoom ratio: 1.2:1
Throw ratio: 1.02 - 1.23:1

Video

Feature: Full HD
Supported graphics resolutions: 1920 x 1080 (HD 1080)
Supported video modes: 1080p
Video processing: 10 bit
Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode

Ports & interfaces

USB 2.0 ports quantity: 2
Feature: PC in (D-Sub)
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
Composite video in: 1
Feature: Mobile High-Definition Link (MHL)

Network

Feature: Wi-Fi
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)

Features

Noise level (economic mode): 30 dB
Feature: HDCP
Noise level: 39 dB
Feature: Air filter
Country of origin: Philippines
Feature: Password protection

Multimedia

Feature: Built-in speaker(s)
RMS rated power: 1 W
Number of built-in speakers: 1

Design

Market positioning: Business
Product type: Short throw projector
Product colour: White, Grey

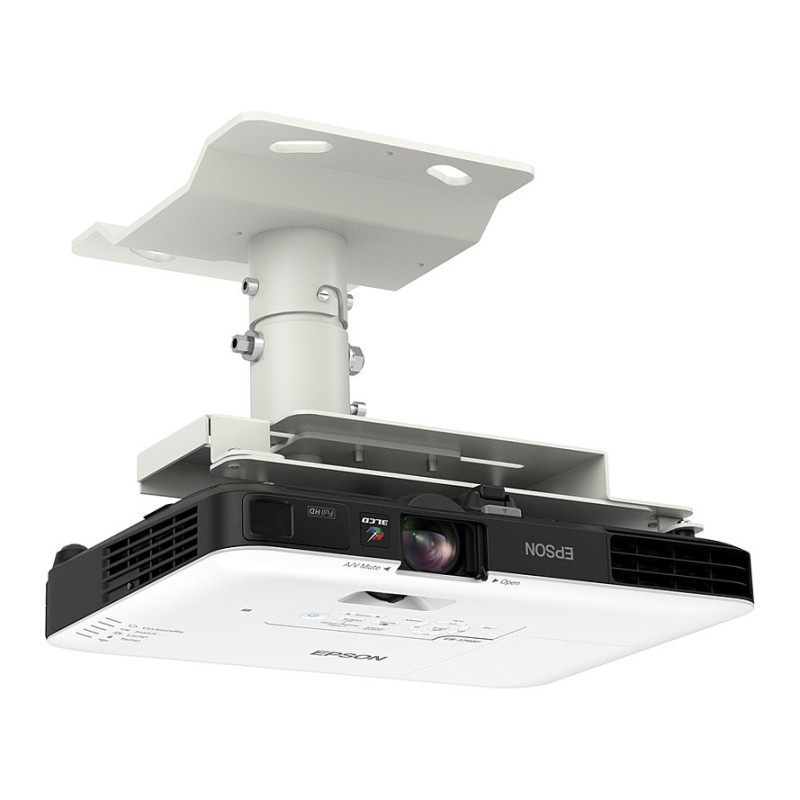

Placement: Ceiling, Desktop
Feature: Cable lock slot
Cable lock slot type: Kensington

Power

Power source: AC
Power consumption (typical): 295 W
Power consumption (standby): 0.34 W
Power consumption (economy mode): 208 W
AC input voltage: 100-240 V
AC input frequency: 50 - 60 Hz

Operational conditions

Operating temperature (T-T): 5 - 40 °C
Storage temperature (T-T): -10 - 60 °C
Operating relative humidity (H-H): 20 - 80%
Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

Width: 292 mm
Depth: 213 mm
Height: 44 mm
Weight: 1.8 kg
Package width: 370 mm
Package depth: 420 mm
Package height: 145 mm
Package weight: 3.73 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: AC, HDMI
Feature: Carrying case
Bundled software: EasyMP Multi PC Projection

Technical details

Standard interfaces: HDMI, NFC, USB, VGA, Wireless LAN
USB display function: 3 in 1: Image / Mouse / Sound
Sustainability certificates: TCO

Logistics data

Quantity per pack: 1 pc(s)
Products per pallet: 70 pc(s)
Pallet gross weight: 0 g
Pallet gross length: 120 cm
Pallet gross width: 80 cm
Pallet gross height: 15 cm
Products per pallet layer: 5 pc(s)
Products per pallet layer (UK): 6 pc(s)
Products per pallet (UK): 84 pc(s)
Pallet weight (UK): 0 g
Pallet length (UK): 120 cm
Pallet width (UK): 100 cm
Pallet height (UK): 15 cm
Harmonized System (HS) code: 85286200
