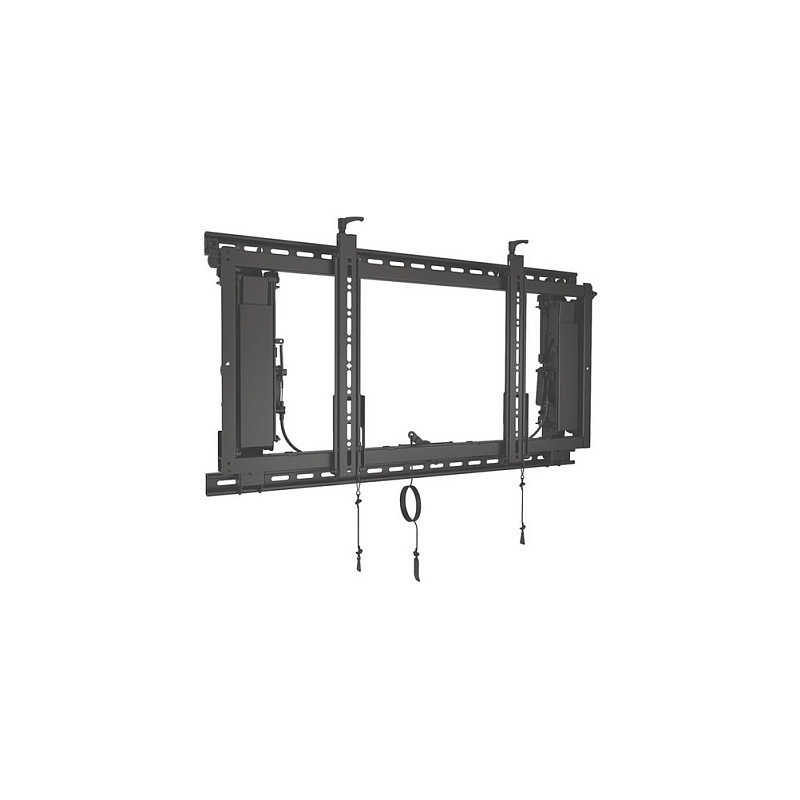

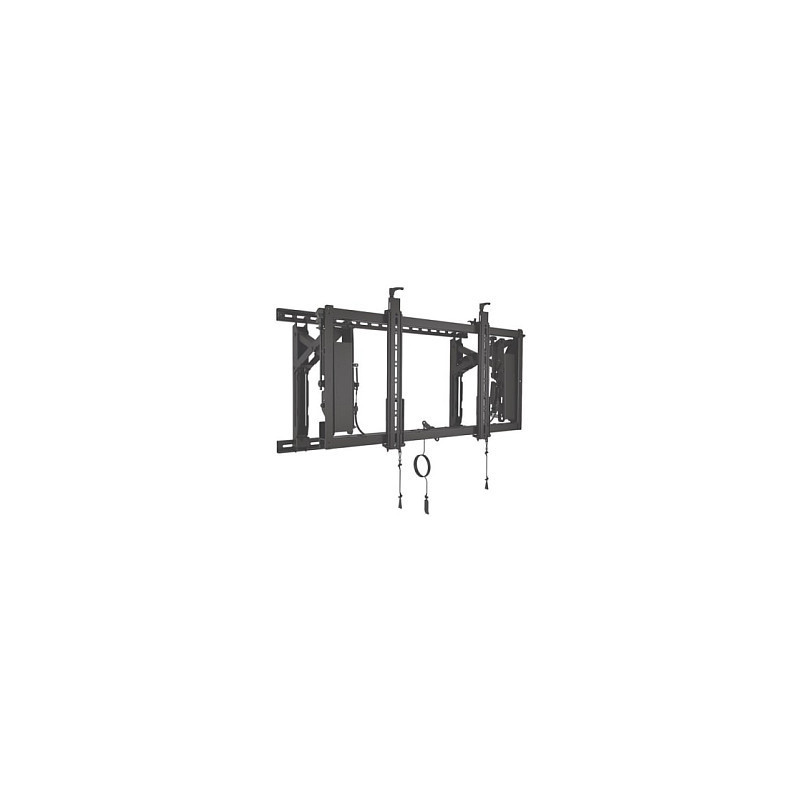

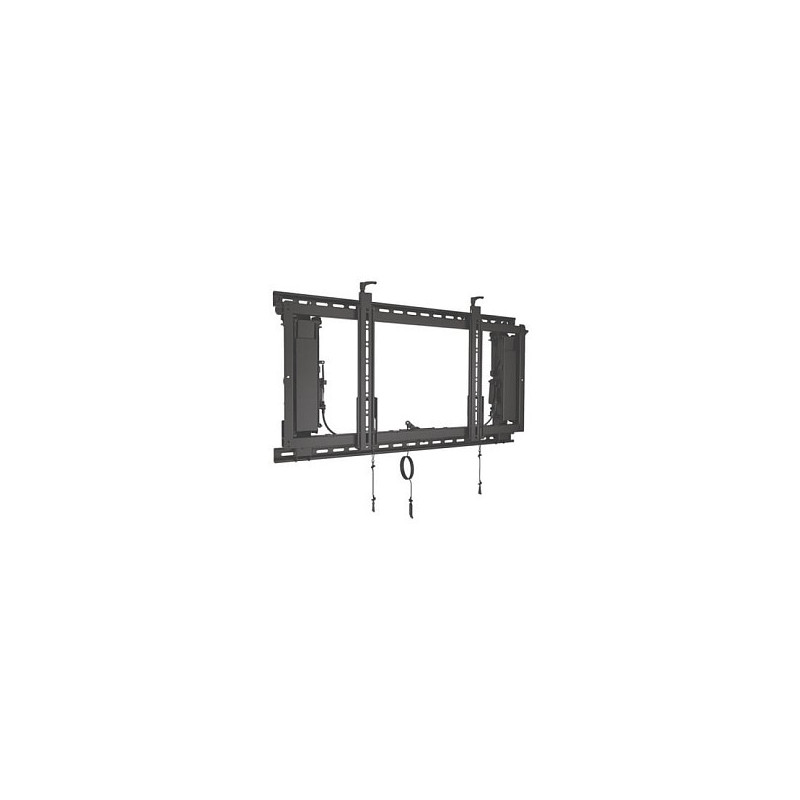

Chief LVS1U signage display mount

Chief LVS1U, ConnexSysTM Video Wall Landscape Mounting System with Rails. Maximum weight capacity: 68 kg, Minimum screen size: 106.7 cm (42"), Maximum screen size: 2.03 m (80"), Minimum VESA mount: 200 x 100 mm, Maximum VESA mount: 700 x 400 mm. Tilt angle range: -2.5 - 4°. Product colour: Black

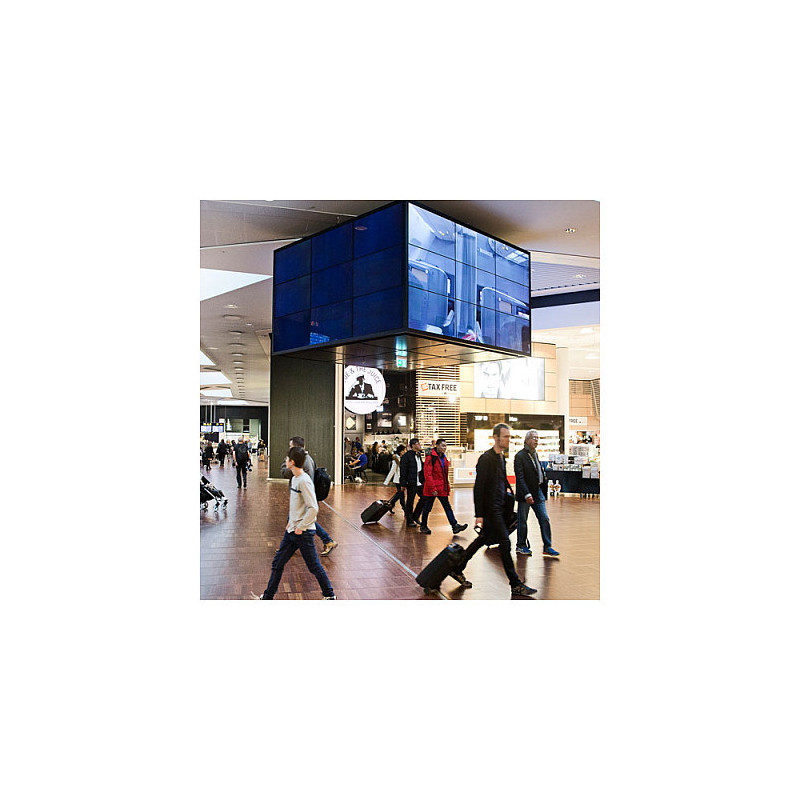

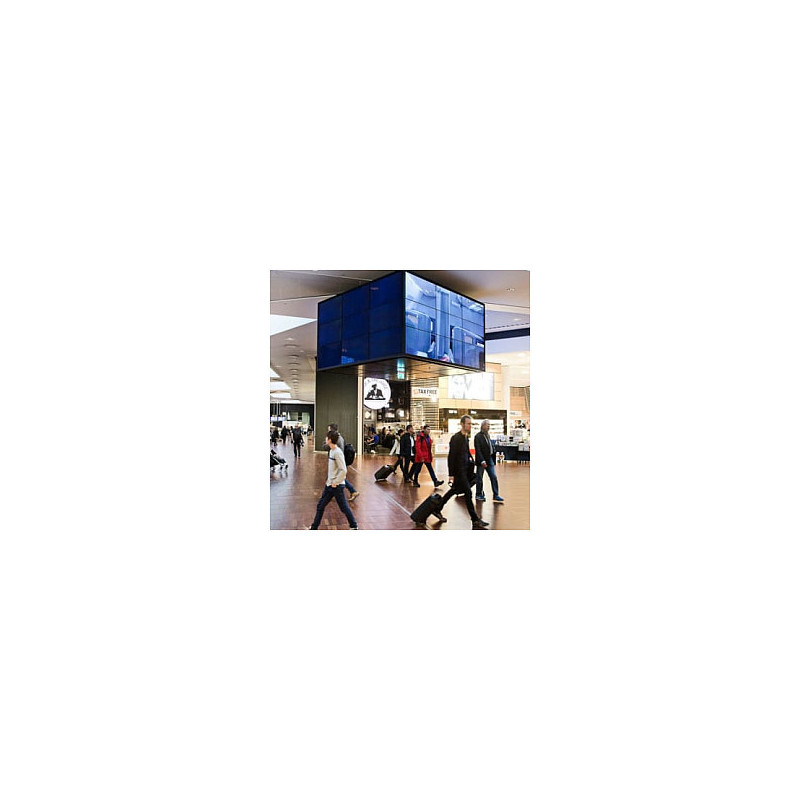

Chief's ConnexSys Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements
The LVS1U ConnexSys Video Wall system landscape mount ships with rails for each mount.
SPEED

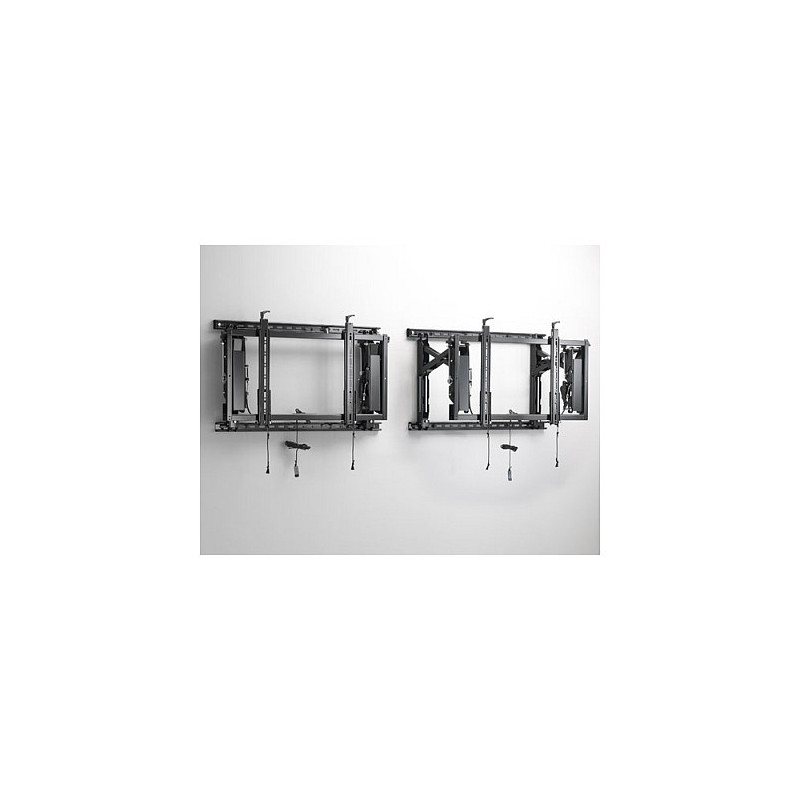

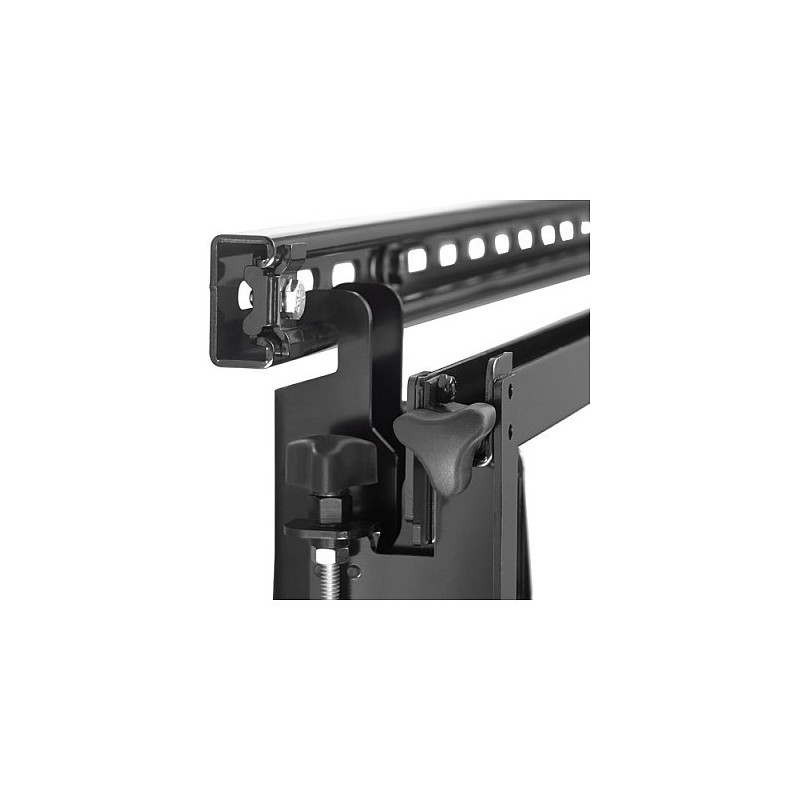

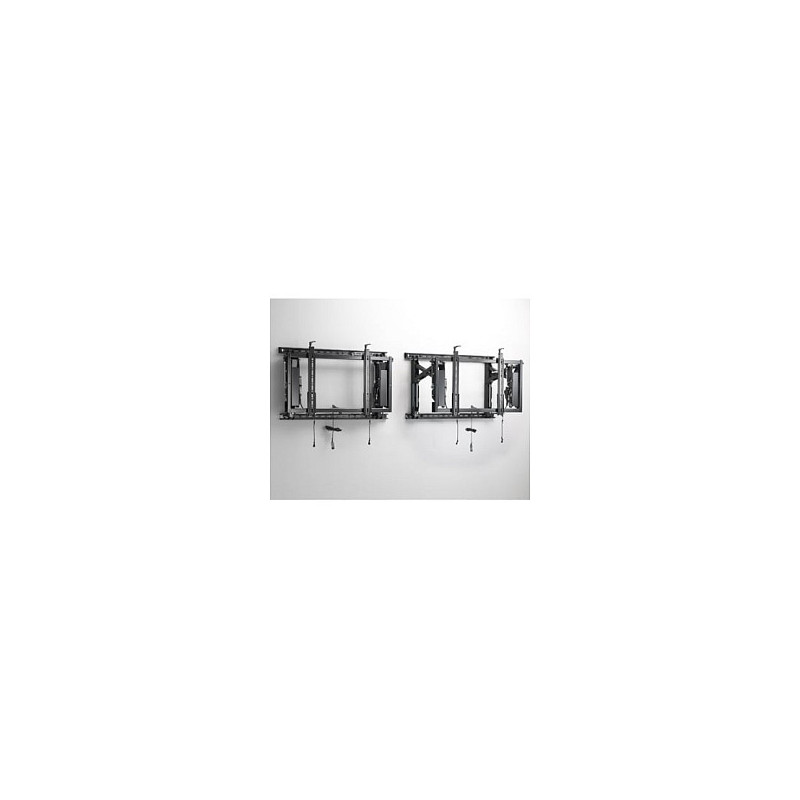

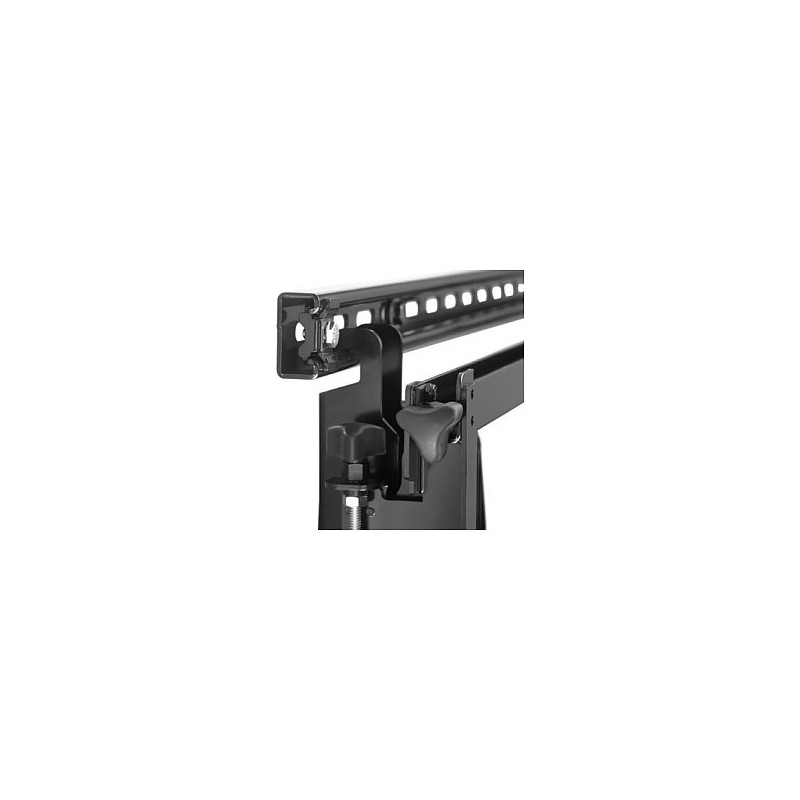

- Hang units on a single strut channel for quick row leveling
- No need for horizontal spacers
- Vertical measurement is simply the height of the display to the next rail
- Compatible with most 1-5/8" sizes of channel strut
- Reduces installation time - especially for XL and recessed configurations
- Tool-free ClickConnect™ latching secures displays
- PowerZone™ provides 6 points of adjustment in one easy-to-access location at the top of the mount
MISCELLANEOUS
- Security - pad lock 1/4" shank diameter
- Safety tested
- Universal interface
- Each mount comes out of the box with adjustments set in the exact same position
RIGIDITY

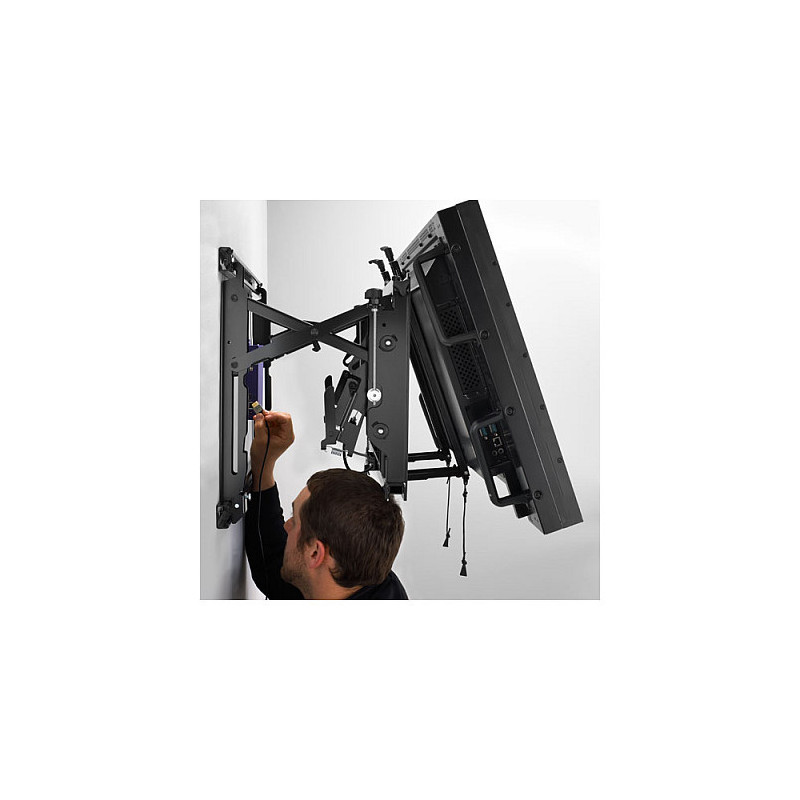

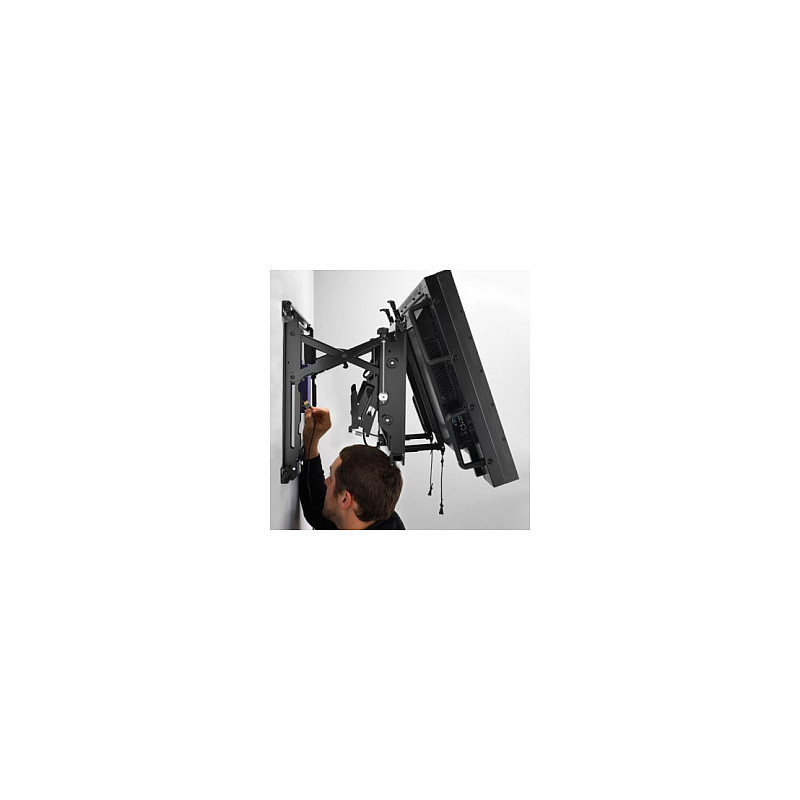

- Rigid frame keeps displays where you set them, even after extending for service
- Adjustable home depth position locks screens in place to maintain alignment despite accidental bumps/pushes

Mounting

Maximum weight capacity: 68 kg
Minimum screen size: 106.7 cm (42")
Number of displays supported: 1
Maximum screen size: 2.03 m (80")
Mounting type: Wall
Minimum VESA mount: 200 x 100 mm
Maximum VESA mount: 700 x 400 mm
Panel mounting interface: 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400

Ergonomics

Feature: Height adjustment
Tilt angle range: -2.5 - 4°

Design

Product colour: Black
Housing material: Steel

Weight dimensions

Width: 902 mm
Depth: 102 mm
Height: 554 mm

Packaging data

Package weight: 20 kg

Packaging content

Feature: Mounting kit

Other features

Compatibility: MIS-F (200x200mm)MIS-F (300x300mm)MIS-F (400x200mm)MIS-F (400x400mm)MIS-F (600x400mm)

Logistics data

Harmonized System (HS) code: 85299097
