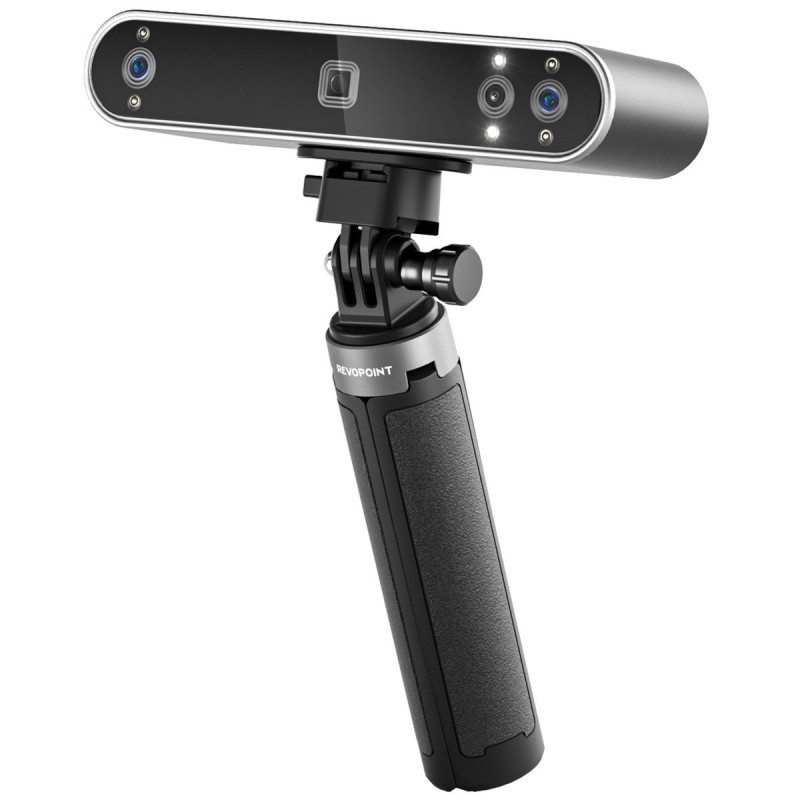

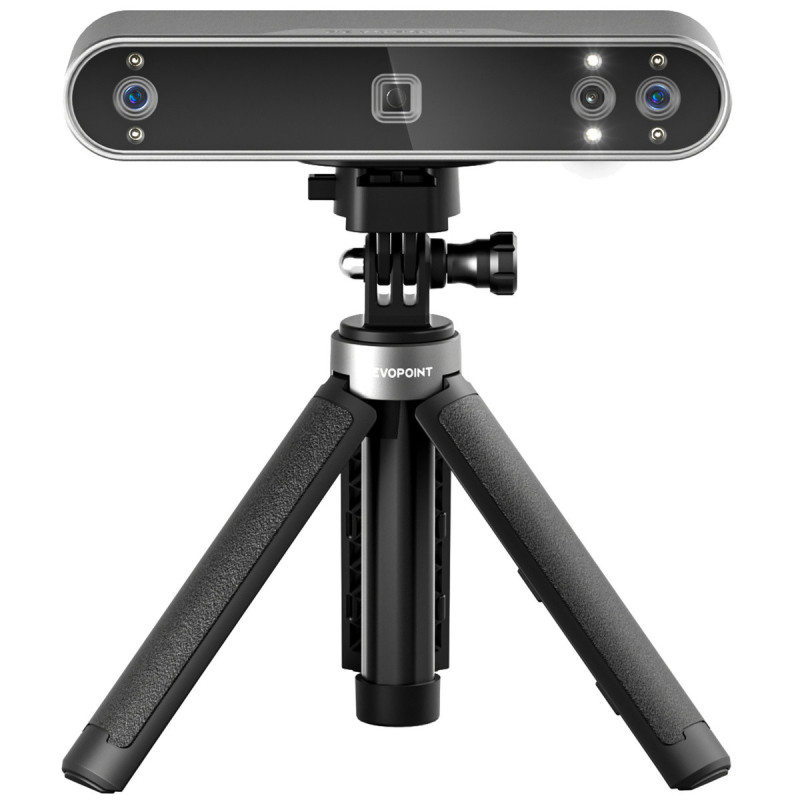

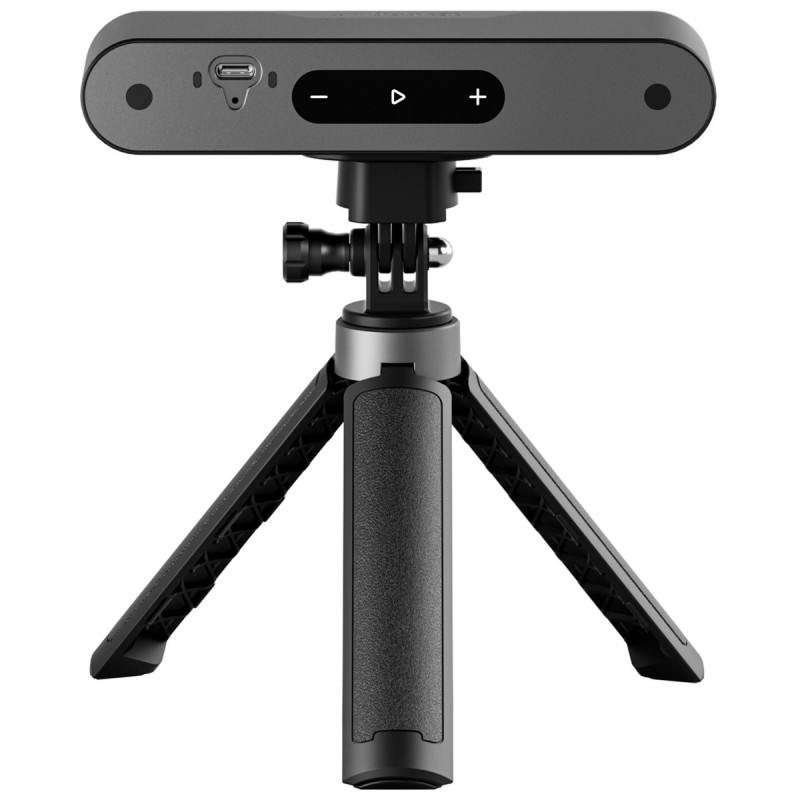

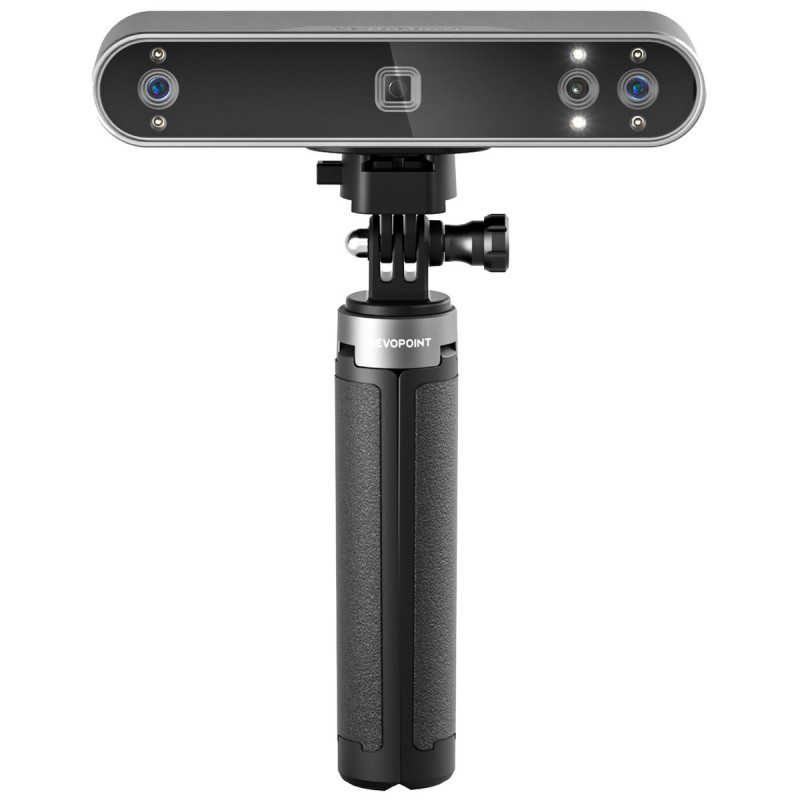

Revopoint Pop 3 Plus Standard 3D Scanner

Revopoint Pop 3 Plus Standard 3D Scanner

Discover the Revopoint POP 3 Plus, a portable 3D scanner that combines outstanding single-frame accuracy (0.08 mm), 2x optical magnification, image stabilization by a 9-axis IMU, and global marker tracking mode for flawless point cloud fusion. With scanning speeds of up to 18 frames per second and a built-in HD RGB camera, you'll get fast, full-color models, while a tempered glass calibration plate raises measurement precision by another 20%. The Pop 3 Plus supports objects from 20mm all the way up to 2000mm, and the free, cross-platform Revo Scan software allows you to export almost any format without constant network access. Take your projects to the next level - bet on the reliability and quality that professionals expect.

Exceptional precision in every detail

The Revopoint Pop 3 Plus is the latest model in the Pop series. It offers single-frame accuracy of 0.08 mm, a feature previously available only in significantly more expensive devices. Thanks to the use of a tempered glass calibration plate, the scanner's precision has increased by another 20% compared to its predecessors, which translates to even greater confidence in measurement repeatability. Whether you're digitizing a complex engine part or an intricately decorated sculpture, every nuance will be captured with the highest accuracy.

Advanced image tracking and stabilization

The built-in 9-axis IMU (Inertial Measurement Unit), consisting of a gyroscope, accelerometer, and magnetometer, continuously monitors the scanner's movement. This allows the Pop 3 Plus to automatically correct minor hand tremors, eliminating the risk of blurry sections and errors in merging consecutive frames. Additionally, the global marker tracking mode significantly reduces error accumulation in the point cloud, resulting in exceptionally stable and precise data fusion.

Fast and efficient scanning

With a scan speed of up to 18 frames per second, you can go from setting up the object to a finished 3D model in a flash. The 2x optical zoom significantly increases the sharpness of the structured light, resulting in a 30% better-mapped point cloud compared to the previous Pop 3 model. Meanwhile, the built-in HD RGB (Red, Green, Blue) camera allows you to capture realistic, full-color textures that further enhance the digital representation.

Versatility of applications

The recommended scanning volume range (from 20 × 20 × 20 mm up to 2000 × 2000 × 2000 mm) makes the Revopoint Pop 3 Plus ideal for precision engineering, as well as for archiving works of art or preparing prototypes for the automotive industry. Whether you work in a design office, a model-making workshop, or an exhibition hall—this scanner will meet your most demanding expectations.

Hassle-free operation and versatile software

Installing Revo Scan 5 is simple and intuitive. Just connect the scanner to your computer, select your device from the list, and start calibration with a few clicks, following the clear on-screen instructions. IMU calibration ensures full stabilization capabilities, and the free software runs on Windows, macOS, Android, and iOS without requiring constant internet access—an internet connection is needed only for updates and file transfers.

Full compatibility with your tools

You'll save your scanned models in PLY, OBJ, ASC, STL, FBX, GLTF and 3MF formats, guaranteeing seamless integration with the most popular CAD (Computer-Aided Design, a process that uses computer software to create, analyze, modify and document designs, typically in fields such as engineering, architecture and design), 3D printing applications or presentation platforms. This will bring digital scans into your system without any restrictions.

Included in the set

• Pop 3 Plus 3D scanner
• tripod
• rotation stand
• rotation stand cover
• power cable for the rotation stand
• smartphone holder
• carrying case
• calibration plate
• markers
• USB Type-C to Type-A adapter
• USB Type-C to Type-A cable
• 2-in-1 cable
• Bust model for scanning
• User manual
