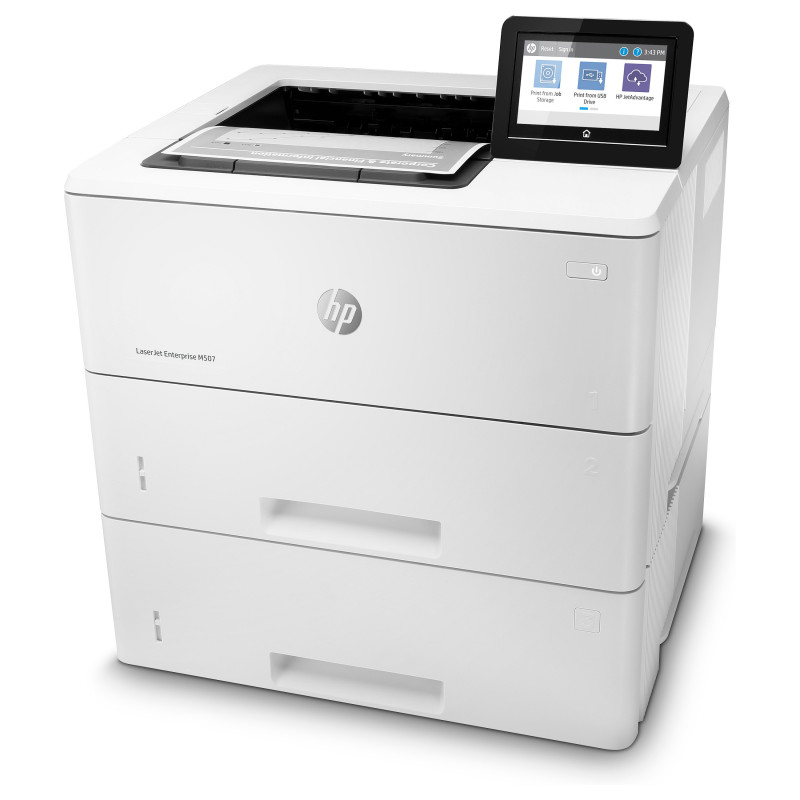

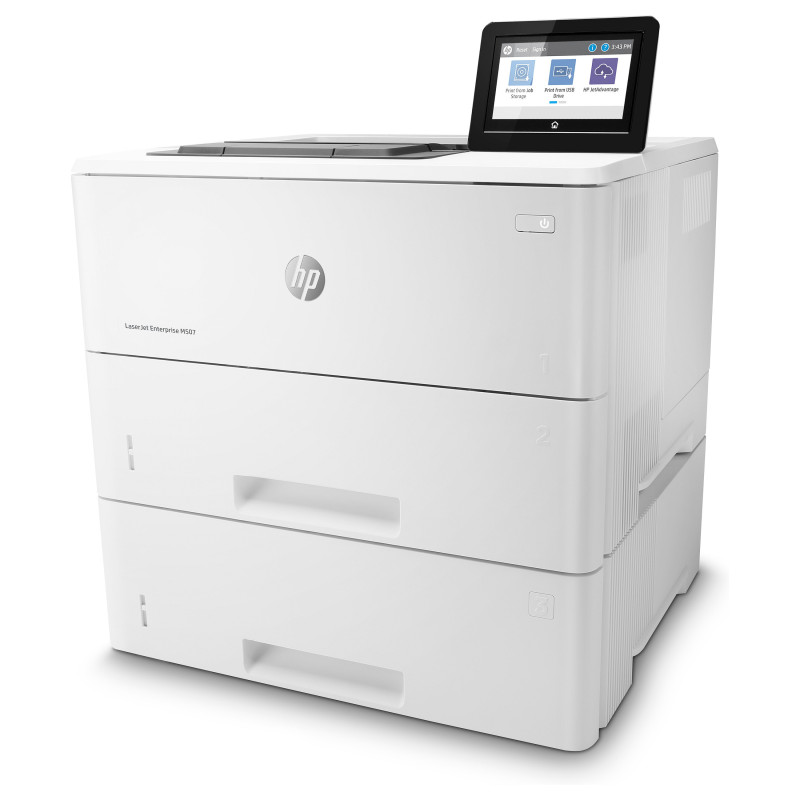

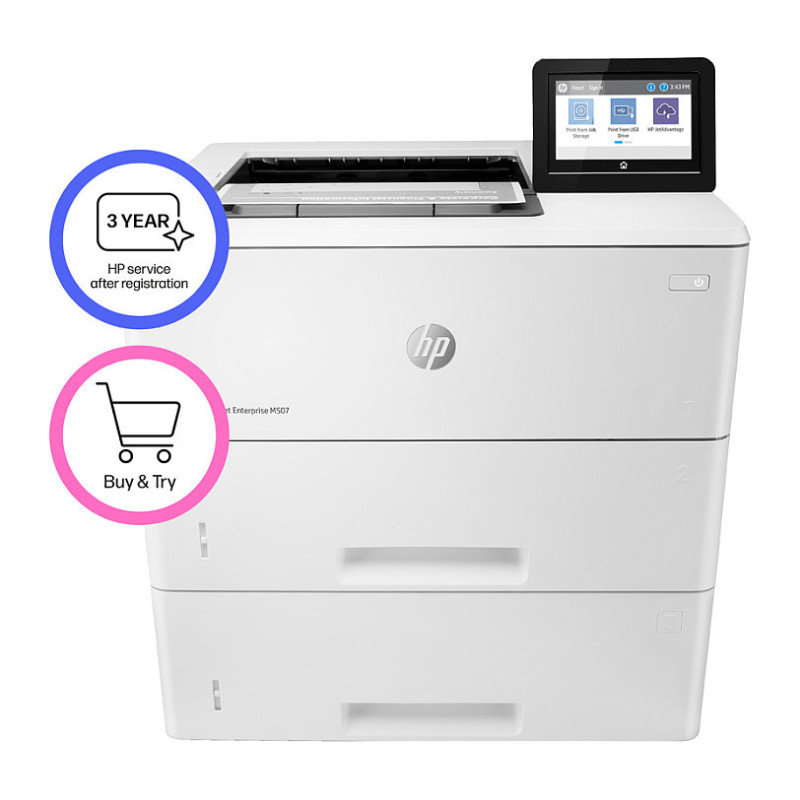

HP LaserJet Enterprise M507x

HP LaserJet Enterprise M507x. Print technology: Laser. Number of print cartridges: 1, Maximum duty cycle: 150000 pages per month. Maximum resolution: 1200 x 1200 DPI. Maximum ISO A-series paper size: A4. Print speed (black, normal quality, A4/US Letter): 43 ppm, Duplex printing. Display: CGD. Network ready, Wi-Fi. Product colour: White
Choose an HP LaserJet Enterprise printer designed to handle business solutions securely and efficiently, and helps conserve energy with HP EcoSmart black toner. Keep up with the demands of growing business with a printer you can rely on. ^[1]
Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

Printing

Duplex printing mode: Auto
Print resolution black: 1200 x 1200 DPI
Colour: No
Print technology: Laser
Duplex printing: Yes
Maximum resolution: 1200 x 1200 DPI
Print speed (black, normal quality, A4/US Letter): 43 ppm
Warm-up time: 150 s
Time to first page (black, normal): 5.9 s
Print margins (top, bottom, right, left): 4.3 mm
Watermark printing: Yes
Secure printing: Yes

Features

Maximum duty cycle: 150000 pages per month
Recommended duty cycle: 2000 - 7500 pages per month
Printing colours: Black
Number of print cartridges: 1
Page description languages: PostScript 3, PDF 1.7, PCL 6
Printer fonts: Scalable, TrueType, Windows, PCL, PostScript
Country of origin: Philippines
Replacement cartridges: CF289A HP 89A Black Original LaserJet Toner Cartridge (5,000 pages);CF289X HP 89X High Yield Black Original LaserJet Toner Cartridge (10,000 pages);CF289Y HP 89Y Extra High Yield Black Original LaserJet Toner Cartridge (20,000 pages)
HP segment: Business

Input output capacity

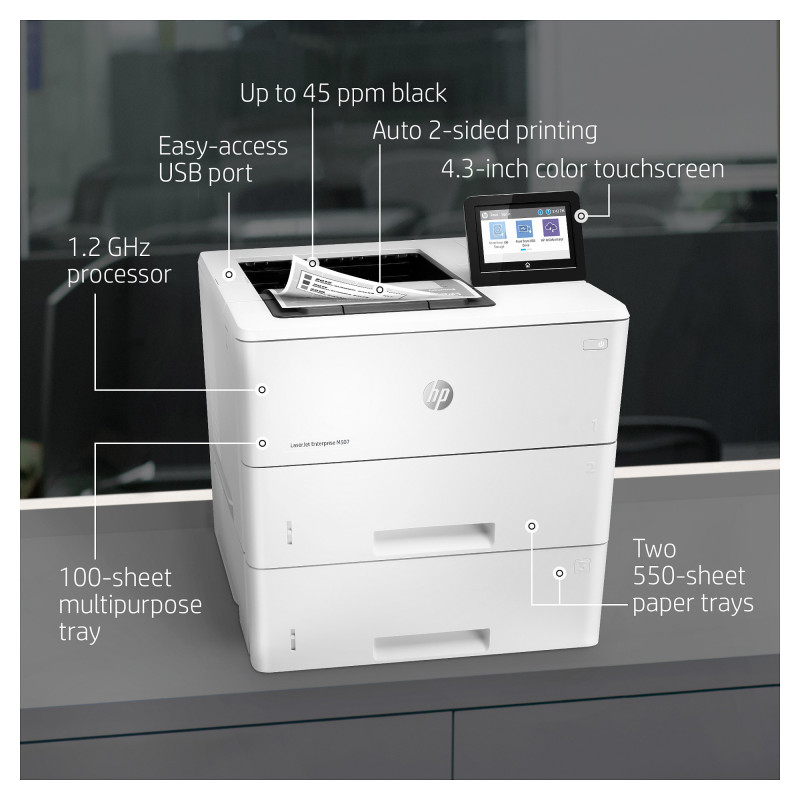

Total number of input trays: 3
Total input capacity: 1200 sheets
Total output capacity: 250 sheets
Paper tray 1 input capacity: 100 sheets
Paper tray 2 input capacity: 550 sheets
Multi-Purpose tray: Yes
Multi-Purpose tray input capacity: 100 sheets
Maximum number of input trays: 5
Maximum input capacity: 2300 sheets
Maximum output capacity: 250 sheets

Paper handling

Maximum ISO A-series paper size: A4
Paper tray media types: Plain paper, Bond paper, Recycled paper, Envelopes, Card stock, Labels, Transparencies, Rough paper
ISO A-series sizes (A0...A9): A4, A5, A6
ISO B-series sizes (B0...B9): B5
ISO C-series sizes (C0...C9): C5, C6
Non-ISO print media sizes: Oficio, 16K
JIS B-series sizes (B0...B9): B5, B6
Envelopes sizes: B5, C5, C6, DL
Photo paper sizes: 10x15 cm
Custom media width: 76.2 - 215.9 mm
Custom media length: 127 - 355.6 mm
Paper tray media weight: 60 - 200 g/m²

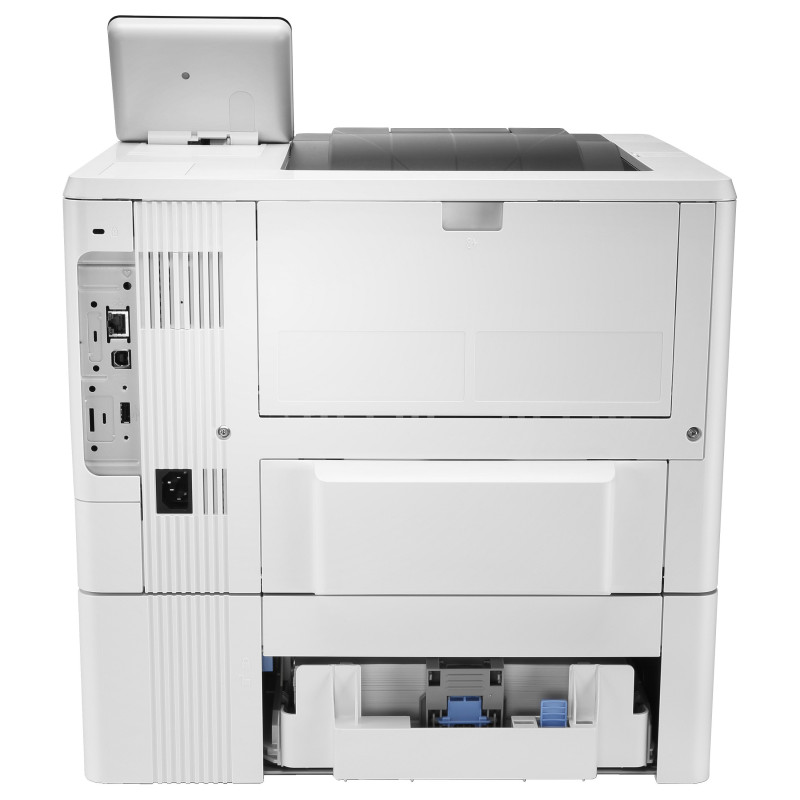

Ports interfaces

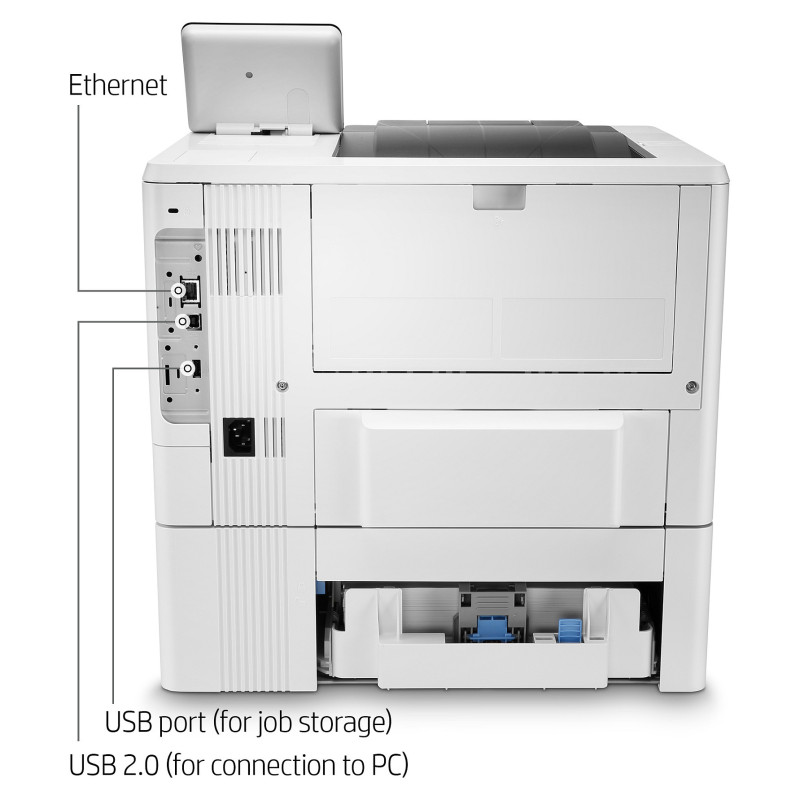

Standard interfaces: Ethernet, USB 2.0, Wireless LAN

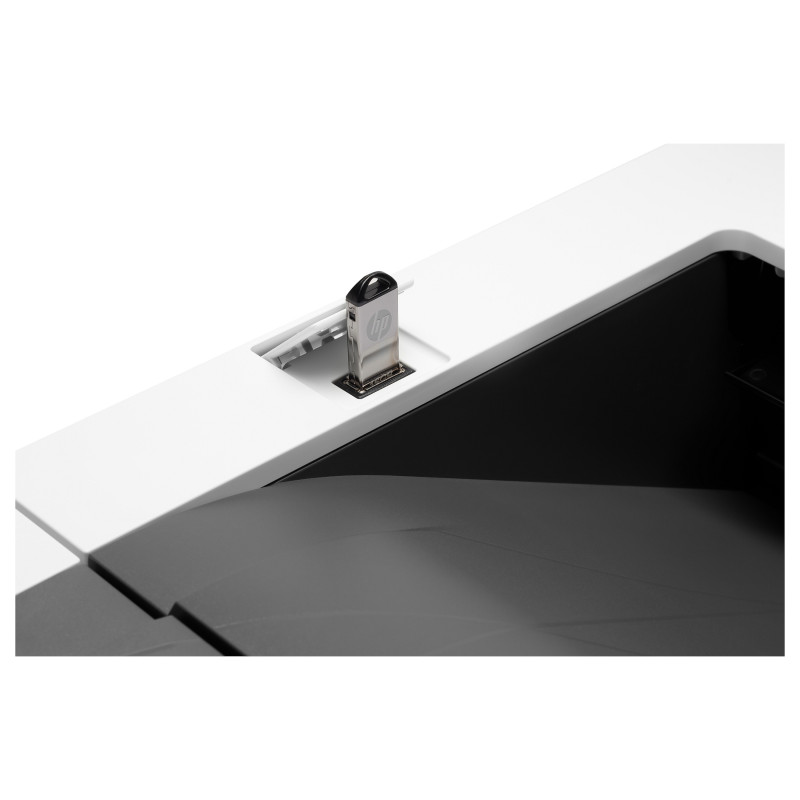

Direct printing: Yes
USB port: Yes
USB 2.0 ports quantity: 3
Optional connectivity: Ethernet, Wireless LAN

Network

Network ready: Yes
Wi-Fi: Yes
Ethernet LAN: Yes
Ethernet LAN data rates: 1000 Mbit/s
Wi-Fi Direct: Yes
Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth: Yes
Security algorithms: SNMPv3, SSL/TLS, EAP-PEAP, EAP-TLS, FIPS 140, HTTPS, IPSec
Mobile printing technologies: Mopria Print Service, HP ePrint, Apple AirPrint, Google Cloud Print

Performance

Internal memory: 512 MB
Maximum internal memory: 1536 MB
Memory slots: 1
Built-in processor: Yes
Processor frequency: 1200 MHz
Sound pressure level (printing): 54 dB
Sound power level (printing): 6.8 dB

Design

Market positioning: Business
Product colour: White
Built-in display: Yes
Display: CGD
Colour display: Yes

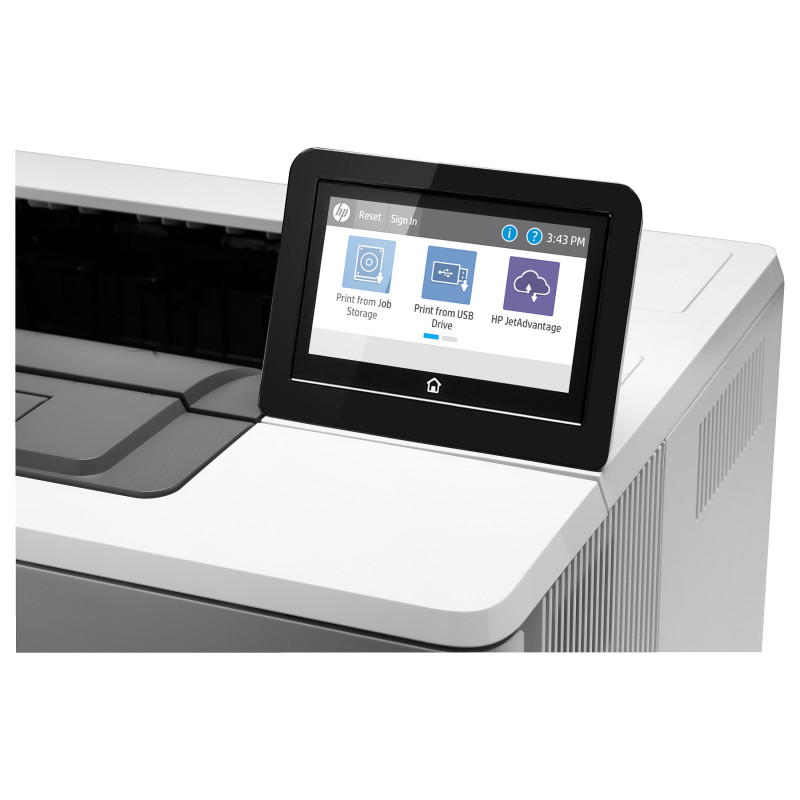

Display diagonal: 10.9 cm (4.3")

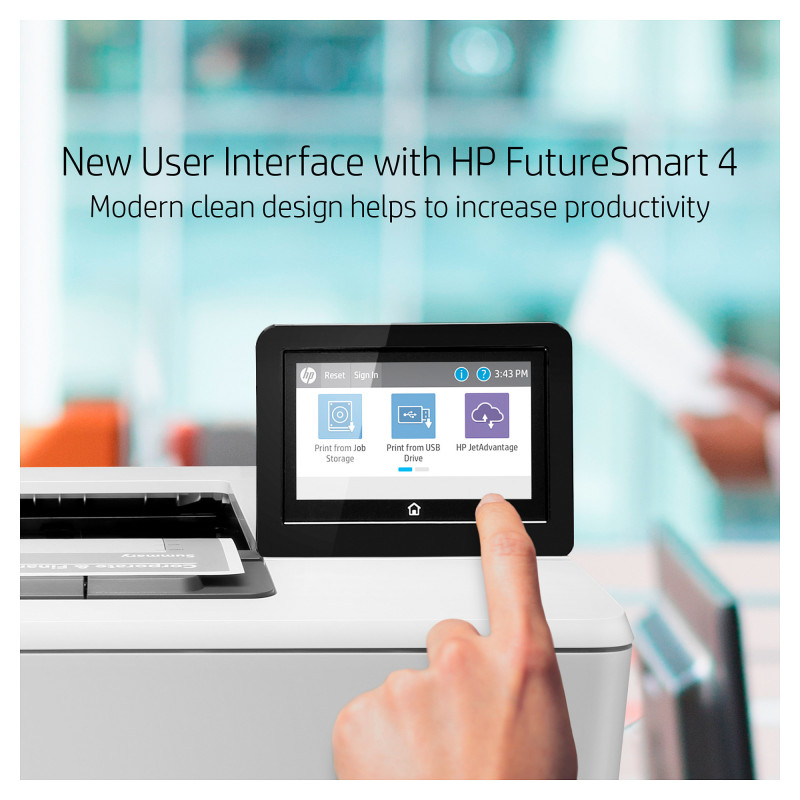

Touchscreen: Yes
Control type: Buttons, Touch
Certification: CISPR 22:2008 (International) - Class A, CISPR32:2012 (International) - Class A, EN 55032:2012 (EU) - Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EMC Directive 2014/30/EU, Issue 6 Class A. Other EMC approvals as required by individual countries.

Power

Power consumption (printing): 601 W
Power consumption (ready): 7.6 W
Power consumption (PowerSave): 0.06 W
Power consumption (off): 0.06 W
Energy Star Typical Electricity Consumption (TEC): 1.257 kWh/week
AC input voltage: 220 - 240 V
AC input frequency: 50/60 Hz

System requirements

Windows operating systems supported: Windows 7 Enterprise, Windows 7 Ultimate, Windows 7 Professional, Windows 7 Starter, Windows 7, Windows 8 Pro, Windows 8 Enterprise, Windows 8, Windows 8.1 Pro, Windows 8.1 Enterprise, Windows 8.1, Windows 10 Pro, Windows 10 Enterprise, Windows 10
Mac operating systems supported: Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, MacOS
Linux operating systems supported: Yes
Other operating systems supported: Android, iOS

Operational conditions

Operating temperature (T-T): 10 - 32.5 °C
Storage temperature (T-T): -20 - 40 °C
Operating relative humidity (H-H): 10 - 80%

Sustainability

Sustainability compliance: Yes
Sustainability certificates: ENERGY STAR, Blue Angel, EPEAT Silver
Sustainable technologies and materials: Mercury free
Doesn't contain: Mercury

Carbon footprint

Total carbon footprint (kg of CO2e): 140
Carbon emissions, manufacturing (kg of CO2e): 111
Carbon emissions, logistics (kg of CO2e): 5
Total carbon emissions, w/o use phase (kg of CO2e): 21

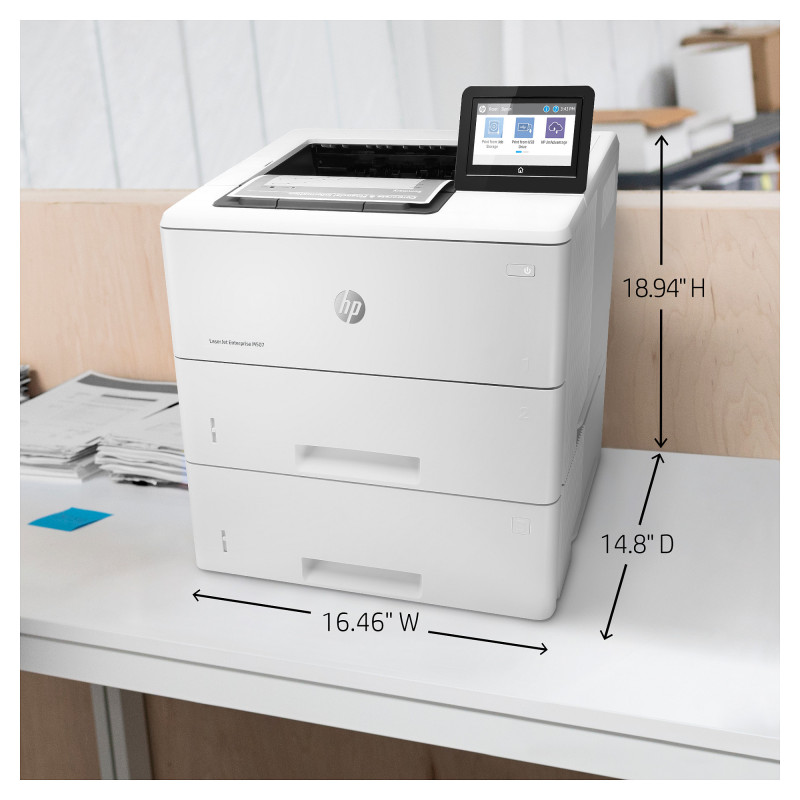

Weight dimensions

Width: 418 mm
Depth: 376 mm
Height: 481 mm
Pallet dimensions (W x D x H): 1200 x 1000 x 2476 mm
Weight: 16.3 kg

Packaging data

Package width: 671 mm
Package depth: 497 mm
Package height: 465 mm
Package weight: 22.6 kg

Packaging content

Warranty card: Yes
Cables included: AC
Quick installation guide: Yes

Brand-specific features

HP ePrint: Yes
HP Auto-On/Auto-Off: Yes
HP Dynamic security: Yes
HP Security tools: Identity management: Kerberos authentication; LDAP authentication; 1000 user PIN codes; Optional HP and 3rd party advanced authentication solutions (e.g.: badge readers); Network: IPsec/firewall with Certificate; Pre-Shared Key and Kerberos authentication; Supports WJA-10 IPsec configuration Plug-in; 802.1X authentication (EAP-PEAP; EAP-TLS); SNMPv3; HTTPS; Certificates; Access Control List; Data: Storage Encryption; Encrypted PDF Email (uses FIPS 140 validated cryptographic libraries from Microsoft); Secure Erase; SSL/TLS (HTTPS); Encrypted Credentials; Device: Security lock slot; USB port disablement; Hardware integration pocket for security solutions; Intrusion Detection with Red Balloon Security Technology - Constant in-device monitoring for attacks; SureStart Secure Boot - BIOS Integrity Checking with self-healing capability; Whitelisting - loads only known good code (DLLs, EXEs, ...); Connection Inspector - helps ensure network connections to device are safe; Security management: Compatible with HP JetAdvantage Security Manager; HP Printer Security Plugin for Microsoft SCCM; Device Security Syslog Messages processed and accessable in ArcSight, Splunk, and McAfee(ESM) SIEMs
HP GTIN (EAN/UPC) with options: (ABT) 192545078917; (ABY) 192545078924; (ACQ) 192545078931; (B13) 192545078948; (B19) 192545078955; (BAZ) 192545078962
HP GTIN (EAN/UPC): 192545078917, 192545078924, 192545078931, 192545078948, 192545078955, 192545078962

Logistics data

Harmonized System (HS) code: 84433210
Pallet gross weight: 299.6 kg
Layers per pallet: 5 pc(s)
Products per pallet: 15 pc(s)

Technical details

Master (outer) cases per pallet layer: 3 pc(s)
Compliance certificates: CECP
General Product Safety Regulation (GPSR) URL: https://support.hp.com/gb-en/product/setup-user-guides/hp-laserjet-enterprise-m507-series/model/19203859?sku=1PV88A ; https://h10032.www1.hp.com/ctg/Manual/c06187694.pdf

Other features

Recommended system requirements: 2 GB available hard disk space; Internet connection; USB port; Internet browser; for additional OS hardware requirements.2 GB available hard disk space; Internet connection or USB port; OS hardware requirements.
Recommended humidity operating range: 30 - 70%
Power supply type: Built-in 115V or 220V Power Supply
Recommended operating temperature range (T-T): 15 - 27 °C
Custom media sizes: Tray 1: 76.2 x 127 to 215.9 x 355.6 mm; Tray 2: 105 x 148 to 215.9 x 355.6 mm; Optional 550 sheet Tray: 105 x 148 to 215.9 x 355.6 mm
Envelope feeder: No
Electromagnetic compatibility: CISPR 22:2008 (International) - Class A, CISPR32:2012 (International) - Class A, EN 55032:2012 (EU) - Class A, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010, EMC Directive 2014/30/EU, Issue 6 Class A. Other EMC approvals as required by individual countries.
Compatible operating systems: Windows Client OS (32/64 bit), Win10, Win8.1, Win 8 Basic, Win8 Pro, Win8 Enterprise, Win8 Enterprise N, Win7 Starter Edition SP1, UPD Win7 Ultimate, Mobile OS, iOS, Android, Mac, Apple macOS Sierra v10.12, Apple macOS High Sierra v10.13, Apple macOS Mojave v10.14, Discrete PCL6 Printer Driver, For more information on the supported operating systems go to http://support.hp.com, Enter your product name and search, Click on User Guides and enter your product name and search for User Guide, Search for your (Product Name) - User Guide, Search for the Supported Operating Systems section, UPD PCL6 / PS Printer Drivers, Supported Operating systems, For more information on the supported operating systems see http://www.hp.com/go/upd
Acoustic power emissions (ready): 39 dB
Acoustic pressure emissions bystander (ready): 24 dB
Typical electricity consumption (TEC) number: Blue Angel: 1.257 kWh/Week; Energy Star 3.0: 0.420 kWh/Week
UNSPSC-code: 43212105

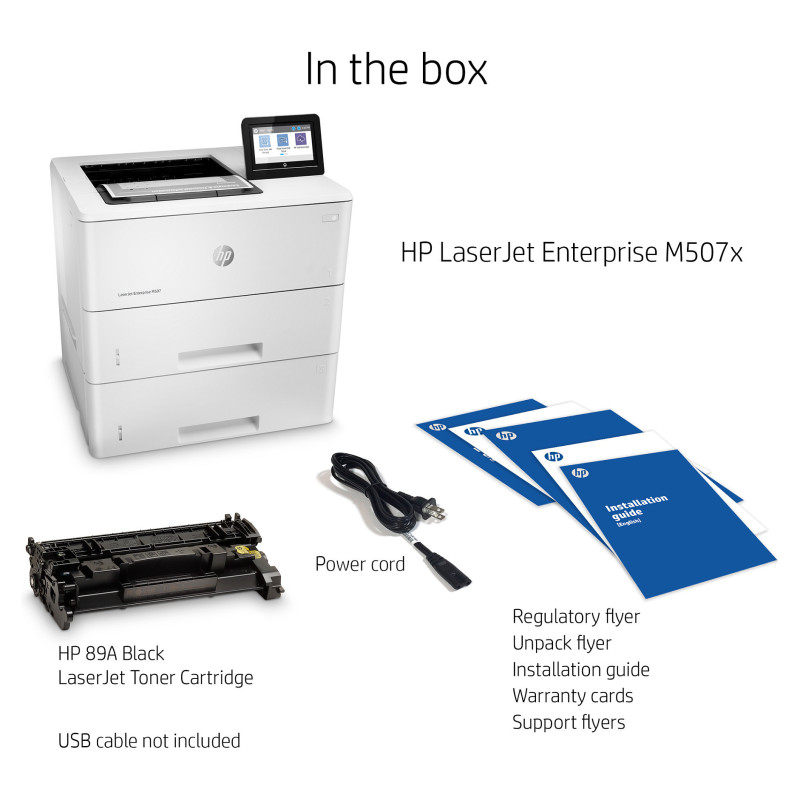

Box contents: HP LaserJet Enterprise M507x Printer; HP Original LaserJet Toner Cartridge (5,000 pages); Regulatory flyer (CD replacement); Unpack flyer; Installation guide; Power cord; Warranty cards; Support flyers/phone number list
Printing: Mono printing
Processor frequency: 1.2 GHz
Manufacturer warranty: One-year, next-business day, onsite warranty. Warranty and support options vary by product, country and local legal requirements.
